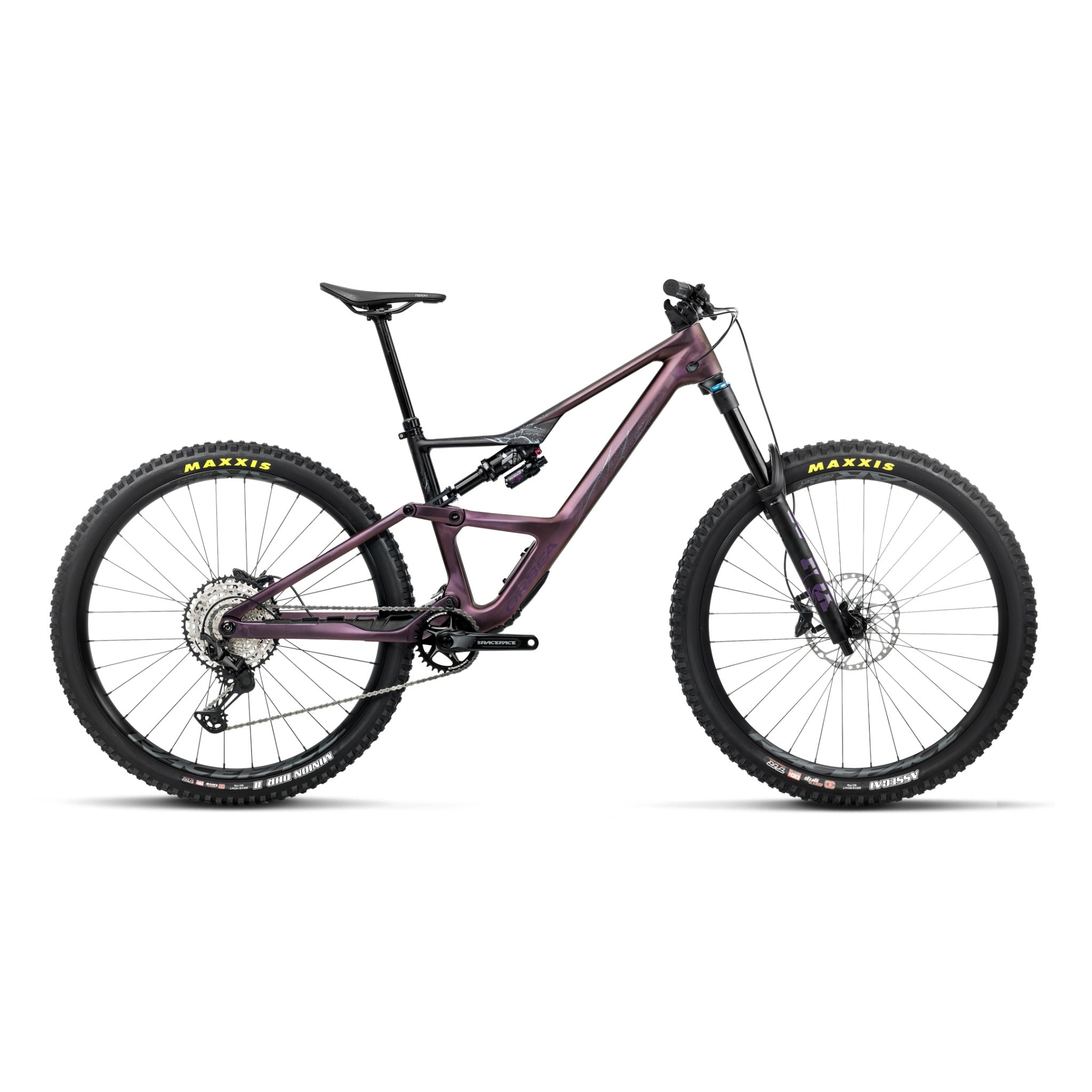

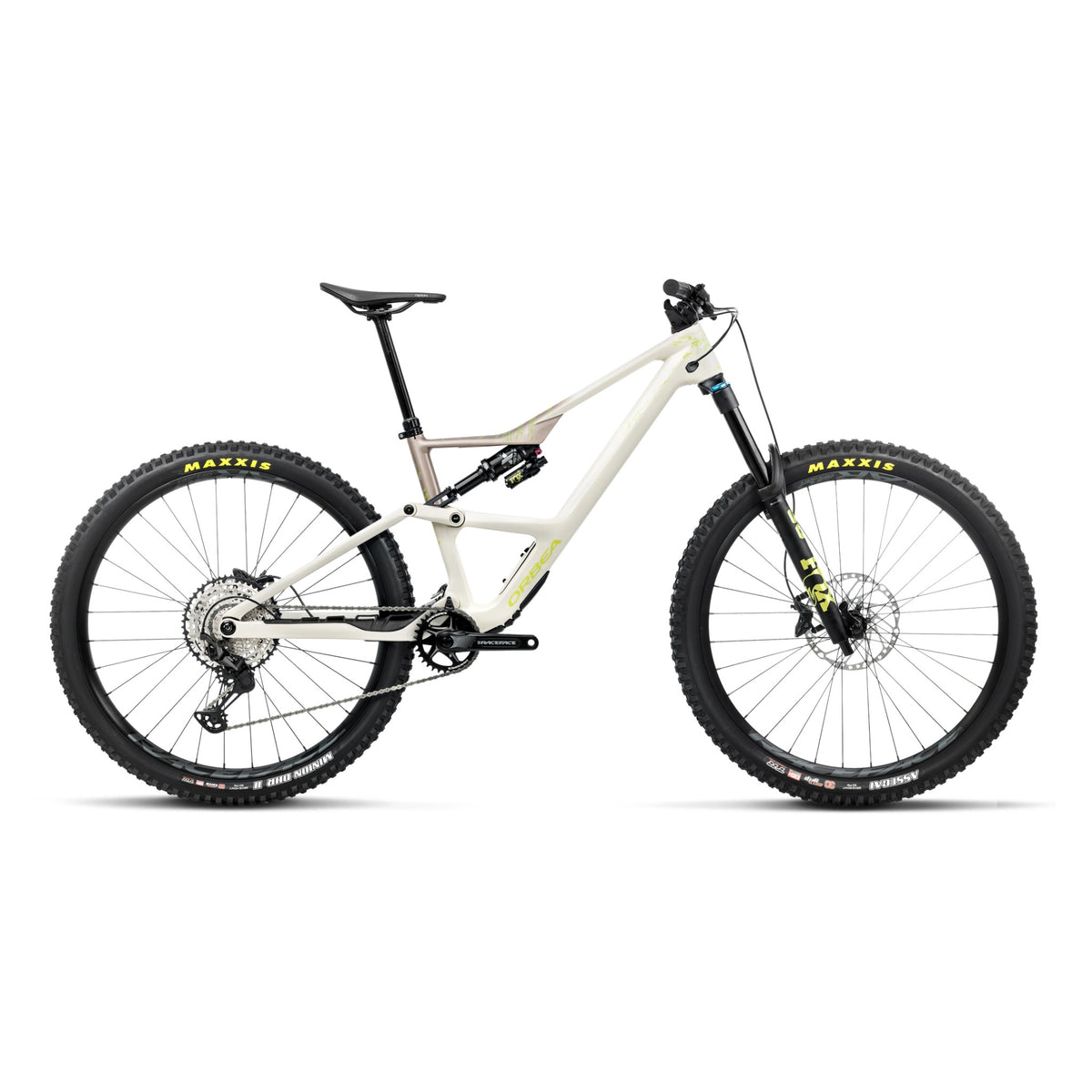

The Orbea Occam LT is a progressive trail bike, built to be ridden hard when the trail turns steep, fast and loose. It runs 160mm of fork travel and 150mm at the rear on a progressive, coil-friendly suspension platform (around 30% progressivity), so it soaks up big hits while still pedalling efficiently – Occam has always been known for climbing well, and that hasn't changed.

Progressive Trail geometry, the Attitude Adjust flip-chip (High to Low in seconds with the Quick Flip system) and an angle-adjustable headset let you tune it from flowing trail to a near-enduro setup, while a steep seat angle, room for a 230mm dropper, LOCKR storage, a pivot multitool and fully sealed bearings make it a hugely capable, low-fuss machine.

The Occam LT M30 is the most affordable route onto the lighter OMR carbon frame. The build closely mirrors the alloy H10 – Fox 36 Float Performance fork, Fox Float X Performance shock, full Shimano XT M8200 shifting and MT620 four-piston brakes – so you are effectively paying for the lower weight and refined ride of the carbon chassis. A smart choice if the frame matters most to you.

Features

• Carbon frame
• Fork: Fox 36 Float Performance 160, Grip 3-Pos, QR15x110
• Rear shock: Fox Float X Performance 2-Pos Evol LV custom tune 210x55mm
• Drivetrain: Shimano XT M8200 SGS Shadow Plus
• Brakes: Shimano MT620 Hydraulic Disc
• Wheels: Race Face AR 30c Tubeless Ready
• Tyres: Maxxis Assegai 2.50" 60TPI Fold 3C MaxxGrip Exo+ TR
• 160mm fork / 150mm rear travel – progressive, coil-friendly trail suspension (~30% progressivity)
• Attitude Adjust flip-chip (High/Low) plus angle-adjustable headset (±0.75°) to fine-tune the geometry
• 29" wheels, Pure Trail geometry and a steep 78° seat angle for efficient climbing
• Room for up to a 230mm dropper post (Steep 'n' Deep design)
• LOCKR in-frame storage, Fully Loaded Pivot multitool, fully sealed bearings and Second Skin paint protection
