The Orbea Diem is a premium, award-winning city e-bike built to make the daily commute a pleasure rather than a chore. Its patented Diamond Glide alloy frame flexes vertically to smooth out rough streets and, combined with a carbon fork and wider tyres, delivers a genuinely comfortable, composed ride, with the weight kept low and central for confident handling through traffic.
A Shimano EP drive unit gives 85Nm of instant, intuitive power, drawn from a large internal battery (540Wh or 630Wh, plus an optional 252Wh Range Extender) that most riders will charge less than once a week. Choose from three drivetrains – automatic Enviolo with belt drive, Shimano's low-maintenance Inter-5 belt-drive hub, or a 9-speed Shimano CUES chain – alongside fully integrated StVZO lighting, a reactive brake light, dropper post, integrated kickstand, mudguards and rack options up to 30kg.
The Diem 30 is the most affordable way onto the Diem platform, keeping the comfortable, practical city e-bike experience. It uses Shimano Cues U4000 GS Shadow gearing and Shimano MT200 Hydraulic Disc brakes, powered by a Shimano EP600 drive unit with an Orbea Internal 540Wh battery.
Features
- Aluminium frame
- Motor: Shimano EP600 with Orbea Internal 540Wh battery
- Gearing: Shimano Cues U4000 GS Shadow
- Brakes: Shimano MT200 Hydraulic Disc
- Tyres: Schwalbe Marathon, 50-622, Reflective Tape
- Award-winning city e-bike with a patented Diamond Glide flex frame for comfort
- Shimano EP drive unit – 85Nm of instant, intuitive power
- Large internal battery (540Wh or 630Wh) plus an optional 252Wh Range Extender – often a week between charges
- Three drivetrain options: automatic Enviolo with belt, Shimano Inter-5 belt-drive hub, or 9-speed CUES chain
- Carbon fork and wide, puncture-resistant tyres for a smooth, secure ride
- Fully integrated StVZO lighting with a reactive, brighter-under-braking rear light
- Dropper post, integrated kickstand, mudguards and AirTag-ready security
- Rack options up to 30kg (MIK HD) and trailer compatibility, backed by Orbea's lifetime warranty
Specifications
Discipline Electric City
Material Aluminium
Wheel Size 700c
Warranty Lifetime (frame)
Frame - Orbea Diem 2025, Diamond glide, Hydroformed Alloy 6061, High Polished, OLD 135x9 / OLD 142x12, Orbea cockpit and equipment ecosystem, w/ Custom Kickstand, Trailer compatible.
Fork - Orbea Diem carbon fork, full carbon, 1" 1/8 - 1" 1/5 , post mount disc mount, Thru Axle 12x100mm, thread M12x1. Mudguard and Framelock compatible.
Headset - FSA 1-1/2" Integrated Aluminium Cup
Handlebar - Orbea Urban, Integ. light, Backsweep 30, Rise 50, Width 720
Brakes - Shimano MT200 Hydraulic Disc
Gears - Shimano Cues U4000 GS Shadow
Shifters - Shimano Cues SL-U4000
Cassette - Shimano CS-LG300 11-46t 9-Speed
Chain - KMC eGlide
Crank - Shimano Steps EM600
Wheels - Alloy, 26c, 32H
Tyres - Schwalbe Marathon, 50-622, Reflective Tape
Seatpost - Alloy, 31.6mm, Setback 0
Mudguard - Curana Apollo Orbit 60mm
Battery - Orbea Internal 540Wh
Motor - Shimano EP600
Display - Shimano EN500
Charger - Orbea 2.Generation eBike Smart charger 42V/2-4A

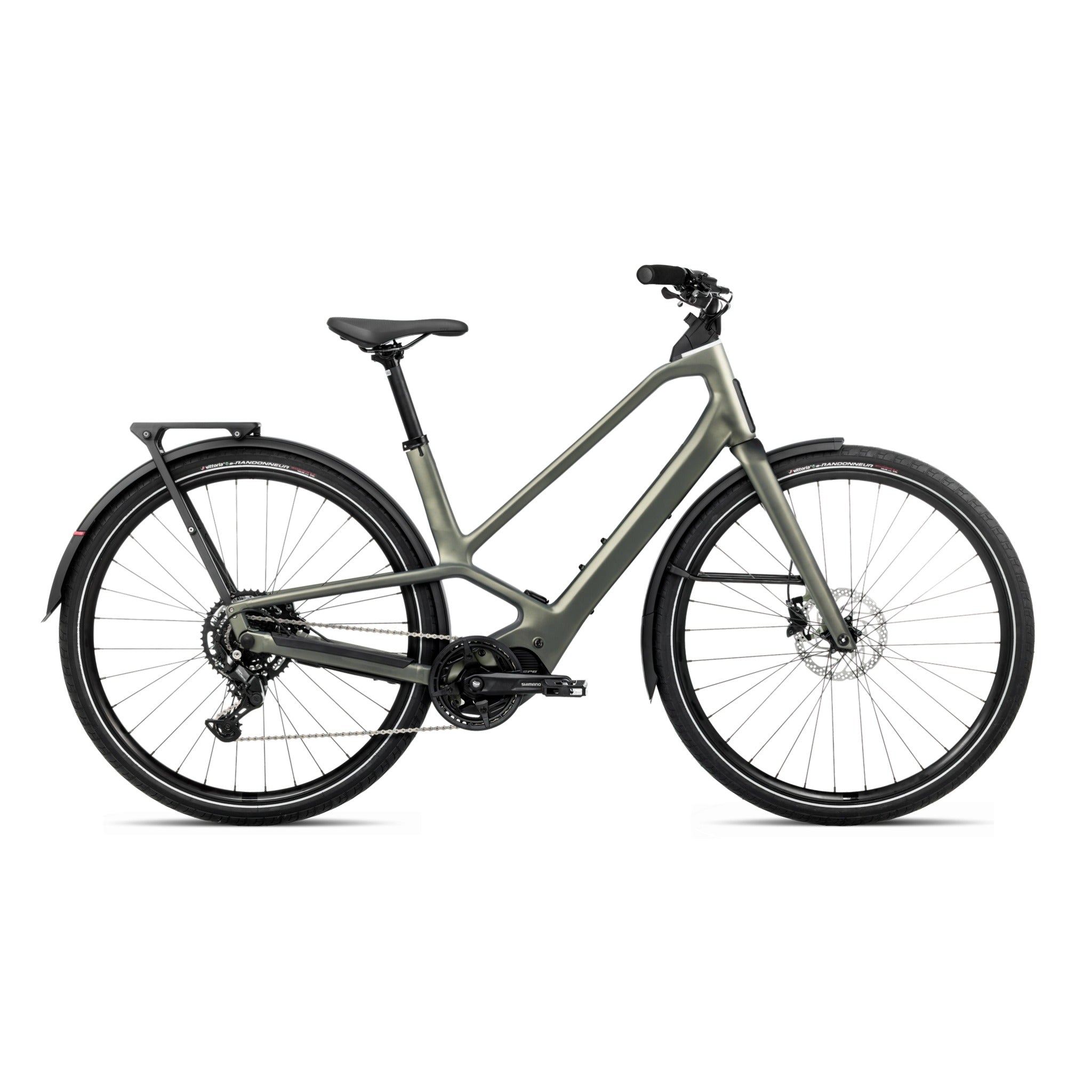

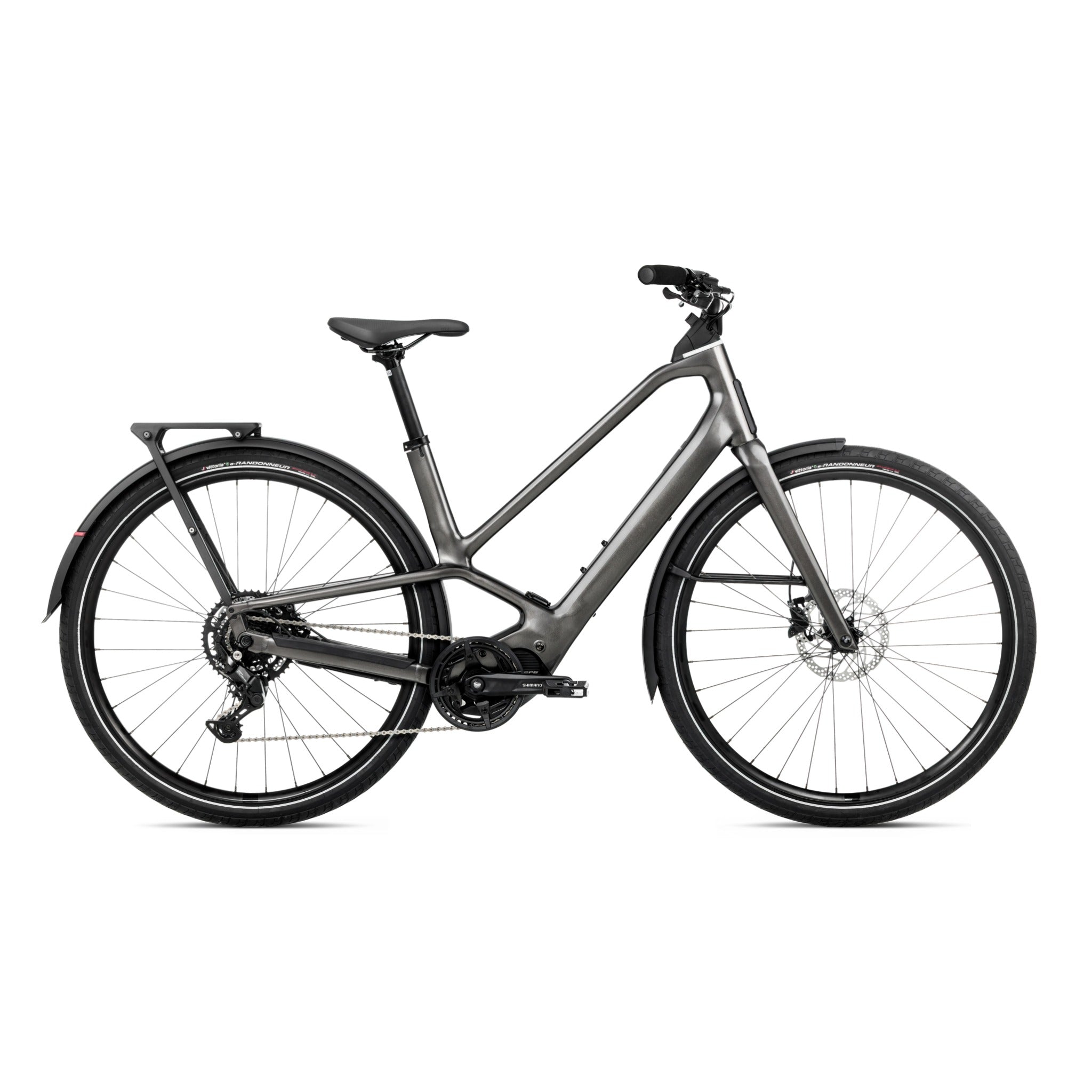

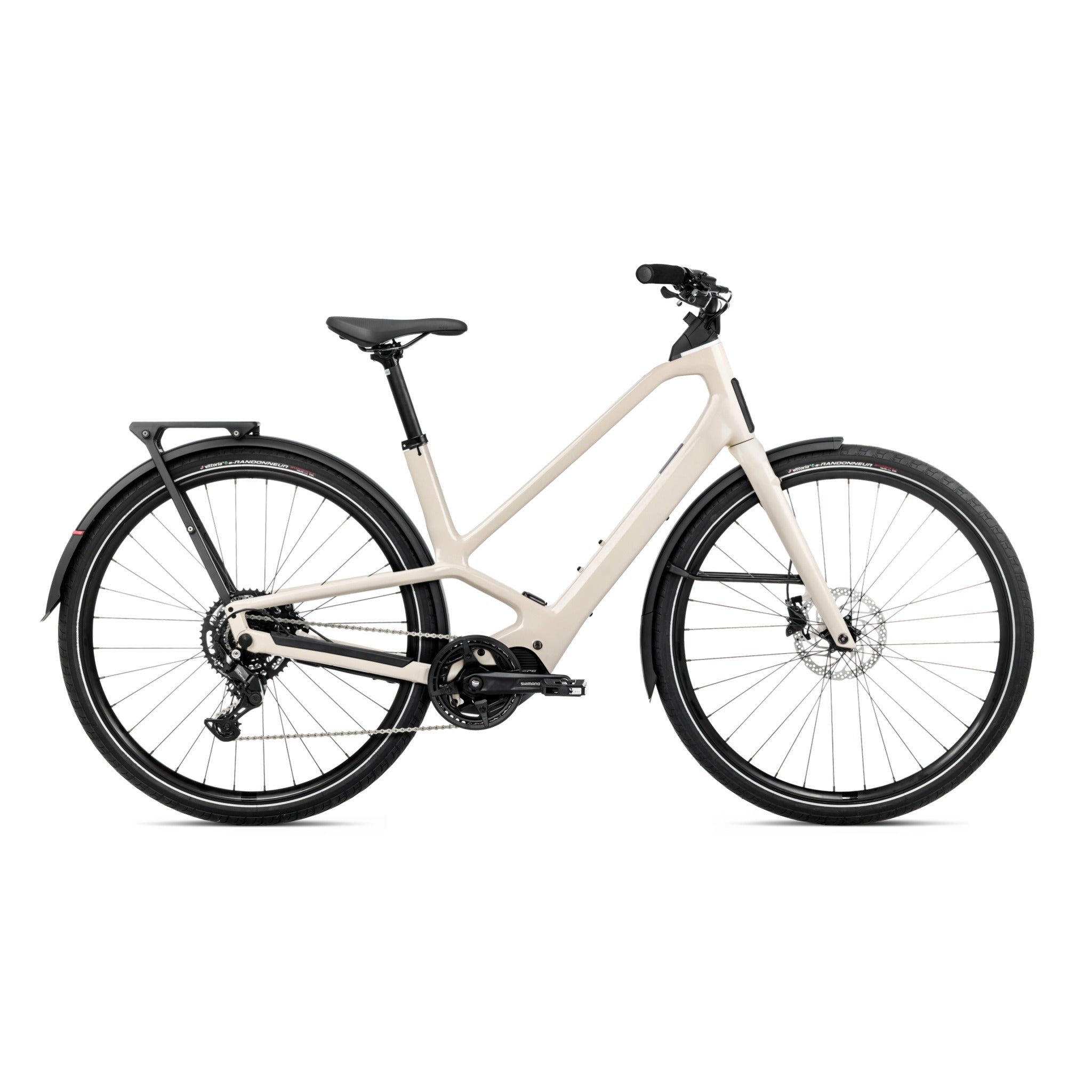

Diem 30 2027
