The Orbea Denna is a lightweight electric gravel bike, giving you a natural, road-like ride with a quiet, discreet boost when you want it. The slim frame hides a Shimano drive unit and an internal 420Wh battery, keeping the look clean and the weight low, so it rides like a gravel bike first and an e-bike second.
With drop-bar gravel geometry, generous tyre clearance and full internal routing, Denna is at home on backroads, gravel and the daily commute alike. The assistance simply extends your range and flattens the climbs, so you can go further and explore more.
The Denna M10i is a high-end Denna build with a premium, fast-riding spec. It pairs Shimano XT M8260 SGS shifting with Shimano R9270 Hydraulic Disc brakes on Oquo Road Performance RP50TEAM. Power comes from a Shimano EP801 drive unit with an Orbea Internal 420Wh battery.
Features
- Carbon frame
- Motor: Shimano EP801 with Orbea Internal 420Wh battery
- Drivetrain: Shimano XT M8260 SGS
- Brakes: Shimano R9270 Hydraulic Disc
- Wheels: Oquo Road Performance RP50TEAM
- Tyres: Pirelli P ZERO™ Race RS TLR, 700x30c
- Lightweight electric gravel platform with a natural ride feel
- Shimano drive unit with an internal 420Wh battery
- Discreet, integrated motor and battery for a clean look
- Drop-bar gravel geometry with generous tyre clearance
- Full internal cable routing
- Extra range and easier climbs for bigger days
Specifications
Discipline Electric Gravel
Material Carbon
Wheel Size 700c
Warranty Lifetime (frame)
Frame - Orbea Denna, Thru Axle 12mm x 142mm rear, thread M12xP1, internal cable routing.
Fork - Orbea Denna OMR ICR, full carbon, 1-1/8" - 1,5" tappered head tube compatible, Thru axle 12x100mm, thread M12xP1
Headset - FSA 1-1/2" Integrated Aluminium Cup
Stem - OC Road Performance RP10, -8º
Handlebar - OC Road Performance RP11 Carbon, Reach 80, Drop 125, w/Di2 hole
Brakes - Shimano R9270 Hydraulic Disc
Rear Derailleur - Shimano XT M8260 SGS
Shifters - Shimano R9270
Cassette - Shimano CS-M8200 10-51t 12-Speed
Chain - Shimano M6100
Chainguide - Orbea eBike chainguide
Crank - Shimano Steps EM600
Wheels - Oquo Road Performance RP50TEAM
Rear Hub - Orbea Thru Axle 12x142mm M12xP1 Solid inner threaded
Front Hub - Orbea Thru Axle 12x100mm M12xP1 Hollow
Tyres - Pirelli P ZERO™ Race RS TLR, 700x30c
Seatpost - OC Performance XP10 Carbon, 27.2mm, Setback 0
Saddle - Selle San Marco Shortfit 2.0 Start Up Off Road Xilite
Battery - Orbea Internal 420Wh
Motor - Shimano EP801
Charger - Orbea 2.Generation eBike Smart charger 42V/2-4A
Remote - EN600-L
Handlebar Plugs - OC Components

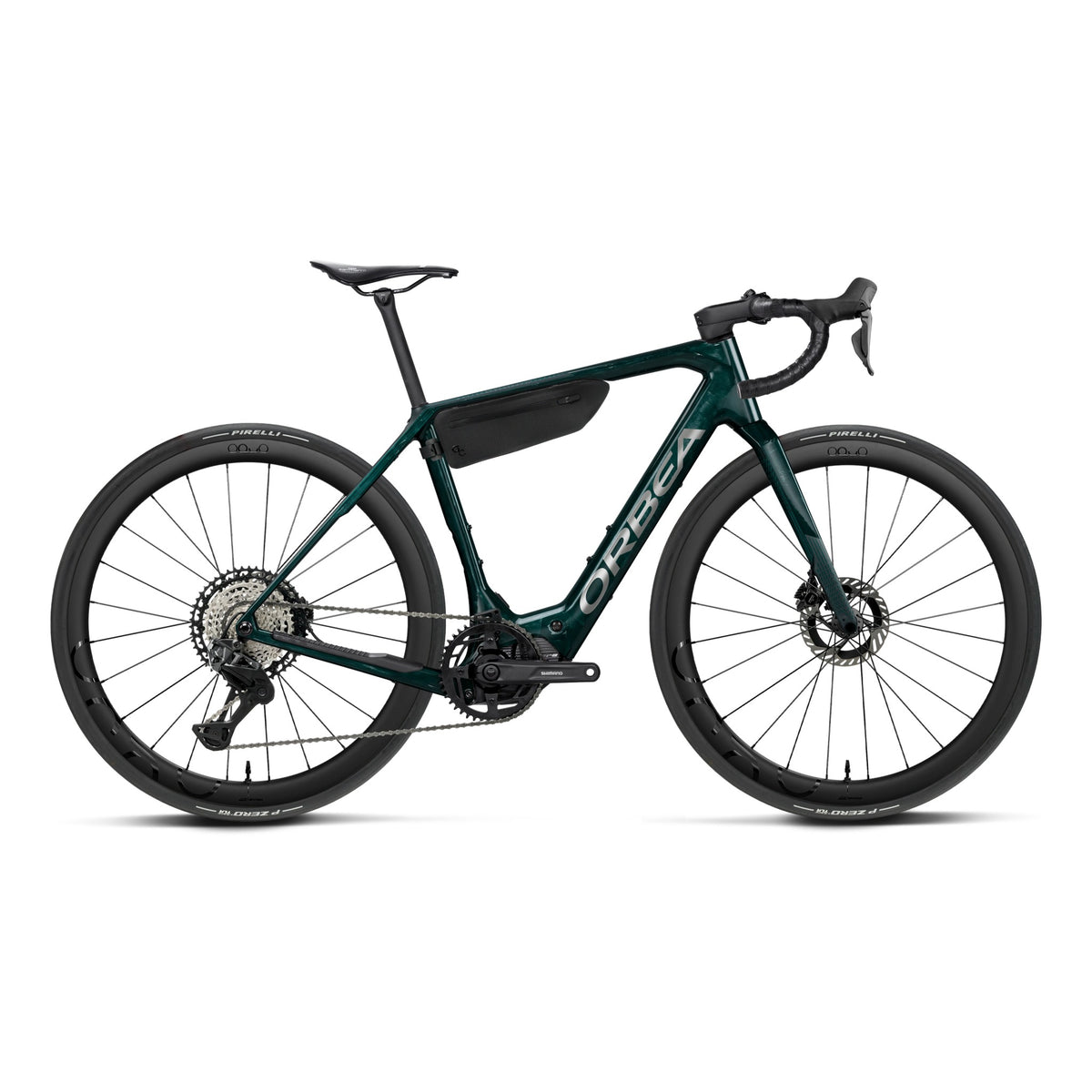

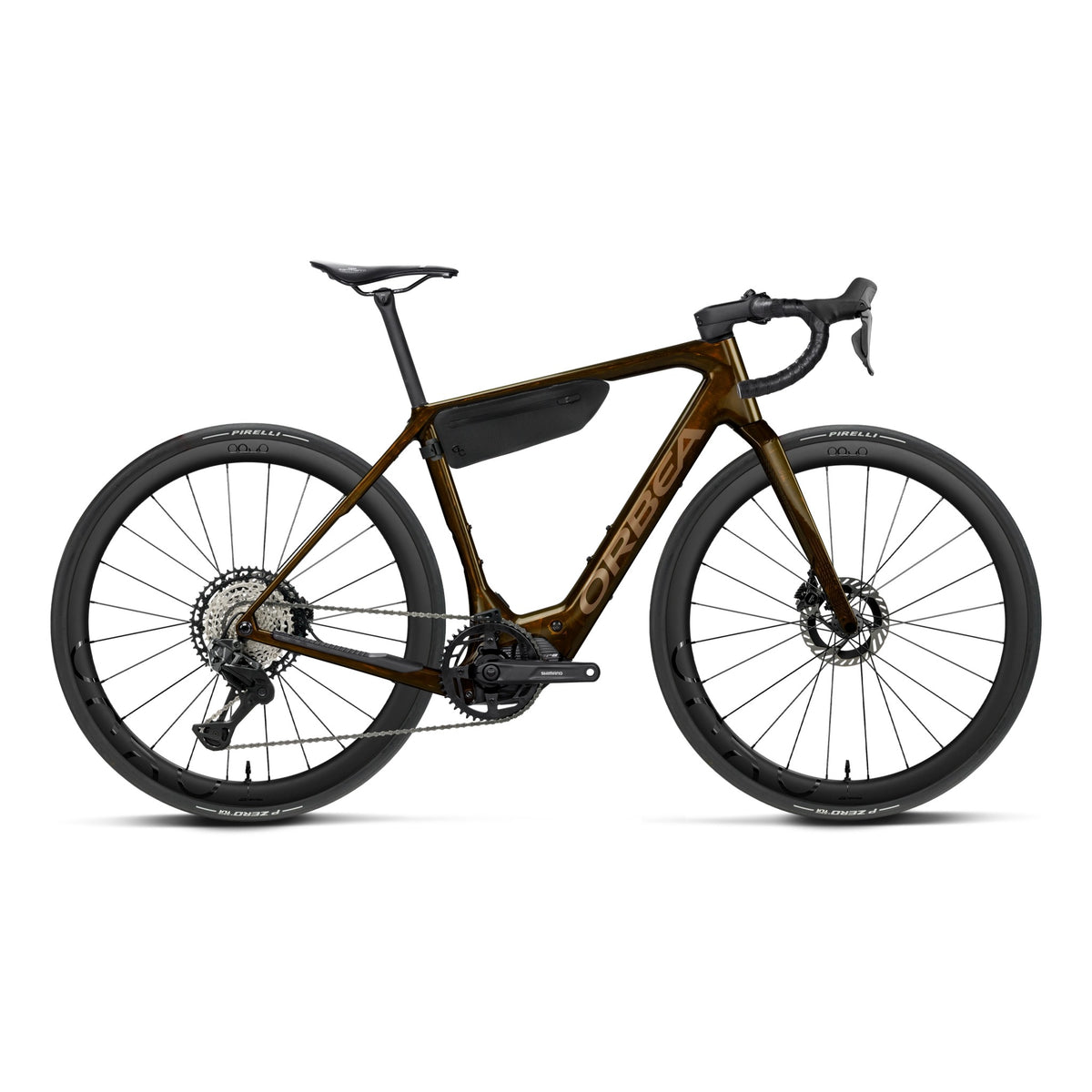

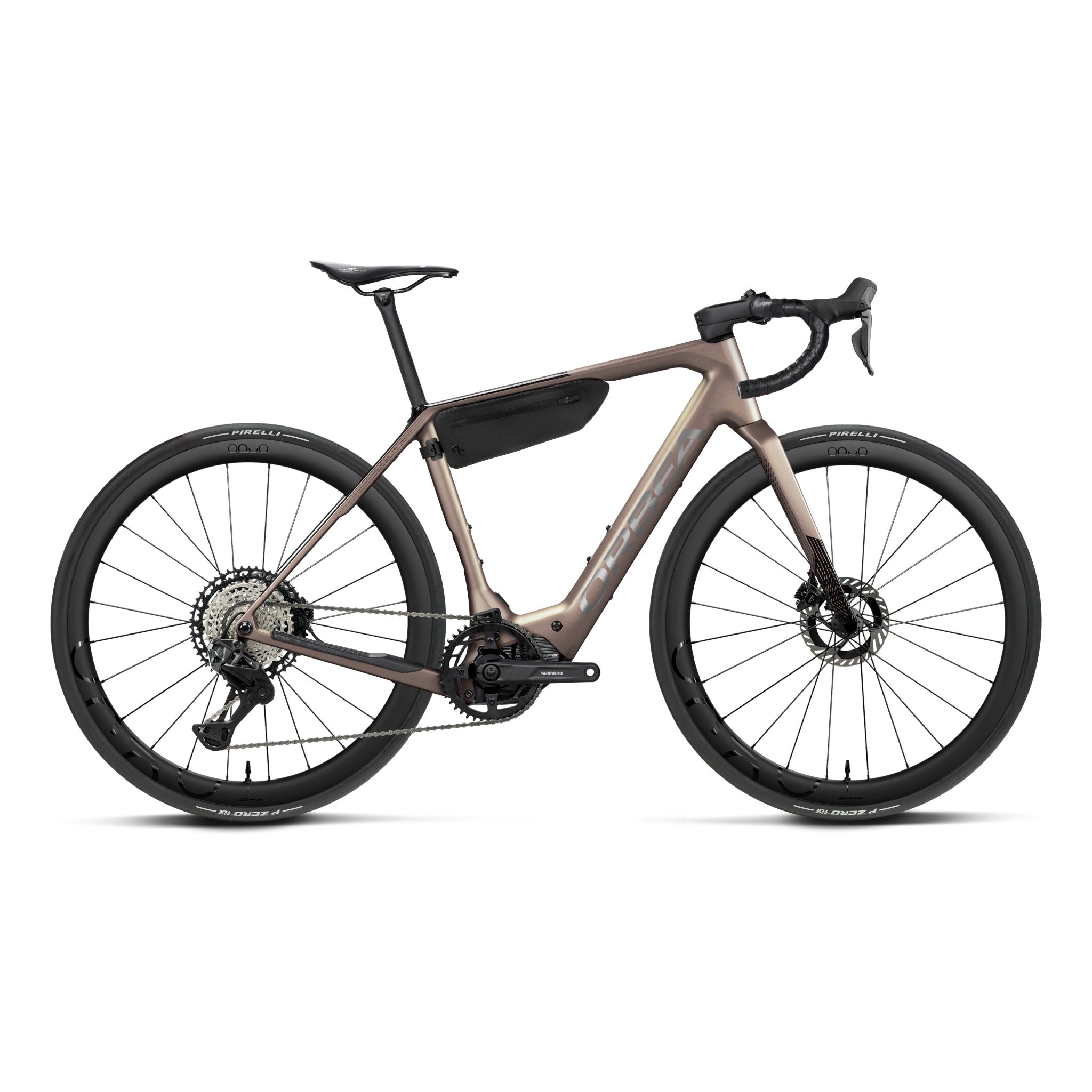

Denna M10i 2027
