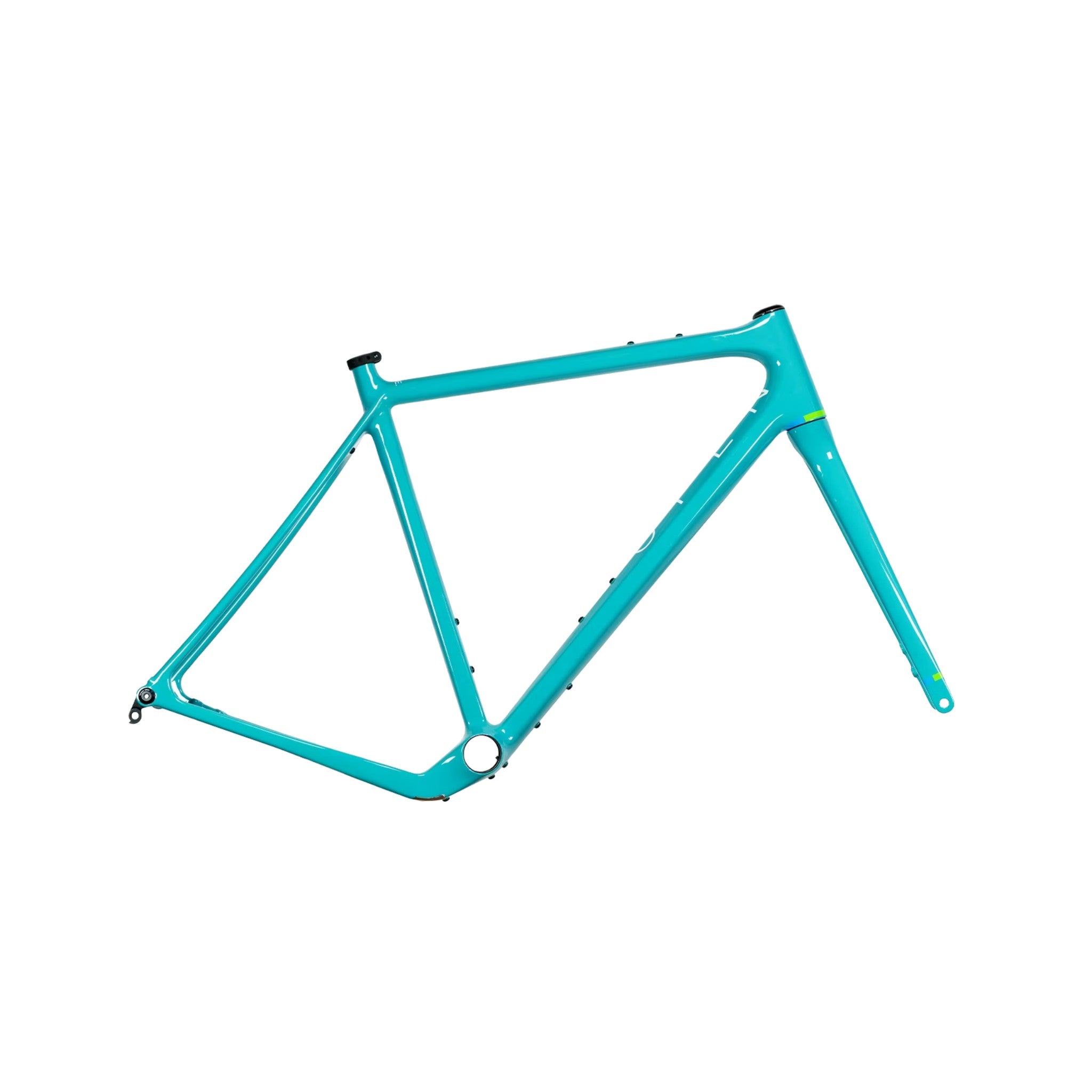

The WI.DE. (Winding Detours) is OPEN's extreme gravel frameset, combining massive tyre clearance with road bike geometry for the ultimate off-road speed machine. Huge tyres help you conquer the roughest terrain, performance geometry and a narrow Q-factor keep you efficient, and the steering geometry keeps it nimble on tricky surfaces and in poor conditions.
It runs either 700c wheels with gravel tyres up to 46mm, or 650b wheels with gravel or 27.5" mountain bike tyres up to 2.4" (61mm). The kit includes the frame, U-Turn fork, headset, seat collar, Carbon-Ti thru-axles, two derailleur hangers, three MultiStops for 1x, Di2 and eTap set-ups, a chainstay cable exit and noise-reduction foam sleeves.
Get in touch at support@biketart.com to discuss components or to arrange your own full custom build.
Features
- Extreme gravel frameset with road bike geometry
- Clearance for 700c x 46mm or 650b x 2.4" (61mm) tyres
- Narrow Q-factor for efficient pedalling
- 1x specific, with MultiStops for 1x, Di2 and eTap
- Superlight Carbon-Ti X-12 thru-axles front and rear
- Multiple bottle cage mounts including under-downtube and under-BB
Specifications
DisciplineGravel
Wheel Size700c /
650b
Included - WI.DE. frame, U-Turn fork, headset, seat tube collar, Carbon-Ti thru-axles front and rear, 2 derailleur hangers, 3 MultiStops (1x, Di2, eTap), chainstay cable exit, noise-reduction foam sleeves
Bottom Bracket - BB386EVO pressfit, 86.5x46mm shell
Crank Compatibility - Shimano all-road cranks; SRAM all DUB road, Force 1 BB30
Front Derailleur - None, 1x drivetrain standard
Max 1x Chainring - 46t flat (crank dependent) / 42t SRAM offset
Min 1x Chainring - 38t
Front Axle - 100x12mm Carbon-Ti X-12
Rear Axle - 142x12mm Carbon-Ti X-12
Rotor Size - 160mm front and rear only
Headset - Integrated IS42/28.6 | IS52/40, 45x45° lower bearing
Seatpost - 27.2mm, zero offset standard
Tyre Clearance - 700c x 46mm / 650b x 2.4" (61mm)
Cage Mounts - Seat tube, down tube, under down tube, under BB
WI.DE. Frameset
