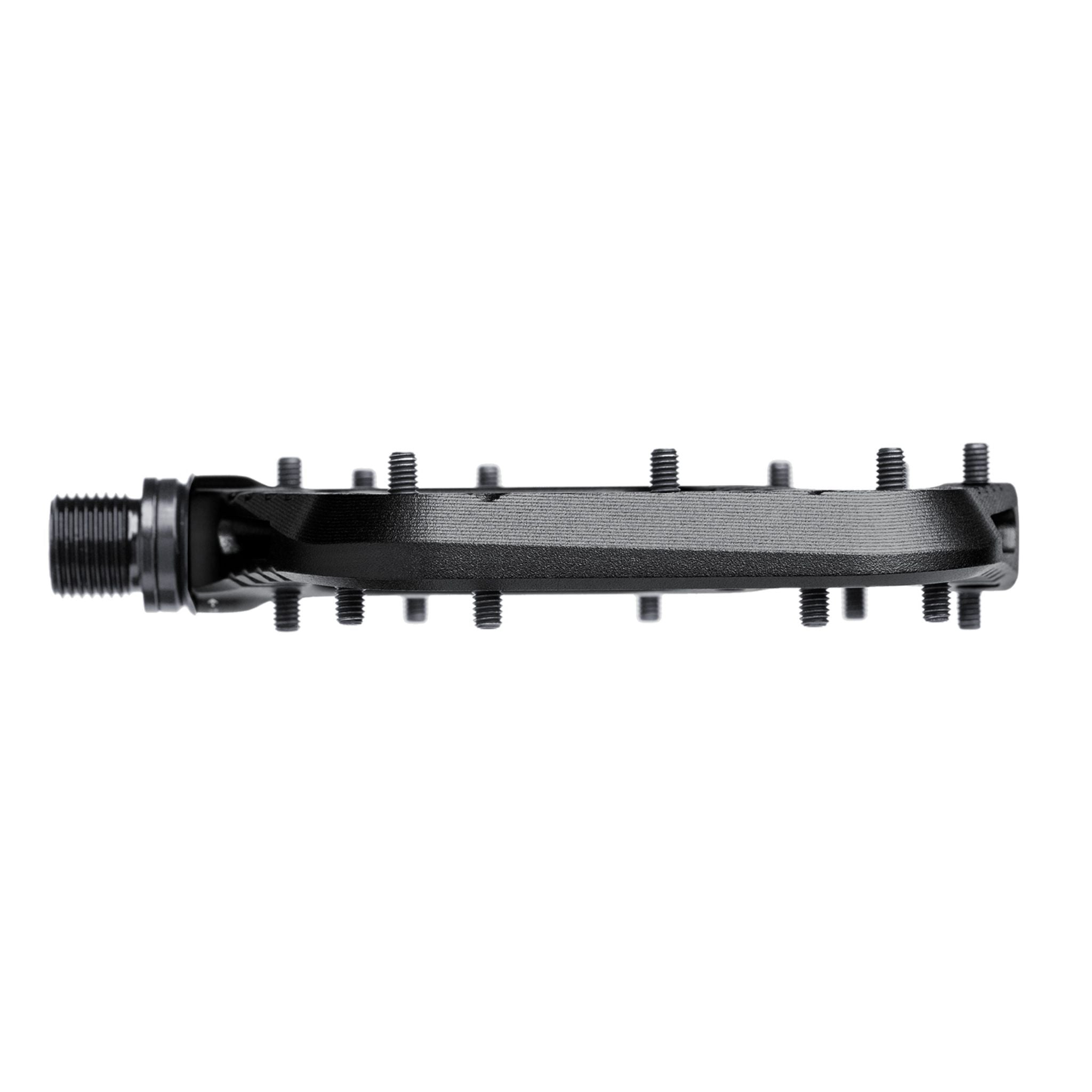

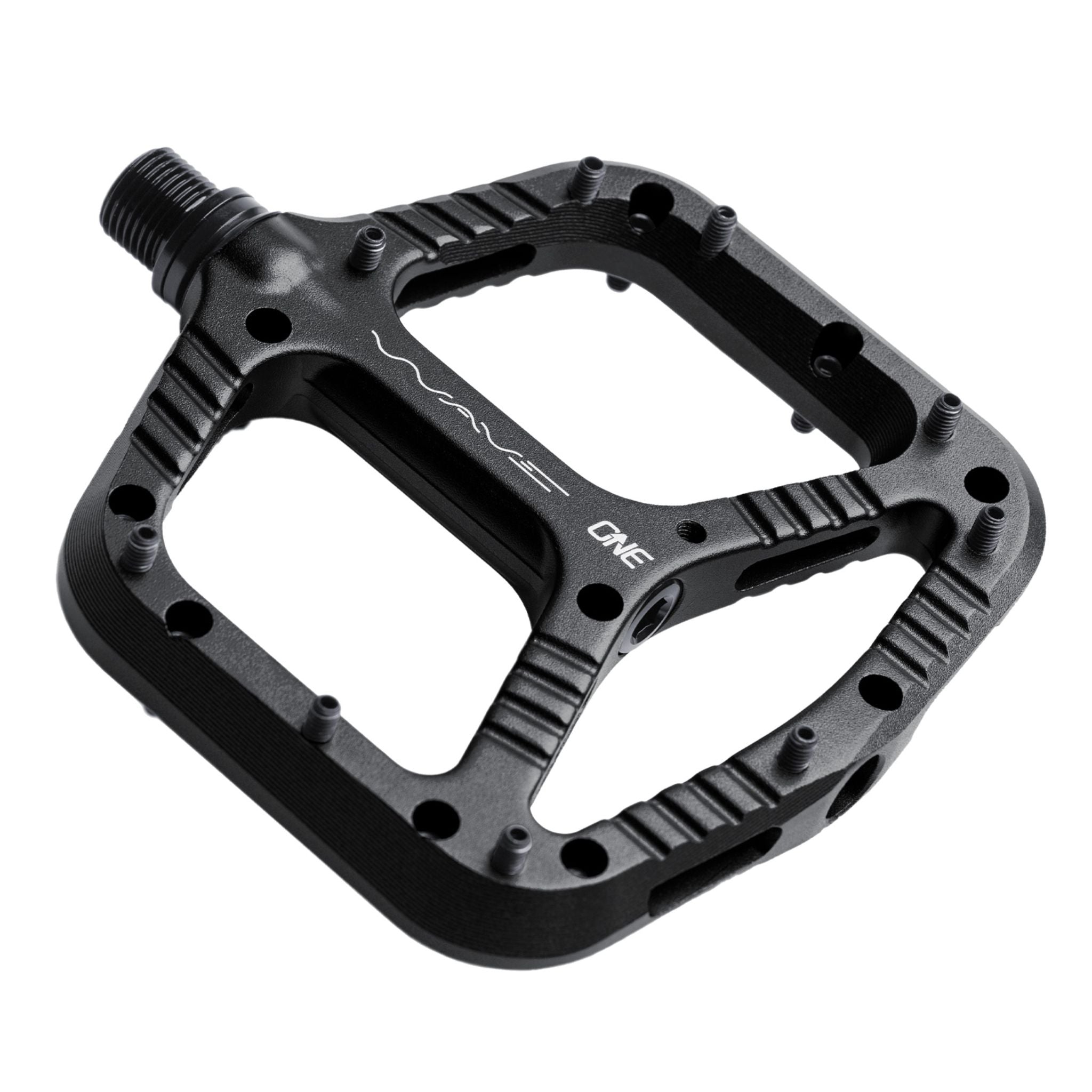

Shaped like a wave, OneUp Components new Wave pedals are tall at the front and sloped towards the back. This promotes an aggressive heels-dropped riding position and gives you a more natural pedal stroke when seated.

Wave pedals work with the shape of your foot to give you more control and more grip from the pedal, not just the pins. The concave front half of the pedal hugs the ball of your foot, holding it securely in place on rough descents. The convex back half of the pedal is sloped down, giving you an aggressive heels-down riding position for more power and control.

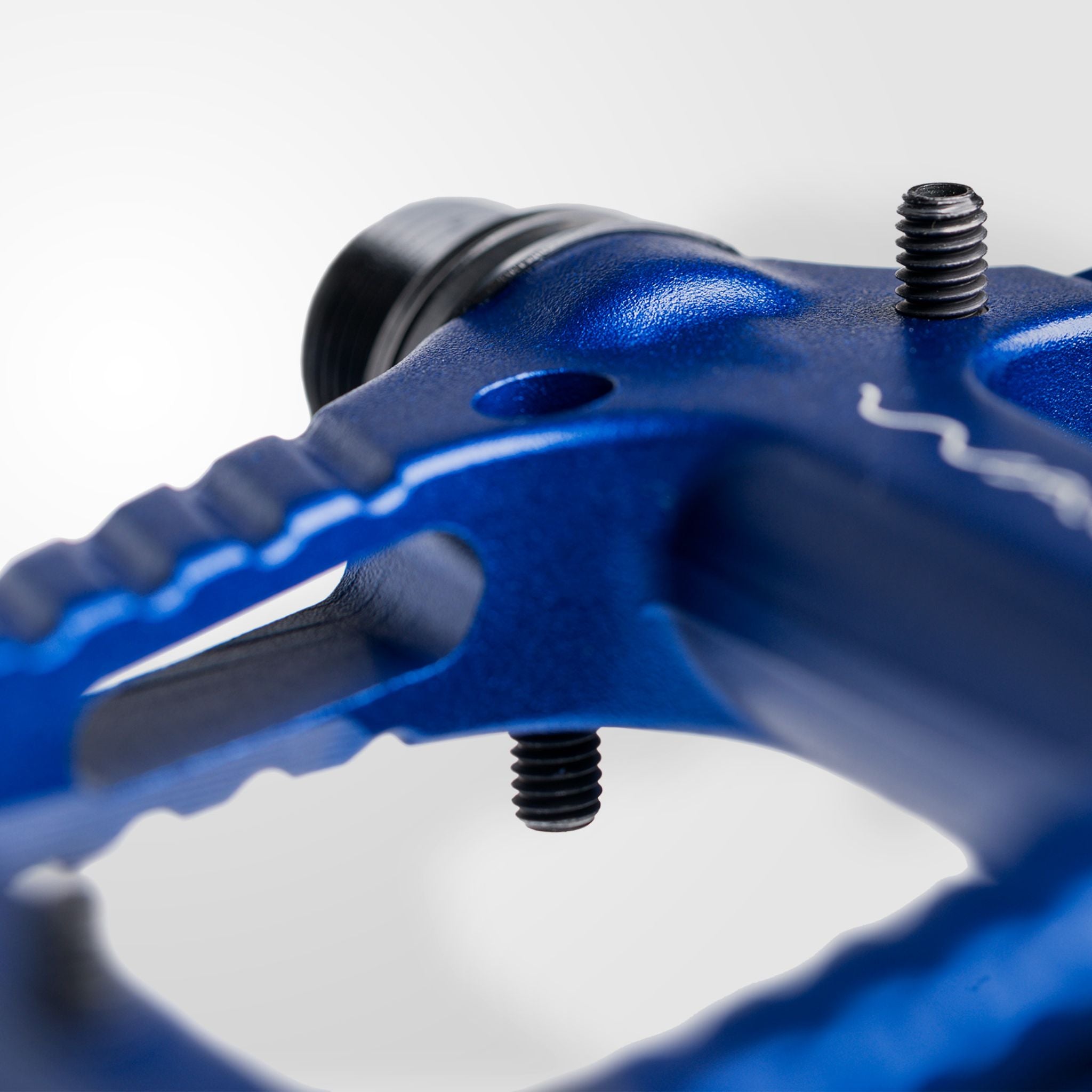

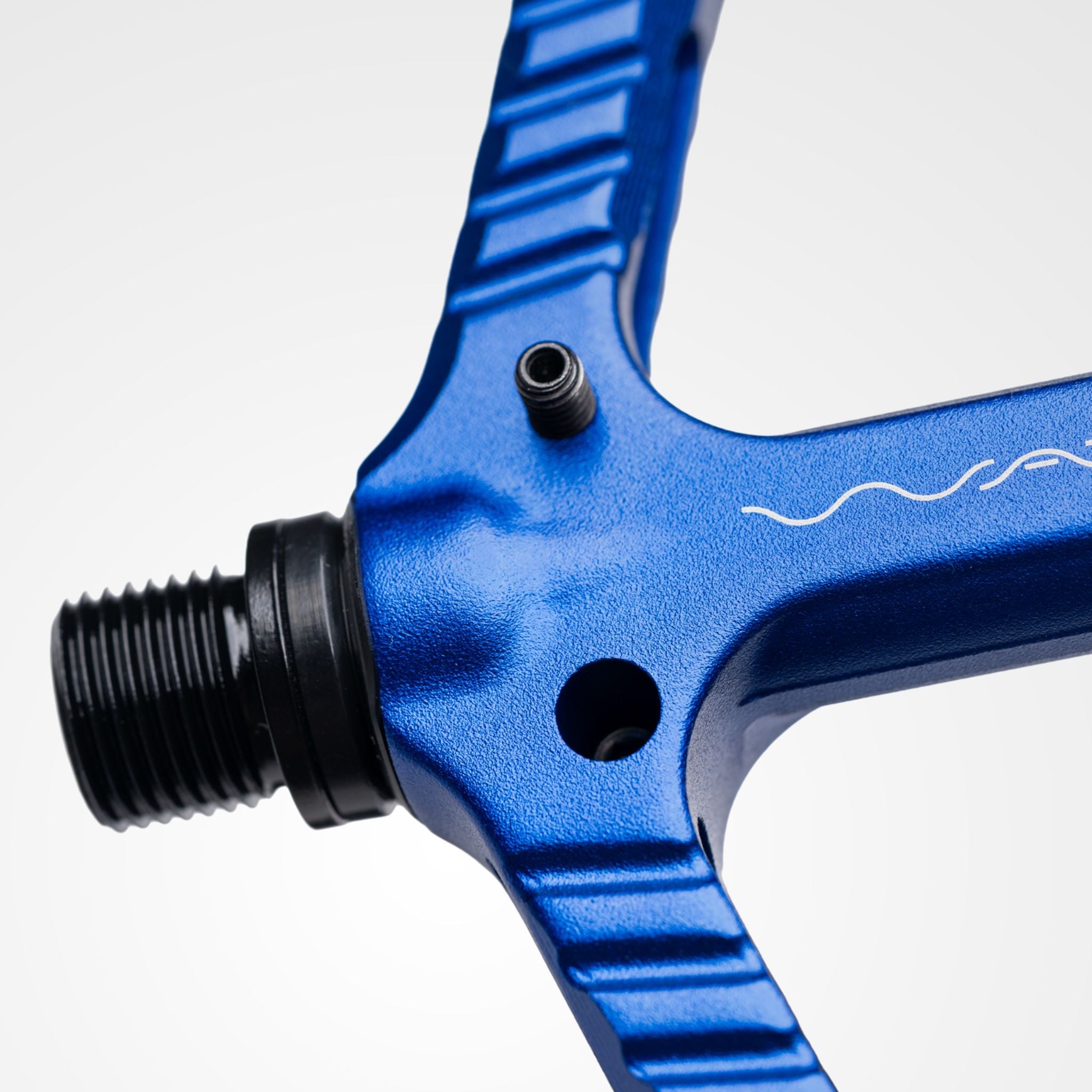

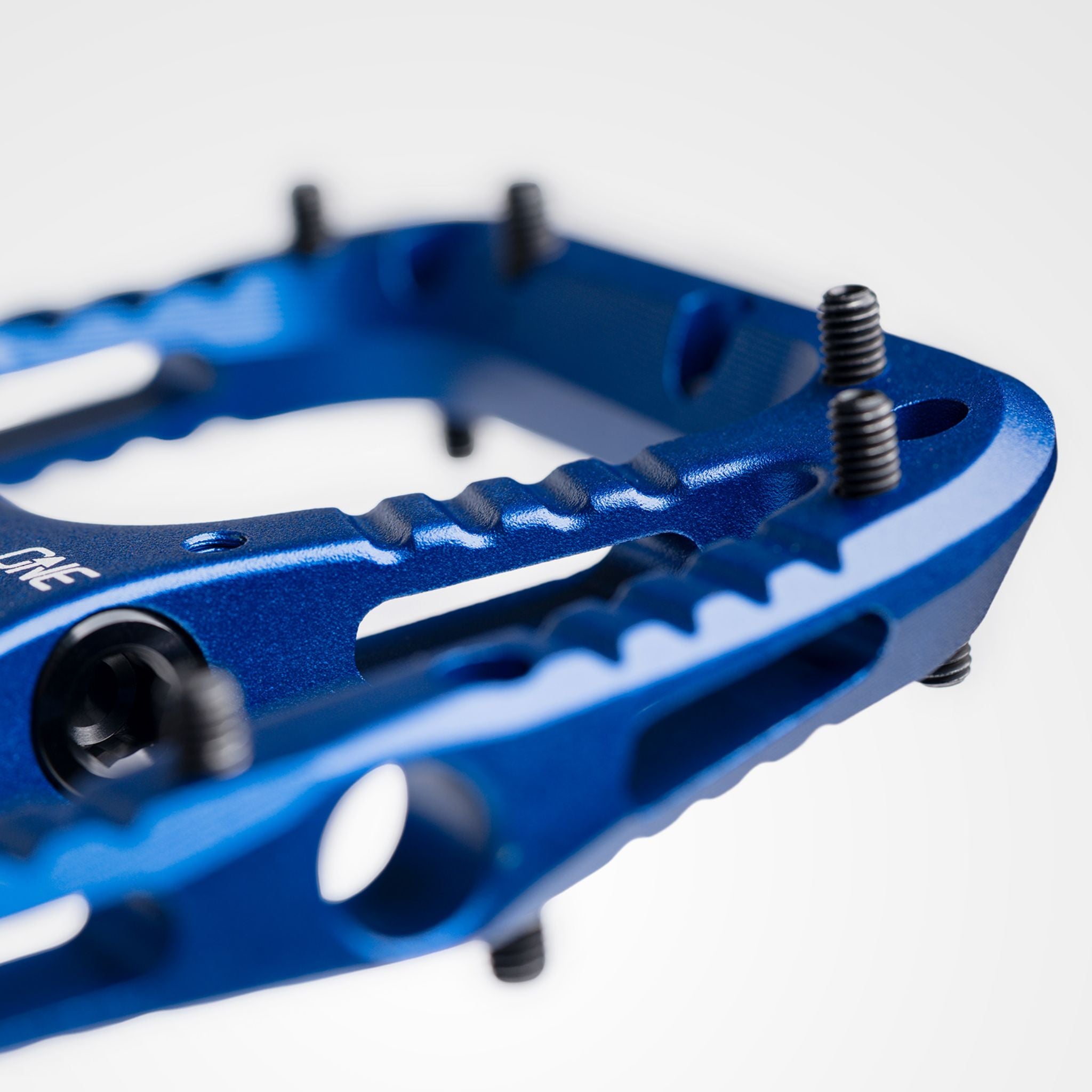

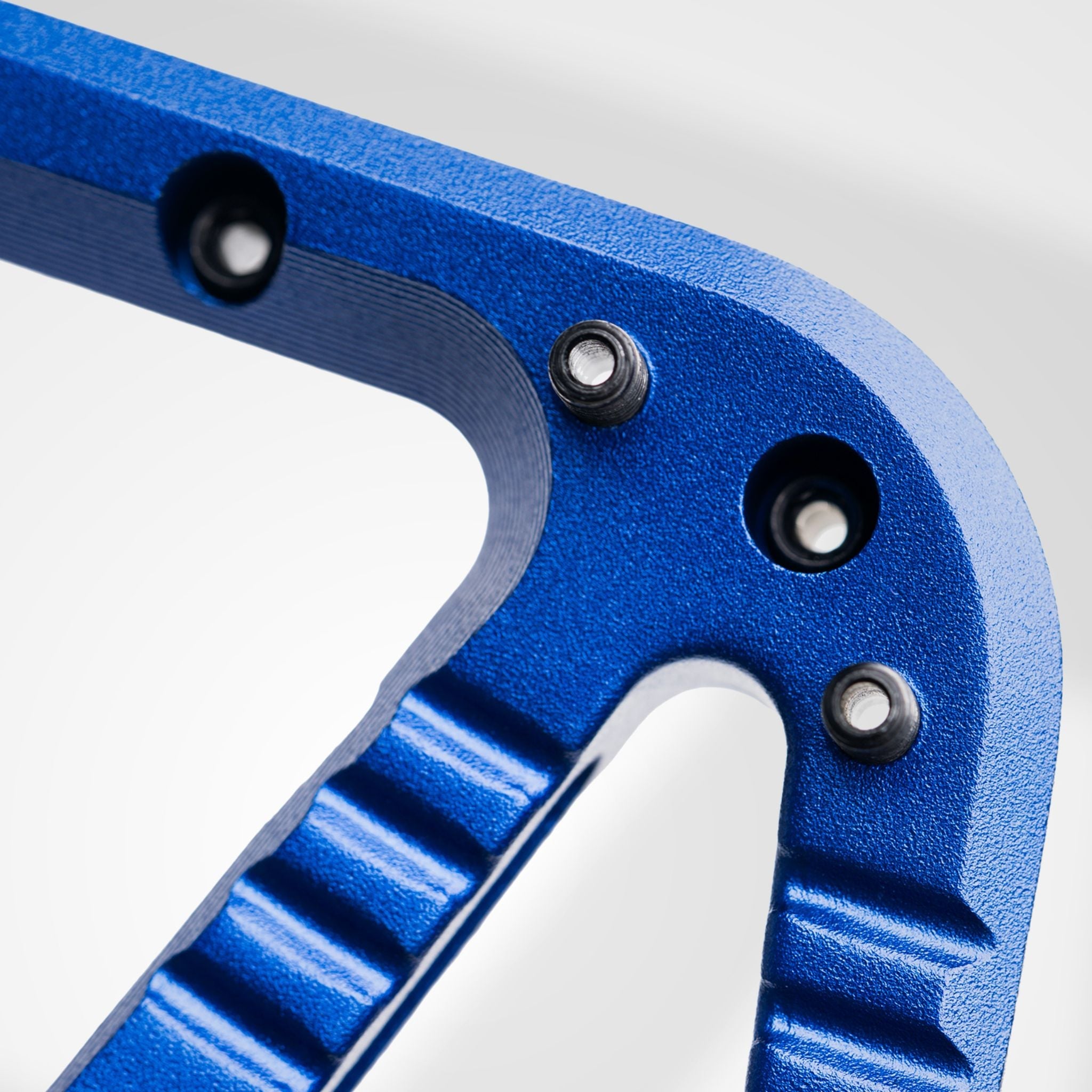

OneUp Wave pedals feature a fully redesigned axle, bearing and bushing layout which is reliable and easy to service. They also feature fully threaded ‘hollow-hex’ pins that are angled forward up to 10 degrees to increase grip while riding and further emphasize the Wave shape. Every pair of Wave pedals comes with our Bearing Nut Tool and uses the same rebuild kit as our Clip Pedals.

Specs

• Weight: 355g (Pair)

• Thickness: Axle 14.2mm / Edges 11.5mm

• Size: 107mm x 110mm (W x L)

• Bearing configuration: Inboard igus™ Bushing and 3x outboard sealed cartridge bearings

• Body: Forged and CNC’d 6061 Aluminium Body

• Axle: Chromoly Steel

• Pins: M4 Hollow Pin 10 x pins per side (self-clearing hollow-hex)

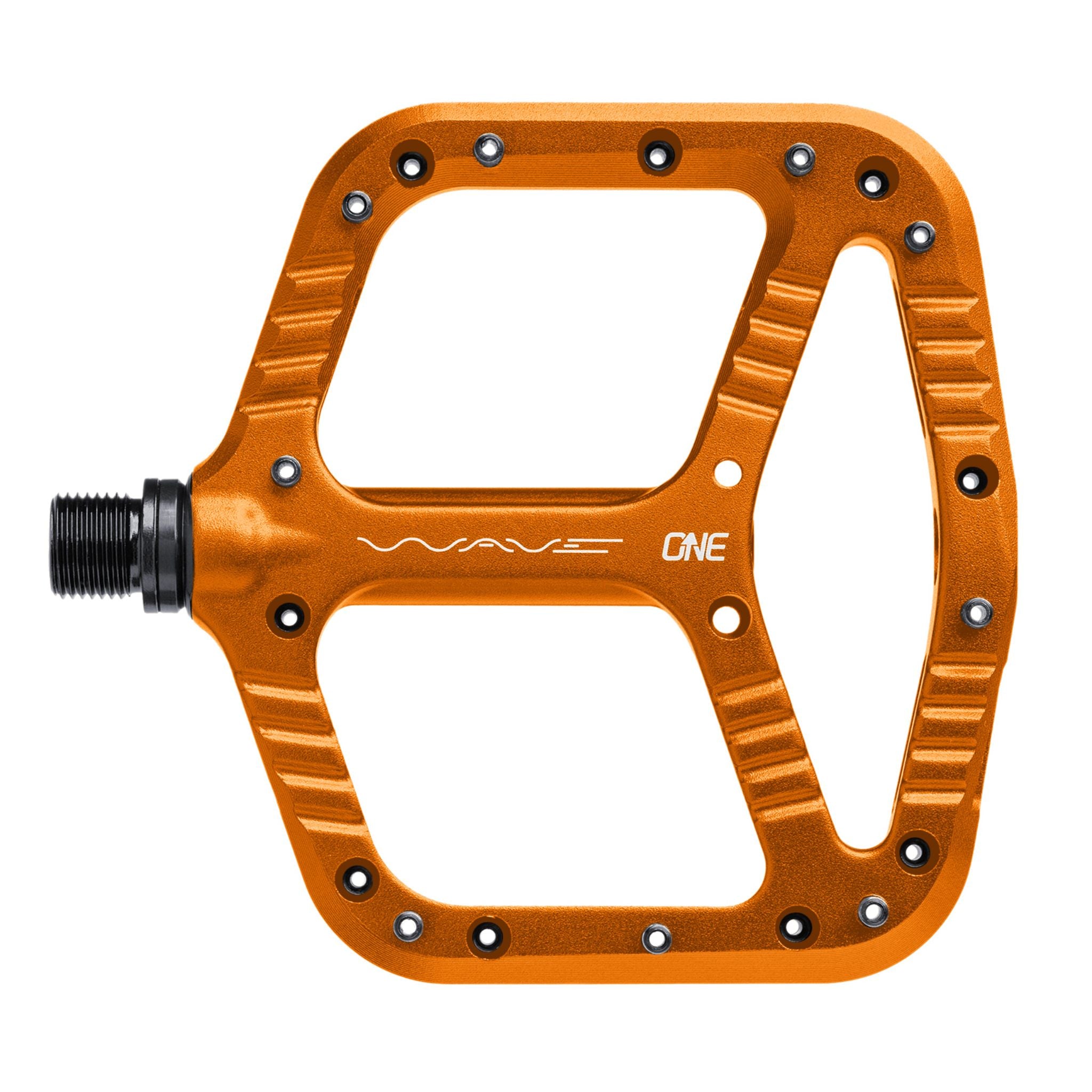

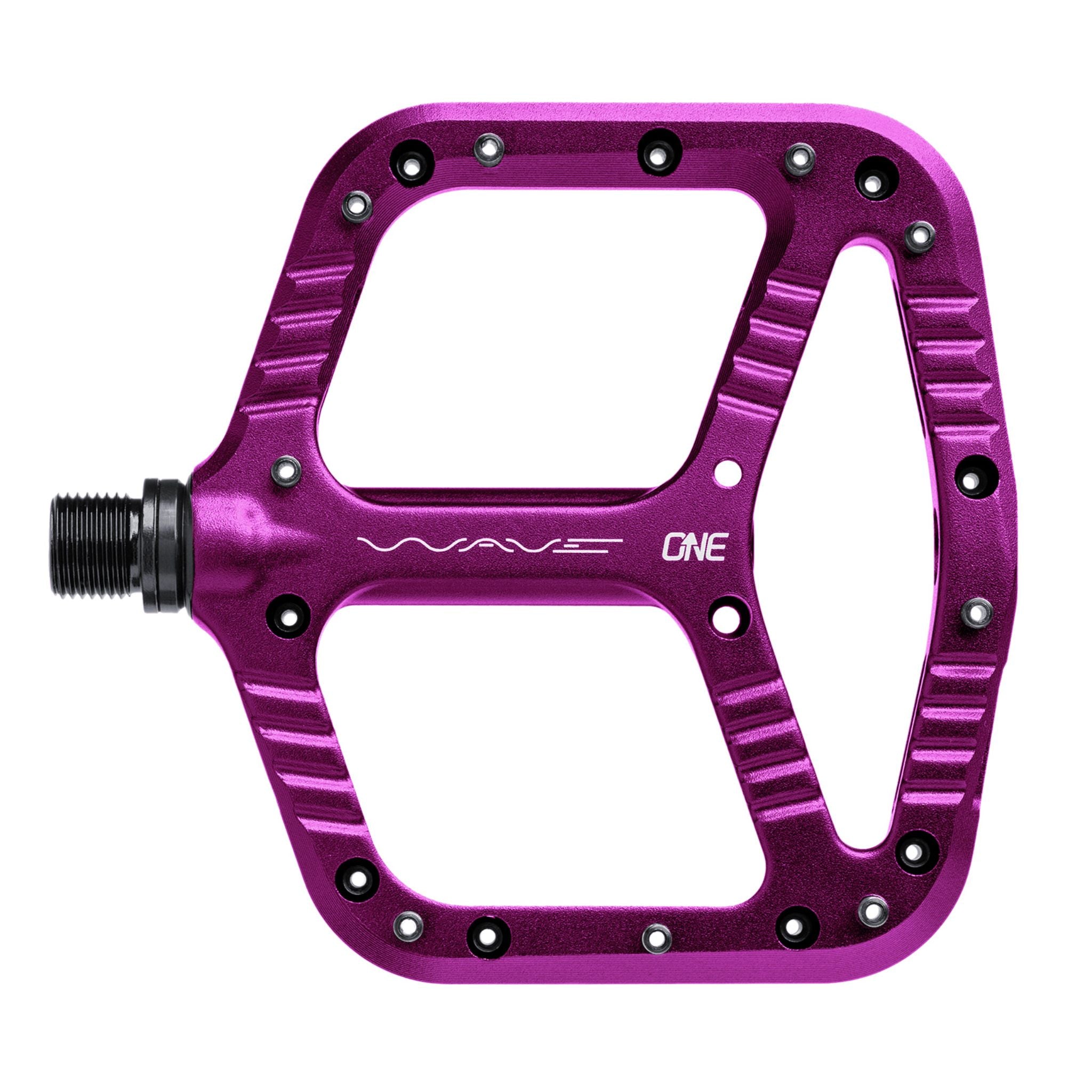

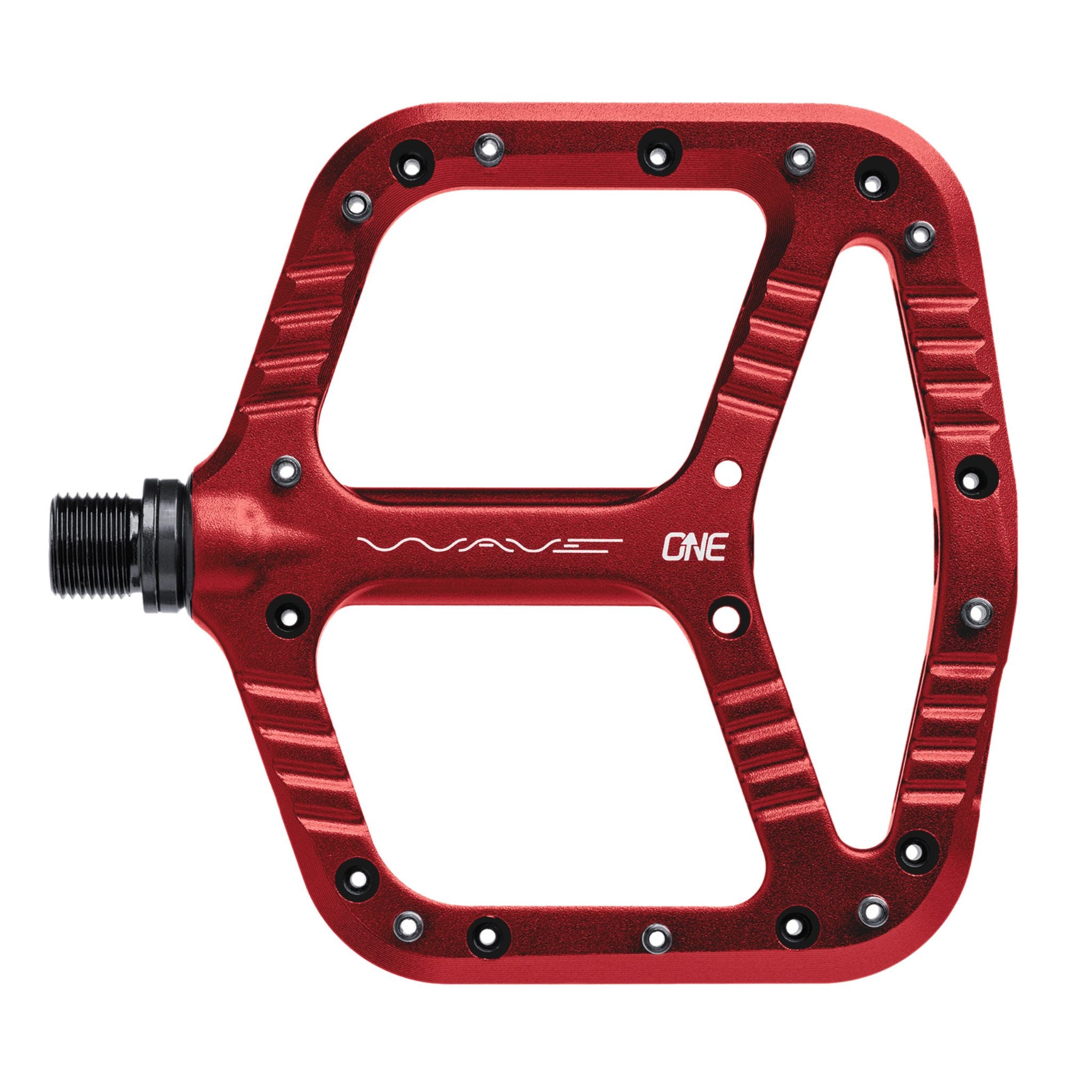

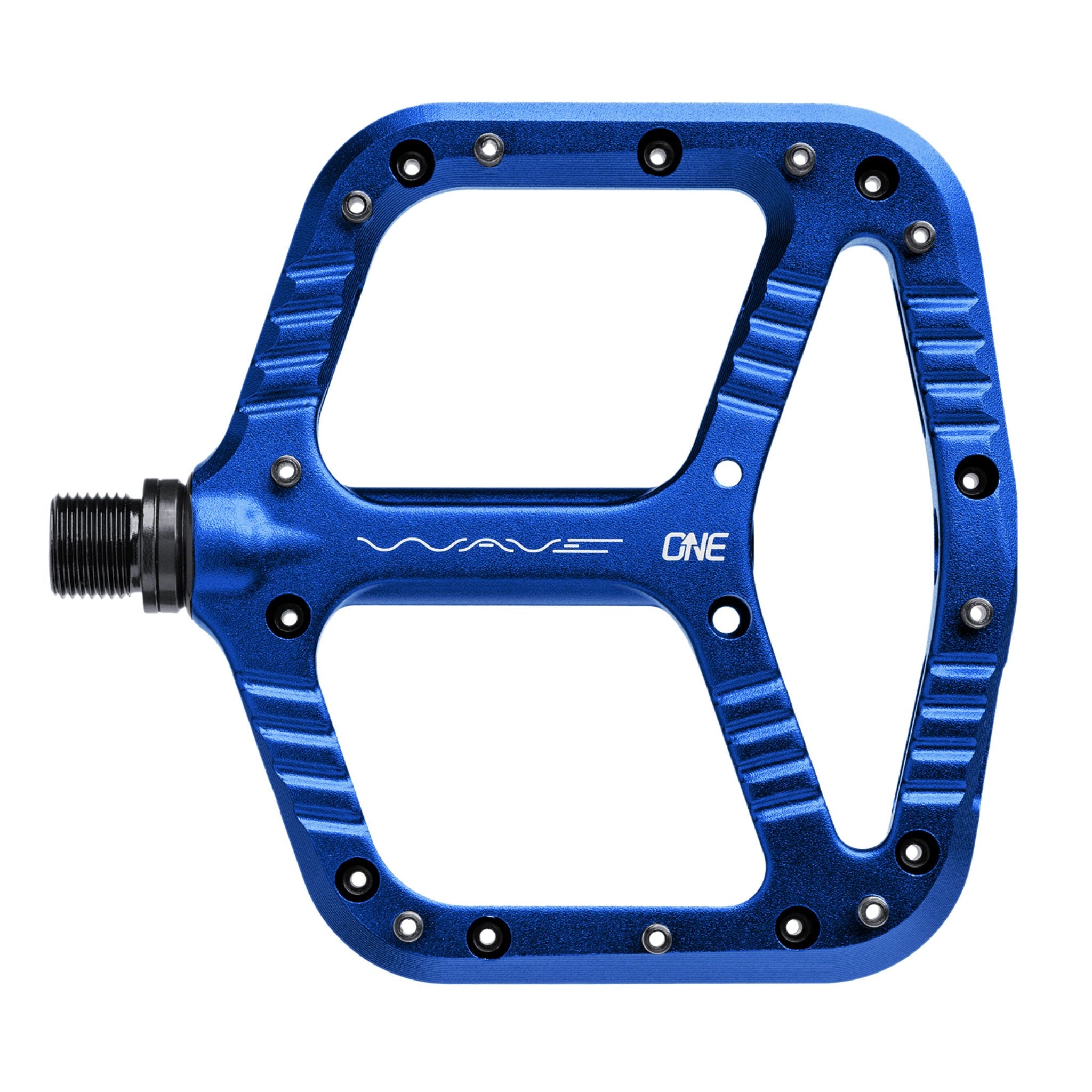

• Colours: Black, Red, Dark Green, Dark Blue, Orange, Purple, Grey, Bronze
