The Optic Carbon C2 is an aggressive short-travel bike that rips on the descents and can still get itself back to the top without a gondola, making it a great choice for UK trail centres and bike parks.
Precise suspension kinematics deliver 125mm of rear travel, matched with a gravity-ready 140mm fork, giving you the control you need to keep your mind on the trail ahead. The steering geometry is made for charging descents without sacrificing precision and manoeuvrability, and the suspension is designed to make the most of every millimetre of travel.
Four-piston brakes, short seat tubes, long-stroke dropper posts and aggressive tyres help tame the wildest descents and attack every turn. Norco's Ride Aligned Design System optimises performance using individual rider measurements, precise suspension kinematics and app-based setup.
Features
- Aggressive short-travel carbon trail bike
- 125mm rear travel with a 140mm RockShox Pike Select+ fork
- FOX Float X Performance Elite shock
- Idler and lower chain guide
- SRAM GX Eagle AXS T-Type wireless shifting
- SRAM Code R 4-piston brakes with 200mm front rotor
- Short seat tubes and long-stroke dropper posts
- Ride Aligned geometry and setup system
Sizing
- S1: 155-165cm
- S2: 163-173cm
- S3: 170-180cm
- S4: 177-187cm
- S5: 185-195cm and over
Specifications
DisciplineTrail
MaterialCarbon
Front Travel140mm
Rear Travel125mm
Wheel Size29"
WarrantyLifetime
Frame - Optic full carbon, high pivot Horst suspension, 125mm travel, UDH, hangerless interface compatible, Ride Aligned
Fork - RockShox Pike Select+, Charger 3 RC2, DebonAir+, 140mm, 44mm offset, fender included
Shock - FOX Float X Performance Elite, 2-position, 185x50mm trunnion
Rear derailleur - SRAM GX Eagle AXS T-Type
Shifter - SRAM Pod Controller
Crankset - SRAM GX Eagle T-Type, DUB, 30T
Bottom bracket - SRAM DUB BSA threaded
Cassette - SRAM 1275 T-Type, 10-52T
Chain - SRAM GX Eagle T-Type
Chain guide - Norco idler guide and lower guide
Brakes - SRAM Code R, 4-piston, sintered pads
Rotors - SRAM Centerline, 200mm front, 180mm rear
Front hub - RaceFace Trace, 15x110 Boost, 6-bolt
Rear hub - RaceFace Trace, 12x148mm Boost, XD, 6-bolt
Spokes - Sapim Sprint butted
Rims - Stan's Flow S2, black, 32H
Tubeless - Stan's rim tape, 35mm Presta valves and 200ml sealant
Front tyre - Maxxis Minion DHF 2.5", 3C MaxxTerra, EXO, TR
Rear tyre - Maxxis Dissector 2.4", 3C MaxxTerra, EXO, TR
Handlebar - Deity Ridgeline 35, 800mm, 25mm rise
Stem - Alloy, 40mm, 35mm clamp
Grips - DMR DeathGrip
Headset - FSA #57 E, sealed bearing
Seatpost - TranzX YS105 dropper, 34.9mm, 150mm (S1), 170mm (S2), 200mm (S3-S4), 230mm (S5)
Saddle - Fizik Alpaca Terra, Wingflex

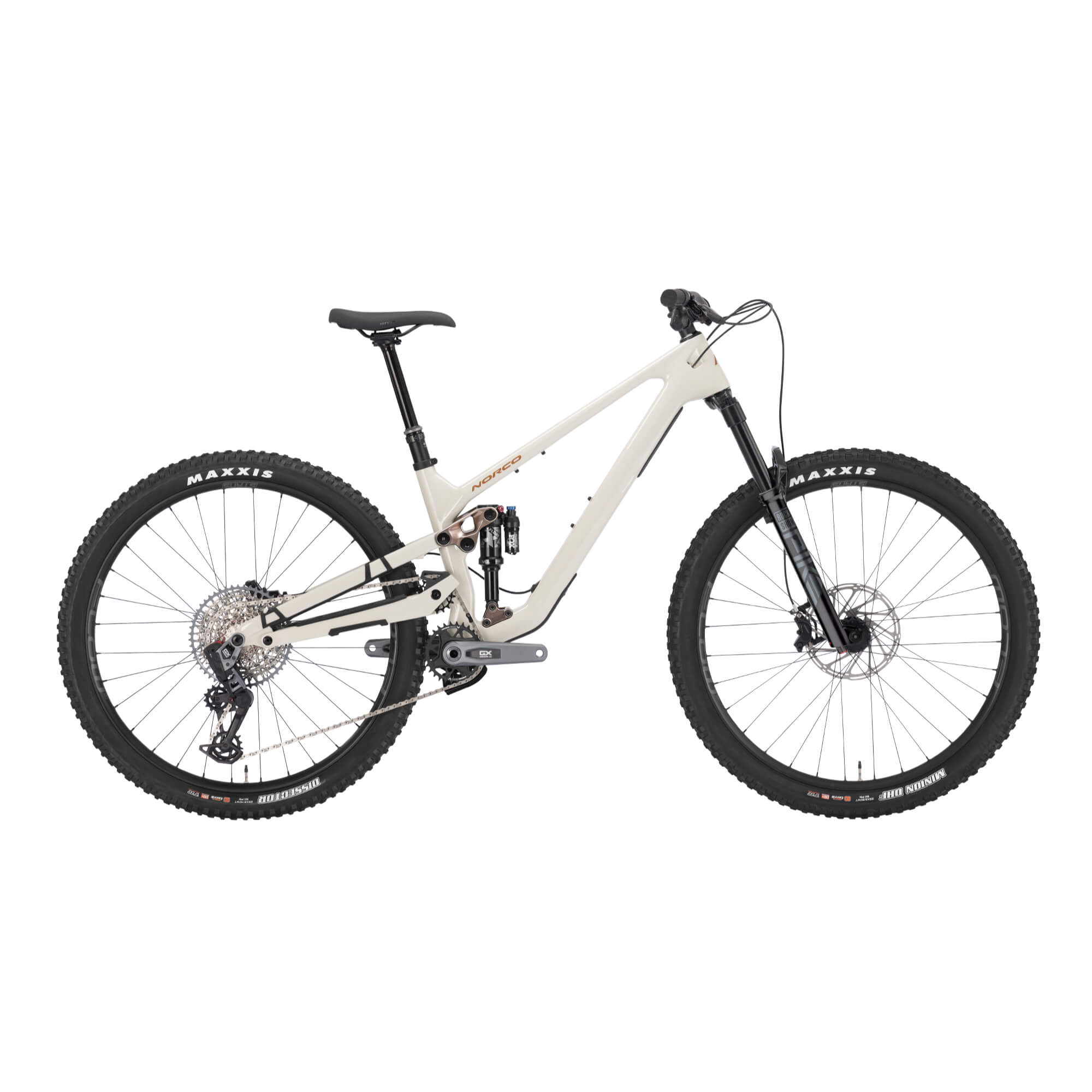

Optic Carbon C2 2024
- Trail
- 140 / 125mm travel
- 29″ wheels
- Carbon frame
Order within [time] for delivery by [date]
90 Day Returns
-
Pro builtBuilt and safety-checked by our mechanics before it leaves us
-
Free UK mainland courier deliveryNorthern Ireland: £60
-
Collect in CanterburyPick up and get set up at our store
-
Talk to a riderChat with our team
The Optic Carbon C2 is an aggressive short-travel bike that rips on the descents and can still get itself back to the top without a gondola, making it a great choice for UK trail centres and bike parks.
Precise suspension kinematics deliver 125mm of rear travel, matched with a gravity-ready 140mm fork, giving you the control you need to keep your mind on the trail ahead. The steering geometry is made for charging descents without sacrificing precision and manoeuvrability, and the suspension is designed to make the most of every millimetre of travel.
Four-piston brakes, short seat tubes, long-stroke dropper posts and aggressive tyres help tame the wildest descents and attack every turn. Norco's Ride Aligned Design System optimises performance using individual rider measurements, precise suspension kinematics and app-based setup.
Features
- Aggressive short-travel carbon trail bike
- 125mm rear travel with a 140mm RockShox Pike Select+ fork
- FOX Float X Performance Elite shock
- Idler and lower chain guide
- SRAM GX Eagle AXS T-Type wireless shifting
- SRAM Code R 4-piston brakes with 200mm front rotor
- Short seat tubes and long-stroke dropper posts
- Ride Aligned geometry and setup system
Sizing
- S1: 155-165cm
- S2: 163-173cm
- S3: 170-180cm
- S4: 177-187cm
- S5: 185-195cm and over
Specifications
DisciplineTrail
MaterialCarbon
Front Travel140mm
Rear Travel125mm
Wheel Size29"
WarrantyLifetime
Frame - Optic full carbon, high pivot Horst suspension, 125mm travel, UDH, hangerless interface compatible, Ride Aligned
Fork - RockShox Pike Select+, Charger 3 RC2, DebonAir+, 140mm, 44mm offset, fender included
Shock - FOX Float X Performance Elite, 2-position, 185x50mm trunnion
Rear derailleur - SRAM GX Eagle AXS T-Type
Shifter - SRAM Pod Controller
Crankset - SRAM GX Eagle T-Type, DUB, 30T
Bottom bracket - SRAM DUB BSA threaded
Cassette - SRAM 1275 T-Type, 10-52T
Chain - SRAM GX Eagle T-Type
Chain guide - Norco idler guide and lower guide
Brakes - SRAM Code R, 4-piston, sintered pads
Rotors - SRAM Centerline, 200mm front, 180mm rear
Front hub - RaceFace Trace, 15x110 Boost, 6-bolt
Rear hub - RaceFace Trace, 12x148mm Boost, XD, 6-bolt
Spokes - Sapim Sprint butted
Rims - Stan's Flow S2, black, 32H
Tubeless - Stan's rim tape, 35mm Presta valves and 200ml sealant
Front tyre - Maxxis Minion DHF 2.5", 3C MaxxTerra, EXO, TR
Rear tyre - Maxxis Dissector 2.4", 3C MaxxTerra, EXO, TR
Handlebar - Deity Ridgeline 35, 800mm, 25mm rise
Stem - Alloy, 40mm, 35mm clamp
Grips - DMR DeathGrip
Headset - FSA #57 E, sealed bearing
Seatpost - TranzX YS105 dropper, 34.9mm, 150mm (S1), 170mm (S2), 200mm (S3-S4), 230mm (S5)
Saddle - Fizik Alpaca Terra, Wingflex
