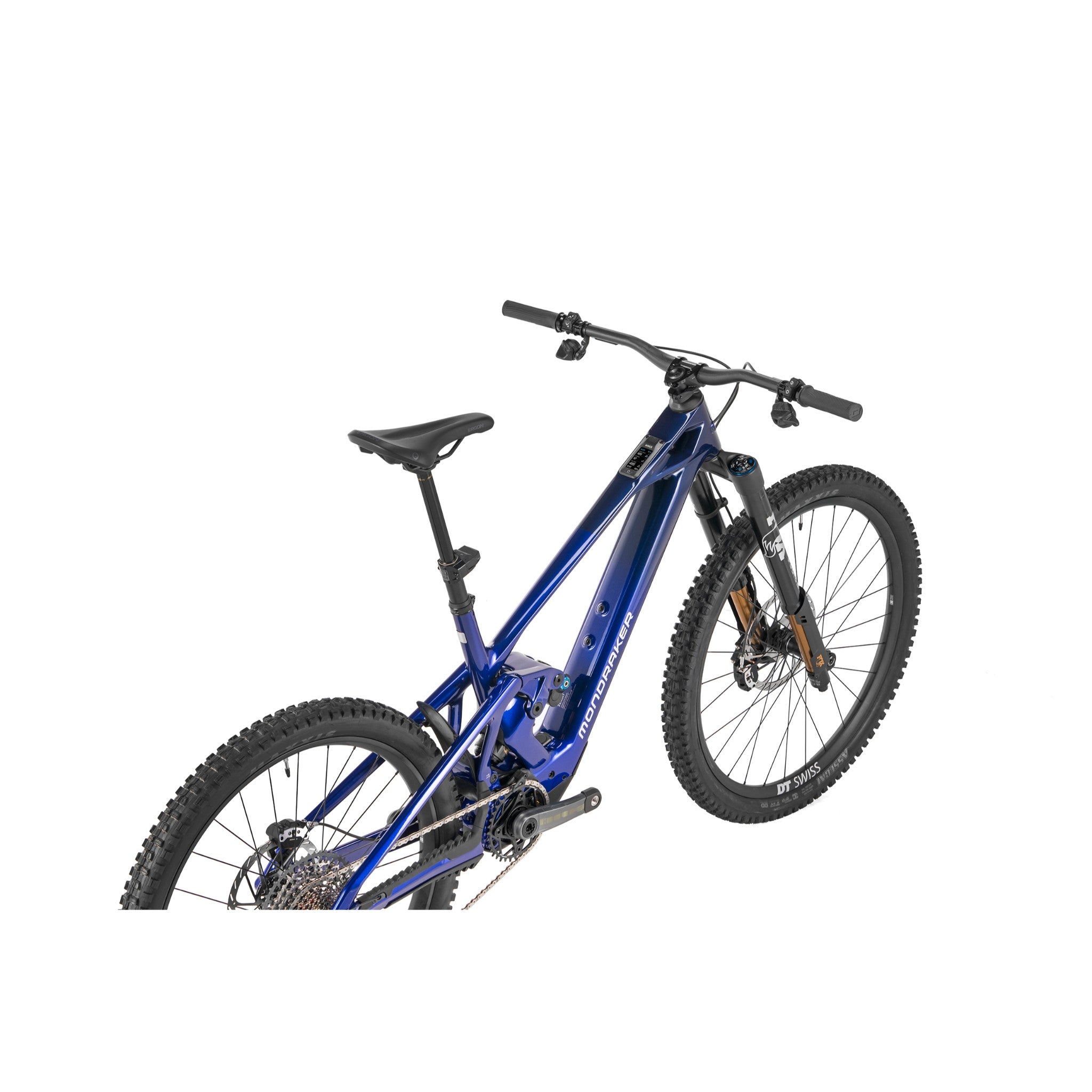

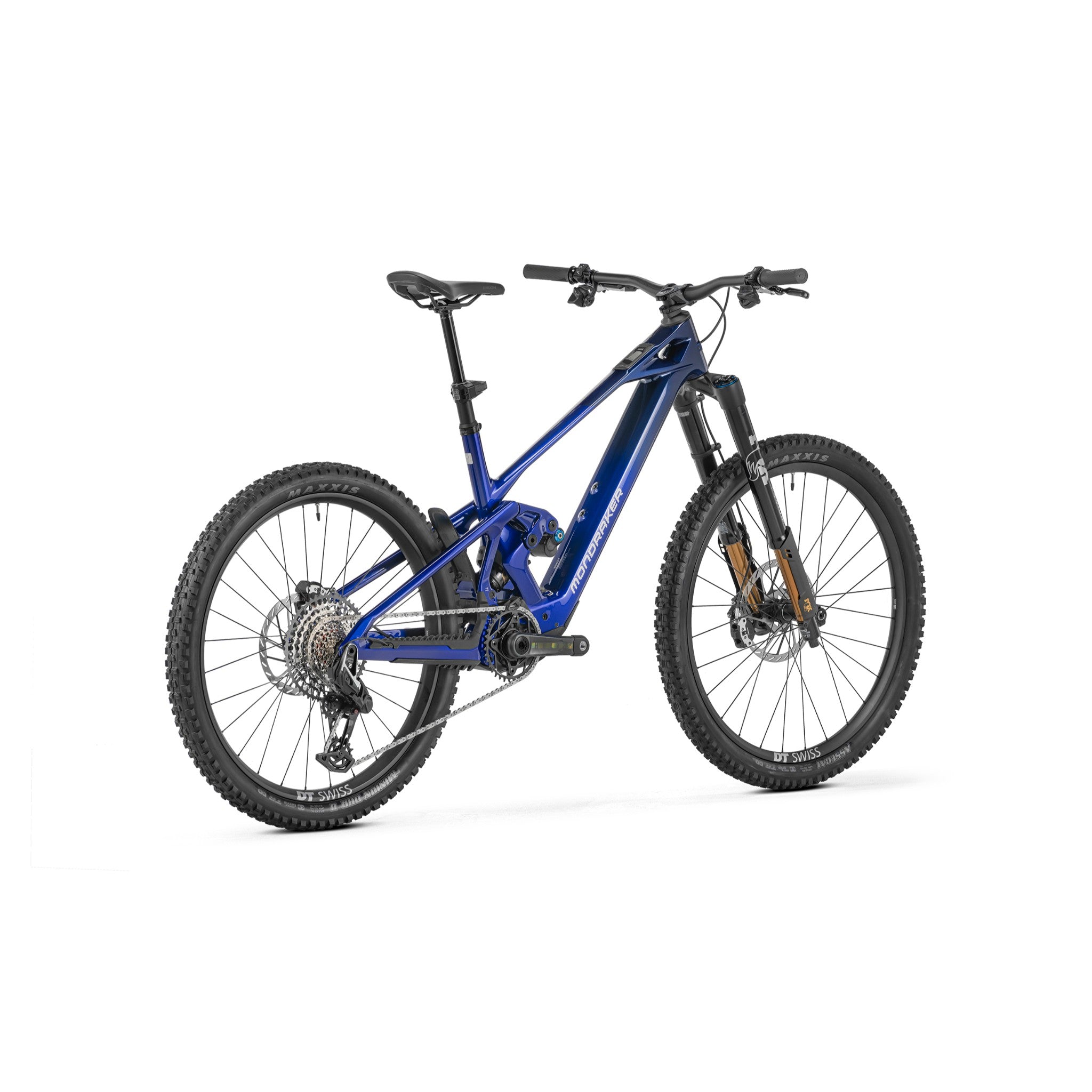

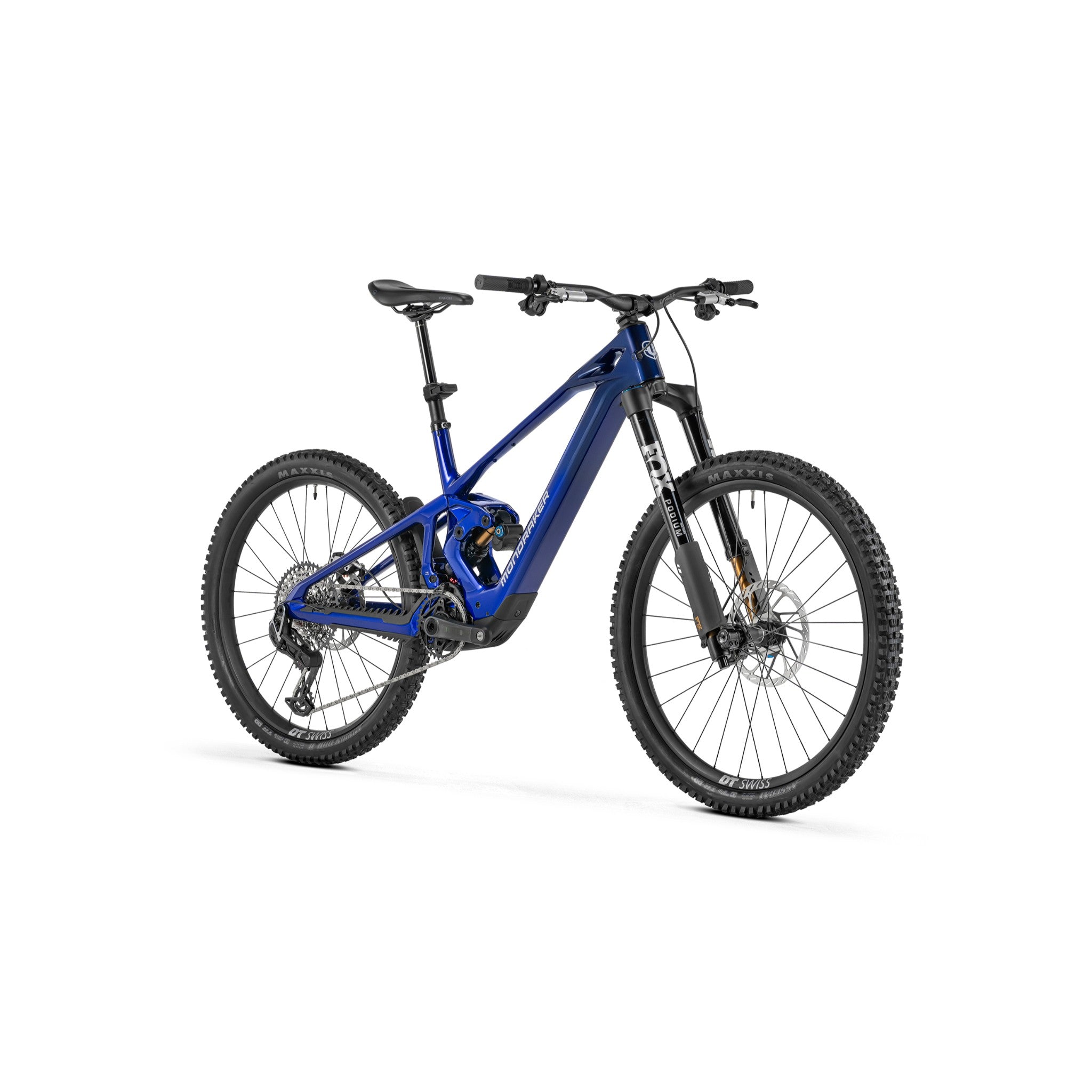

The Mondraker Zendit XR is the flagship — the full, uncompromised expression of what Mondraker set out to build when they started the Zendit project over eleven years into their e-MTB development programme. Every component on this bike has been chosen to extract the maximum performance from a platform that's already the most capable Mondraker have ever produced. If you want the best enduro e-MTB they make, this is it.

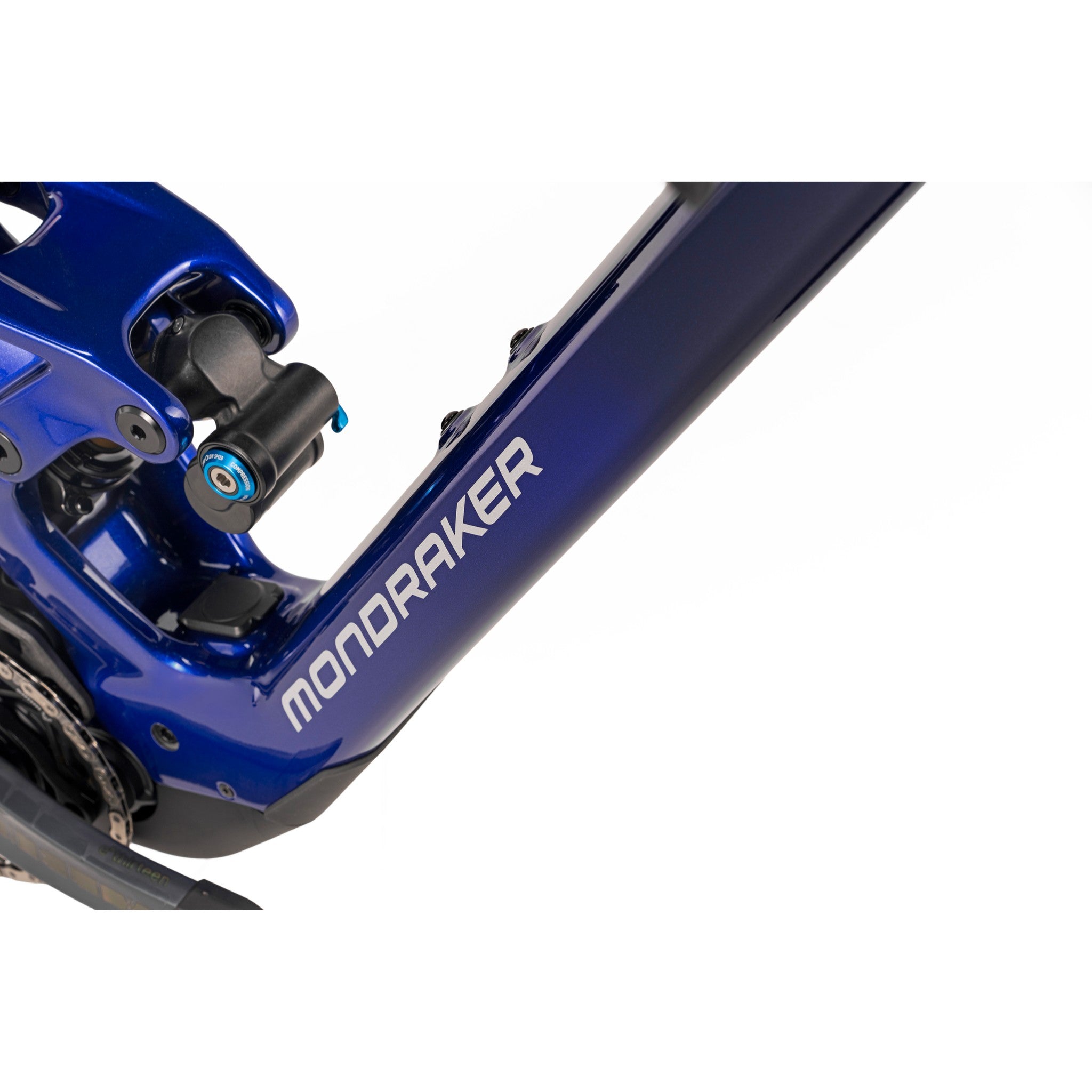

The Stealth Air Carbon frame is shared across all three Zendit models, but the XR's build kit makes the most of it. At just 3,000g for a painted M/L frame with hardware, it's remarkably light for a full-power enduro e-MTB. Mondraker designed it from scratch around the Avinox drive system — not adapted from an existing platform — and used 6-axis CNC machining for the first time in their carbon frame production process. The result is a frame with a level of precision and refinement that's immediately apparent, from the seamlessly integrated display unit to the moulded internal cable channels.

The Avinox motor is paired with an integrated 800Wh battery that provides the range to match the motor's capability. On the XR, you get the fast 12A GaN charger (508W) as standard — 0 to 75% in roughly 1 hour 30 minutes, and a full charge in just 2 hours 25 minutes. Five fully customisable riding modes (Eco, Auto, Trail, Turbo, and Boost) are managed through the Avinox DP100 touchscreen display or the Avinox Ride app. The system also offers 65W USB-C PD 3.0 fast charging for your devices, digital motor lock with alarm and tracking, and direct integration with Strava and compatible action cameras via the wireless BC100 controllers.

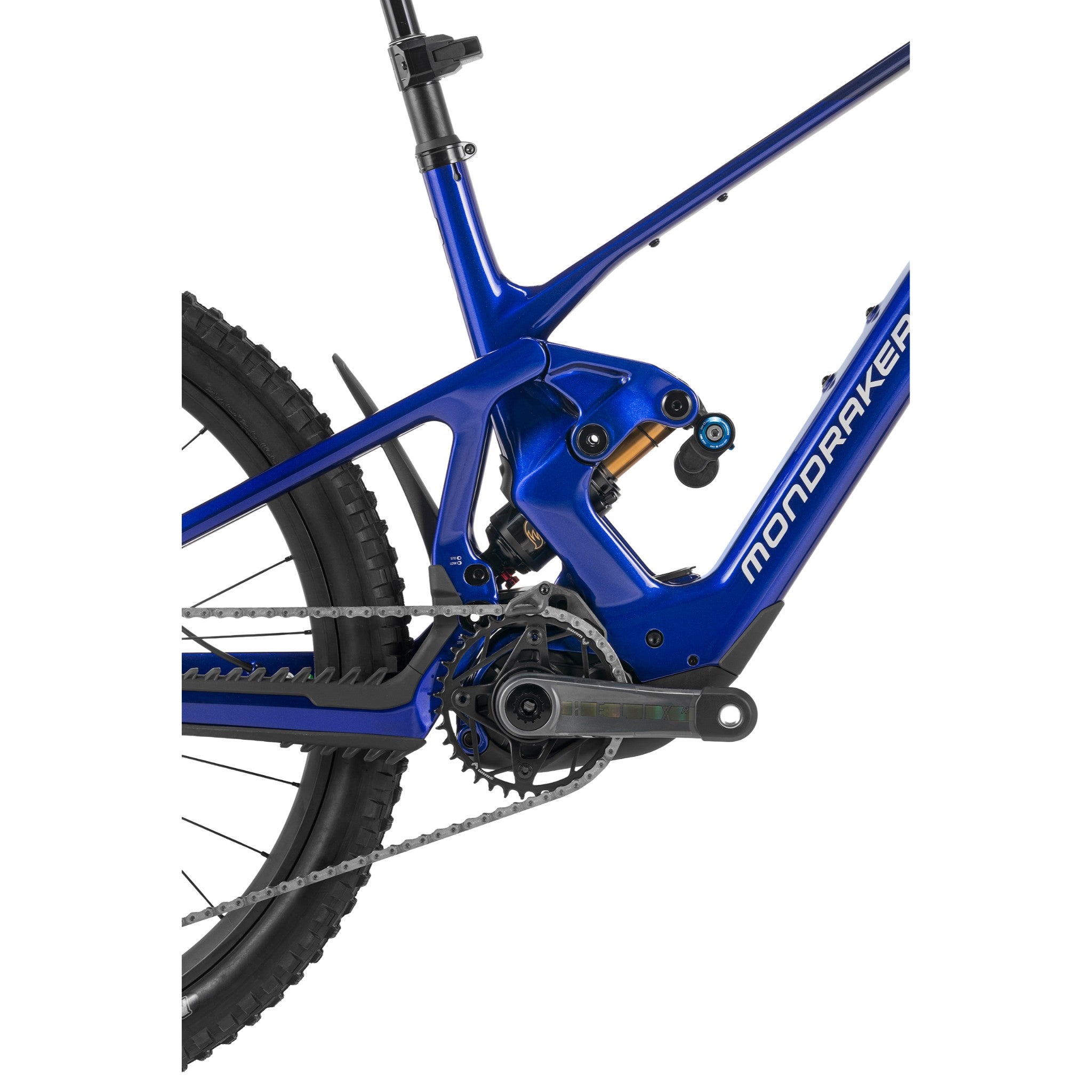

Suspension on the XR is the best Fox currently offer. The Fox Float X2 Factory Kashima rear shock (205x65mm) pairs with the Fox Podium GRIP X2 Factory fork (170mm) up front, both specifically tuned by Fox and Mondraker for the Zendit's revised Zero Suspension kinematics. The suspension has been completely reworked for the Avinox motor's increased output — there's more support and more active suspension action to ensure that extra power gets to the trail. A 27% progression rate, approximately 105% anti-squat at sag, and an anti-rise of around 99% deliver a rear end that pedals efficiently, soaks up the rough stuff, and maintains traction under braking.

The XR's wheelset is a standout: DT Swiss carbon rims with 30mm internal width and anti-pedal kickback technology on the rear hub. SRAM Maven Ultimate brakes — the top of the line — provide immense stopping power with 4-piston calipers, carbon levers, and 220mm front / 200mm rear rotors with sintered pads. The SRAM X0 Eagle AXS T-Type 12-speed drivetrain shifts wirelessly and supports Auto-Shift powered directly from the bike's main battery, so you shift every time — even when coasting.

The RockShox Reverb AXS dropper post keeps the cockpit clean and wireless, paired with the Onoff S9 carbon handlebar and full CNC stem. Like all Zendit models, the XR runs a mixed wheel setup (29" front, 27.5" rear) as standard for precise, playful handling, with full 29" conversion available via a simple lower-link flip-chip. A separate geometry flip-chip offers standard (63.5° head angle, 345mm BB) or low (63.15°, 340mm BB) settings to fine-tune the ride to your trails and preferences.

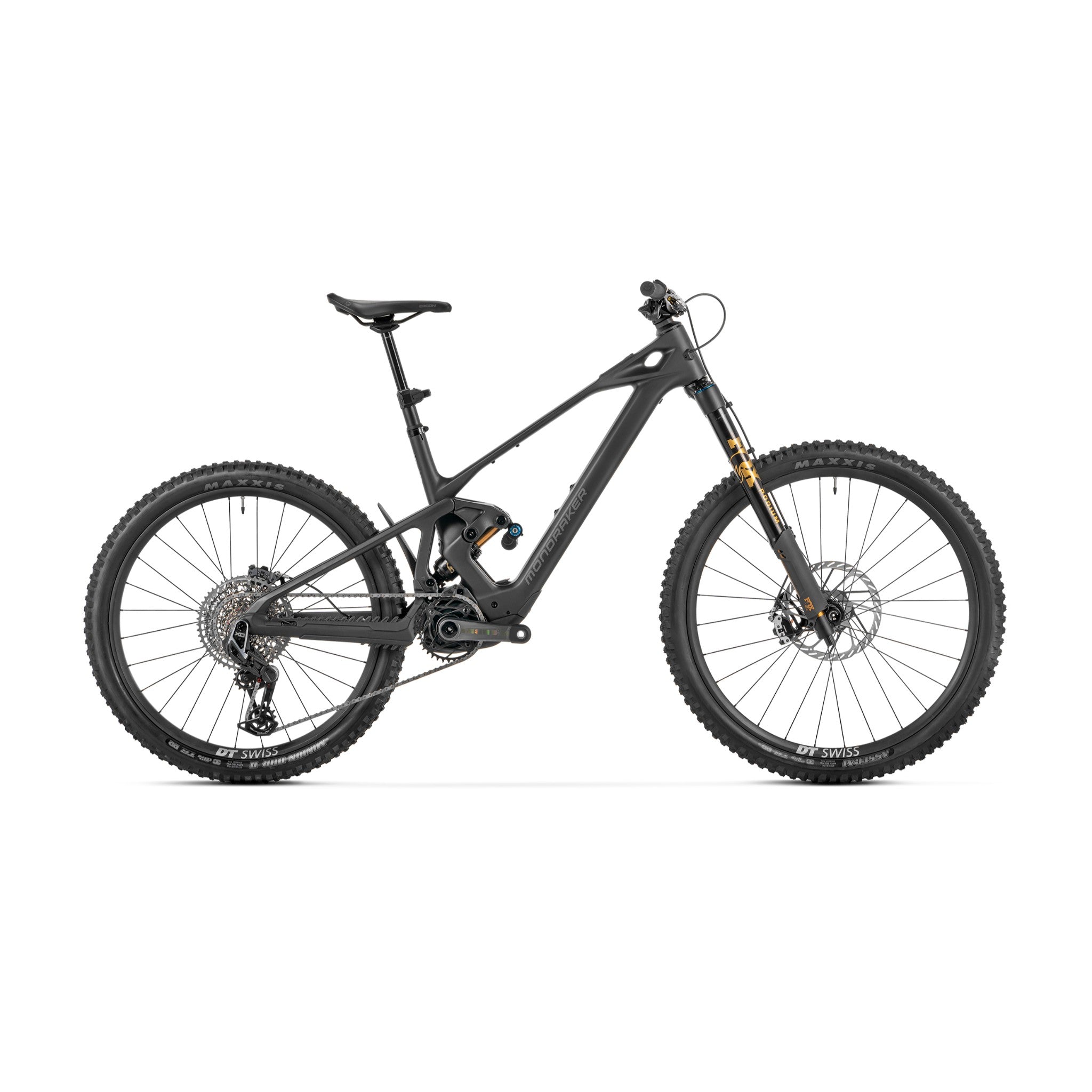

Five sizes from S to XL with proportional chainstay lengths ensure consistent ride characteristics regardless of frame size. Available in Admiral Blue or Vortex Grey.

Features

• Stealth Air full carbon frame — 3,000g (size M/L with hardware, painted)
• Avinox drive system with integrated 800Wh battery and fast 12A GaN charger (0–75% in ~1.5 hours)
• Updated Zero Suspension platform — 165mm rear / 170mm front travel
• Fox Factory Kashima suspension front and rear — X2 shock, Podium GRIP X2 fork
• DT Swiss carbon wheels with anti-kickback hub technology
• SRAM Maven Ultimate 4-piston brakes — 220mm front / 200mm rear
• SRAM X0 Eagle AXS T-Type wireless 12-speed drivetrain with Auto-Shift
• RockShox Reverb AXS wireless dropper seatpost
• Evolved Forward Geometry with dual flip-chip adjustment (geometry and wheel size)
• Mixed wheel (29"/27.5") as standard, full 29" compatible
• Avinox DP100 touchscreen display with BC100 wireless controllers
• 65W USB-C PD 3.0 fast charging output for devices
• Digital motor lock, alarm and GPS tracking
• Strava integration and action camera control via wireless controllers
• Sealed Enduro Max bearings throughout — shared with the Summum DH
• Five sizes (S, M, M/L, L, XL) with proportional chainstay lengths

Specifications

• Frame: Zendit Stealth Air full Carbon, Zero Suspension, 165mm travel, Forward Geometry, UDH, internal battery, Boost 12x148mm
• Motor: Avinox
• Battery: Avinox 800Wh (integrated) / 12A GaN fast charger
• Display: Avinox DP100 / BC100 Wireless Controller (L&R)
• Fork: Fox Podium 29 Float GRIP X2 Factory, Kashima, 170mm, Boost 20x110mm
• Rear Shock: Fox Float X2 Factory Kashima, 205x65mm, trunnion top mount
• Wheels: DT Swiss, carbon, 30mm internal width
• Front Tyre: Maxxis Assegai 29x2.5WT, 3C Maxx Grip, DD, 120x2TPI
• Rear Tyre: Maxxis Minion DHR II 27.5x2.5WT, 3C MaxxTerra, DD, 120x2TPI
• Brakes: SRAM Maven Ultimate, 4-piston, 18mm, HS2 220mm front / 200mm rear, sintered pads
• Rear Derailleur: SRAM X0 Eagle AXS T-Type, 12-speed
• Cassette: SRAM XS 1275, 10-52T, T-Type, 12-speed
• Crankset: e*thirteen Helix Race Carbon e*spec, 155mm
• Handlebar: Onoff S9 1.0 Carbon, 800mm, 25mm rise
• Stem: Onoff S9, 30mm, Full CNC
• Seatpost: RockShox Reverb AXS
• Saddle: Ergon SM10 E-Mountain Black
• Headset: Acros custom ZS56/ZS56, 1-1/8" to 1.5"
• Sizes: S (380mm) / M (410mm) / M/L (435mm) / L (460mm) / XL (490mm)
• Weight: 23.1kg
• Colours: Admiral Blue / Vortex Grey
