The Zendit S is the most affordable way onto Mondraker's enduro e-MTB platform, and the compromises are all in the finishing kit rather than anywhere that changes how the bike rides. You get the same Avinox M2S drive system, the same 800Wh battery and the same updated Zero Suspension kinematics as the range-topping XR.
The frame pairs a Stealth Air carbon front triangle with a Stealth Alloy rear end - a sensible saving over the full-carbon RR and XR that keeps the front-end stiffness where it matters most. It carries the same one-piece Monoblock upper link, MAX capacity sealed bearings, oversize 15mm pivot axles and a UDH hanger, so serviceability and durability are unchanged.
Travel is 165mm at the rear from a RockShox Super Deluxe Select shock, with 170mm up front from a ZEB Base 29 running the Delta RC damper. It's a simple, robust package - not the widest tuning range in the world, but well matched to the bike and easy to live with. Braking is SRAM Maven Base with 200mm rotors at both ends, which is a serious amount of power for a bike at this price.
The Avinox M2S motor is the reason to be here. Paired with the integrated 800Wh battery, DP100 touchscreen display and BC100 wireless controllers, it's one of the most capable systems available. Shifting is SRAM's mechanical 70 Eagle T-Type, wheels are Mavic E-Access XR30 on ID360 hubs, and the mixed 29"/27.5" wheel setup keeps things lively on tight, steep trails. Five sizes from S to XL.
Features
- Zendit Stealth Air carbon front triangle with Stealth Alloy rear triangle
- Avinox M2S drive system with integrated 800Wh battery and 4A charger
- Avinox DP100 display and BC100 wireless controllers
- Updated Zero Suspension System - 165mm rear, 170mm front
- RockShox ZEB Base 29 Delta RC fork and Super Deluxe Select shock
- SRAM Maven Base four-piston brakes with 200mm rotors front and rear
- SRAM 70 Eagle T-Type 12-speed drivetrain with e*thirteen Helix Core cranks
- Mavic E-Access XR30 wheels, 30mm internal width, tubeless ready
- Mixed wheel setup - 29" front, 27.5" rear
- X-Fusion Manic TA travel-adjust dropper, size-specific lengths
- Forward Geometry, UDH hanger and internal cable routing through the headset
- Five sizes - S, M, M/L, L and XL
Specifications
DisciplineEnduro
MaterialCarbon front, alloy rear
Front Travel170mm
Rear Travel165mm
Wheel SizeMullet (29" front, 27.5" rear)
MotorAvinox M2S, 800Wh
Frame - Zendit Stealth Air Carbon front triangle, Stealth Alloy rear triangle, Updated Zero Suspension System, 165mm travel, Forward Geometry, internal battery, Boost 12x148mm rear axle, UDH, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers
Rear Shock - RockShox Super Deluxe Select, 205x65mm, trunnion top mount, 30x8mm bottom bushings
Shock Settings - C34 compression, R55 rebound, 4 tokens, X25 lockout force
Fork - RockShox ZEB Base 29, Delta RC, 170mm, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: low-speed compression, external rebound, air preload
Motor - Avinox M2S
Battery - Avinox 800Wh battery / Avinox 4A charger
Display - Avinox DP100 display / Avinox BC100 wireless controller (L&R)
Headset - Acros custom ZS56/ZS56, 1-1/8", 1.5" head tube, internal cable routing, sealing plugs, without blocklock
Stem - Onoff S6 30mm 0°, 6061 forged alloy + CNC, 31.8mm barbore
Handlebar - Onoff S6 1.0 7050 alloy, rise: 25mm, width: 800mm, 8° backsweep, 5° upsweep, 31.8mm barbore. L and XL: 38mm rise
Grips - Onoff Desert Pro, CNC lock-on, 135mm. L and XL: thicker size
Seatpost - X-Fusion Manic TA travel adjust, diameter 31.6mm, 1x remote lever. S: 361x125mm, M: 425x150mm, M/L: 469x170mm, L: 532x200mm, XL: 532x200mm
Saddle - Ergon SM10 E-Mountain Black
Front Brake - SRAM Maven Base, 18mm 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Rear Brake - SRAM Maven Base, 18mm 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Brake Lever - SRAM Maven Base, Directlink and lever pivot bushings, tools-free reach adjust
Rims - Mavic E-Access XR30, aluminium, 30mm internal width, tubeless ready, 32 spokes
Spokes - Mavic reinforced spokes lacing
Front Hub - Mavic, Boost 15x110mm, IS 6 bolts
Rear Hub - Mavic, ID360 freewheel technology, Boost 12x148mm, IS 6 bolts, HG reinforced freehub
Front Tyre - Maxxis Assegai 29x2.5WT, tubeless ready, 3C Maxx Grip compound, EXO+ protection, 60TPI, folding bead
Rear Tyre - Maxxis Minion DHR II 27.5x2.5WT, tubeless ready, 3C MaxxTerra compound, DD protection, 120x2TPI, folding bead
Crankset - e*thirteen Helix Core E*Spec Plus, 155mm all sizes
Chainring - SRAM Eagle 36T T-Type, 104BCD, steel, chainline 55mm
Chain - SRAM 70 T-Type, 12s Flattop, PowerLock
Rear Derailleur - SRAM 70 Eagle, T-Type, 12s
Shifter - SRAM Trigger 70, 12s, T-Type actuation
Cassette - SRAM XS-1270, 10-52T, 12s

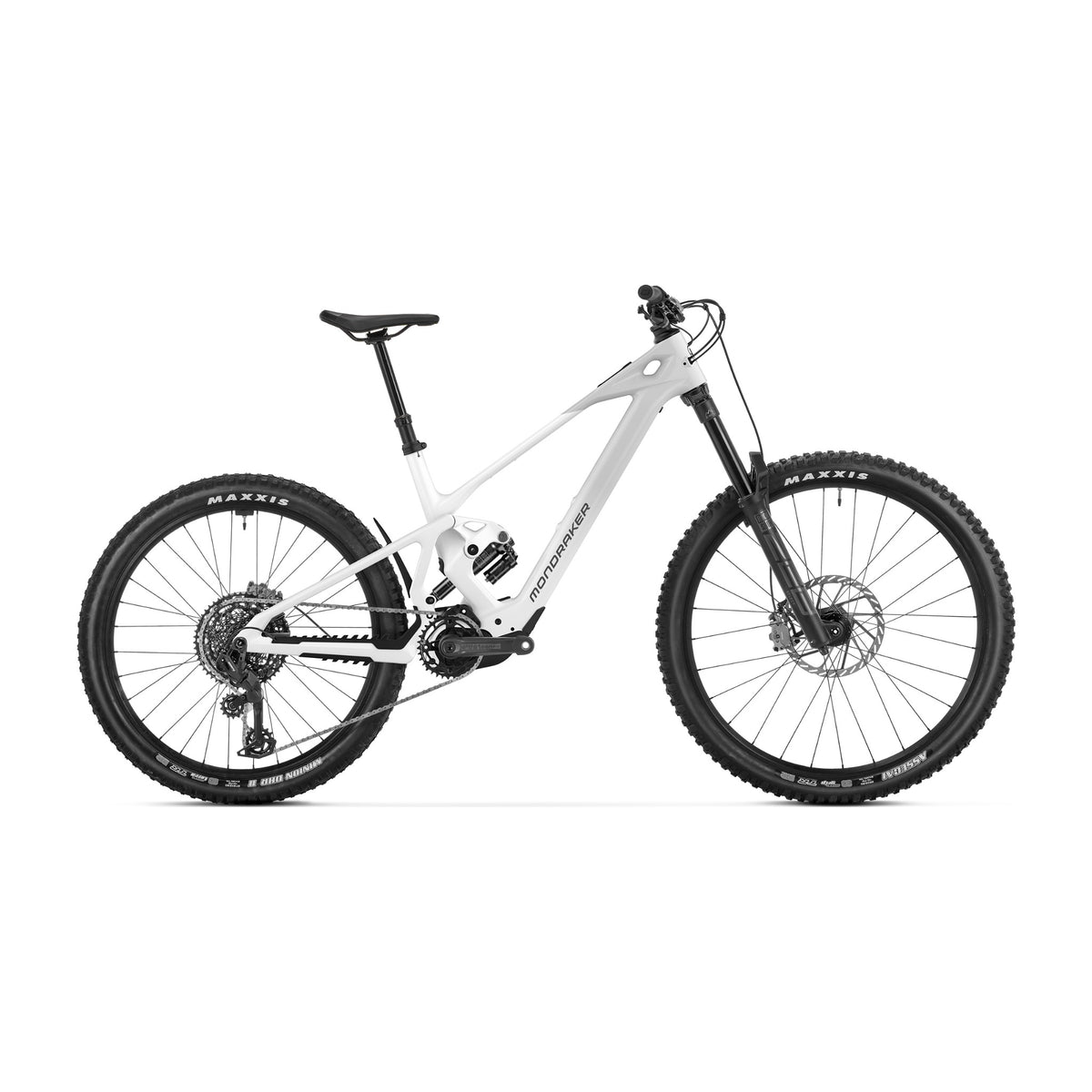

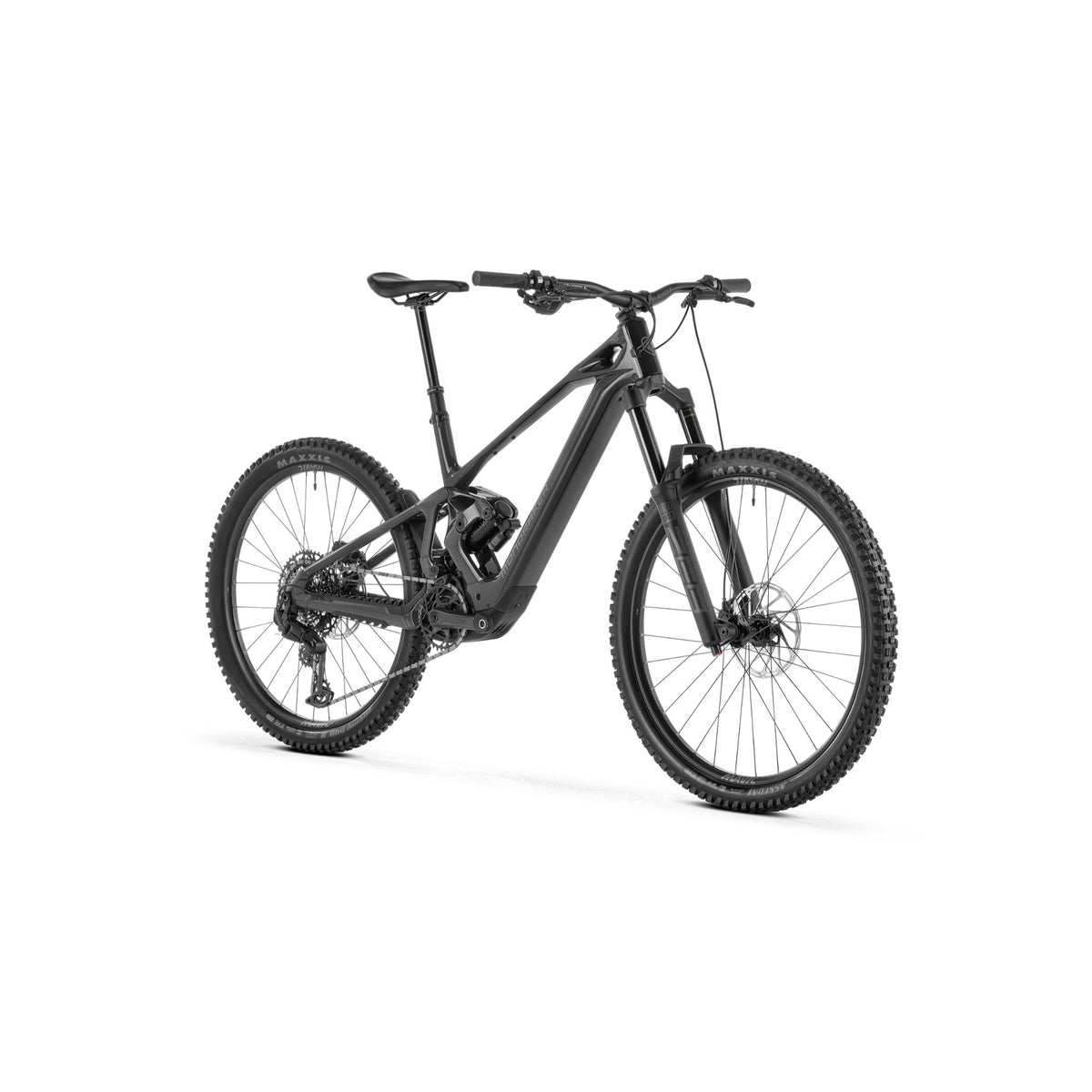

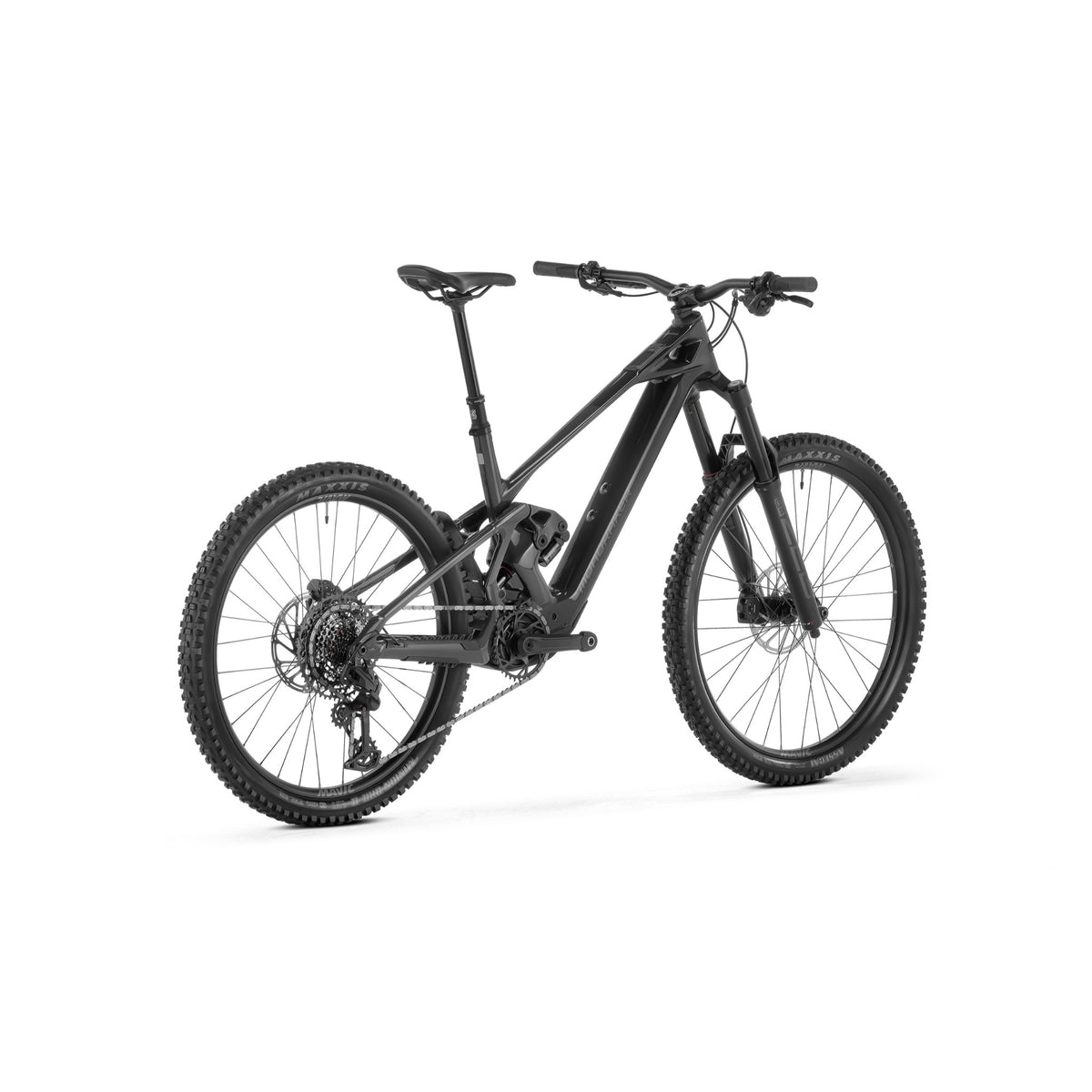

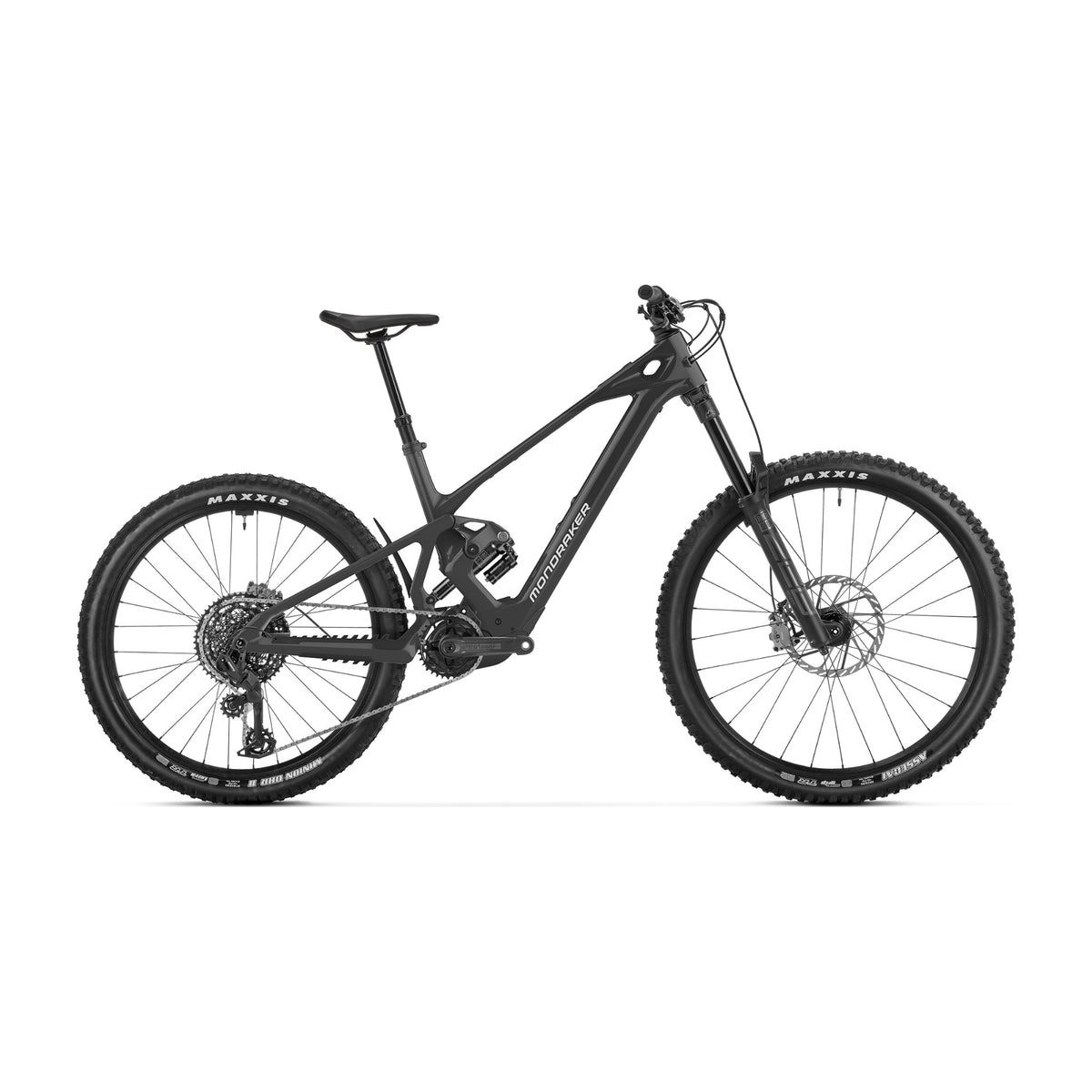

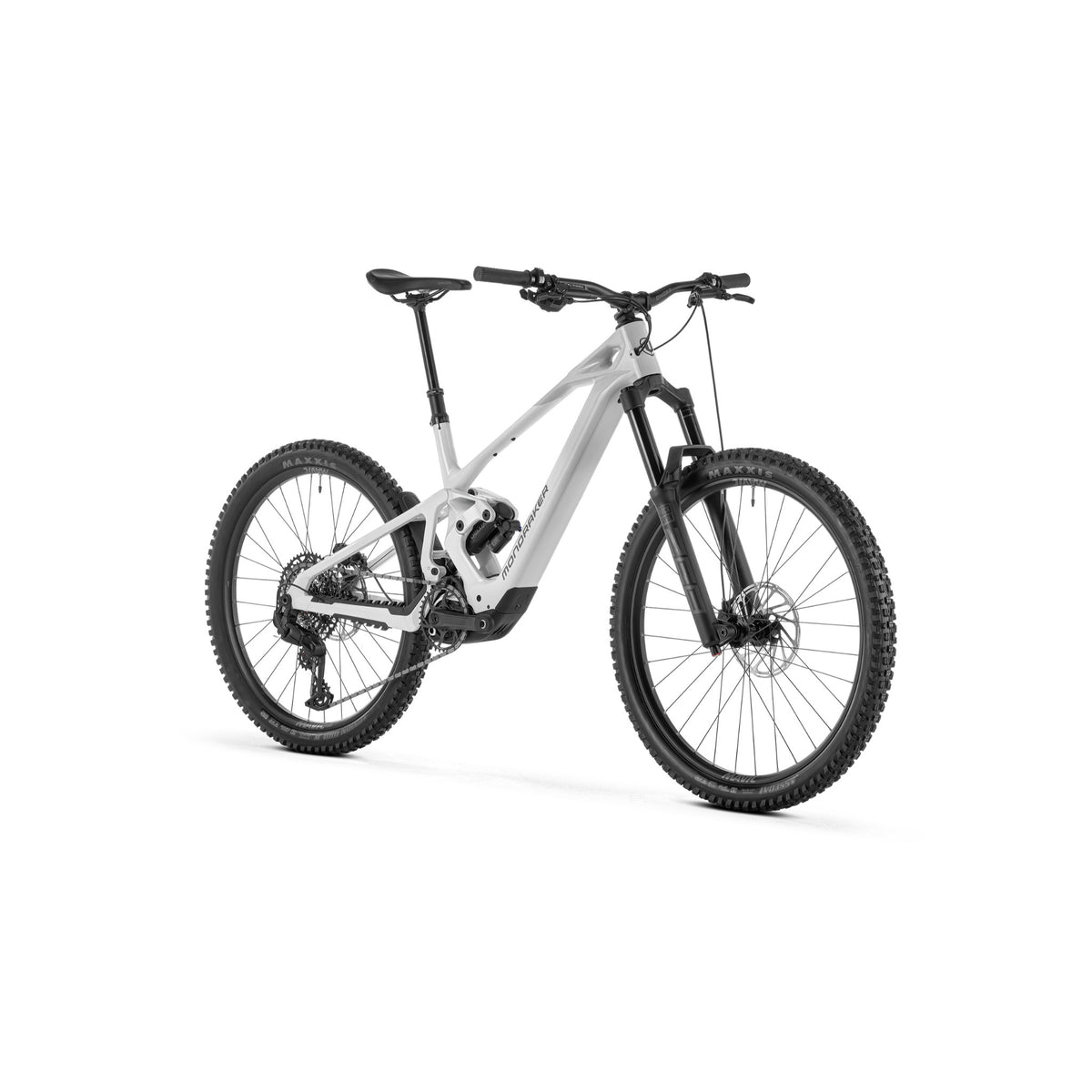

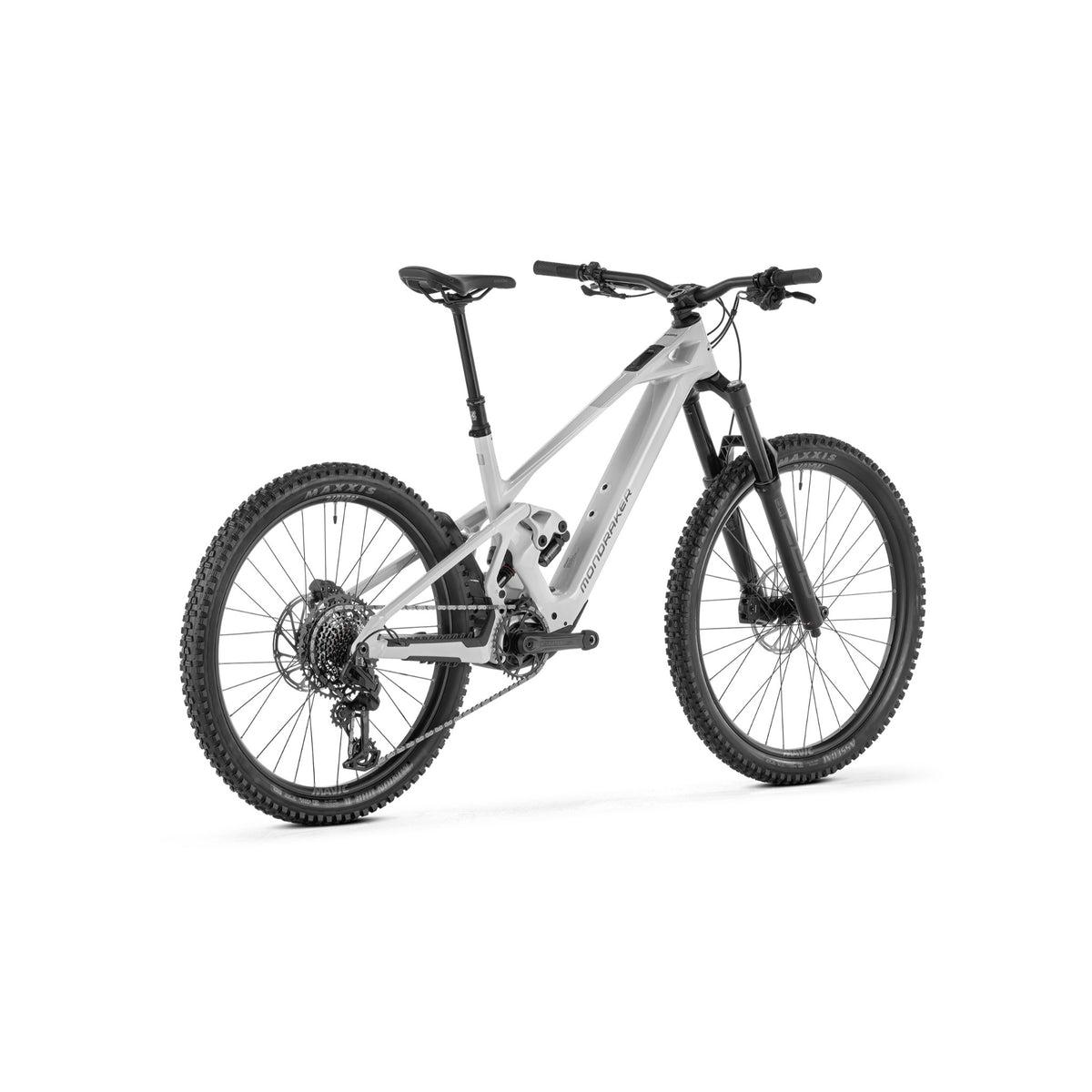

Zendit S 2027
- Electric · Electric MTB
- Carbon frame
Finance available – see options
Order within [time] for delivery by [date]
90 Day Returns
-
Pro builtBuilt and safety-checked by our mechanics before it leaves us
-
Free UK mainland courier deliveryNorthern Ireland: £60
-
Collect in CanterburyPick up and get set up at our store
-
Talk to a riderChat with our team
The Zendit S is the most affordable way onto Mondraker's enduro e-MTB platform, and the compromises are all in the finishing kit rather than anywhere that changes how the bike rides. You get the same Avinox M2S drive system, the same 800Wh battery and the same updated Zero Suspension kinematics as the range-topping XR.
The frame pairs a Stealth Air carbon front triangle with a Stealth Alloy rear end - a sensible saving over the full-carbon RR and XR that keeps the front-end stiffness where it matters most. It carries the same one-piece Monoblock upper link, MAX capacity sealed bearings, oversize 15mm pivot axles and a UDH hanger, so serviceability and durability are unchanged.
Travel is 165mm at the rear from a RockShox Super Deluxe Select shock, with 170mm up front from a ZEB Base 29 running the Delta RC damper. It's a simple, robust package - not the widest tuning range in the world, but well matched to the bike and easy to live with. Braking is SRAM Maven Base with 200mm rotors at both ends, which is a serious amount of power for a bike at this price.
The Avinox M2S motor is the reason to be here. Paired with the integrated 800Wh battery, DP100 touchscreen display and BC100 wireless controllers, it's one of the most capable systems available. Shifting is SRAM's mechanical 70 Eagle T-Type, wheels are Mavic E-Access XR30 on ID360 hubs, and the mixed 29"/27.5" wheel setup keeps things lively on tight, steep trails. Five sizes from S to XL.
Features
- Zendit Stealth Air carbon front triangle with Stealth Alloy rear triangle
- Avinox M2S drive system with integrated 800Wh battery and 4A charger
- Avinox DP100 display and BC100 wireless controllers
- Updated Zero Suspension System - 165mm rear, 170mm front
- RockShox ZEB Base 29 Delta RC fork and Super Deluxe Select shock
- SRAM Maven Base four-piston brakes with 200mm rotors front and rear
- SRAM 70 Eagle T-Type 12-speed drivetrain with e*thirteen Helix Core cranks
- Mavic E-Access XR30 wheels, 30mm internal width, tubeless ready
- Mixed wheel setup - 29" front, 27.5" rear
- X-Fusion Manic TA travel-adjust dropper, size-specific lengths
- Forward Geometry, UDH hanger and internal cable routing through the headset
- Five sizes - S, M, M/L, L and XL
Specifications
DisciplineEnduro
MaterialCarbon front, alloy rear
Front Travel170mm
Rear Travel165mm
Wheel SizeMullet (29" front, 27.5" rear)
MotorAvinox M2S, 800Wh
Frame - Zendit Stealth Air Carbon front triangle, Stealth Alloy rear triangle, Updated Zero Suspension System, 165mm travel, Forward Geometry, internal battery, Boost 12x148mm rear axle, UDH, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers
Rear Shock - RockShox Super Deluxe Select, 205x65mm, trunnion top mount, 30x8mm bottom bushings
Shock Settings - C34 compression, R55 rebound, 4 tokens, X25 lockout force
Fork - RockShox ZEB Base 29, Delta RC, 170mm, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: low-speed compression, external rebound, air preload
Motor - Avinox M2S
Battery - Avinox 800Wh battery / Avinox 4A charger
Display - Avinox DP100 display / Avinox BC100 wireless controller (L&R)
Headset - Acros custom ZS56/ZS56, 1-1/8", 1.5" head tube, internal cable routing, sealing plugs, without blocklock
Stem - Onoff S6 30mm 0°, 6061 forged alloy + CNC, 31.8mm barbore
Handlebar - Onoff S6 1.0 7050 alloy, rise: 25mm, width: 800mm, 8° backsweep, 5° upsweep, 31.8mm barbore. L and XL: 38mm rise
Grips - Onoff Desert Pro, CNC lock-on, 135mm. L and XL: thicker size
Seatpost - X-Fusion Manic TA travel adjust, diameter 31.6mm, 1x remote lever. S: 361x125mm, M: 425x150mm, M/L: 469x170mm, L: 532x200mm, XL: 532x200mm
Saddle - Ergon SM10 E-Mountain Black
Front Brake - SRAM Maven Base, 18mm 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Rear Brake - SRAM Maven Base, 18mm 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Brake Lever - SRAM Maven Base, Directlink and lever pivot bushings, tools-free reach adjust
Rims - Mavic E-Access XR30, aluminium, 30mm internal width, tubeless ready, 32 spokes
Spokes - Mavic reinforced spokes lacing
Front Hub - Mavic, Boost 15x110mm, IS 6 bolts
Rear Hub - Mavic, ID360 freewheel technology, Boost 12x148mm, IS 6 bolts, HG reinforced freehub
Front Tyre - Maxxis Assegai 29x2.5WT, tubeless ready, 3C Maxx Grip compound, EXO+ protection, 60TPI, folding bead
Rear Tyre - Maxxis Minion DHR II 27.5x2.5WT, tubeless ready, 3C MaxxTerra compound, DD protection, 120x2TPI, folding bead
Crankset - e*thirteen Helix Core E*Spec Plus, 155mm all sizes
Chainring - SRAM Eagle 36T T-Type, 104BCD, steel, chainline 55mm
Chain - SRAM 70 T-Type, 12s Flattop, PowerLock
Rear Derailleur - SRAM 70 Eagle, T-Type, 12s
Shifter - SRAM Trigger 70, 12s, T-Type actuation
Cassette - SRAM XS-1270, 10-52T, 12s
