The Zendit R sits in the sweet spot of the range. It takes the same Avinox M2S drive system and 800Wh battery as every other Zendit, adds Fox suspension and wireless AXS shifting, and stops short of the Factory-level kit that pushes the RR and XR into much higher price territory.
Like the S, the frame uses a Stealth Air carbon front triangle with a Stealth Alloy rear end. It's the same updated Zero Suspension platform - 165mm of rear travel, one-piece Monoblock upper link, MAX capacity sealed bearings, oversize 15mm pivot axles, UDH hanger and internal routing through the headset.
Suspension is where the R earns its money. A Fox Float-X LV Performance shock handles the rear with a two-position compression lever, while the Fox 38 Float GRIP Performance fork gives 170mm up front with an e-bike specific tune and three-position compression with micro-adjust. It's a noticeably more tunable setup than the S, and the 38mm chassis is properly stiff under an e-bike's weight.
Shifting is SRAM S1000 Eagle AXS T-Type, wireless and easy to live with, run through an AXS Pod controller. Wheels are DT Swiss Hybrid H 1900 Spline - e-bike rated, 30mm internal width, on 370 hubs - and braking is Maven Base with 200mm rotors at both ends. The Onoff Pija dropper is size-specific and travel-adjustable. Five sizes, S to XL, mixed 29"/27.5" wheels throughout.
Features
- Zendit Stealth Air carbon front triangle with Stealth Alloy rear triangle
- Avinox M2S drive system with integrated 800Wh battery and 4A charger
- Avinox DP100 display and BC100 wireless controllers
- Updated Zero Suspension System - 165mm rear, 170mm front
- Fox 38 Float GRIP Performance fork, e-bike tuned, and Fox Float-X LV Performance shock
- SRAM S1000 Eagle AXS T-Type wireless 12-speed drivetrain
- SRAM Maven Base four-piston brakes with 200mm rotors front and rear
- DT Swiss Hybrid H 1900 Spline e-bike rated wheels, 30mm internal width
- Mixed wheel setup - 29" front, 27.5" rear
- Onoff Pija travel-adjustable dropper post, size-specific
- Forward Geometry, UDH hanger and internal cable routing through the headset
- Five sizes - S, M, M/L, L and XL
Specifications
DisciplineEnduro
MaterialCarbon front, alloy rear
Front Travel170mm
Rear Travel165mm
Wheel SizeMullet (29" front, 27.5" rear)
MotorAvinox M2S, 800Wh
Frame - Zendit Stealth Air Carbon front triangle, Stealth Alloy rear triangle, Updated Zero Suspension System, 165mm travel, Forward Geometry, internal battery, Boost 12x148mm rear axle, UDH, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers
Rear Shock - Fox Float-X LV Performance, 205x65mm. Settings: 2-position compression lever, low-speed rebound, air preload. Trunnion top mount, 30x8mm bottom bushings
Shock Settings - CS 30 compression, 1.1 bleed, RL50 rebound, Rezi B40, LML, standard MCU, 0 volume spacers
Fork - Fox 38 29 Float GRIP Performance, 170mm, e-bike tuned, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: 3-position compression with micro adjust, low-speed rebound, air preload
Motor - Avinox M2S
Battery - Avinox 800Wh battery / Avinox 4A charger
Display - Avinox DP100 display / Avinox BC100 wireless controller (L&R)
Headset - Acros custom ZS56/ZS56, 1-1/8", 1.5" head tube, internal cable routing, sealing plugs, without blocklock
Stem - Onoff S6 30mm 0°, 6061 forged alloy + CNC, 31.8mm barbore
Handlebar - Onoff S6 1.0 7050 alloy, rise: 25mm, width: 800mm, 8° backsweep, 5° upsweep, 31.8mm barbore. L and XL: 38mm rise
Grips - Onoff Desert Pro, CNC lock-on, 135mm. L and XL: thicker size
Seatpost - Onoff Pija internal dropper, diameter 31.6mm, 1x remote lever with bearing. S: 140-115mm, M: 160-135mm, M/L: 180-155mm, L and XL: 210-185mm
Saddle - Ergon SM10 E-Mountain Black
Front Brake - SRAM Maven Base, 18mm 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Rear Brake - SRAM Maven Base, 18mm 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Brake Lever - SRAM Maven Base, Directlink and lever pivot bushings, tools-free reach adjust
Rims - DT Swiss Hybrid H 1900 Spline, aluminium, hooked tubeless TC, 30mm internal width, tubeless ready, 28 spokes
Spokes - DT Swiss straightpull spokes, DT Hybrid I, black
Front Hub - DT Swiss 370, Boost 15x110mm, IS 6 bolts
Rear Hub - DT Swiss 370 with 18T Ratchet LN System, Boost 12x148mm, IS 6 bolts, HG freehub
Front Tyre - Maxxis Assegai 29x2.5WT, tubeless ready, 3C Maxx Grip compound, EXO+ protection, 60TPI, folding bead
Rear Tyre - Maxxis Minion DHR II 27.5x2.5WT, tubeless ready, 3C MaxxTerra compound, DD protection, 120x2TPI, folding bead
Crankset - e*thirteen Helix Core E*Spec Plus, 155mm all sizes
Chainring - SRAM Eagle 36T T-Type, 104BCD, steel, chainline 55mm
Chain - SRAM GX Eagle T-Type, 12s Flattop, with PowerLock
Rear Derailleur - SRAM S1000 Eagle AXS, T-Type, 12s
Shifter - SRAM Eagle AXS Pod controller with discrete clamp, 12s
Cassette - SRAM XS 1270, 10-52T, T-Type, 12s
Extras - SRAM AXS extension cord

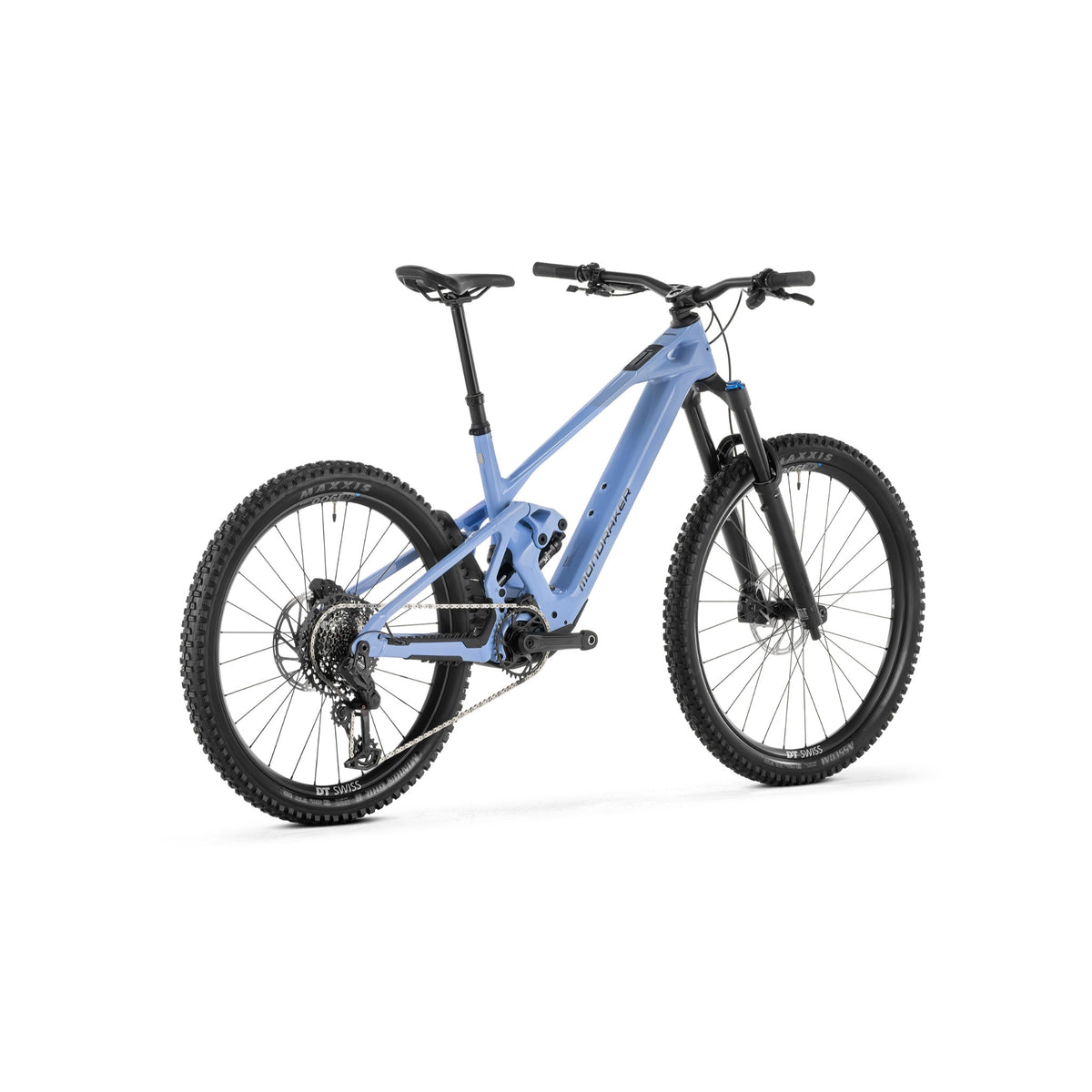

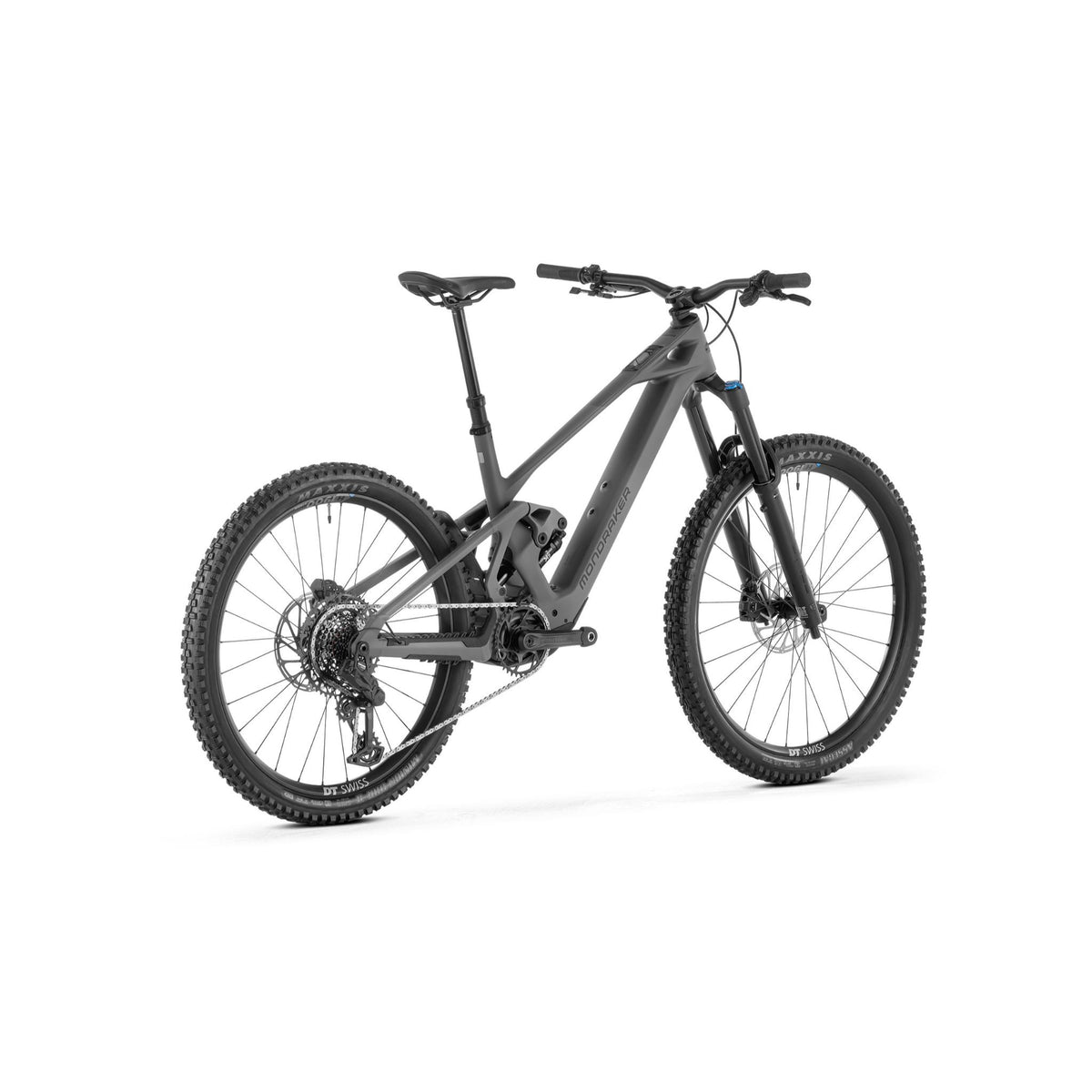

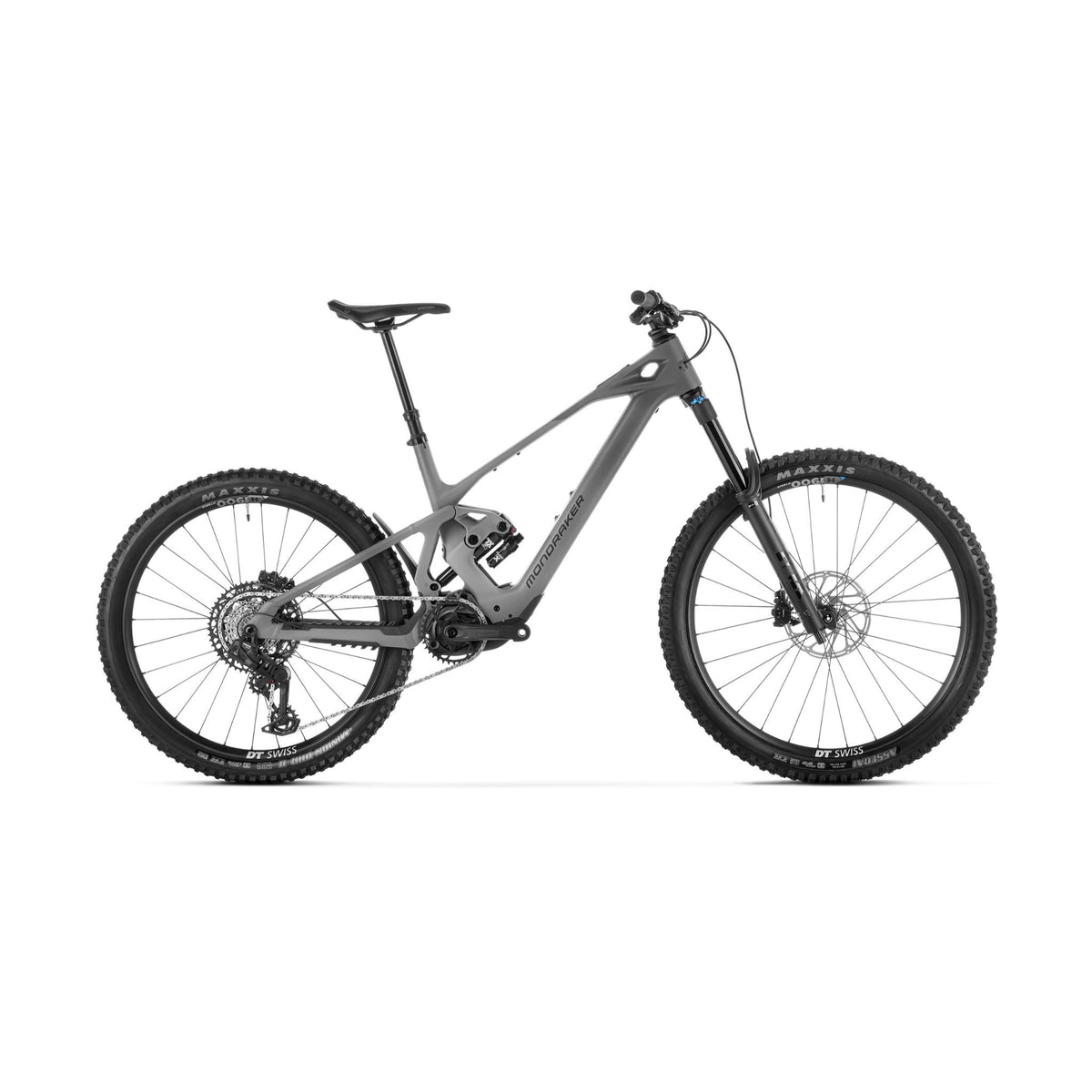

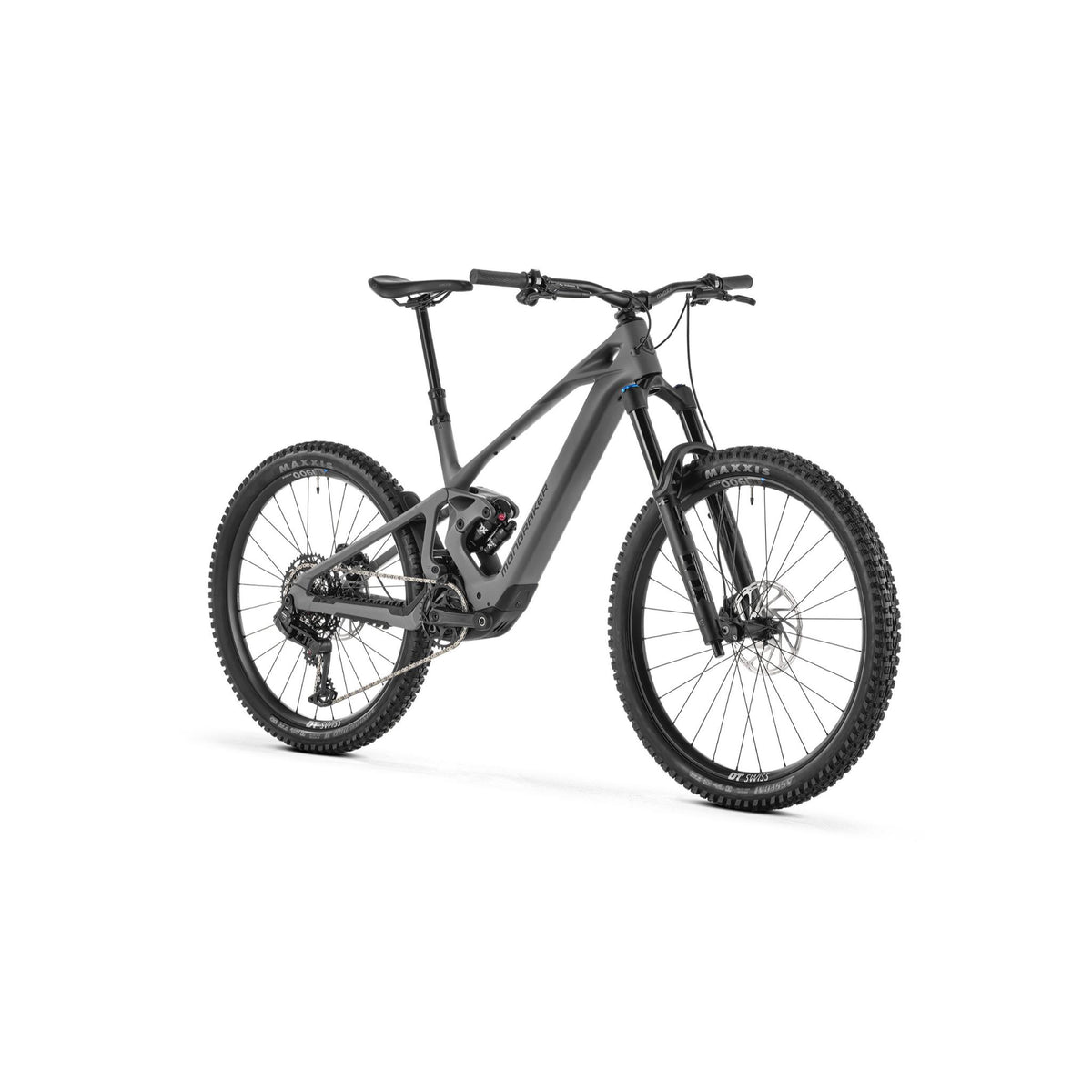

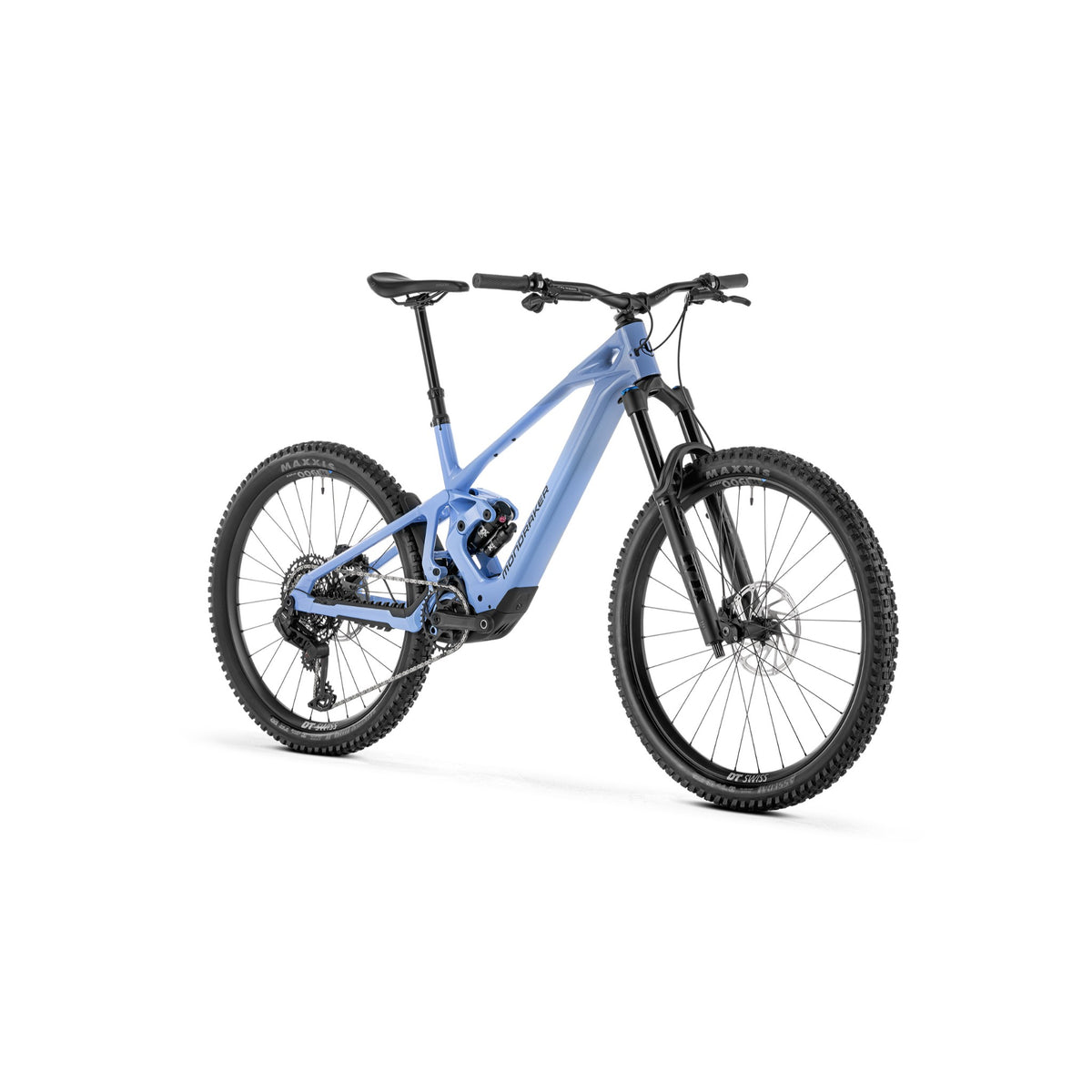

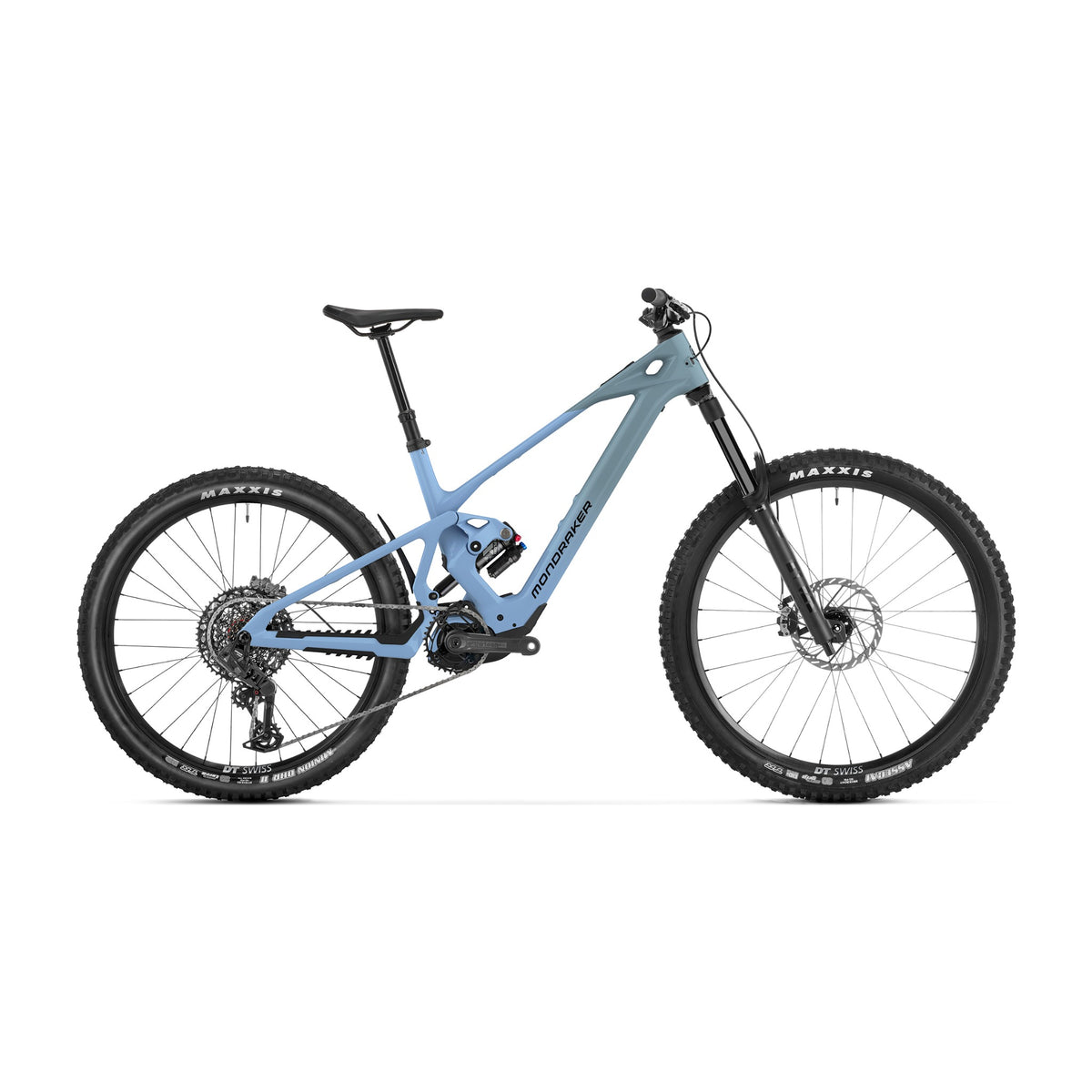

Zendit R 2027
- Electric · Electric MTB
- Carbon frame
Finance available – see options
Order within [time] for delivery by [date]
90 Day Returns
-
Pro builtBuilt and safety-checked by our mechanics before it leaves us
-
Free UK mainland courier deliveryNorthern Ireland: £60
-
Collect in CanterburyPick up and get set up at our store
-
Talk to a riderChat with our team
The Zendit R sits in the sweet spot of the range. It takes the same Avinox M2S drive system and 800Wh battery as every other Zendit, adds Fox suspension and wireless AXS shifting, and stops short of the Factory-level kit that pushes the RR and XR into much higher price territory.
Like the S, the frame uses a Stealth Air carbon front triangle with a Stealth Alloy rear end. It's the same updated Zero Suspension platform - 165mm of rear travel, one-piece Monoblock upper link, MAX capacity sealed bearings, oversize 15mm pivot axles, UDH hanger and internal routing through the headset.
Suspension is where the R earns its money. A Fox Float-X LV Performance shock handles the rear with a two-position compression lever, while the Fox 38 Float GRIP Performance fork gives 170mm up front with an e-bike specific tune and three-position compression with micro-adjust. It's a noticeably more tunable setup than the S, and the 38mm chassis is properly stiff under an e-bike's weight.
Shifting is SRAM S1000 Eagle AXS T-Type, wireless and easy to live with, run through an AXS Pod controller. Wheels are DT Swiss Hybrid H 1900 Spline - e-bike rated, 30mm internal width, on 370 hubs - and braking is Maven Base with 200mm rotors at both ends. The Onoff Pija dropper is size-specific and travel-adjustable. Five sizes, S to XL, mixed 29"/27.5" wheels throughout.
Features
- Zendit Stealth Air carbon front triangle with Stealth Alloy rear triangle
- Avinox M2S drive system with integrated 800Wh battery and 4A charger
- Avinox DP100 display and BC100 wireless controllers
- Updated Zero Suspension System - 165mm rear, 170mm front
- Fox 38 Float GRIP Performance fork, e-bike tuned, and Fox Float-X LV Performance shock
- SRAM S1000 Eagle AXS T-Type wireless 12-speed drivetrain
- SRAM Maven Base four-piston brakes with 200mm rotors front and rear
- DT Swiss Hybrid H 1900 Spline e-bike rated wheels, 30mm internal width
- Mixed wheel setup - 29" front, 27.5" rear
- Onoff Pija travel-adjustable dropper post, size-specific
- Forward Geometry, UDH hanger and internal cable routing through the headset
- Five sizes - S, M, M/L, L and XL
Specifications
DisciplineEnduro
MaterialCarbon front, alloy rear
Front Travel170mm
Rear Travel165mm
Wheel SizeMullet (29" front, 27.5" rear)
MotorAvinox M2S, 800Wh
Frame - Zendit Stealth Air Carbon front triangle, Stealth Alloy rear triangle, Updated Zero Suspension System, 165mm travel, Forward Geometry, internal battery, Boost 12x148mm rear axle, UDH, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers
Rear Shock - Fox Float-X LV Performance, 205x65mm. Settings: 2-position compression lever, low-speed rebound, air preload. Trunnion top mount, 30x8mm bottom bushings
Shock Settings - CS 30 compression, 1.1 bleed, RL50 rebound, Rezi B40, LML, standard MCU, 0 volume spacers
Fork - Fox 38 29 Float GRIP Performance, 170mm, e-bike tuned, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: 3-position compression with micro adjust, low-speed rebound, air preload
Motor - Avinox M2S
Battery - Avinox 800Wh battery / Avinox 4A charger
Display - Avinox DP100 display / Avinox BC100 wireless controller (L&R)
Headset - Acros custom ZS56/ZS56, 1-1/8", 1.5" head tube, internal cable routing, sealing plugs, without blocklock
Stem - Onoff S6 30mm 0°, 6061 forged alloy + CNC, 31.8mm barbore
Handlebar - Onoff S6 1.0 7050 alloy, rise: 25mm, width: 800mm, 8° backsweep, 5° upsweep, 31.8mm barbore. L and XL: 38mm rise
Grips - Onoff Desert Pro, CNC lock-on, 135mm. L and XL: thicker size
Seatpost - Onoff Pija internal dropper, diameter 31.6mm, 1x remote lever with bearing. S: 140-115mm, M: 160-135mm, M/L: 180-155mm, L and XL: 210-185mm
Saddle - Ergon SM10 E-Mountain Black
Front Brake - SRAM Maven Base, 18mm 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Rear Brake - SRAM Maven Base, 18mm 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Brake Lever - SRAM Maven Base, Directlink and lever pivot bushings, tools-free reach adjust
Rims - DT Swiss Hybrid H 1900 Spline, aluminium, hooked tubeless TC, 30mm internal width, tubeless ready, 28 spokes
Spokes - DT Swiss straightpull spokes, DT Hybrid I, black
Front Hub - DT Swiss 370, Boost 15x110mm, IS 6 bolts
Rear Hub - DT Swiss 370 with 18T Ratchet LN System, Boost 12x148mm, IS 6 bolts, HG freehub
Front Tyre - Maxxis Assegai 29x2.5WT, tubeless ready, 3C Maxx Grip compound, EXO+ protection, 60TPI, folding bead
Rear Tyre - Maxxis Minion DHR II 27.5x2.5WT, tubeless ready, 3C MaxxTerra compound, DD protection, 120x2TPI, folding bead
Crankset - e*thirteen Helix Core E*Spec Plus, 155mm all sizes
Chainring - SRAM Eagle 36T T-Type, 104BCD, steel, chainline 55mm
Chain - SRAM GX Eagle T-Type, 12s Flattop, with PowerLock
Rear Derailleur - SRAM S1000 Eagle AXS, T-Type, 12s
Shifter - SRAM Eagle AXS Pod controller with discrete clamp, 12s
Cassette - SRAM XS 1270, 10-52T, T-Type, 12s
Extras - SRAM AXS extension cord
