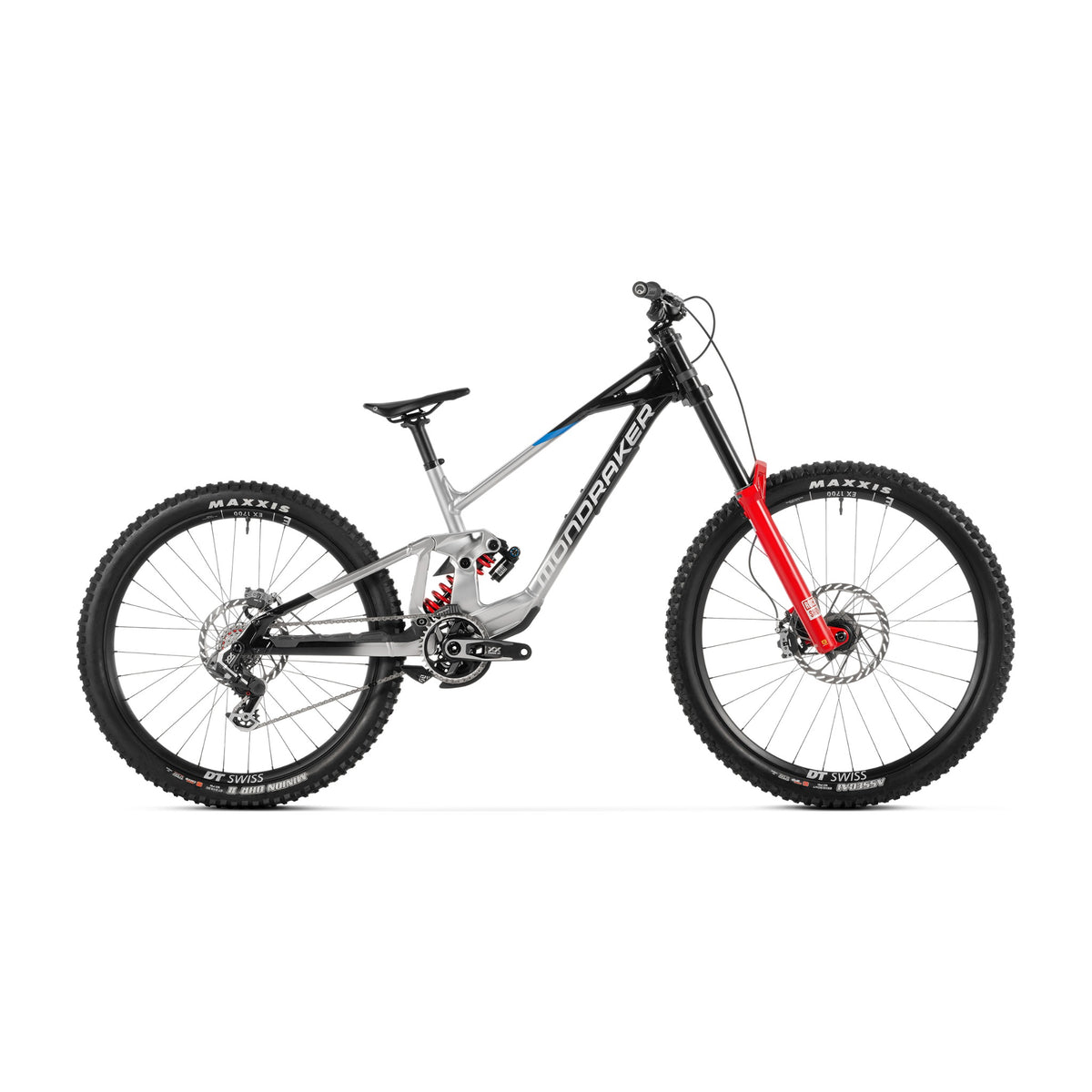

This is the Summum as the Mondraker Factory Racing team rides it. The RR shares the 6061 alloy Stealth Evo chassis and 200mm of Zero Suspension travel with the rest of the range, but everything bolted to it is a level up - and the Team Edition paint makes no secret of where it came from.
The suspension is the headline. A RockShox Vivid Coil Ultimate shock replaces the Select+, giving you a far wider tuning window, and the Boxxer Ultimate fork adds a Charger 3.2 RC2 damper with independent high and low-speed compression. On a downhill bike that's the difference between coping with a track and actually setting the bike up for it. Spring rates are still matched to frame size, so you're not starting from scratch.
Braking moves to SRAM Maven Ultimate with SwingLink levers, lever pivot bearings and HS2 rotors (220mm front, 200mm rear) running sintered pads. The drivetrain is SRAM's wireless XX DH AXS - seven speeds, an Eagle AXS Pod controller and a tight 10-24T XS 797 cassette, driven by an XX DH T-Type crankset. Wheels step up to DT Swiss EX 1700 Classic rims on 350 hubs, with the 72T Ratchet DEG system in the rear for near-instant engagement.
The frame itself is unchanged from the R, which is the point: mixed 29"/27.5" wheels, a 12x157mm rear axle, UDH, ISCG 05 tabs, and the same geometry kit in the box with +/- 5mm headset cups, a lower shock mount flip chip and +5mm / -5mm dropouts. Sizes run M, L and XL.
Features
- Summum MX 6061 Stealth Alloy Evo frame with 200mm of rear travel
- Team Edition colourway
- RockShox Vivid Coil Ultimate shock, 225x75mm, size-specific spring rates
- RockShox Boxxer Ultimate 29 fork, 200mm, Charger 3.2 RC2 damper
- SRAM Maven Ultimate brakes with SwingLink levers, HS2 220mm front and 200mm rear rotors, sintered pads
- SRAM XX DH AXS wireless 7-speed drivetrain with Eagle AXS Pod controller
- DT Swiss EX 1700 Classic wheels on 350 hubs with 72T Ratchet DEG
- Mixed wheel setup - 29" front, 27.5" rear
- Geometry kit included - +/- 5mm headset cups, lower shock mount flip chip, +5mm and -5mm dropouts
- e*thirteen LG1+ chain device, UDH hanger, ISCG 05 tabs
- Three sizes - M, L and XL
Specifications
Discipline Downhill
Material Alloy
Front Travel 200mm
Rear Travel 200mm
Wheel Size Mullet (29" front, 27.5" rear)
Frame - Summum MX 6061 Stealth Alloy Evo, Mullet, hydroformed tubing, Updated Zero Suspension System, 200mm travel, Forward Geometry, alloy upper link with shock eyelet bearings, 12x157mm rear axle, UDH, 83mm BSA bottom bracket, MAX. capacity dual row bearings, HHG internal cable routing, ISCG 05
Rear Shock - RockShox Vivid Coil Ultimate, 225x75mm, spring preload. Trunnion top mount, 30x8mm bottom bushings
Shock Settings - R55, C40. Spring rate: M size 450 lbs, L size 500 lbs, XL size 550 lbs
Fork - RockShox Boxxer Ultimate 29, Charger 3.2 RC2, 200mm, DebonAir+, 1-1/8" steerer tube, Boost 20x110mm axle, offset 52mm. Settings: high/low-speed compression, rebound, air preload
Headset - Onoff DH ARS (Adjustable Reach System) 1-1/8", 1-1/8" steerer tube, 42x30x7x45°x45° sealed bearings, reach kit cups (+/- 5mm)
Stem - Onoff S9 DH CNC Integrated, 45-50mm adjustable length, 10mm rise, 31.8mm barbore, 7075 alloy, 4x5mm spacer
Handlebar - Onoff S6 1.5 7050 alloy, rise: 35mm, width: 800mm, 8° backsweep, 5° upsweep, 31.8mm barbore
Grips - Onoff Desert Pro, CNC lock-on, 135mm. L and XL: thicker size
Seatpost - Onoff S3 DH Alloy, diameter 31.6mm, length 300mm
Saddle - Ergon SM10 DH Black
Front Brake - SRAM Maven Ultimate, 18mm 4-piston caliper, HS2 220mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Rear Brake - SRAM Maven Ultimate, 18mm 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Brake Lever - SRAM Maven Ultimate, SwingLink and lever pivot bearings, tools-free reach adjust
Rims - DT Swiss EX 1700 Classic, 30mm internal width, welded aluminium, tubeless ready, 28 spokes front, 32 spokes rear
Spokes - DT Swiss Competition
Front Hub - DT Swiss 350, Boost 20x110mm, IS 6 bolts
Rear Hub - DT Swiss 350 Classic with 72T Ratchet DEG System, 12x157mm, IS 6 bolts, XD freehub
Front Tyre - Maxxis Assegai 29x2.5WT, tubeless ready, 3C Maxx Grip compound, DH casing, 60x2TPI, folding bead
Rear Tyre - Maxxis Minion DHR II 27.5x2.5WT, tubeless ready, 3C Maxx Terra compound, DH casing, 60x2TPI, folding bead
Crankset - SRAM XX DH T-Type, DUB axle, direct mount chainring, 165mm, chainline 56.5mm
Chainring - 36T, aluminium T-Type
Bottom Bracket - SRAM DUB BSA, sealed bearings, 83mm
Chain - SRAM X0 Eagle T-Type, 12s Flattop, PowerLock
Chain Device - e*thirteen LG1+ Compact upper slider, alloy backplate, DMB (direct mount bashguard) lower slider 36-38T, ISCG 05 adjustable upper slider
Rear Derailleur - SRAM XX DH AXS, T-Type, 7s
Shifter - SRAM Eagle AXS Pod
Cassette - SRAM XS 797 10-24T, 7s
Extras - Geometry kit included: +/- 5mm headset cups, lower shock mount flip chip, +5mm dropout, -5mm dropout
