The Summum has been Mondraker's downhill weapon for well over a decade, and the 2027 R build keeps the formula honest: a hydroformed 6061 alloy frame, 200mm of travel at both ends, and a mixed-wheel layout that has become the default at World Cup level. It's the accessible way into the platform, and it gives up very little to the bikes above it where it counts.
The MX chassis runs a 29" wheel up front and a 27.5" at the rear. That's the setup most racers have settled on - the bigger front wheel rolls over square edges and holds a line through braking bumps, while the smaller rear stops the bike feeling long and lets you move it around in tight turns. Behind it sits the updated Zero Suspension System, using an alloy upper link with shock eyelet bearings to keep the rear end tracking under heavy braking.
Suspension is RockShox throughout: a Vivid Coil Select+ shock at 225x75mm with a coil spring matched to frame size (450 lbs on M, 500 lbs on L, 550 lbs on XL), paired with a Boxxer Select RC 29 fork running 200mm of DebonAir+ travel. Braking is SRAM Maven Base with a 220mm rotor up front and 200mm at the rear, which matters when you're dragging the brakes for two solid minutes.
A geometry kit comes in the box: +/- 5mm headset reach cups, a lower shock mount flip chip, and +5mm / -5mm dropouts. That gives you a real range of reach, bottom bracket height and chainstay length to suit the track rather than one fixed setting. The drivetrain is a 7-speed SRAM GX DH with an e*thirteen LG1+ chain device, and the wheels are DT Swiss F 1900 Classic rims on 370 hubs.
Features
- Summum MX 6061 Stealth Alloy Evo frame with 200mm of rear travel
- Mixed wheel setup - 29" front, 27.5" rear
- Updated Zero Suspension System with alloy upper link and shock eyelet bearings
- RockShox Vivid Coil Select+ shock, 225x75mm, size-specific spring rates
- RockShox Boxxer Select RC 29 fork, 200mm DebonAir+
- SRAM Maven Base four-piston brakes, 220mm front and 200mm rear rotors
- Geometry kit included - +/- 5mm headset cups, lower shock mount flip chip, +5mm and -5mm dropouts
- Onoff DH ARS adjustable-reach headset and S9 DH 45-50mm adjustable stem
- SRAM GX DH 7-speed drivetrain with e*thirteen LG1+ chain device
- 12x157mm rear axle, UDH hanger, ISCG 05 tabs and 83mm BSA bottom bracket
- Three sizes - M, L and XL
Specifications
Discipline Downhill
Material Alloy
Front Travel 200mm
Rear Travel 200mm
Wheel Size Mullet (29" front, 27.5" rear)
Frame - Summum MX 6061 Stealth Alloy Evo, Mullet, hydroformed tubing, Updated Zero Suspension System, 200mm travel, Forward Geometry, alloy upper link with shock eyelet bearings, 12x157mm rear axle, UDH, 83mm BSA bottom bracket, MAX. capacity dual row bearings, HHG internal cable routing, ISCG 05
Rear Shock - RockShox Vivid Coil Select+, 225x75mm, spring preload. Trunnion top mount, 30x8mm bottom bushings
Shock Settings - R55, C40. Spring rate: M size 450 lbs, L size 500 lbs, XL size 550 lbs
Fork - RockShox Boxxer Select RC 29, 200mm, DebonAir+, 1-1/8" steerer tube, Boost 20x110mm axle, offset 52mm. Settings: low-speed compression, rebound, air preload
Headset - Onoff DH ARS (Adjustable Reach System) 1-1/8", 1-1/8" steerer tube, 42x30x7x45°x45° sealed bearings, reach kit cups (+/- 5mm)
Stem - Onoff S9 DH CNC Integrated, 45-50mm adjustable length, 10mm rise, 31.8mm barbore, 7075 alloy, 4x5mm spacer
Handlebar - Onoff S6 1.5 7050 alloy, rise: 35mm, width: 800mm, 8° backsweep, 5° upsweep, 31.8mm barbore
Grips - Onoff Desert Pro, CNC lock-on, 135mm. L and XL: thicker size
Seatpost - Onoff S3 DH Alloy, diameter 31.6mm, length 300mm
Saddle - Ergon SM10 DH Black
Front Brake - SRAM Maven Base, 18mm 4-piston caliper, Centerline 220mm IS 6 bolts one-piece rotor, steel-backed organic pads
Rear Brake - SRAM Maven Base, 18mm 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Brake Lever - SRAM Maven Base, Directlink and lever pivot bushings, tools-free reach adjust
Rims - DT Swiss F 1900 Classic, 30mm internal width, welded aluminium, tubeless ready, 28 spokes front, 32 spokes rear
Spokes - DT J-bend spokes, DT Competition, black
Front Hub - DT Swiss 370, Boost 20x110mm, IS 6 bolts
Rear Hub - DT Swiss 370 Classic with 18T Ratchet LN System, 12x157mm, IS 6 bolts, HG freehub
Front Tyre - Maxxis Assegai 29x2.5WT, tubeless ready, 3C Maxx Grip compound, DH casing, 60x2TPI, folding bead
Rear Tyre - Maxxis Minion DHR II 27.5x2.5WT, tubeless ready, 3C Maxx Terra compound, DH casing, 60x2TPI, folding bead
Crankset - SRAM Truvativ Descendant DH, DUB axle, direct mount chainring, 165mm, chainline 56.5mm
Chainring - 36T, aluminium, X-SYNC
Bottom Bracket - SRAM DUB BSA, sealed bearings, 83mm
Chain - SRAM PC1110 11s, PowerLock
Chain Device - e*thirteen LG1+ Compact upper slider, alloy backplate, DMB (direct mount bashguard) lower slider 36-38T, ISCG 05 adjustable upper slider
Rear Derailleur - SRAM GX DH, 7s, medium cage
Shifter - SRAM trigger GX DH 7s, X-Actuation 1:1
Cassette - SRAM PG 720 11-25T, 7s
Derailleur Hanger - SRAM UDH
Extras - Geometry kit included: +/- 5mm headset cups, lower shock mount flip chip, +5mm dropout, -5mm dropout

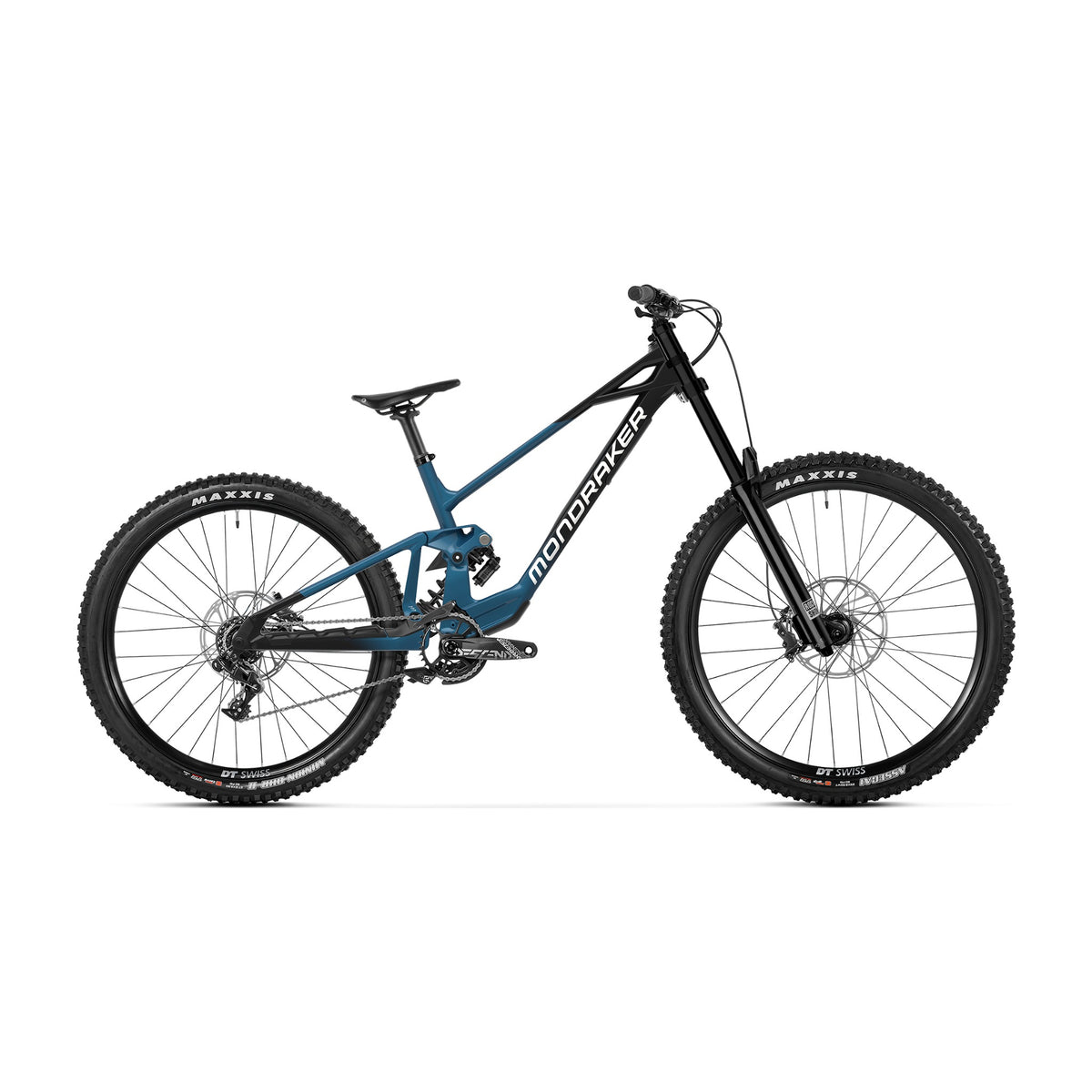

Summum R MX 2027
