Mondraker's Scree is a full-power electric mountain bike designed specifically for trail riding. This R spec version is the mid-range option, bumping component level up from the S spec to give some extra performance.
An all-new aluminium frame has been developed to make the Scree accessible for both new-comers to mountain biking or experienced riders moving over to e-Mtb. The Scree rolls on 29" wheels and uses a newly updated revision of Mondraker's famed Zero Suspension System, this linkage design perfectly balances a playful ride, pedalling efficiency and sharp handling. A low centre of gravity makes the Scree comfortable, easy to control and a dream to ride.
Bosch CX Drive system -
Providing the juice is the incredibly popular Bosch CX Performance line. This unit has a glowing reputation for a smooth power delivery and outstanding reliability. The Scree R comes with a large capacity 800wh battery, plenty for a days riding though it can be easily swapped out should you wish to carry a spare. Display is the top-tube mounted Bosch Kiox unit.
Key Spec Features -
- Fox 36 Float Rhythm front fork
- Fox Float Rhythm EVOL shock
- SRAM Eagle 70 T-Type 12-speed drivetrain
- SRAM DB6 hydraulic disc brakes
- E13 wheels
- Maxxis Tyres
SIZING -
- S: <165cm
- M: 165-175cm
- M/L: 170-185cm
- L: 180-190cm
- XL: 190-195cm
Specifications
-
Discipline Trail
-
Material Alloy
-
Front Travel 150mm
-
Rear Travel 130mm
-
Wheel Size 29"
-
Warranty Lifetime
Frame - SCREE 6061 Alloy Stealth Evo, Updated Zero Suspension System, 130mm travel, Forward Geometry, internal removable battery, Boost 12x148mm rear axle, UDH, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers.
Rear Shock - Fox Float Rhythm EVOL 165x45mm. Settings: Settings: 2-position compression (Open/Firm), rebound, air preload. Trunnion top mount, 30x8mm bottom bushings
Fork - Fox 36 29 Float Rhythm, 150mm, tapered steerer tube, Boost 15x110mm Kabolt axle, 44mm offset. Settings: GRIP Sweep-Adjust
Headset - Acros custom ZS56/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs without blocklock
Stem - Onoff S6 30mm 0º, 6061 forged alloy + CNC, 31.8mm barbore
Handlebar - Onoff S6 1.0 7050 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 38mm rise.
Grips - Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size
Seatpost - X-Fusion Manic diameter 31.6mm,1X Remote lever, S size: 361x125mm, M size: 425x150mm, ML size: 469x170mm, L size: 521x190mm, XL size: 531x200
Saddle - Ergon SMC10 Gel
Front Brake - Sram DB6, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Rear Brake - Sram DB6, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Brake Lever - Sram DB6, tool reach adjust, lever pivot bushings
Rims - e*thirteen Grappler Core, IW30 Hookless, 6066 Welded Aluminium, 30mm internal width, tubeless ready, 28 spokes
Spokes - e*thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers
Front Hub - e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminium, IS 6 bolts
Rear Hub - e*thirteen Superboost 12x148mm, triple-sealed, fully machined aluminium w/6-degree engagement, IS 6 bolts, HG freehub
Front Tire - Maxxis Dissector 29x2.6, tubeless ready, tubeless ready, 3C MaxxTerra compound EXO+ protection, 60TPI, folding bead
Rear Tire - Maxxis Dissector 29x2.6, tubeless ready, tubeless ready, 3C MaxxTerra compound EXO+ protection, 60TPI, folding bead
Crankset - E.13 Helix Core E*Spec Plus, All sizes: 160mm
Rings - Sram Eagle 34T T-Type, direct mount, steel, CL55
Chain - Sram 70 T-Type, 12s Flattop, PowerLock
Rear Derrailleur - Sram 70 Eagle, T-Type, 12s
Shift Levers - Sram Trigger 70, 12s, T-Type Actuation
Cassette - Sram XS-1270, 10-52T, 12s
Motor - Bosch Performance Line CX (25Km/h) SMART SYSTEM (BDU384Y)
Battery - Bosch Powertube 800Wh
Display - Kiox 400 / Bosch Mini Remote

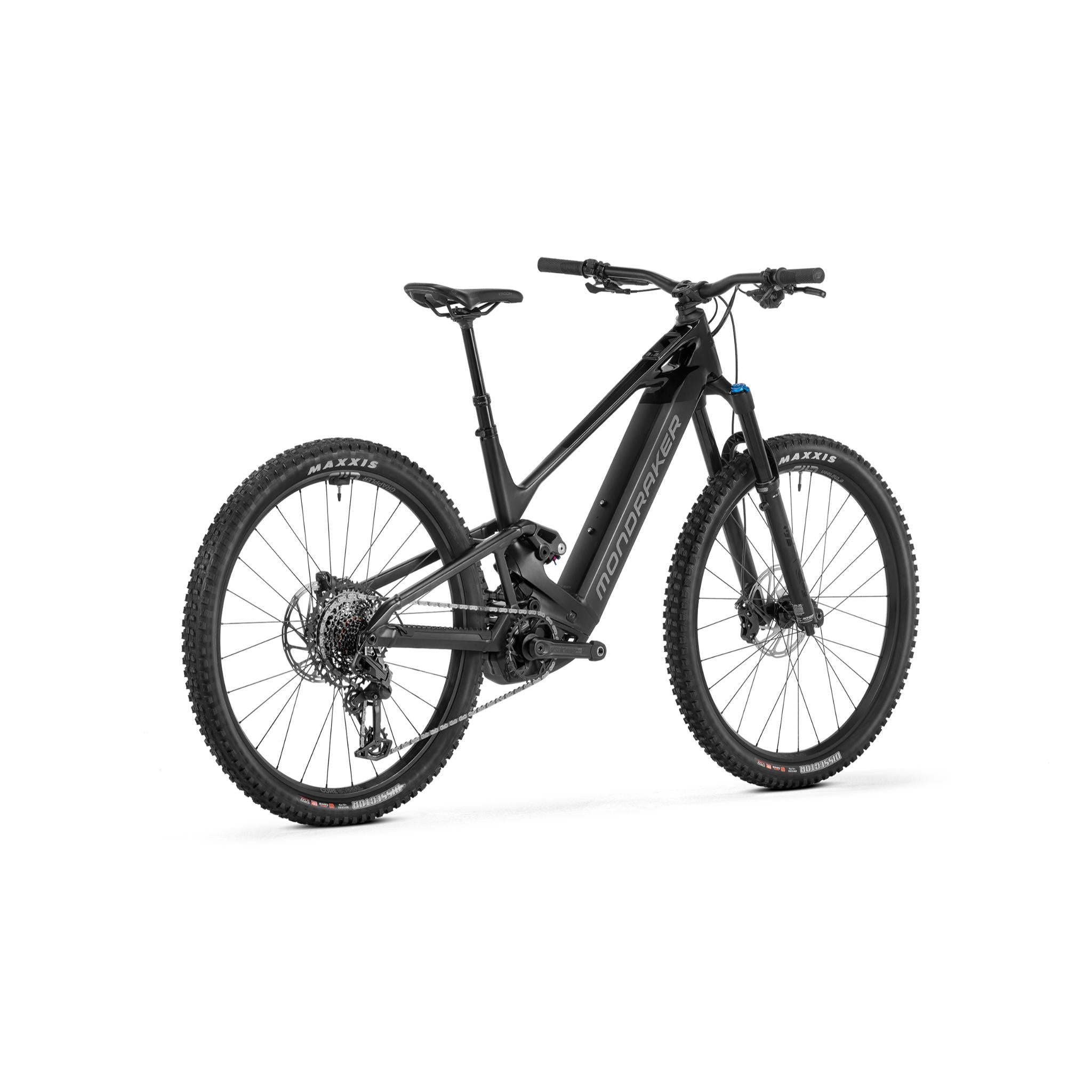

Scree R 2026
