From the moment it was launched, the Raze became a benchmark in the trail bike category. It pairs Mondraker's Forward Geometry, tuned specifically for trail riding, with the Zero Suspension System and a remarkably light Stealth Air full carbon frame.
True to the brand's philosophy, it's a trail bike built for fun in both directions. It climbs efficiently and with real eagerness, yet doesn't hold back when the trail points downhill, where its 130mm of rear travel and stable geometry let it carry serious speed.
This RR SL frameset is the top-tier Raze frame, supplied with headset, stem and UDH hanger, ready for you to build up around your own choice of components and a 150mm fork.
Features
- Raze 29 Stealth Air full carbon frame with Forward Geometry
- 130mm rear travel via the Zero Suspension System with Carbon Monoblock upper link
- Designed around a 150mm fork
- Acros headset and Onoff Krypton 30mm CNC stem included
- Internal cable routing, ISCG 05 mounts, shock mudguard and frame protection
- Threaded 73mm BSA bottom bracket, Boost 148mm rear and SRAM UDH
- 31.6mm seat tube for a dropper post
Sizing
- S: 160cm - 170cm
- M: 165cm - 180cm
- L: 175cm - 185cm
- XL: 185cm - 190cm+
Specifications
DisciplineTrail
MaterialCarbon
Rear Travel130mm
Wheel Size29"
WarrantyLifetime (frame)
Frame - Raze 29 Stealth Air full Carbon, Zero Suspension System, 130mm travel, Forward Geometry, Carbon Monoblock upper link, Boost 12x148mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, HHG internal cable routing, Enduro MAX sealed bearings, shock mudguard, ISCG 05, custom frame protectors
Headset - Acros custom for 1-1/2" head tube, angular contact bearings 40x52x7, internal cable routing
Shock settings - Light compression, light rebound, air volume spacer 0.6
Stem - Onoff Krypton FG 30mm, CNC, 31.8mm barbore
Derailleur hanger - Sram UDH
Seatpost diameter - 31.6mm
Recommended fork travel - 150mm

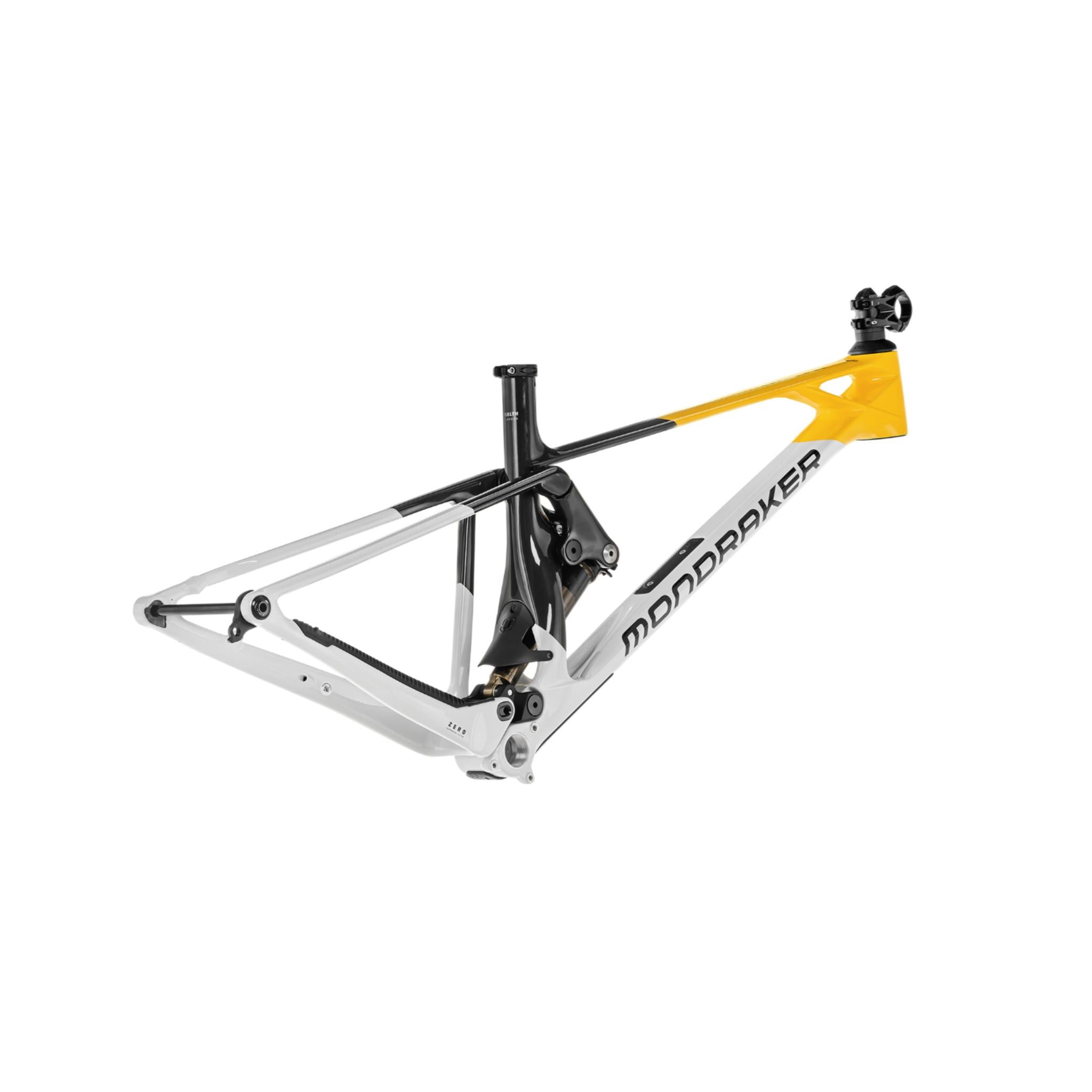

Raze Carbon RR SL Frame 2024
