The Prime X is Mondraker's do-it-all electric hardtail, keeping things simple with a reliable alloy frame, the latest Bosch Performance Line CX motor and carefully chosen components. It's built as a capable mix of e-MTB and urban bike, equally at home on the commute, on bridleways or on weekend adventures.
The fully butted 6061 Xtralite alloy frame uses Mondraker's Forward Geometry for stable handling and confident control. Power comes from Bosch's CX motor, assisted to 25km/h, paired with a removable 800Wh PowerTube battery for plenty of range and convenient off-bike charging, plus a Purion 200 display.
A 120mm RockShox Recon fork smooths out rough surfaces, and 29" wheels with 2.6" Maxxis Metropass AT tyres with reflective sidewalls grip well on tarmac, gravel and trails. SRAM 70 Eagle T-Type gearing and DB6 four-piston brakes handle shifting and stopping, while front and rear carriers, a front light and a kickstand make it a genuinely practical everyday bike.
Features
- Prime Xtralite 6061 fully butted alloy frame with Forward Geometry
- Bosch Performance Line CX Smart System motor, assisted to 25km/h
- Removable Bosch PowerTube 800Wh battery and Purion 200 display
- 120mm RockShox Recon Silver RL air fork with lockout
- Front carrier (15kg max) and MIK-ready rear carrier (25kg max)
- 150 lux front light, kickstand and urban pedals included
- SRAM 70 Eagle T-Type 12-speed drivetrain and SRAM DB6 four-piston brakes
- Mavic E-Access wheels with 29x2.6" Maxxis Metropass AT reflective tyres
Specifications
DisciplineTrail/
Commute MaterialAluminium
Front Travel120mm
Rear TravelHardtail
Wheel Size29"
WarrantyLifetime (frame)
Frame - Prime Xtralite 6061 Full Butted Alloy, Forward Geometry, internal removable battery, tapered head tube, Boost 12x148mm rear axle, UDH
Motor - Bosch Performance Line CX (25km/h) Smart System (BDU384Y)
Battery - Bosch PowerTube 800Wh
Display - Purion 200
Fork - RockShox Recon Silver RL 29, 120mm, Motion control, Solo Air, tapered steerer tube, Boost 15x110mm axle, 32mm steel stanchions, 42mm offset. Settings: compression adjustment at low-speed to lock, rebound, air preload
Headset - Acros custom ZS56/ZS56, 1-1/8", 1.5" head tube, internal cable routing, sealing plugs without blocklock
Stem - Onoff S3 30mm 0°, 6061 forged alloy, 31.8mm barbore
Handlebar - Onoff S3 1.0 6061 alloy, rise: 25mm, width: 800mm, 8° backsweep, 5° upsweep, 31.8mm barbore. L and XL size: 38mm rise
Grips - Onoff Beehive, 1 lock-on, 135mm
Seatpost - Onoff S3 0-R, diameter 31.6mm, length 400mm
Saddle - Ergon SF10 Gel
Front brake - Sram DB6, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Rear brake - Sram DB6, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Brake lever - Sram DB6, tool reach adjust, lever pivot bushings
Rims - Mavic E-Access XR27, 29 Boost, 27mm internal width, tubeless ready, 28 spokes
Spokes - Mavic 28 reinforced spoke lacing
Front hub - Mavic, Boost 15x110mm, IS 6 bolts
Rear hub - Mavic, Boost 12x148mm, IS 6 bolts, HG reinforced freehub
Front tyre - Maxxis Metropass AT 29x2.6, single compound, 60TPI, MaxxProtect/EXO, reflective stripe, tubeless ready, wire bead
Rear tyre - Maxxis Metropass AT 29x2.6, single compound, 60TPI, MaxxProtect/EXO, reflective stripe, tubeless ready, wire bead
Crankset - e*thirteen Helix Core E*Spec Plus, all sizes 160mm
Chainring - Sram Eagle 34T T-Type, direct mount, steel, CL 55
Chain - Sram 70 T-Type, 12s Flattop, PowerLock
Rear derailleur - Sram 70 Eagle, T-Type, 12s
Shift levers - Sram Trigger 70, 12s, T-Type Actuation
Cassette - Sram XS-1270, 10-52T, 12s
Others - Alloy front carrier with front light mount, max load 15kg. Front light: 150 lux output DC 6-12V, waterproof alloy cage. Spare front light plastic mount. Alloy rear carrier, MIK profile and MIK stud ready, max load 25kg. KS40 kickstand, MDK Urban pedals

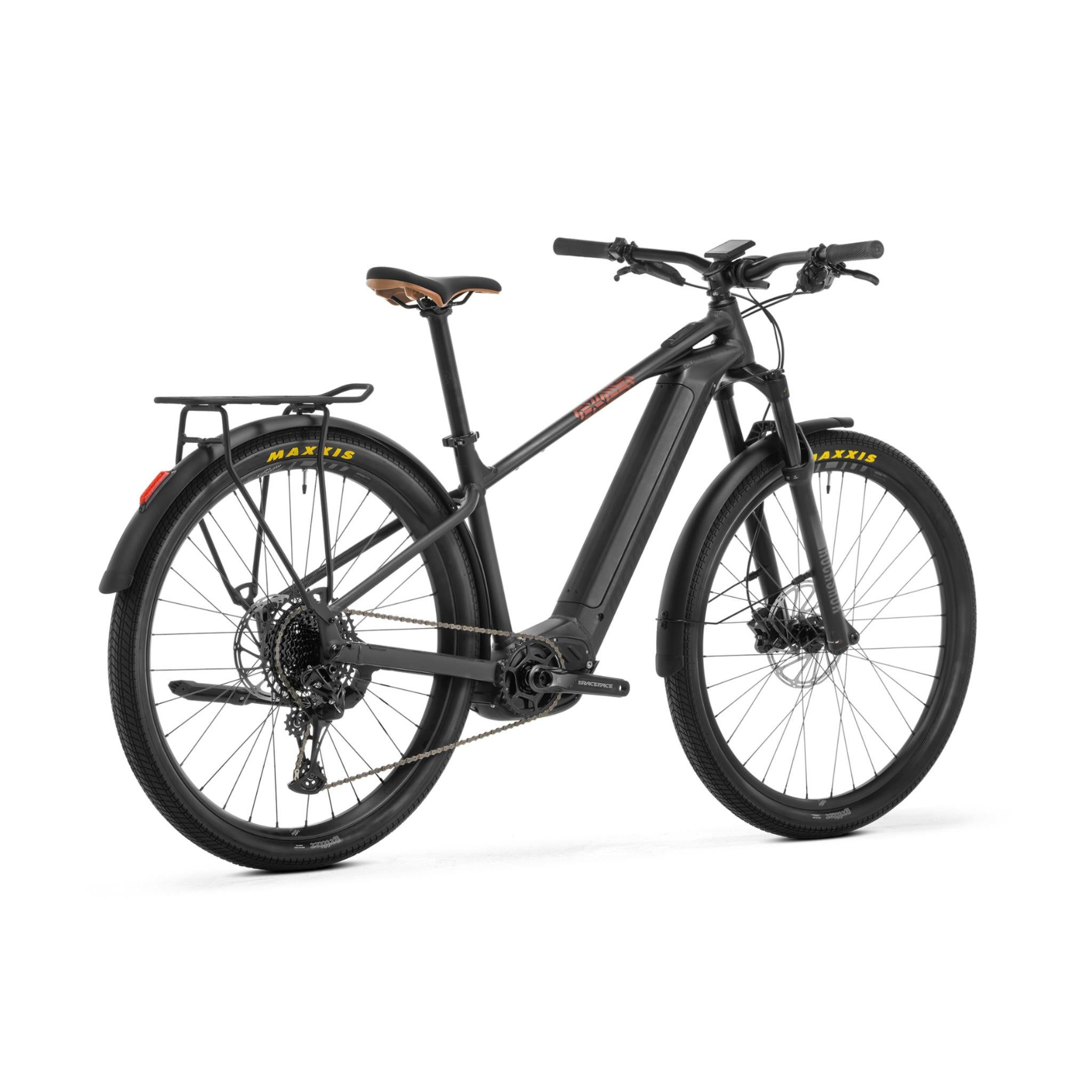

Prime X 2026
- Electric · Hybrid/Commute
- Hardtail · 120mm fork
- Alloy frame
Finance available – see options
Order within [time] for delivery by [date]
90 Day Returns
-
Pro builtBuilt and safety-checked by our mechanics before it leaves us
-
Free UK mainland courier deliveryNorthern Ireland: £60
-
Collect in CanterburyPick up and get set up at our store
-
Talk to a riderChat with our team
The Prime X is Mondraker's do-it-all electric hardtail, keeping things simple with a reliable alloy frame, the latest Bosch Performance Line CX motor and carefully chosen components. It's built as a capable mix of e-MTB and urban bike, equally at home on the commute, on bridleways or on weekend adventures.
The fully butted 6061 Xtralite alloy frame uses Mondraker's Forward Geometry for stable handling and confident control. Power comes from Bosch's CX motor, assisted to 25km/h, paired with a removable 800Wh PowerTube battery for plenty of range and convenient off-bike charging, plus a Purion 200 display.
A 120mm RockShox Recon fork smooths out rough surfaces, and 29" wheels with 2.6" Maxxis Metropass AT tyres with reflective sidewalls grip well on tarmac, gravel and trails. SRAM 70 Eagle T-Type gearing and DB6 four-piston brakes handle shifting and stopping, while front and rear carriers, a front light and a kickstand make it a genuinely practical everyday bike.
Features
- Prime Xtralite 6061 fully butted alloy frame with Forward Geometry
- Bosch Performance Line CX Smart System motor, assisted to 25km/h
- Removable Bosch PowerTube 800Wh battery and Purion 200 display
- 120mm RockShox Recon Silver RL air fork with lockout
- Front carrier (15kg max) and MIK-ready rear carrier (25kg max)
- 150 lux front light, kickstand and urban pedals included
- SRAM 70 Eagle T-Type 12-speed drivetrain and SRAM DB6 four-piston brakes
- Mavic E-Access wheels with 29x2.6" Maxxis Metropass AT reflective tyres
Specifications
DisciplineTrail/
Commute MaterialAluminium
Front Travel120mm
Rear TravelHardtail
Wheel Size29"
WarrantyLifetime (frame)
Frame - Prime Xtralite 6061 Full Butted Alloy, Forward Geometry, internal removable battery, tapered head tube, Boost 12x148mm rear axle, UDH
Motor - Bosch Performance Line CX (25km/h) Smart System (BDU384Y)
Battery - Bosch PowerTube 800Wh
Display - Purion 200
Fork - RockShox Recon Silver RL 29, 120mm, Motion control, Solo Air, tapered steerer tube, Boost 15x110mm axle, 32mm steel stanchions, 42mm offset. Settings: compression adjustment at low-speed to lock, rebound, air preload
Headset - Acros custom ZS56/ZS56, 1-1/8", 1.5" head tube, internal cable routing, sealing plugs without blocklock
Stem - Onoff S3 30mm 0°, 6061 forged alloy, 31.8mm barbore
Handlebar - Onoff S3 1.0 6061 alloy, rise: 25mm, width: 800mm, 8° backsweep, 5° upsweep, 31.8mm barbore. L and XL size: 38mm rise
Grips - Onoff Beehive, 1 lock-on, 135mm
Seatpost - Onoff S3 0-R, diameter 31.6mm, length 400mm
Saddle - Ergon SF10 Gel
Front brake - Sram DB6, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Rear brake - Sram DB6, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Brake lever - Sram DB6, tool reach adjust, lever pivot bushings
Rims - Mavic E-Access XR27, 29 Boost, 27mm internal width, tubeless ready, 28 spokes
Spokes - Mavic 28 reinforced spoke lacing
Front hub - Mavic, Boost 15x110mm, IS 6 bolts
Rear hub - Mavic, Boost 12x148mm, IS 6 bolts, HG reinforced freehub
Front tyre - Maxxis Metropass AT 29x2.6, single compound, 60TPI, MaxxProtect/EXO, reflective stripe, tubeless ready, wire bead
Rear tyre - Maxxis Metropass AT 29x2.6, single compound, 60TPI, MaxxProtect/EXO, reflective stripe, tubeless ready, wire bead
Crankset - e*thirteen Helix Core E*Spec Plus, all sizes 160mm
Chainring - Sram Eagle 34T T-Type, direct mount, steel, CL 55
Chain - Sram 70 T-Type, 12s Flattop, PowerLock
Rear derailleur - Sram 70 Eagle, T-Type, 12s
Shift levers - Sram Trigger 70, 12s, T-Type Actuation
Cassette - Sram XS-1270, 10-52T, 12s
Others - Alloy front carrier with front light mount, max load 15kg. Front light: 150 lux output DC 6-12V, waterproof alloy cage. Spare front light plastic mount. Alloy rear carrier, MIK profile and MIK stud ready, max load 25kg. KS40 kickstand, MDK Urban pedals
