Description
Mondraker make some of the best hardtail bikes on the planet. The Prime X adds a Bosch Performance CX Cruise motor, and some features commonly seen on commuter and adventure bikes such as pannier rack, mudguards and lights. The perfect bike for the daily commute and weekend play-time.
Look forward to a seamless and effortless riding experience with the Bosch Performance Line CX Smart System motor, equipped with the latest Mini Remote wireless remote control, integrated System Controller, and the Intuvia 100 display. Enjoy a natural pedal-assist with four levels of assistance to cater to your needs.
Bosch Smart System -
The latest Bosch motor is a Performance Line CX Cruise unit that pushes out 85nm, featuring the Bosch Smart System, upgraded software and enhanced firmware modifications. In addition, a new display unit and handlebar mounted control module have been added for easier mode selection and adjustment.
The bikes also feature the Bosch 625Wh battery that allows you to enjoy a long days ride on a single charge.
SIZING -
- S: 160cm - 170cm
- M: 165cm - 180cm
- L: 175cm - 185cm
- XL: 185cm - 190cm+
Specifications
-
Discipline Trail
-
Material Aluminium
-
Front Travel 120mm
-
Rear Travel Hardtail
-
Wheel Size 29"
-
Warranty Lifetime (frame)
Frame - Prime 6061 Xtralite Full Butted Alloy, Forward Geometry, internal removable battery, tapered head tube, Boost 12x148mm rear axle, integrated dropout speed sensor
Fork - RockShox Recon Silver RL 29, 120mm, Motion control, Solo Air, tapered steerer tube, Boost 15x110mm axle, 32mm steel stanchions, 42mm offset. Settings: compression adjustment at low-speed to lock, rebound, air preload
Headset - Onoff ZS44/ZS56, 1-1/8", 1.5" head tube, ACB sealed bearings, top 42x30x7x45ºx45º, bottom 52x40x8x45ºx45º
Stem - MDK Urban 40mm 5º, 6061 forged alloy, 31.8mm barbore
Handlebar - Onoff S3 1.0 6061 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 1.5 rise.
Grips - Onoff Beehive, 1lock-on, 135mm
Seatpost - Onoff S3 0-R, diameter 31.6mm, length 400mm
Saddle - MDK urban
Front brake - Sram Level T, 2 piece caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pad
Rear brake - Sram Level T, 2 piece caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pad
Brake lever - Sram Level T, Direct Link actuation, tooled reach adjust, lever pivot bushings
Rims - MDK-HP1 29, 30mm internal width, tubeless ready, 32 spokes
Spokes - CN round stainless steel
Front hub - Formula DC711, Boost 15x110mm, sealed bearings, IS 6 bolts
Rear hub - Formula EHL148 Boost 12x148mm, sealed bearings, IS 6 bolts, HG freehub
Front tire - Maxxis Grifter 29x2.5, single compound, 60TPI, wire bead,
Rear tire - Maxxis Grifter 29x2.5, single compound, 60TPI, wire bead,
Crankset - Race Face Aeffect-R ebike, 165mm
Rings - Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD
Pedals - Urban pedal resin black
Chain - Sram SX Eagle, 12s, Powerlock
Rear derailleur - Sram SX Eagle,12s
Shift levers - Sram Trigger SX Eagle, 12s, X-Actuation 1:1, single click
Cassette - Sram PG-1210, 11-50T, 12s
Derailleur hanger - Sram UDH
Others - Front light: 150LUX output DC 6-12V, waterproof Alloy cage. Rear Light: Fender Mount, w/ Reflective, e-bike version, 6-12V. Fenders: Alloy black MDK custom fenders. Rack: Alloy MDK rear Rack, Max loading 25kg. Kickstand: Massload KSA18-40
Weight - 24,3 kg
Display - Bosch Intuvia 100 / Bosch Mini Remote / Bosch System Controller
Motor - New Bosch Performance Line CX Cruise (25Km/h) SMART SYSTEM (BDU384Y)
Battery - Bosch Powertube 625Wh

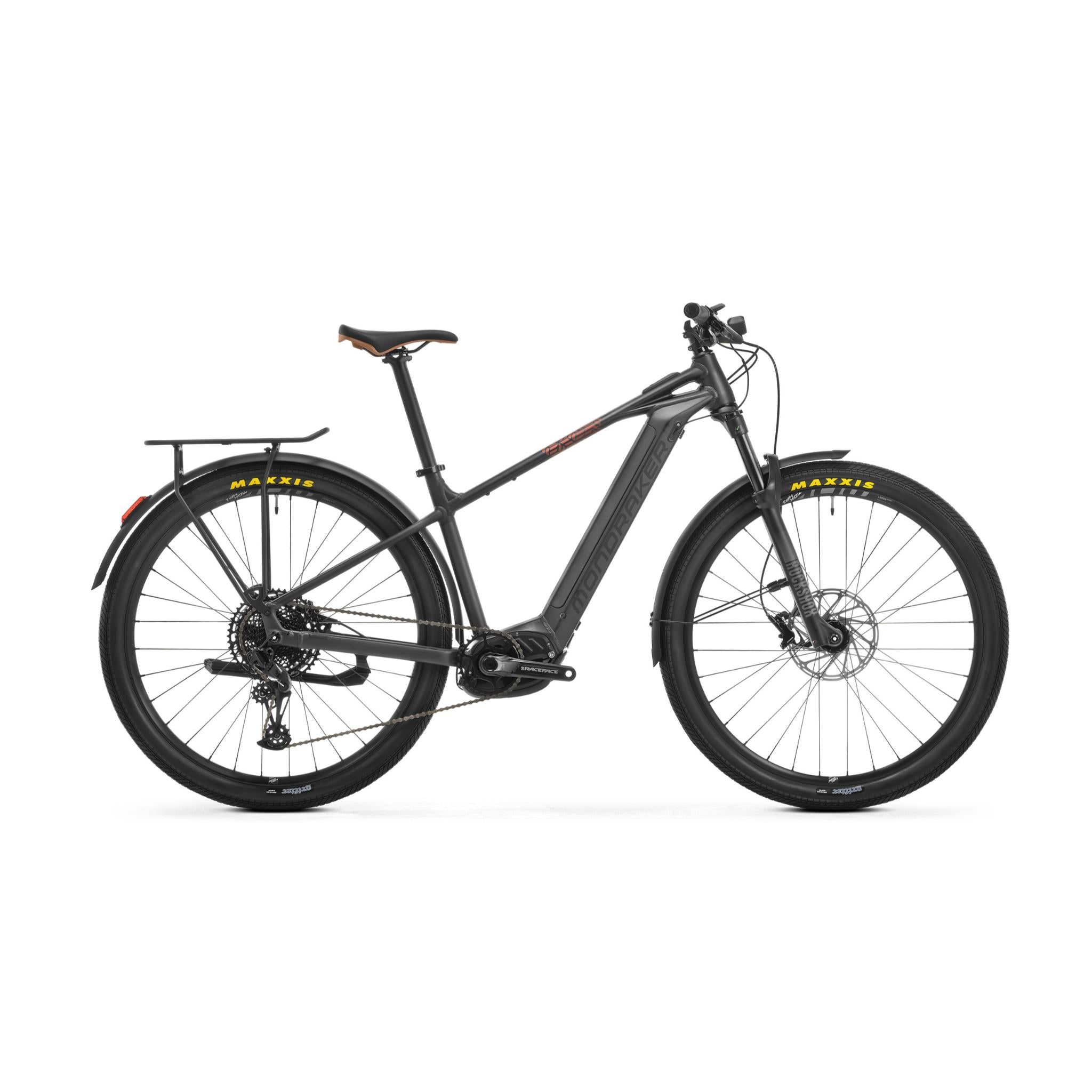

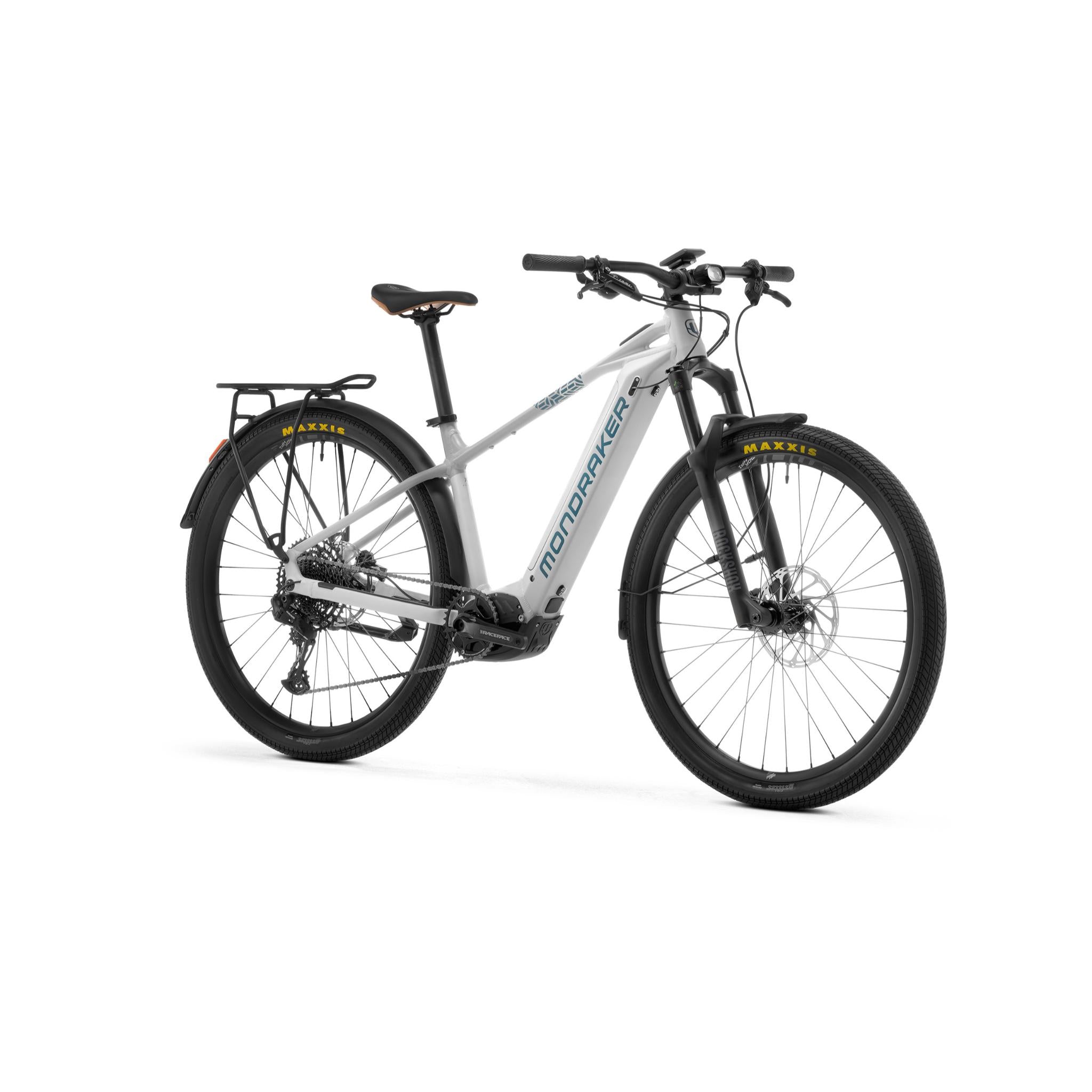

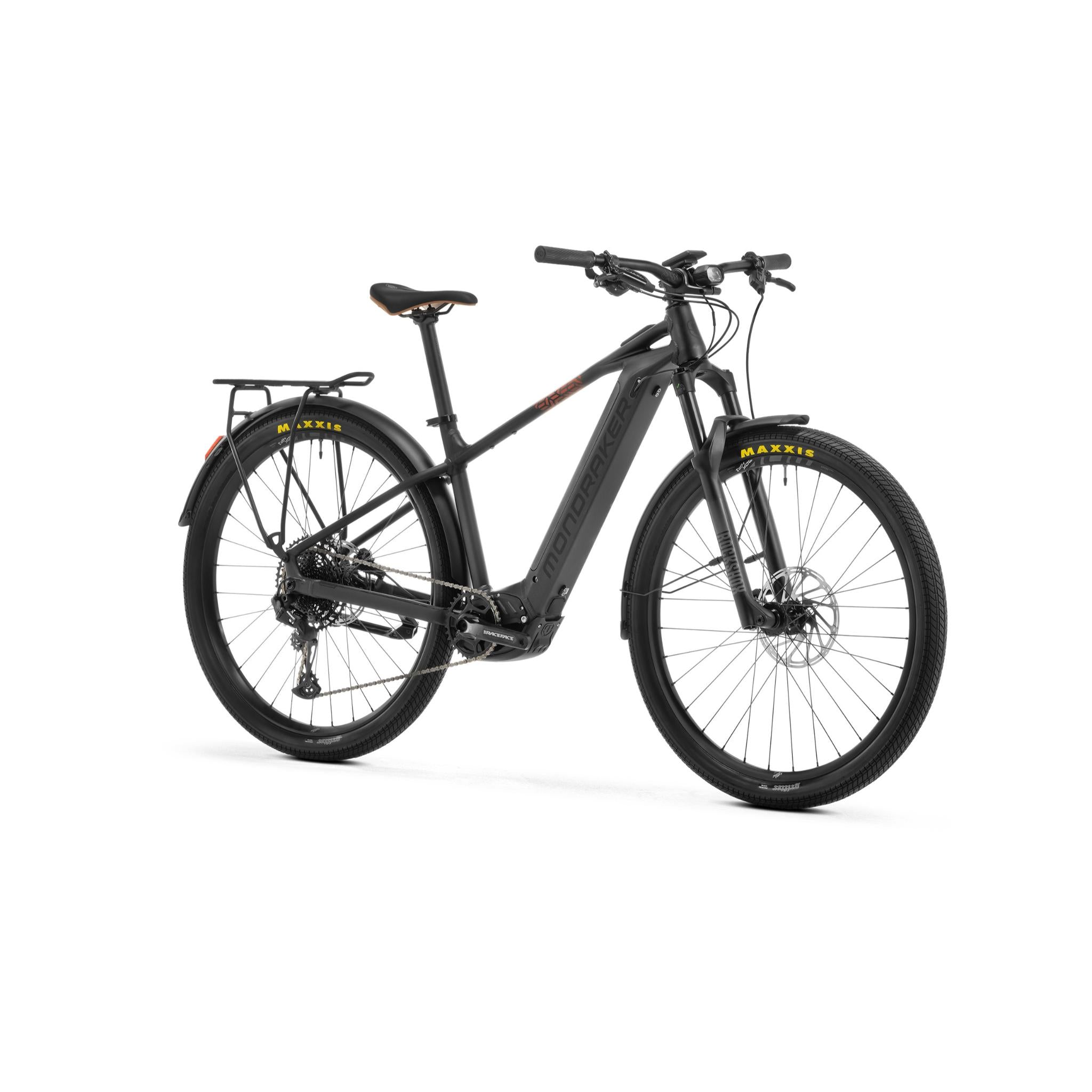

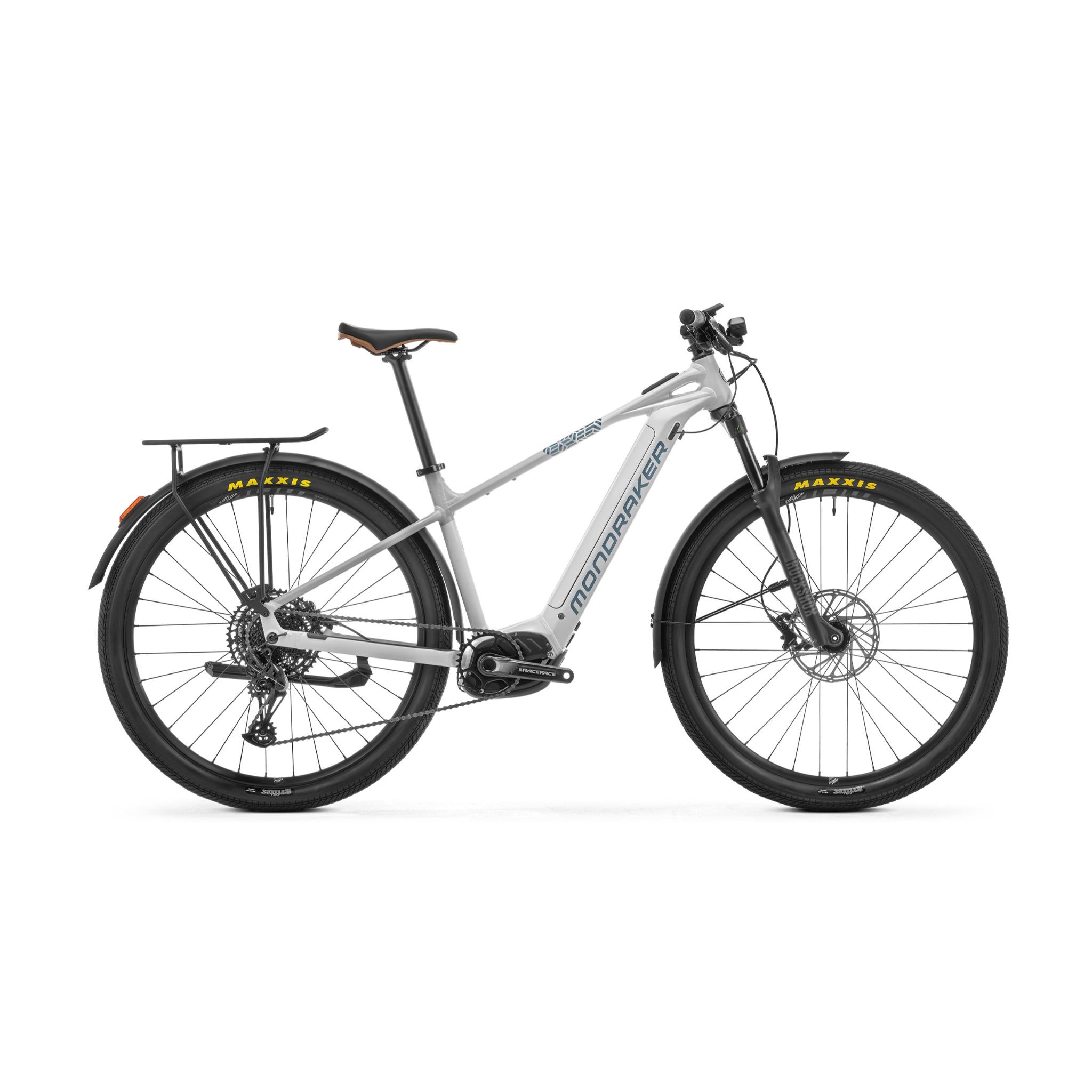

Mondraker Prime X 2025
