Mondraker's cross-country bikes epitomize lightweight, agility, and stiffness. The Mondraker XC Race is engineered to extract every ounce of performance. Backed by the PMX Racing Team, it has clinched numerous international podiums, including a historic three consecutive wins at the 2022 World Cup with Bec McConnell atop the top-tier F-Podium DC RR.
Their exclusive technologies like FORWARD GEOMETRY, STEALTH AIR FULL CARBON, and ZERO SUSPENSION SYSTEM set the industry standard, making these models benchmarks on the global XC circuit.
Specifications
-
Discipline XC
-
Material Carbon
-
Front Travel 100mm
-
Rear Travel Hardtail
-
Wheel Size 29"
-
Warranty Lifetime
Frame - Podium 29 Stealth Air Carbon, XC Forward Geometry, BSA bottom bracket, tapered head tube, HHG internal cable routing, Boost 12x148mm rear axle, UDH, dedicated 1X drivetrain design, Flatmount brake compatible,
Fork - Fox 32 Step Cast Float SL Factory Kashima, GRIP SL, 100mm, tapered steerer tube,15x110mm Boost axle, remote lockout, offset 44mm. Settings: lockout, compression micro-adjustment at low-speed, rebound, air preload
Headset - Onoff IS42/IS52, 1-1/8", 1.5" head tube, sealed bearings
Stem - Onoff S9 Integrated Carbon Handlebar, width: 760mm, 8º Backsweep, 0º Upsweep, S size: 55mm length -12º rise, M size: 55mm length -12º L size: 65mm length -14º rise, XL size: 75mm length -15º rise
Grips - Ergon GXR Team black
Seatpost - Onoff S9 Carbon 0-R, diameter 27.2mm, length 400mm
Saddle - Fizik Vento Argo 00 Carbon 140mm
Front Brake - Hope XCR Pro X2, CNC master cylinder, CNC one piece caliper, Floating 160mm Center lock rotor
Rear Brake - Hope XCR Pro X2, CNC master cylinder, CNC one piece caliper, Floating 160mm Center lock rotor
Brake Lever - Hope carbon blade, Titanium hardware, Reach adjust
Rims - DT Swiss XRC1200 Carbon Spline 29, 30mm internal width, hookless, tubeless ready, 28 spokes
Spokes - DT aerolite® Straightpul
Front Hub - DT 180, Boost 15x110mm, IS 6 bolts
Rear Hub - DT 180, Boost 12x148mm, 36T Ratchet EXP system, Center lock, XD freehub
Front Tire - Maxxis Aspen ST 29x2.40, Maxx Speed, EXO protection, tubeless ready, 170TPI, folding bead
Rear Tire - Maxxis Aspen ST 29x2.40, Maxx Speed, EXO protection, tubeless ready, 170TPI, folding bead
Crankset - Sram XX SL Carbon Eagle T-Type, Boost, DUB axle, Direct mount chain ring, S size: 165mm, M size: 165mm, L size: 170mm XL size: 170mm, CL 55
Rings - 34T, CNC-machined alloy, X-SYNC 2
Bottom Bracket - Sram DUB BSA, sealed bearings, 73mm
Chain - Sram XX SL Eagle T-Type, 12s, Powerlock
Front Derrailleur - Sram XX SL Eagle AXS, T-Type, 12s
Rear Derrailleur - Sram Eagle AXS Pod Ultimate, 12s
Shift Levers - Sram XS-1299, 10-52T, T-Type, 12s

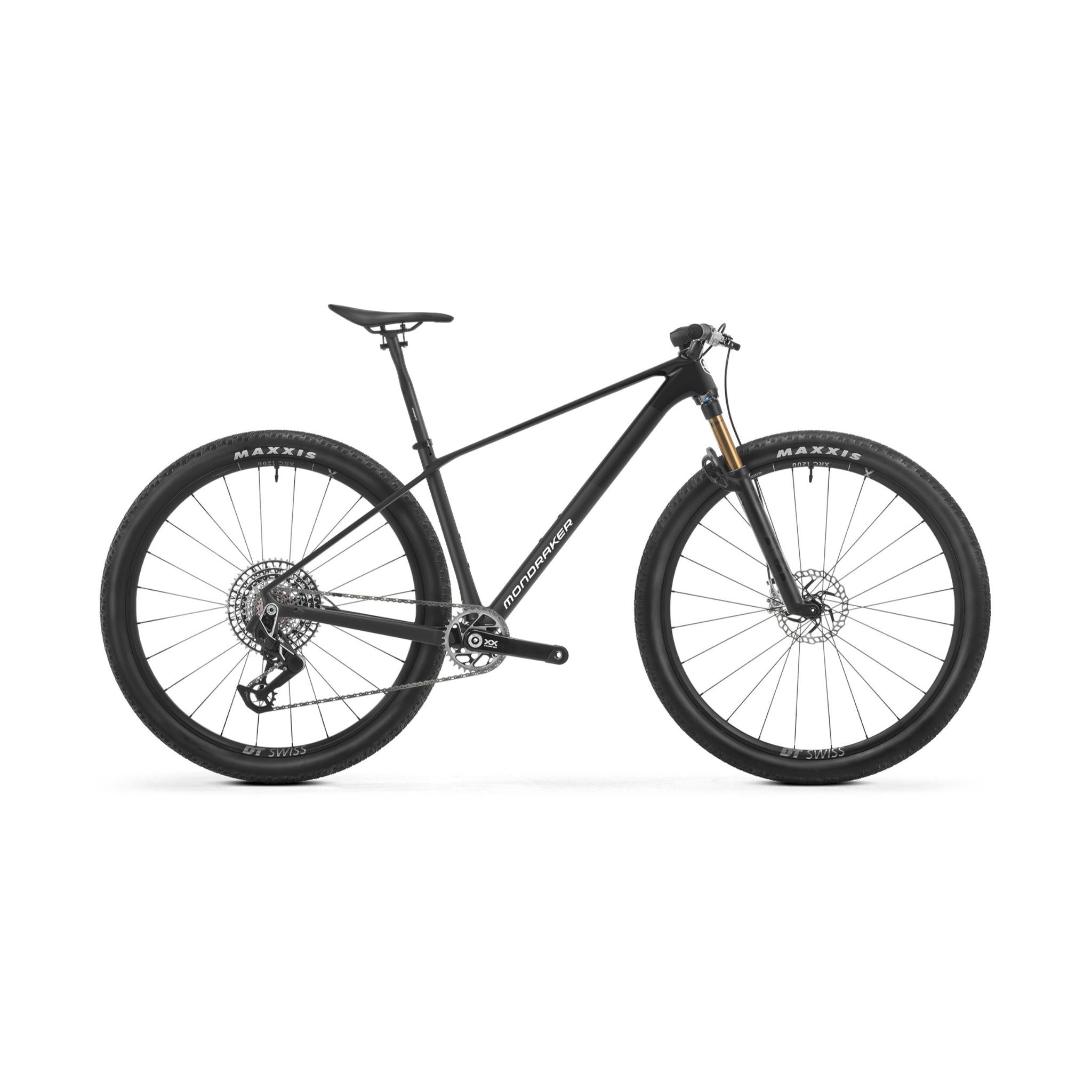

Podium RR SL 2026
