The Mondraker XC Race is designed for maximizing performance to the fullest. With the remarkable success of the PMX Racing Team, this bike has secured numerous international podium finishes. In 2022, it made history by winning the first 3 rounds of the World Cup with Bec McConnell riding the top-tier F-Podium DC RR model.
Mondraker's exclusive technologies like FORWARD GEOMETRY, STEALTH AIR FULL CARBON, and ZERO SUSPENSION SYSTEM have set a new standard in the XC racing world, making these models stand out on the global circuit. The F-PODIUM is guaranteed to elevate your performance on challenging tracks and help you reach the top spot on the podium. For fans of hardtails, the PODIUM is the perfect choice.
Mondraker's extensive efforts in crafting the frame have resulted in the lightest mass-produced frame available in the market, a remarkable achievement that still holds true today. The PODIUM range stands as a pinnacle in our lineup, receiving high praise from both the PMG Racing Team and Bec McConnell. It's clear that the PODIUM is a preferred choice for elite riders and enthusiasts alike.
SIZING
- S: 160cm - 170cm
- M: 165cm - 180cm
- L: 175cm - 185cm
- XL: 185cm - 190cm+
Specifications
-
Discipline Cross-Country
-
Material Carbon
-
Front Travel 100mm
-
Rear Travel Hardtail
-
Wheel Size 29"
-
Warranty Lifetime (frame)
Frame - Podium 29 Stealth Air Carbon, XC Forward Geometry, BSA bottom bracket, tapered head tube, HHG internal cable routing, Boost 12x148mm rear axle, dedicated 1X drivetrain design, Flatmount brake compatible
Fork - Fox 32 Step Cast Float FIT4 EVOL Factory Kashima, 100mm, tapered steerer tube,15x110mm Boost axle, remote lockout, offset 44mm. Settings: lockout, compression micro-adjustment at low-speed, rebound, air preload
Fork Remote - Fox single pull
Headset - Onoff Titan tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41.8x30.5x8x45ºx45º, bottom 51.9x40x8x45ºx45º
Stem - MDK, 6061 T6 Alloy, 31.8mm barbore, rise: +/-5º, length: S size: 60mm, M size: 60mm, L size: 70mm, XL size: 80mm
Handlebar - Onoff Helium Carbon 0.2, rise: 4.8mm, width: 760mm, 9º backsweep, 0º upsweep, 31.8mm barbore
Grips - Onoff Desert, 1lock-on, 135mm
Seatpost - Onoff Helium Carbon 0-R VFLEX, diameter 27.2mm, length 400mm
Saddle - Fizik Antares R7
Front brake - Sram Level Silver 2P Stealth, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad
Rear brake - Sram Level Silver 2P Stealth, flatmount 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad
Brake lever - Sram Level Silver, tools-free reach adjust, lever pivot bearings
Rims - Mavic CrossMax Carbon SL R 29, 26mm internal width, hookless, tubeless ready, 24 spokes
Spokes - Mavic straight-pull double butted, contactless lacing
Front hub - Mavic, Boost 15x110mm, IS 6 bolts
Rear hub - Mavic, Boost 12x148mm, ID360 Ratchet system, IS 6 bolts, XD freehub
Front tyre- Maxxis Rekon Race 29x2.35, EXO protection, tubeless ready, 120TPI, folding bead
Rear tyre - Maxxis Rekon Race 29x2.35, EXO protection, tubeless ready, 120TPI, folding bead
Crankset - Sram Truvativ Stylo Carbon Eagle, 12s, Boost, DUB axle, Direct Mount chain ring, S size: 170mm M size: 175mm L size: 175mm XL size: 175mm, CL 52
Rings - 34T, CNC-machined alloy, X-SYNC 2
Chain - Sram SX Eagle, 12s, Powerlock
Rear derailleur - Sram X01 Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:2
Shift levers - Sram Trigger GX Eagle, 12s, X-Actuation 1:1
Cassette - Sram XG-1275, 10-50T, 12s
Derailleur hanger - Sram UDH
Bottom Bracket - Sram DUB BSA, sealed bearings, 73mm
Weight: 9.3kg

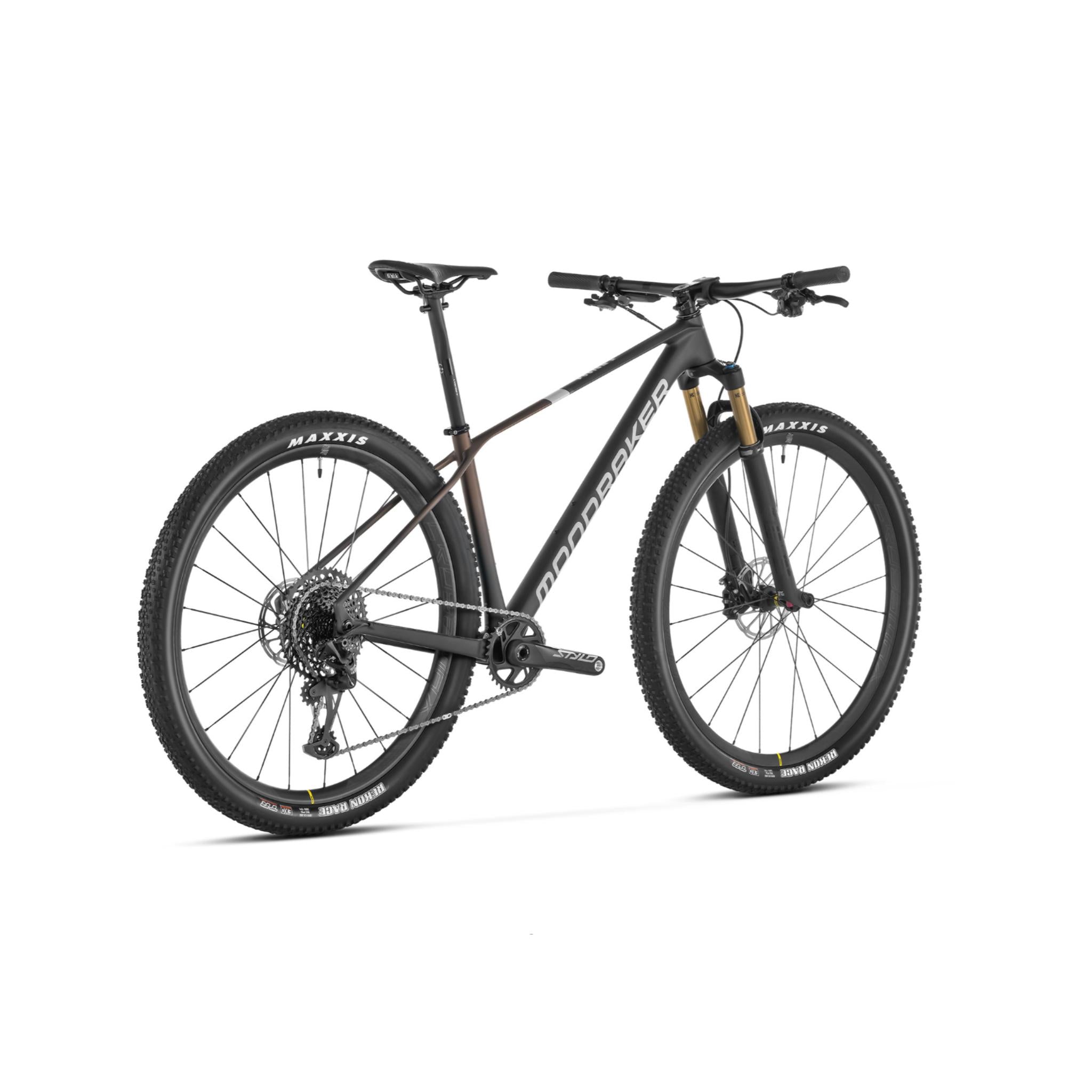

Podium Carbon R 2024
