Mondraker's youth bike collection transforms young riders' aspirations into reality. Each model faithfully replicates the design excellence and distinctive styling of its adult equivalent, giving kids access to the same performance characteristics and visual identity that define the Mondraker brand.
The Play 24 2026 features an entirely redesigned frame that adopts the modern design of Mondraker's adult NEAT and F-PODIUM platforms. This alignment ensures young riders benefit from current engineering principles and visual coherence across the brand's portfolio, delivering a modern platform that reflects professional-grade development standards.
The PLAY series offers hardtails, while F-PLAY brings full-suspension fun—both powered by the Mahle X-35 hub-drive system and a 250Wh integrated battery. With three assistance modes and speeds up to 25 km/h, every ride together will be fast, fun, and unforgettable.
Features:
- Stealth Alloy Frame
- 100mm Travel Fork
- Disc Brakes
- 1x Drivetrain
Size Guide:
- One Size: 135 - 155cm
Specifications
-
Discipline Trail
-
Material Stealth Alloy
-
Front Travel 100mm
-
Rear Travel N/A
-
Wheel Size 24"
-
Warranty Lifetime (Frame)
Frame - Play 24 6061 Alloy Stealth evo, hydroformed tubing, integrated internal non-removable battery, Tapered head tube, HHG internal cable routing, BSA bottom bracket, QR 9mm rear axle, 1x drivetrain compatible
Fork - X-Fusion Velvet RL 26, 100mm, air spring, tapered steerer tube, 15x100mm axle, 32mm aluminum stanchions, 41mm offset. Settings: lockout, rebound, air preload
Headset - Acros AZX-239 R1 Block Lock 135°, ZS44/28.6 top, ZS56/40 bottom
Stem - Onoff S3 30mm 0º, 6061 forged alloy, 31.8mm barbore
Handlebar - MDK XC 1.0, 6061 alloy, rise: 25mm, width: 580mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Grips - Onoff Beehive, 1lock-on, 135mm
Seatpost - MDK XC 0-R, 6061 T6 Alloy, diameter 31.6mm, length 300mm
Saddle - SDG Fly JR
Front Brake - Sram DB4, 4-piston caliper,Onoff Cnc 160mm IS 6 bolts two-piece rotorr, steel-backed organic pads
Rear Brake - Sram DB4, 4-piston caliper,Onoff Cnc 160mm IS 6 bolts two-piece rotor, steel-backed organic pads
Brake Lever - Sram DB4, tool reach adjust, lever pivot bushings
Rims - MDK-HP1 24 TLR, 25mm internal width, tubeless ready, 32 spokes
Spokes - CN round stainless steel
Front Hub - DA210FS02, 15x100mm, cup & cone ball bearings, IS 6 bolts
Rear Hub - Mahle-Ebikemotion X-35, HG freehub
Front Tyre - Kenda Booster 24x2.4 single compound 30TPI, wire bead
Rear Tyre - Kenda Booster 24x2.4 single compound 30TPI, wire bead
Crankset - Samox DM 28T steel, 127mm
Rings - 30T, steel
Bottom Bracket - BSA, 73mm
Pedals - SDG Slater JR
Chain - Sram PC1110 11s, Powerlock
Rear Derrailleur - Sram NX, 11s, long cage, X-actuation 1:1
Shift Levers - Sram trigger NX 11s, X-actuation 1:1
Cassette - Sram PG 1130 11-42T, 11s
Motor - Mahle-Ebikemotion X-35
Battery - Mahle-Ebikemotion Internal 250Wh
Display - Mahle-Ebikemotion
Derailleur Hanger - Mondraker M077

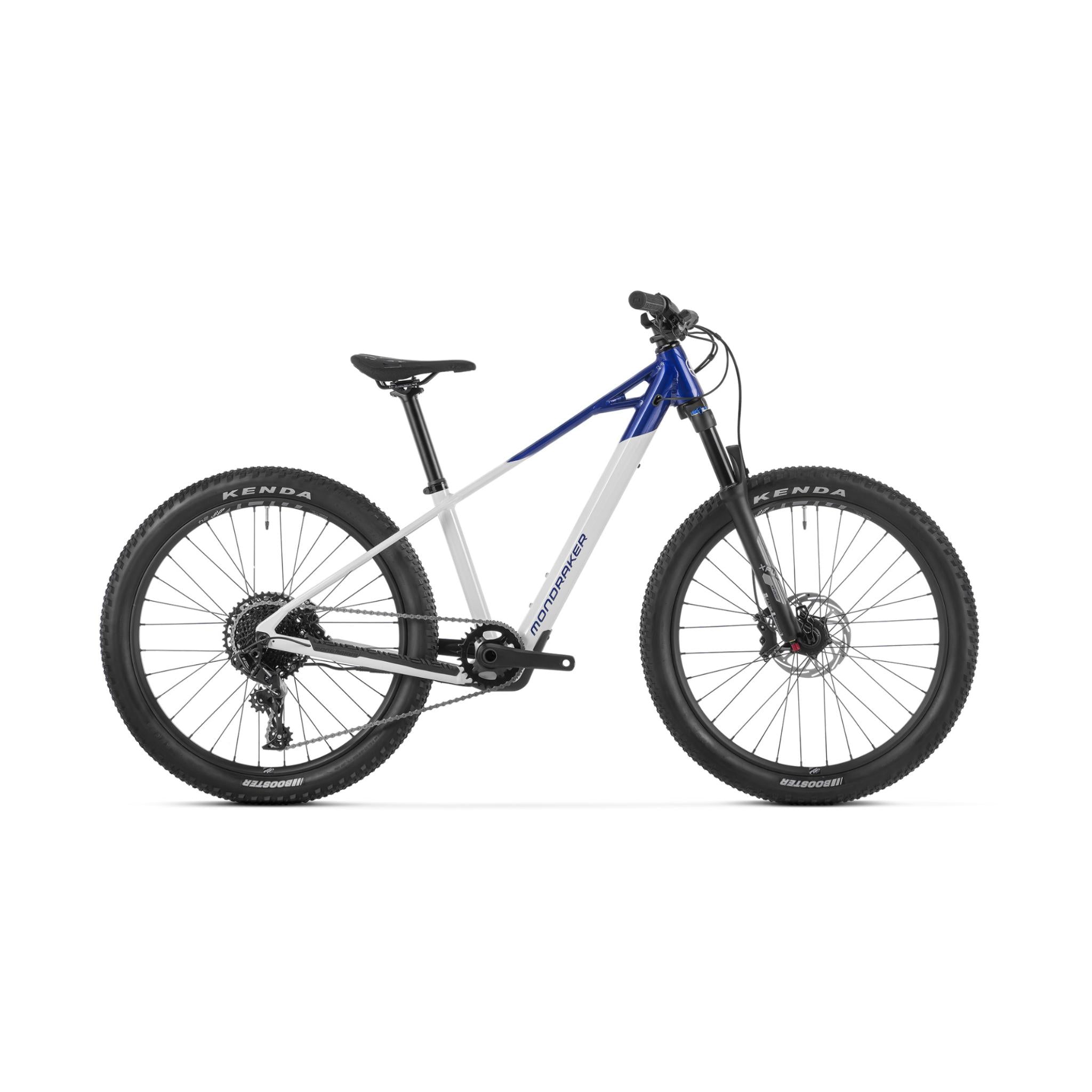

Play 24 2026
