Description
Similar to the Trick, the Play embodies the aesthetics and performance of our adult bikes while also providing the unique experience and opportunities that come with an ebike.
Mondraker are dedicated to our mountain biking craft and believe that any quality ebike, whether for children or adults, must possess power, range, and above all else, instill confidence. These qualities were at the forefront of their minds throughout the design process of the Play.
SIZING
135-155cm
Specifications
-
Discipline Trail
-
Material Aluminium
-
Front Travel 100mm
-
Rear Travel Hardtail
-
Wheel Size 24"
-
Warranty Lifetime (frame)
Frame - Play 24 6061 Alloy Stealth evo, hydroformed tubing, integrated internal non-removable battery, Tapered head tube, HHG internal cable routing, BSA bottom bracket, QR 9mm rear axle, 1x drivetrain compatible
Fork - X-Fusion Velvet RL 26, 100mm, air spring, tapered steerer tube, 15x100mm axle, 32mm aluminum stanchions, 41mm offset. Settings: lockout, rebound, air preload
Headset - Acros AZX-239 R1 Block Lock 135°, ZS44/28.6 top, ZS56/40 bottom
Stem - Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore
Handlebar - MDK XC 1.0, 6061 alloy, rise: 25mm, width: 580mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Grips - Onoff Twin, 1lock-on
Seatpost - MDK XC 0-R, 6061 T6 Alloy, diameter 31.6mm, length 300mm
Saddle - SDG Fly JR
Front brake - Sram Level, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad
Rear brake - Sram Level, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad
Brake lever - Sram Level, tooled reach adjust, lever pivot bushings
Rims - MDK-HP1 24 TLR, 25mm internal width, tubeless ready, 32 spokes
Spokes - CN round stainless steel
Front hub - DA210FS02, 15x100mm, cup & cone ball bearings, IS 6 bolts
Rear hub - Mahle-Ebikemotion X-35, HG freehub
Front tyre- Kenda Booster 24x2.4 single compound 30TPI, wire bead
Rear tyre - Kenda Booster 24x2.4 single compound 30TPI, wire bead
Crankset - Samox DM 28T steel, 127mm
Rings - 28T, steel
Chain - Sram PC1110 11s, Powerlock
Rear derailleur - Sram NX, 11s, long cage, X-actuation 1:1
Shift levers - Sram trigger NX 11s, X-actuation 1:1
Cassette - Sram PG 1030 11-42T, 11s
Derailleur hanger - Mondraker M077
Display - Mahle-Ebikemotion
Motor - Mahle-Ebikemotion X-35
Battery - Mahle-Ebikemotion Internal 250Wh
Weight: 15.3kg

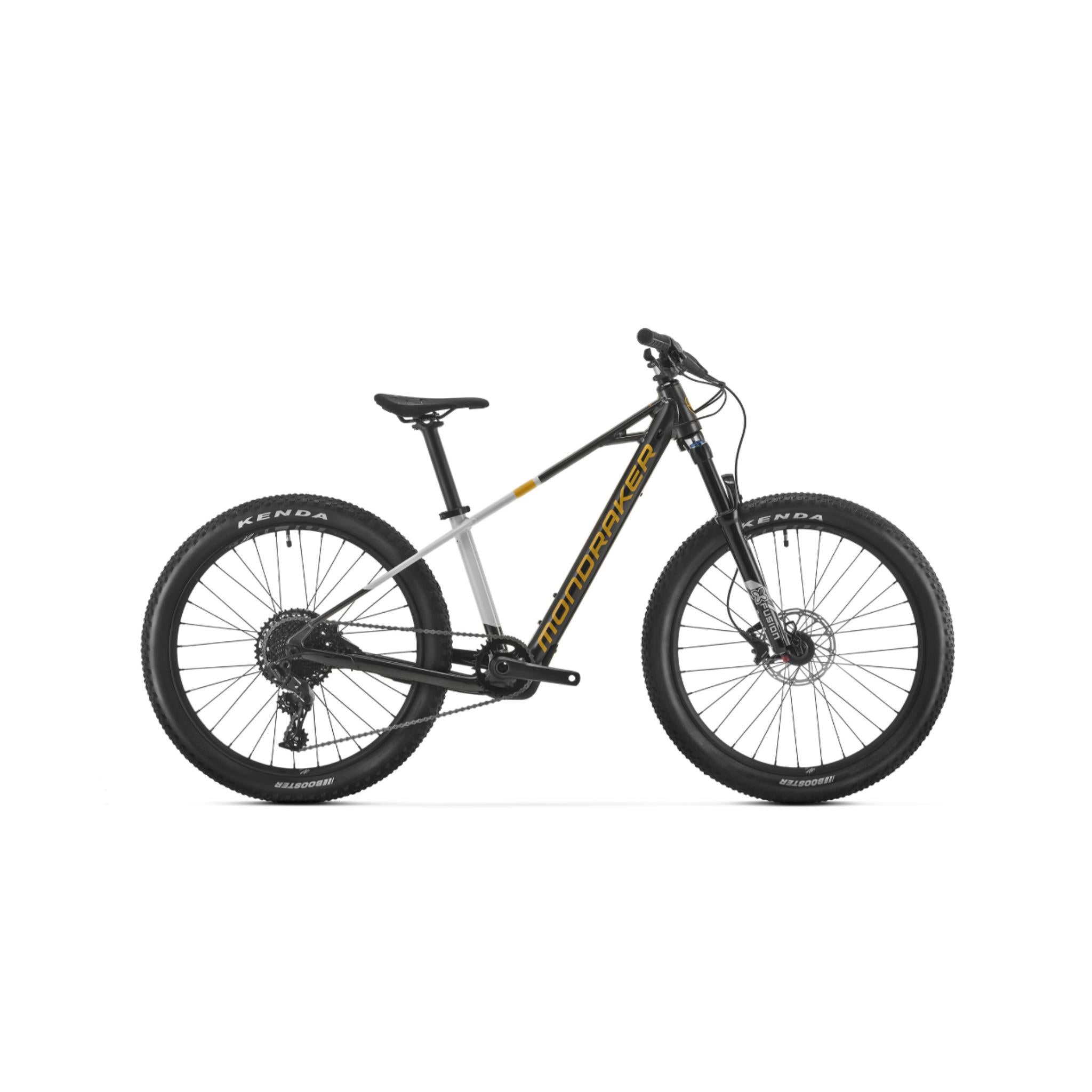

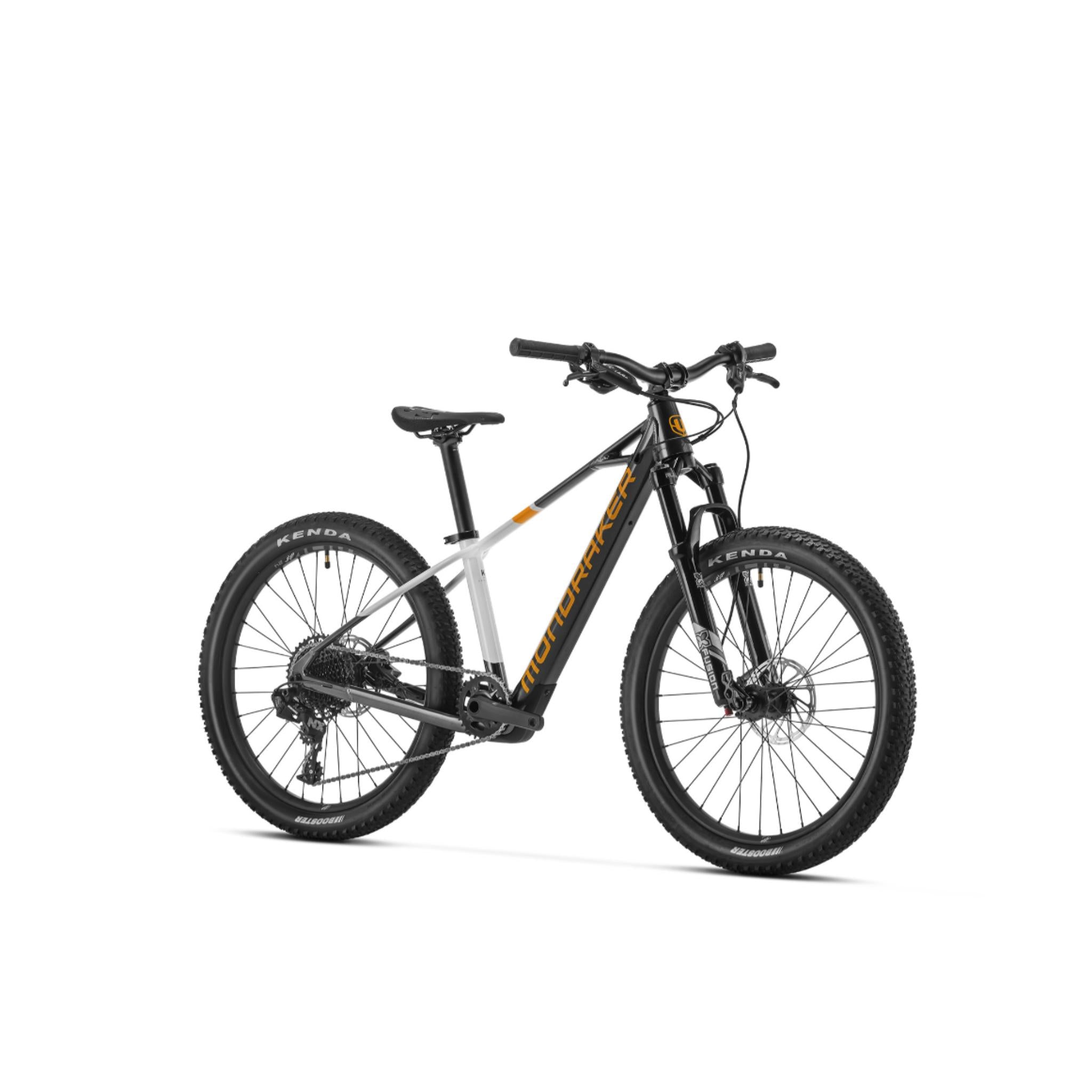

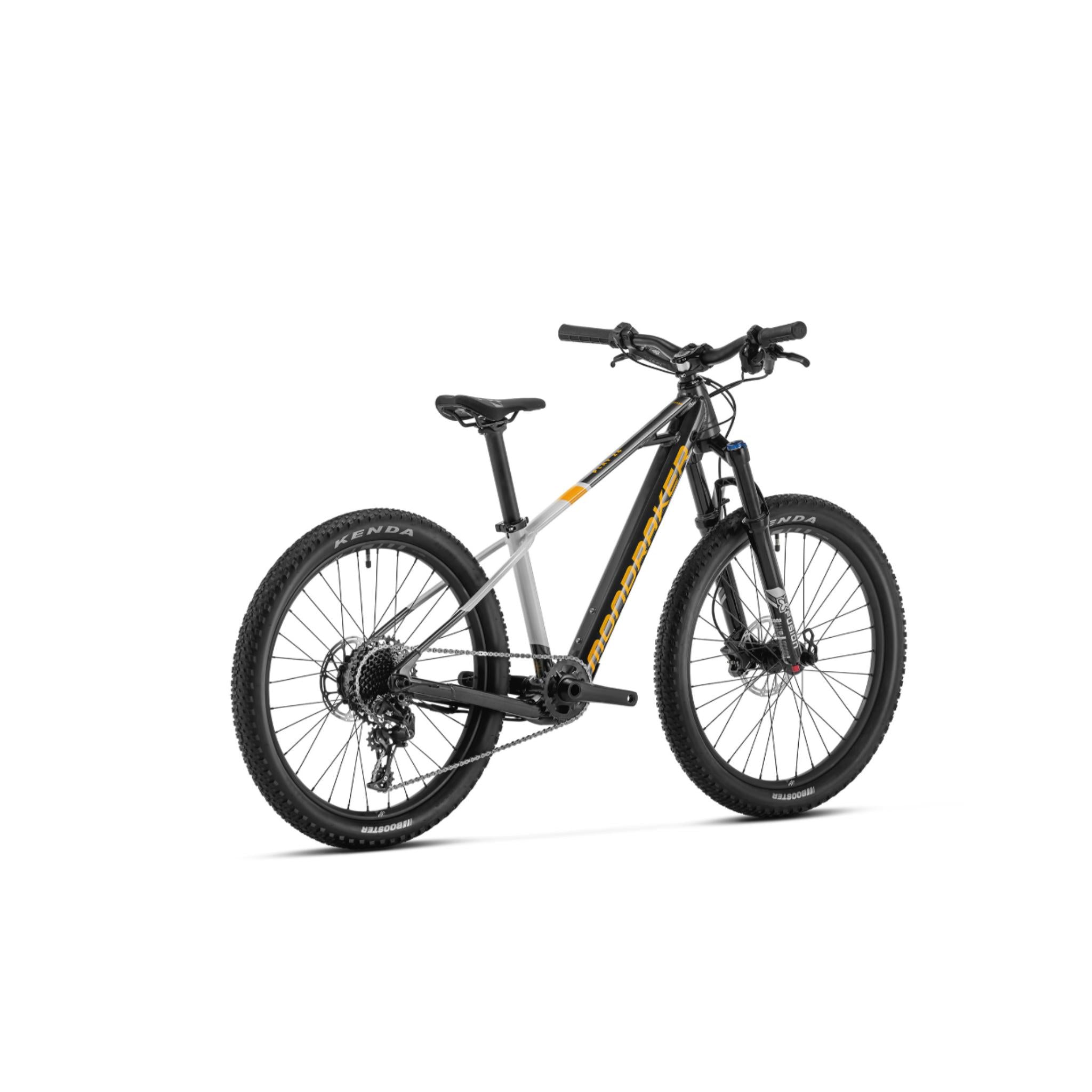

Mondraker Play 24 2024
