Description
The Mondraker Neat RR 2025 offers a cutting-edge choice for those seeking advanced technology and contemporary frame design in an electric mountain bike. Its sleek carbon frame and robust TQ motor create a top-of-the-line E-MTB.
Mondraker's NEAT, a part of their electric MTB line-up, is designed to be the lightest, most agile, and manoeuvrable in their range while maintaining a sleek appearance. It's the perfect addition to their prestigious family of top-performing bikes.
The TQ drive system is the core of the NEAT, providing exceptional results in compact size, minimal weight, dependability, low noise output, and above all, practical and powerful performance.
SIZING -
- S: 160cm - 170cm
- M: 165cm - 180cm
- L: 175cm - 185cm
- XL: 185cm - 190cm+
Specifications
-
Discipline Trail/AM
-
Material Carbon
-
Front Travel 160mm
-
Rear Travel 150mm
-
Wheel Size 29"
-
Warranty Lifetime (frame)
Frame - Stealth Air full Carbon, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal & removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, integrated dropout speed sensor, exclusive plastic motor covers.
Rear shock - Fox Float X Factory Kashima EVOL, 185x55mm. Settings: 2-position compression (Open/Firm), rebound, air preload. Trunnion top mount, 30x8mm bottom bushings
Shock settings - CS40 compression, RL60 rebound, Rezi B40, LML, 0.2 volume spacer
Fork - Fox 36 29 Float GRIP2 Factory Kashima, 160mm, tapered steerer tube, Boost 15x110mm Kabolt axle, 44mm offset. Settings: high and low-speed compression, high and low-speed rebound, air preload
Headset - Acros custom IS52/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs without blocklock
Stem - Onoff S6 30mm 0º, 6061 forged alloy + CNC, 31.8mm barbore
Handlebar - Onoff S6 1.0 7050 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 1.5 rise.
Grips - Onoff Forest, CNC lock-on, 135mm
Seatpost - Fox Transfer Factory Kashima internal, adjustable travel, Shimano SL-MT800-IL lever, diameter 31.6mm,S size: 95mm -120mm, M size: 125mm -150mm, L size: 155mm -180mm, XL size: 185mm -210mm
Saddle - Fizik Terra Aidon Slim X5
Front brake - Shimano XT M8120, 4 piston caliper, MT800 ICE-Tech 203mm CenterLock rotor, resin pads with fin
Rear brake - Shimano XT M8120, 4 piston caliper, MT800 ICE-Tech 203mm CenterLock rotor, resin pads with fin
Brake lever - Shimano XT M8100, ergonomic antiskid lever with servo wave, tool less reach adjust, free stroke adjust
Rims - Mavic E-DeeMax SL 29 Boost 30mm internal width, hookless, tubeless ready, 28 spokes
Spokes - Mavic 28 straight-pull double butted spokes
Front hub - Mavic Infinity hub, Boost 15x110mm, IS 6 bolts
Rear hub - Mavic Infinity hub, ID360 freewheel technology, Boost 12x148mm, IS 6 bolts XD freehub
Front tire - Maxxis Minion DHF 29x2.5 WT, tubeless ready, 3C MAXX GRIP compound, EXO+ protection, 60TPI, folding bead
Rear tire - Maxxis Minion DHR II 29x2.5 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 60TPI, folding bead
Crankset - e*Thirteen Helix Core E*Spec Plus, All sizes: 160mm
Rings - Sram X-Sync 2 Eagle 34T T-Type, steel, narrow-wide, 104 BCD
Chain - Sram GX Eagle T-Type, 12s, Powerlock
Rear derailleur - Sram GX Eagle AXS, T-Type roller bearing clutch, cage lock, 1x12s
Shift levers - Sram Eagle AXS Pod MMX, 12s
Cassette - Sram XS-1275, 10-52T, T-Type, 12s
Others - Mondraker custom desing Fidlock smoked transparent 600ml bottle + Fidlock base down version *Optional external battery: TQ 160Wh
Weight - 18.7kg
Display - TQ HPR display V01
Motor - TQ HPR-50
Battery - TQ HPR-50 360Wh integrated and removable

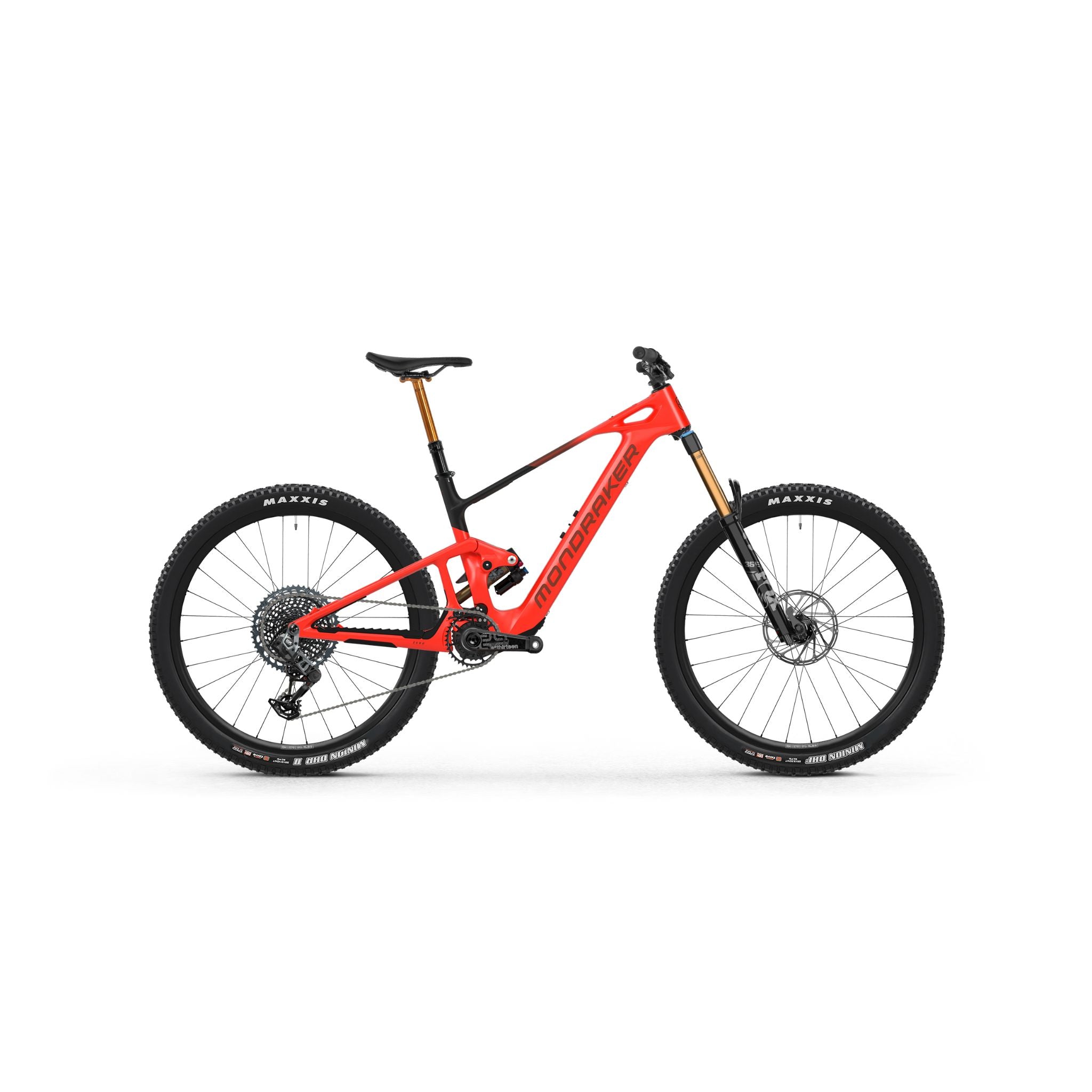

Mondraker Neat RR 2025
The Mondraker Neat RR 2025 offers a cutting-edge choice for those seeking advanced technology and contemporary frame design in an electric mountain bike. Its sleek carbon frame and robust...
Order within [time] for delivery by [date]
90 Day Returns -
Description
The Mondraker Neat RR 2025 offers a cutting-edge choice for those seeking advanced technology and contemporary frame design in an electric mountain bike. Its sleek carbon frame and robust TQ motor create a top-of-the-line E-MTB.
Mondraker's NEAT, a part of their electric MTB line-up, is designed to be the lightest, most agile, and manoeuvrable in their range while maintaining a sleek appearance. It's the perfect addition to their prestigious family of top-performing bikes.
The TQ drive system is the core of the NEAT, providing exceptional results in compact size, minimal weight, dependability, low noise output, and above all, practical and powerful performance.
SIZING -
- S: 160cm - 170cm
- M: 165cm - 180cm
- L: 175cm - 185cm
- XL: 185cm - 190cm+
Specifications
-
Discipline Trail/AM
-
Material Carbon
-
Front Travel 160mm
-
Rear Travel 150mm
-
Wheel Size 29"
-
Warranty Lifetime (frame)
Frame - Stealth Air full Carbon, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal & removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, integrated dropout speed sensor, exclusive plastic motor covers.
Rear shock - Fox Float X Factory Kashima EVOL, 185x55mm. Settings: 2-position compression (Open/Firm), rebound, air preload. Trunnion top mount, 30x8mm bottom bushings
Shock settings - CS40 compression, RL60 rebound, Rezi B40, LML, 0.2 volume spacer
Fork - Fox 36 29 Float GRIP2 Factory Kashima, 160mm, tapered steerer tube, Boost 15x110mm Kabolt axle, 44mm offset. Settings: high and low-speed compression, high and low-speed rebound, air preload
Headset - Acros custom IS52/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs without blocklock
Stem - Onoff S6 30mm 0º, 6061 forged alloy + CNC, 31.8mm barbore
Handlebar - Onoff S6 1.0 7050 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 1.5 rise.
Grips - Onoff Forest, CNC lock-on, 135mm
Seatpost - Fox Transfer Factory Kashima internal, adjustable travel, Shimano SL-MT800-IL lever, diameter 31.6mm,S size: 95mm -120mm, M size: 125mm -150mm, L size: 155mm -180mm, XL size: 185mm -210mm
Saddle - Fizik Terra Aidon Slim X5
Front brake - Shimano XT M8120, 4 piston caliper, MT800 ICE-Tech 203mm CenterLock rotor, resin pads with fin
Rear brake - Shimano XT M8120, 4 piston caliper, MT800 ICE-Tech 203mm CenterLock rotor, resin pads with fin
Brake lever - Shimano XT M8100, ergonomic antiskid lever with servo wave, tool less reach adjust, free stroke adjust
Rims - Mavic E-DeeMax SL 29 Boost 30mm internal width, hookless, tubeless ready, 28 spokes
Spokes - Mavic 28 straight-pull double butted spokes
Front hub - Mavic Infinity hub, Boost 15x110mm, IS 6 bolts
Rear hub - Mavic Infinity hub, ID360 freewheel technology, Boost 12x148mm, IS 6 bolts XD freehub
Front tire - Maxxis Minion DHF 29x2.5 WT, tubeless ready, 3C MAXX GRIP compound, EXO+ protection, 60TPI, folding bead
Rear tire - Maxxis Minion DHR II 29x2.5 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 60TPI, folding bead
Crankset - e*Thirteen Helix Core E*Spec Plus, All sizes: 160mm
Rings - Sram X-Sync 2 Eagle 34T T-Type, steel, narrow-wide, 104 BCD
Chain - Sram GX Eagle T-Type, 12s, Powerlock
Rear derailleur - Sram GX Eagle AXS, T-Type roller bearing clutch, cage lock, 1x12s
Shift levers - Sram Eagle AXS Pod MMX, 12s
Cassette - Sram XS-1275, 10-52T, T-Type, 12s
Others - Mondraker custom desing Fidlock smoked transparent 600ml bottle + Fidlock base down version *Optional external battery: TQ 160Wh
Weight - 18.7kg
Display - TQ HPR display V01
Motor - TQ HPR-50
Battery - TQ HPR-50 360Wh integrated and removable
