Description
Experience unparalleled performance with Mondraker's Neat R 2025. This electric mountain bike features cutting-edge components and a sleek carbon frame, offering riders the ultimate ride. The TQ motor adds power and agility, making this E-MTB a top choice for any rider.
Mondraker's electric MTB line-up boasts some of the best riding (and looking) bikes out there, the NEAT fits right in with the family and was designed from the ground up to be the most nimble, manoeuvrable and lightest in Mondraker's range.
At the heart of the NEAT is the TQ drive system, this remarkable system achieves the dream of small size, light weight, reliability, low noise level and most importantly real, useable power.
TQ-HPR50 -
Combining 3 natural-feeling levels of assistance and running almost silently, the TQ-HPR50 provides up to 300W of power and 50Nm of torque. A multitude of variables will always come into play when talking about range, but a rider of average weight (around 75Kg) can expect to be able to complete a ride of between 3-4 hours, with more than 1000m of altitude gain, switching between ECO and MID modes, and ride anywhere from 40 to 50km. The optional range extender can increase that by up to 50%
SIZING -
- S: 160cm - 170cm
- M: 165cm - 180cm
- L: 175cm - 185cm
- XL: 185cm - 190cm+
Specifications
-
Discipline Trail/AM
-
Material Carbon
-
Front Travel 160mm
-
Rear Travel 150mm
-
Wheel Size 29"
-
Warranty Lifetime (frame)
Frame - Stealth Air full Carbon, Updated Zero Suspension System, 150mm travel, Forward Geometry, internal & removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, integrated dropout speed sensor, exclusive plastic motor covers.
Rear shock - Rock Shox Super Deluxe Select, 185x55mm, Settings: 2-position compression (Open/Firm), rebound, air preload. Trunnion top mount, 30x8mm bottom bushings
Shock settings - C37 compression, R85 rebound, X4 lock tune, 4 tokens
Fork - RockShox LYRIK Select Charger RC 29, 160mm, e-bike approved, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: low-speed compression, low-speed rebound, air preload
Headset - Acros custom IS52/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs without blocklock
Stem - Onoff S6 30mm 0º, 6061 forged alloy + CNC, 31.8mm barbore
Handlebar - Onoff S6 1.0 7050 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 1.5 rise.
Grips - Onoff Forest, CNC lock-on, 135mm
Seatpost - Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 140-115mm (388-235mm), M size: 160-135mm (428-255mm), L size: 180-155mm (468-275mm), XL size: 210-185mm (528-305mm)
Saddle - Fizik Terra Aidon Slim X5
Front brake - Sram DB8 stealth, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Rear brake - Sram DB8 stealth, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Brake lever - Sram DB8, SwingLink and lever pivot bearings, tools-free reach and contact point adjust
Rims - Mavic E-CrossRide 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes
Spokes - Mavic J-bend double butted, contactless lacing
Front hub - Mavic, Boost 15x110mm, IS 6 bolts
Rear hub - Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts, HG freehub
Front tyre - Maxxis Minion DHF 29x2.5 WT, tubeless ready, 3C MAXX GRIP compound, EXO+ protection, 60TPI, folding bead
Rear tyre - Maxxis Minion DHR II 29x2.5 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 60TPI, folding bead
Crankset - e*Thirteen Helix Core E*Spec Plus, All sizes: 160mm
Rings - Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD
Chain - Sram GX Eagle T-Type, 12s, Powerlock
Rear derailleur - Sram S1000 Eagle AXS T-Type, 12s
Shift levers - Sram Eagle AXS Pod MMX, 12s
Cassette - Sram XS-1270, 10-52T, T-Type, 12s
Derailleur hanger - Sram UDH
Others - Mondraker custom desing Fidlock smoked transparent 600ml bottle + Fidlock base down version *Optional external battery: TQ 160Wh
Weight - 18,9 kg
Display - TQ HPR display V01
Motor - TQ HPR-50
Battery - TQ HPR-50 360Wh integrated and removable

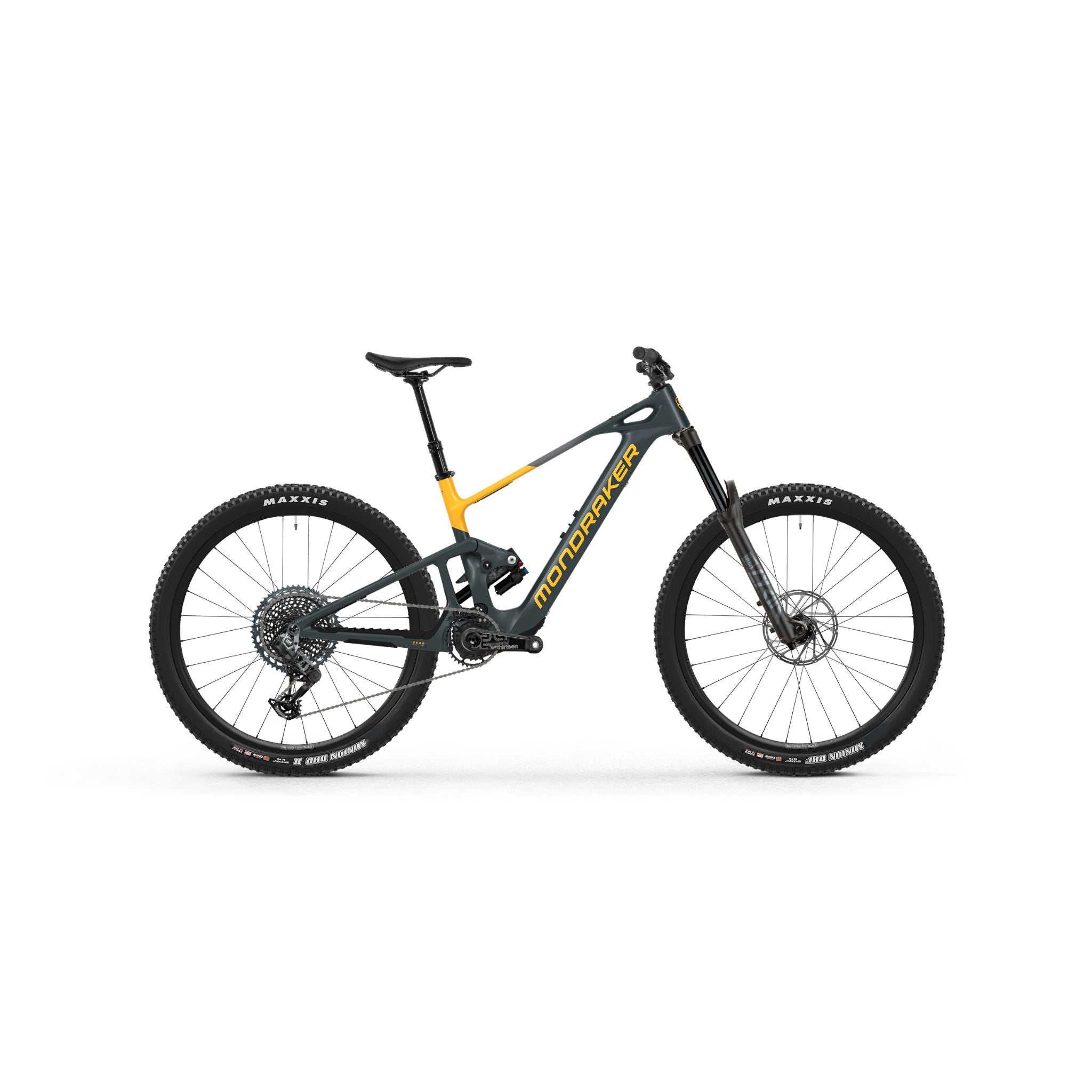

Mondraker Neat R 2025
Experience unparalleled performance with Mondraker's Neat R 2025. This electric mountain bike features cutting-edge components and a sleek carbon frame, offering riders the ultimate ride. The TQ motor adds...
Order within [time] for delivery by [date]
90 Day Returns -
Description
Experience unparalleled performance with Mondraker's Neat R 2025. This electric mountain bike features cutting-edge components and a sleek carbon frame, offering riders the ultimate ride. The TQ motor adds power and agility, making this E-MTB a top choice for any rider.
Mondraker's electric MTB line-up boasts some of the best riding (and looking) bikes out there, the NEAT fits right in with the family and was designed from the ground up to be the most nimble, manoeuvrable and lightest in Mondraker's range.
At the heart of the NEAT is the TQ drive system, this remarkable system achieves the dream of small size, light weight, reliability, low noise level and most importantly real, useable power.
TQ-HPR50 -
Combining 3 natural-feeling levels of assistance and running almost silently, the TQ-HPR50 provides up to 300W of power and 50Nm of torque. A multitude of variables will always come into play when talking about range, but a rider of average weight (around 75Kg) can expect to be able to complete a ride of between 3-4 hours, with more than 1000m of altitude gain, switching between ECO and MID modes, and ride anywhere from 40 to 50km. The optional range extender can increase that by up to 50%
SIZING -
- S: 160cm - 170cm
- M: 165cm - 180cm
- L: 175cm - 185cm
- XL: 185cm - 190cm+
Specifications
-
Discipline Trail/AM
-
Material Carbon
-
Front Travel 160mm
-
Rear Travel 150mm
-
Wheel Size 29"
-
Warranty Lifetime (frame)
Frame - Stealth Air full Carbon, Updated Zero Suspension System, 150mm travel, Forward Geometry, internal & removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, integrated dropout speed sensor, exclusive plastic motor covers.
Rear shock - Rock Shox Super Deluxe Select, 185x55mm, Settings: 2-position compression (Open/Firm), rebound, air preload. Trunnion top mount, 30x8mm bottom bushings
Shock settings - C37 compression, R85 rebound, X4 lock tune, 4 tokens
Fork - RockShox LYRIK Select Charger RC 29, 160mm, e-bike approved, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: low-speed compression, low-speed rebound, air preload
Headset - Acros custom IS52/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs without blocklock
Stem - Onoff S6 30mm 0º, 6061 forged alloy + CNC, 31.8mm barbore
Handlebar - Onoff S6 1.0 7050 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 1.5 rise.
Grips - Onoff Forest, CNC lock-on, 135mm
Seatpost - Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 140-115mm (388-235mm), M size: 160-135mm (428-255mm), L size: 180-155mm (468-275mm), XL size: 210-185mm (528-305mm)
Saddle - Fizik Terra Aidon Slim X5
Front brake - Sram DB8 stealth, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Rear brake - Sram DB8 stealth, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Brake lever - Sram DB8, SwingLink and lever pivot bearings, tools-free reach and contact point adjust
Rims - Mavic E-CrossRide 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes
Spokes - Mavic J-bend double butted, contactless lacing
Front hub - Mavic, Boost 15x110mm, IS 6 bolts
Rear hub - Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts, HG freehub
Front tyre - Maxxis Minion DHF 29x2.5 WT, tubeless ready, 3C MAXX GRIP compound, EXO+ protection, 60TPI, folding bead
Rear tyre - Maxxis Minion DHR II 29x2.5 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 60TPI, folding bead
Crankset - e*Thirteen Helix Core E*Spec Plus, All sizes: 160mm
Rings - Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD
Chain - Sram GX Eagle T-Type, 12s, Powerlock
Rear derailleur - Sram S1000 Eagle AXS T-Type, 12s
Shift levers - Sram Eagle AXS Pod MMX, 12s
Cassette - Sram XS-1270, 10-52T, T-Type, 12s
Derailleur hanger - Sram UDH
Others - Mondraker custom desing Fidlock smoked transparent 600ml bottle + Fidlock base down version *Optional external battery: TQ 160Wh
Weight - 18,9 kg
Display - TQ HPR display V01
Motor - TQ HPR-50
Battery - TQ HPR-50 360Wh integrated and removable
