Description
Mondraker's Level brings electric pedal power to the super enduro category. The Level is a big travel, aluminium frame electric mountain bike for tough enduro stages, racing and wild bikepark laps.
The Level has big travel numbers of 180mm on the front and 170mm on the back and runs on agile MX wheel sizing (29" front/27.5" rear).
The Level RR spec has a 800Wh battery fully integrated into the down tube and comes fully equipped with a Bosch Performance Line CX G5 Smart System motor combined with Bosch’s new Mini Remote, System Controller, and a Kiox 400 mounted display. The LEVEL R rocks a Fox 38 Factory GripX2 fork and a Fox DHX2 Performance Elite shock for even greater sensitivity; SRAM’s wireless S1000 AXS T-Type Eagle drivetrain; e*thirteen wheels; SRAM’s Maven Bronze brakes, and ONOFF Components are the cherry on top.
Bosch Gen5 Smart System -
The latest Bosch motor is a Performance Line CX GEN5 unit that pushes out 100nm, featuring the new Bosch Smart System, upgraded software and enhanced firmware modifications. In addition, a new display unit and handlebar mounted control module have been added for easier mode selection and adjustment. The bikes also feature the new Bosch 800Wh battery that allows you to enjoy even more miles of trail on a single charge.
SIZING -
- S: 160cm - 170cm
- M: 165cm - 180cm
- L: 175cm - 185cm
- XL: 185cm - 190cm+
Specifications
-
Discipline Enduro/AM
-
Material Stealth Alloy
-
Front Travel 180mm
-
Rear Travel 170mm
-
Wheel Size MX
-
Warranty Lifetime (frame)
Frame - Level 6061 Alloy Stealth Evo, e-Bike Optimized Zero Suspension System, 170mm travel, Forward Geometry, internal non-removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers
Rear shock - Fox DHX2 Performance Elite 205x65mm
Shock settings - Medium compression, Linear rebound. Spring rate: S size 350 lbs, M size 450 lbs, L size 500 lbs, XL size 500 lbs
Fork - Fox 38 Factory GripX2 180mm
Headset - Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º
Stem - Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore
Handlebar - Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Grips - Onoff Twin, 1lock-on, 135mm
Seatpost - Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 405x95-125mm, M size: 458x120-150mm, L size: 498x140-170mm, XL size: 558x170-200mm
Saddle - FIZIK Terra Aidon X5 145mm
Brakes - Sram Maven Bronze
Rims - e*thirteen Grappler Core Hookless, 6069 Welded Aluminium 30mm internal width, tubeless ready, 28F / 32R spokes
Spokes - e*thirteen custom J-bend, triple-butted steel, alloy nipples, nipple washers
Front hub - e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminium, IS 6 bolts
Rear hub - e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminium w/6-degree engagement, IS 6 bolts, HG freehub
Front tire - Maxxis Assegai 29x2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead
Rear tire - Maxxis Minion DHRII 29x2.6WT, tubeless ready, 3C MAXX Terra compound, DD casing, 120x2TPI, folding bead
Crankset - Race Face Aeffect ebike, 160mm
Rings - Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD
Chain - Sram GX Eagle, 12s, Powerlock
Rear derailleur - Sram S1000 Eagle AXS T-Type
Shift levers - Sram Eagle AXS POD
Cassette - Sram XS-1270, 10-52T, 12s
Display - Bosch Kiox 400 / Bosch Mini Remote / Bosch System Controller
Motor - Bosch Performance Line CX Cruise (25Km/h) GEN5 SMART SYSTEM
Battery - Bosch Powertube 800Wh

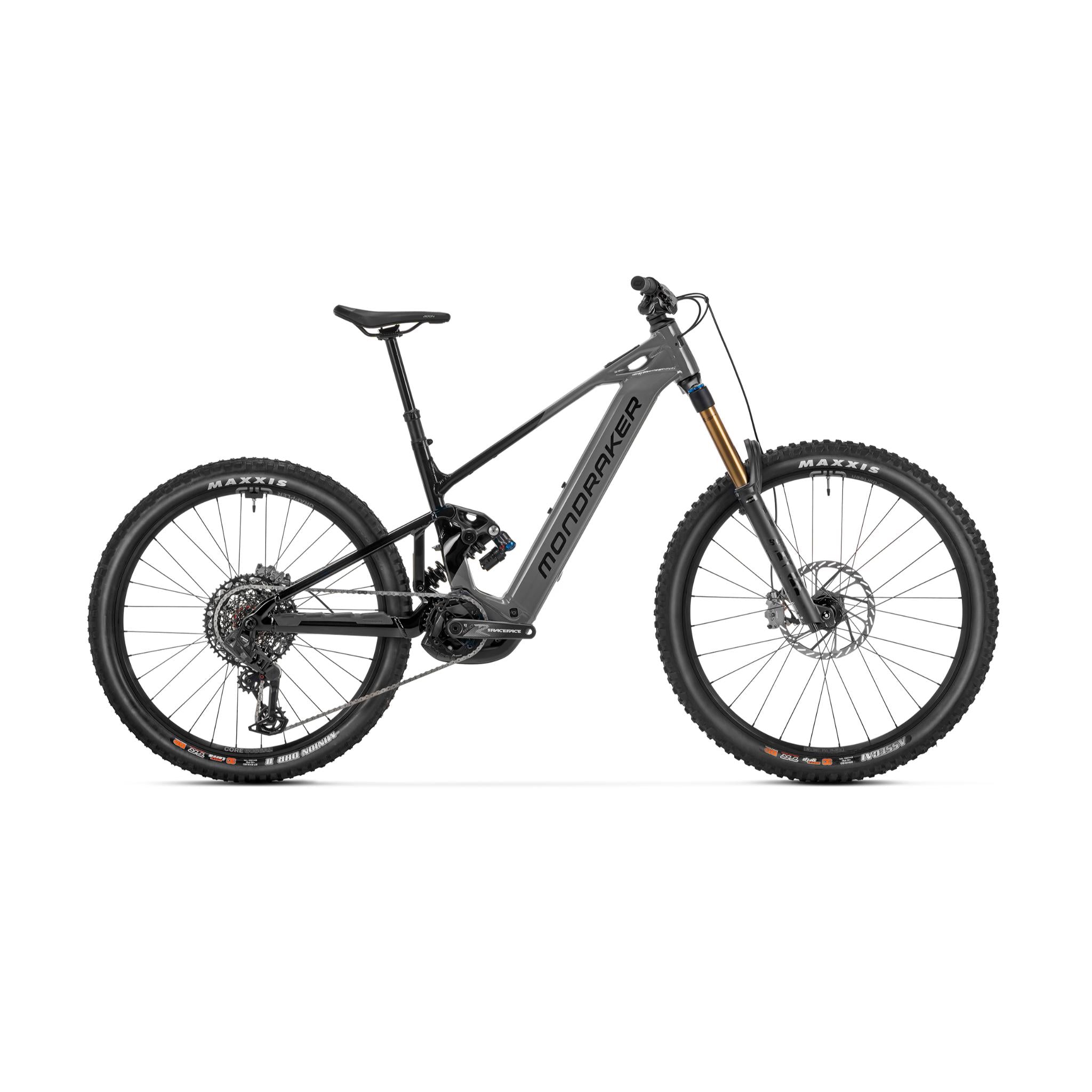

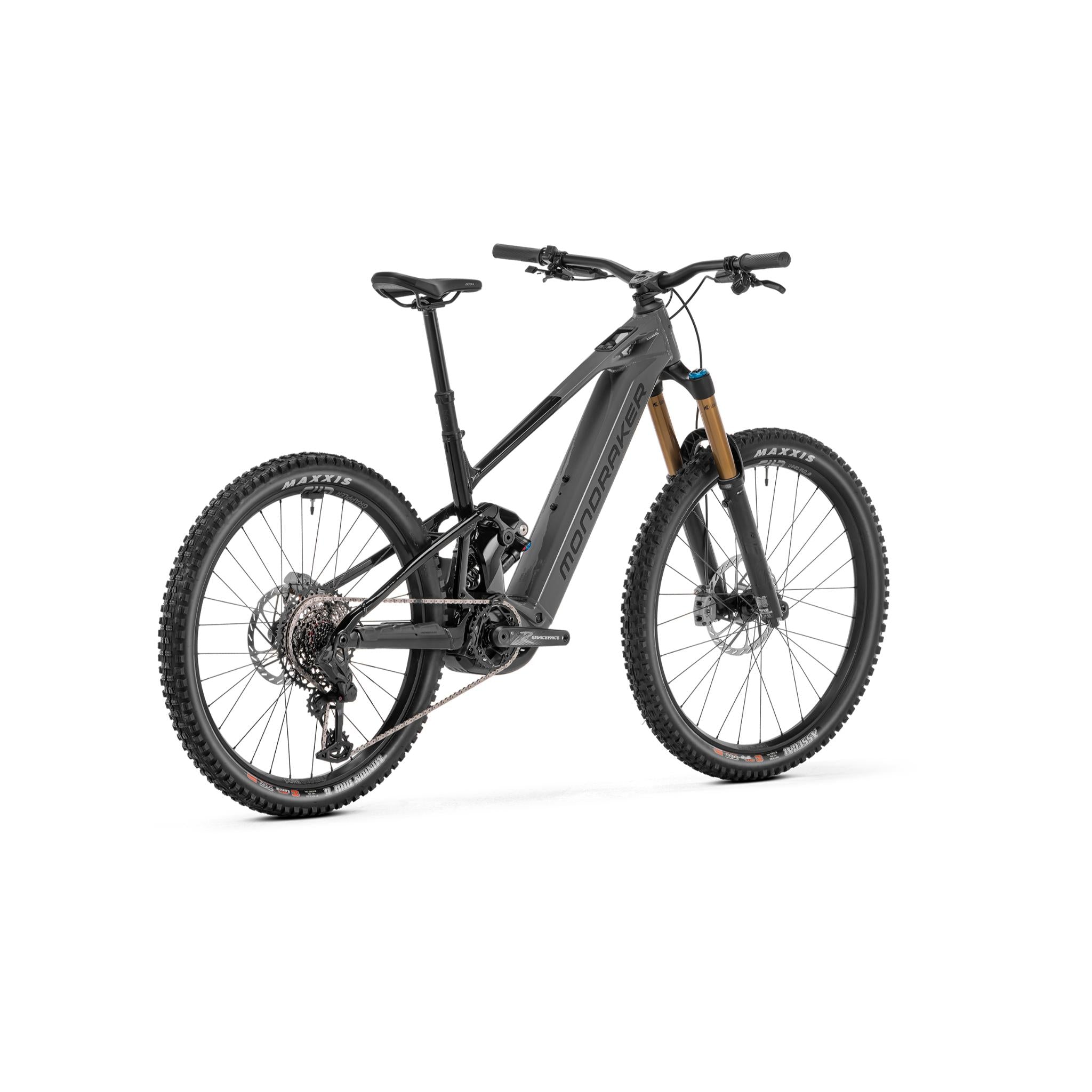

Mondraker Level RR 2026
Mondraker's Level brings electric pedal power to the super enduro category. The Level is a big travel, aluminium frame electric mountain bike for tough enduro stages, racing and wild bikepark...
Order within [time] for delivery by [date]
90 Day Returns -
Description
Mondraker's Level brings electric pedal power to the super enduro category. The Level is a big travel, aluminium frame electric mountain bike for tough enduro stages, racing and wild bikepark laps.
The Level has big travel numbers of 180mm on the front and 170mm on the back and runs on agile MX wheel sizing (29" front/27.5" rear).
The Level RR spec has a 800Wh battery fully integrated into the down tube and comes fully equipped with a Bosch Performance Line CX G5 Smart System motor combined with Bosch’s new Mini Remote, System Controller, and a Kiox 400 mounted display. The LEVEL R rocks a Fox 38 Factory GripX2 fork and a Fox DHX2 Performance Elite shock for even greater sensitivity; SRAM’s wireless S1000 AXS T-Type Eagle drivetrain; e*thirteen wheels; SRAM’s Maven Bronze brakes, and ONOFF Components are the cherry on top.
Bosch Gen5 Smart System -
The latest Bosch motor is a Performance Line CX GEN5 unit that pushes out 100nm, featuring the new Bosch Smart System, upgraded software and enhanced firmware modifications. In addition, a new display unit and handlebar mounted control module have been added for easier mode selection and adjustment. The bikes also feature the new Bosch 800Wh battery that allows you to enjoy even more miles of trail on a single charge.
SIZING -
- S: 160cm - 170cm
- M: 165cm - 180cm
- L: 175cm - 185cm
- XL: 185cm - 190cm+
Specifications
-
Discipline Enduro/AM
-
Material Stealth Alloy
-
Front Travel 180mm
-
Rear Travel 170mm
-
Wheel Size MX
-
Warranty Lifetime (frame)
Frame - Level 6061 Alloy Stealth Evo, e-Bike Optimized Zero Suspension System, 170mm travel, Forward Geometry, internal non-removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers
Rear shock - Fox DHX2 Performance Elite 205x65mm
Shock settings - Medium compression, Linear rebound. Spring rate: S size 350 lbs, M size 450 lbs, L size 500 lbs, XL size 500 lbs
Fork - Fox 38 Factory GripX2 180mm
Headset - Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º
Stem - Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore
Handlebar - Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Grips - Onoff Twin, 1lock-on, 135mm
Seatpost - Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 405x95-125mm, M size: 458x120-150mm, L size: 498x140-170mm, XL size: 558x170-200mm
Saddle - FIZIK Terra Aidon X5 145mm
Brakes - Sram Maven Bronze
Rims - e*thirteen Grappler Core Hookless, 6069 Welded Aluminium 30mm internal width, tubeless ready, 28F / 32R spokes
Spokes - e*thirteen custom J-bend, triple-butted steel, alloy nipples, nipple washers
Front hub - e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminium, IS 6 bolts
Rear hub - e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminium w/6-degree engagement, IS 6 bolts, HG freehub
Front tire - Maxxis Assegai 29x2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead
Rear tire - Maxxis Minion DHRII 29x2.6WT, tubeless ready, 3C MAXX Terra compound, DD casing, 120x2TPI, folding bead
Crankset - Race Face Aeffect ebike, 160mm
Rings - Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD
Chain - Sram GX Eagle, 12s, Powerlock
Rear derailleur - Sram S1000 Eagle AXS T-Type
Shift levers - Sram Eagle AXS POD
Cassette - Sram XS-1270, 10-52T, 12s
Display - Bosch Kiox 400 / Bosch Mini Remote / Bosch System Controller
Motor - Bosch Performance Line CX Cruise (25Km/h) GEN5 SMART SYSTEM
Battery - Bosch Powertube 800Wh
