Mondraker is widely credited as one of the pioneers of modern mountain bike geometry, and the Foxy is where that thinking really shines. It's the brand's enduro and all-mountain legend, with a long list of race wins to its name and a reputation as one of the most versatile bikes in the range.
The Foxy R is built on the hydroformed 6061 Stealth Evo alloy frame, with Forward Geometry for stability and confidence at speed and the Zero Suspension System delivering 150mm of supple, well-supported rear travel, matched to a 160mm fork.
What sets the R apart is its suspension. You get Öhlins at both ends, with an RXF 36 M.3 fork and a TTX Air shock, both with a handy climb mode, giving premium control on an alloy frame. SRAM Code Bronze four-piston brakes with a 200mm front rotor, e*thirteen LG1 Enduro wheels, SRAM Eagle 12-speed gearing and an OnOff Pija dropper complete a build that's ready for proper enduro riding.
Features
- Hydroformed 6061 Stealth Evo alloy frame with Forward Geometry
- 150mm rear travel via the Zero Suspension System
- Öhlins RXF 36 M.3 160mm fork and Öhlins TTX Air shock, both with climb mode
- SRAM Code Bronze Stealth four-piston brakes with 200mm/180mm rotors
- e*thirteen LG1 Enduro wheels with 30mm internal width hookless rims
- SRAM Eagle 12-speed with NX rear derailleur and 11-50T cassette
- Maxxis Minion DHF front and Aggressor rear tubeless-ready tyres
- OnOff Pija internal dropper, ISCG 05 mounts and SRAM UDH
Sizing
- S: 160cm - 170cm
- M: 165cm - 180cm
- L: 175cm - 185cm
- XL: 185cm - 190cm+
Specifications
DisciplineEnduro
MaterialAluminium
Front Travel160mm
Rear Travel150mm
Wheel Size29"
WarrantyLifetime (frame)
Frame - Foxy 29 6061 Alloy Stealth Evo, hydroformed tubing, Zero Suspension System, 150mm travel, Forward Geometry, one piece Monoblock upper link, Boost 12x148mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, telescopic seatpost internal routing, MAX capacity sealed bearings, ISCG 05
Rear shock - Öhlins TTX Air 205x65mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload. Trunnion top mount, 25x8mm bottom bushings
Shock settings - C20 compression, R35 rebound
Fork - Öhlins RXF 36 M.3 29, 160mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber. Fork settings: C20 R40
Headset - Onoff Saturn tapered for 1-1/8" to 1-1/2" head tube, ACB sealed bearings, top 41x30.2x7x45°x45°, bottom 51.9x40x8x45°x45°
Stem - Onoff Sulfur FG 30mm 0°, 6061 forged alloy, 31.8mm barbore
Handlebar - Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9° backsweep, 5° upsweep, 31.8mm barbore
Grips - Onoff Twin, 1 lock-on, 135mm
Seatpost - Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S 405x95-125mm, M 458x120-150mm, L 498x140-170mm, XL 558x170-200mm
Saddle - SDG BEL-AIR 3.0, LPU foam, steel rails
Front brake - Sram Code Bronze Stealth, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Rear brake - Sram Code Bronze Stealth, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads
Brake lever - Sram Code Bronze Stealth, SwingLink and lever pivot bushings, tool-free reach adjust
Rims - e*thirteen LG1 Enduro, IW30 Hookless, 6069 Welded Aluminium, 30mm internal width, tubeless ready, 28 spokes
Spokes - e*thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers
Front hub - e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminium, IS 6 bolts
Rear hub - e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminium w/6-degree engagement, IS 6 bolts, HG freehub
Front tyre - Maxxis Minion DHF 29x2.5 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead
Rear tyre - Maxxis Aggressor 29x2.3, tubeless ready, dual compound, EXO protection, 60TPI, folding bead
Crankset - Sram SX Eagle, Boost, DUB axle, Direct Mount chainring, S 170mm, M 175mm, L 175mm, XL 175mm, CL 55
Chainring - 32T, CNC-machined alloy, X-SYNC 2
Bottom bracket - Sram DUB BSA, sealed bearings, 73mm
Chain - Sram SX Eagle, 12s, Powerlock
Rear derailleur - Sram NX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1
Shift levers - Sram Trigger SX Eagle, 12s, X-Actuation 1:1
Cassette - Sram PG-1230, 11-50T, 12s
Derailleur hanger - Sram UDH
Weight - 16.2kg

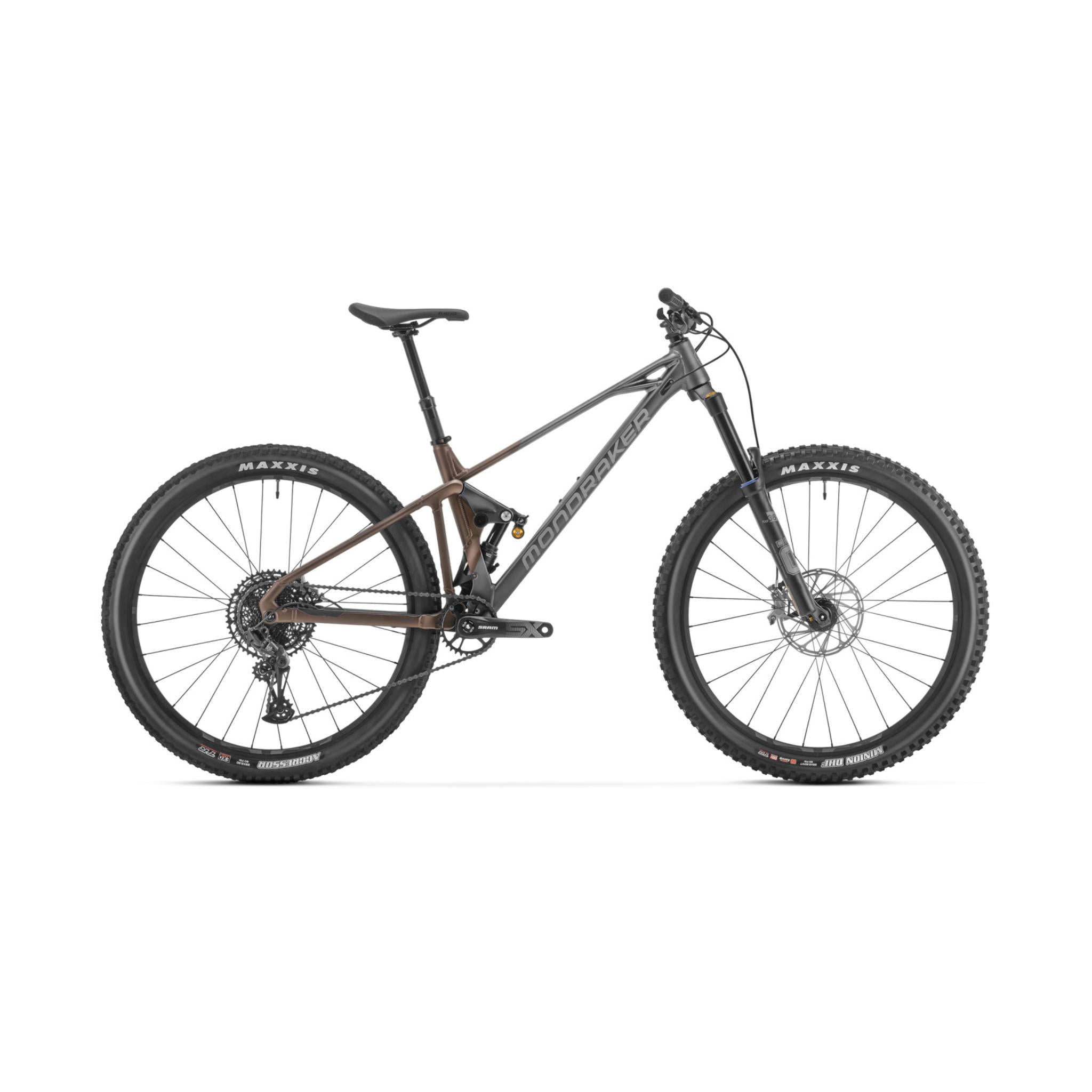

Foxy R 2024
- Enduro
- 160 / 150mm travel
- 29″ wheels
- Alloy frame
Finance available – see options
Order within [time] for delivery by [date]
90 Day Returns
-
Pro builtBuilt and safety-checked by our mechanics before it leaves us
-
Free UK mainland courier deliveryNorthern Ireland: £60
-
Collect in CanterburyPick up and get set up at our store
-
Talk to a riderChat with our team
Mondraker is widely credited as one of the pioneers of modern mountain bike geometry, and the Foxy is where that thinking really shines. It's the brand's enduro and all-mountain legend, with a long list of race wins to its name and a reputation as one of the most versatile bikes in the range.
The Foxy R is built on the hydroformed 6061 Stealth Evo alloy frame, with Forward Geometry for stability and confidence at speed and the Zero Suspension System delivering 150mm of supple, well-supported rear travel, matched to a 160mm fork.
What sets the R apart is its suspension. You get Öhlins at both ends, with an RXF 36 M.3 fork and a TTX Air shock, both with a handy climb mode, giving premium control on an alloy frame. SRAM Code Bronze four-piston brakes with a 200mm front rotor, e*thirteen LG1 Enduro wheels, SRAM Eagle 12-speed gearing and an OnOff Pija dropper complete a build that's ready for proper enduro riding.
Features
- Hydroformed 6061 Stealth Evo alloy frame with Forward Geometry
- 150mm rear travel via the Zero Suspension System
- Öhlins RXF 36 M.3 160mm fork and Öhlins TTX Air shock, both with climb mode
- SRAM Code Bronze Stealth four-piston brakes with 200mm/180mm rotors
- e*thirteen LG1 Enduro wheels with 30mm internal width hookless rims
- SRAM Eagle 12-speed with NX rear derailleur and 11-50T cassette
- Maxxis Minion DHF front and Aggressor rear tubeless-ready tyres
- OnOff Pija internal dropper, ISCG 05 mounts and SRAM UDH
Sizing
- S: 160cm - 170cm
- M: 165cm - 180cm
- L: 175cm - 185cm
- XL: 185cm - 190cm+
Specifications
DisciplineEnduro
MaterialAluminium
Front Travel160mm
Rear Travel150mm
Wheel Size29"
WarrantyLifetime (frame)
Frame - Foxy 29 6061 Alloy Stealth Evo, hydroformed tubing, Zero Suspension System, 150mm travel, Forward Geometry, one piece Monoblock upper link, Boost 12x148mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, telescopic seatpost internal routing, MAX capacity sealed bearings, ISCG 05
Rear shock - Öhlins TTX Air 205x65mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload. Trunnion top mount, 25x8mm bottom bushings
Shock settings - C20 compression, R35 rebound
Fork - Öhlins RXF 36 M.3 29, 160mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber. Fork settings: C20 R40
Headset - Onoff Saturn tapered for 1-1/8" to 1-1/2" head tube, ACB sealed bearings, top 41x30.2x7x45°x45°, bottom 51.9x40x8x45°x45°
Stem - Onoff Sulfur FG 30mm 0°, 6061 forged alloy, 31.8mm barbore
Handlebar - Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9° backsweep, 5° upsweep, 31.8mm barbore
Grips - Onoff Twin, 1 lock-on, 135mm
Seatpost - Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S 405x95-125mm, M 458x120-150mm, L 498x140-170mm, XL 558x170-200mm
Saddle - SDG BEL-AIR 3.0, LPU foam, steel rails
Front brake - Sram Code Bronze Stealth, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Rear brake - Sram Code Bronze Stealth, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads
Brake lever - Sram Code Bronze Stealth, SwingLink and lever pivot bushings, tool-free reach adjust
Rims - e*thirteen LG1 Enduro, IW30 Hookless, 6069 Welded Aluminium, 30mm internal width, tubeless ready, 28 spokes
Spokes - e*thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers
Front hub - e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminium, IS 6 bolts
Rear hub - e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminium w/6-degree engagement, IS 6 bolts, HG freehub
Front tyre - Maxxis Minion DHF 29x2.5 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead
Rear tyre - Maxxis Aggressor 29x2.3, tubeless ready, dual compound, EXO protection, 60TPI, folding bead
Crankset - Sram SX Eagle, Boost, DUB axle, Direct Mount chainring, S 170mm, M 175mm, L 175mm, XL 175mm, CL 55
Chainring - 32T, CNC-machined alloy, X-SYNC 2
Bottom bracket - Sram DUB BSA, sealed bearings, 73mm
Chain - Sram SX Eagle, 12s, Powerlock
Rear derailleur - Sram NX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1
Shift levers - Sram Trigger SX Eagle, 12s, X-Actuation 1:1
Cassette - Sram PG-1230, 11-50T, 12s
Derailleur hanger - Sram UDH
Weight - 16.2kg
