Mondraker is widely credited as one of the pioneers of modern mountain bike geometry, and the Foxy is where that thinking really shines. It's the brand's enduro and all-mountain legend, with a long list of race wins to its name and a reputation as one of the most versatile bikes in the range.

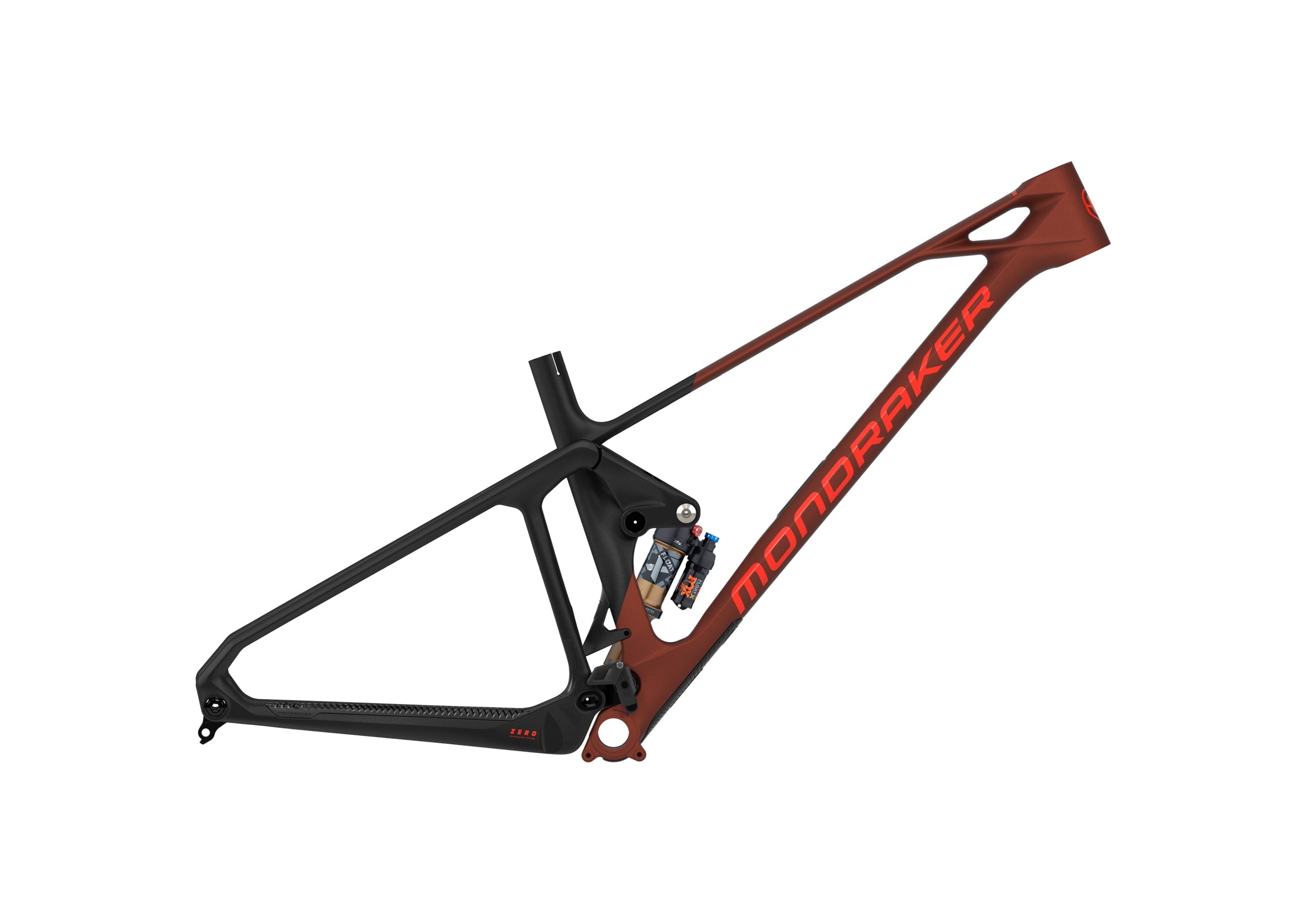

This Carbon RR frameset gives you the Stealth Air full carbon Foxy frame with 150mm of rear travel through the Zero Suspension System, designed around a 160mm fork. It comes with a Fox Float X Factory shock, headset and stem, ready for you to build up exactly how you want.
Zero is a virtual pivot design with a unique dual-link layout: the shock floats between the two links and is compressed from both ends, giving a rear end that is supple over small bumps yet has plenty in reserve for big hits. Forward Geometry's long reach and short stem keep you centred and in control when the trail turns steep and rough.
Features
- Foxy 29 Stealth Air full carbon frame with Forward Geometry
- 150mm rear travel via the Zero Suspension System with Carbon Monoblock upper link
- Fox Float X Factory Kashima shock included
- Designed around a 160mm fork
- Acros headset and OnOff S6 30mm stem included
- Internal cable routing, ISCG 05 mounts, shock mudguard and frame protection
- Threaded 73mm BSA bottom bracket, Boost 148mm rear and SRAM UDH
Sizing
- S: 160cm - 170cm
- M: 165cm - 180cm
- L: 175cm - 185cm
- XL: 185cm - 190cm+
Specifications
DisciplineEnduro
MaterialCarbon
Rear Travel150mm
Wheel Size29"
WarrantyLifetime (frame)
Frame - Foxy 29 Stealth Air full Carbon, Zero Suspension System, 150mm travel, Forward Geometry, Carbon Monoblock upper link, Boost 12x148mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, HHG internal cable routing, Enduro MAX sealed bearings, shock mudguard, ISCG 05, custom frame protectors
Rear shock - Fox Float X Factory Kashima EVOL, 205x65mm. Settings: 2-position compression (Open/Firm), rebound, air preload. Trunnion top mount, 30x8mm bottom bushings
Shock settings - Light compression, light rebound, air volume spacer 0.6
Headset - Acros custom IS52/ZS56, 1-1/8", 1.5" head tube, internal cable routing, sealing plugs without blocklock
Stem - Onoff S6 30mm 0°, 6061 forged alloy + CNC, 31.8mm barbore
Derailleur hanger - Sram UDH
Recommended fork travel - 160mm
Foxy Carbon RR Frame 2025
