The Foxy has been Mondraker's enduro bike for well over a decade, and it is still the clearest expression of the Forward Geometry idea the brand pioneered: a long front centre paired with a short 30mm stem, so you sit centred between the wheels and stay in control when the trail gets steep, fast and rough. On 29" wheels with 160mm up front and 150mm out back, it is a bike that climbs efficiently and then lets you really commit on the way down.
The 2026 Carbon RR is built on the Stealth Air full carbon frame with the Zero Suspension System and a Carbon Monoblock upper link, now with a UDH rear end, ISCG 05 mounts and internal HHG cable routing. It also has STD and LOW geometry settings: LOW slackens the head angle from 65° to 64.5°, drops the bottom bracket by 5mm and lengthens the chainstays from 435mm to 445mm. The big change for this build is Öhlins suspension at both ends: an RXF 36 M.3 fork with the TTX18 twin-tube cartridge and a TTX Air shock, both with a high-speed compression lever that includes a climb mode, plus low-speed compression, rebound and air preload adjustment. The fork also has a ramp chamber to tune how progressive it feels deep in the travel.
The rest of the kit is just as considered. SRAM's wireless X0 Eagle AXS T-Type drivetrain handles the shifting, and SRAM Maven Bronze four-piston brakes with 200mm rotors front and rear give you plenty of power for long descents. DT Swiss EX1700 rims on 350 hubs with the 36T Ratchet SL system are a proven, serviceable wheelset, shod with a Maxxis Assegai MaxxGrip up front and Minion DHR II EXO+ out back. A Fox Transfer Factory dropper with adjustable travel, an Onoff S9 carbon bar and an Ergon Enduro saddle complete the package. It comes in Superblack and weighs a claimed 14.3kg.
Features
- Foxy 29 Stealth Air full carbon frame with Forward Geometry and UDH
- STD and LOW geometry settings: 65°/64.5° head angle, 350/345mm BB height, 435/445mm chainstays
- 150mm rear travel via the Zero Suspension System with Carbon Monoblock upper link
- Öhlins RXF 36 M.3 160mm fork with TTX18 Twin Tube cartridge and ramp chamber
- Öhlins TTX Air shock with high-speed compression lever and climb mode
- SRAM X0 Eagle AXS T-Type wireless 12-speed drivetrain
- SRAM Maven Bronze four-piston brakes with 200mm rotors front and rear
- DT Swiss EX1700 rims on DT 350 hubs with 36T Ratchet SL
- Fox Transfer Factory dropper with adjustable travel, up to 210mm on XL
- Maxxis Assegai MaxxGrip and Minion DHR II EXO+ tyres, ISCG 05 mounts and frame protection
- Mondraker lifetime frame warranty
Sizing
- S: up to 170cm
- M: 170cm - 180cm
- L: 175cm - 185cm
- XL: 185cm - 195cm+
Specifications
DisciplineEnduro
MaterialCarbon
Front Travel160mm
Rear Travel150mm
Wheel Size29"
WarrantyLifetime (frame)
Frame - Foxy 29 Stealth Air full Carbon, Zero Suspension System, 150mm travel, Forward Geometry, Carbon Monoblock upper link, Boost 12x148mm rear axle, UDH, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, HHG internal cable routing, Enduro MAX sealed bearings, shock mudguard, ISCG 05, custom frame protectors
Sizes - S: 375mm, M: 415mm, L: 445mm, XL: 500mm
Geometry (STD/LOW) - Head angle 65°/64.5°, effective seat angle 76°/75.5°, BB height 350/345mm, chainstay 435/445mm, reach S 445/440mm, M 465/460mm, L 485/480mm, XL 505/500mm, stack S 615/617mm, M 623/627mm, L 637/641mm, XL 651/656mm
Rear shock - Öhlins TTX Air 205x65mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload. Trunnion top mount, 30x8mm bottom bushings
Shock settings - C10 compression, R35 rebound. Volume reducers 12.000 (2xF+1D)
Fork - Öhlins RXF 36 M.3 29, 160mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber
Headset - Acros custom IS52/ZS56, 1-1/8", 1.5" head tube, internal cable routing, sealing plugs without blocklock
Stem - Onoff S9 30mm 0°, Full CNC, 31.8mm barbore
Handlebar - Onoff S9 1.0 Carbon, rise: 25mm, width: 800mm, 8° backsweep, 5° upsweep, 31.8mm barbore. L and XL size: 38mm rise
Grips - Onoff Desert Pro, CNC lock-on, 135mm. L and XL: thicker size
Seatpost - Fox Transfer Factory Kashima internal, adjustable travel, diameter 31.6mm, S 95-120mm, M 125-150mm, L 155-180mm, XL 185-210mm
Saddle - Ergon Enduro SPS20
Front brake - Sram Maven Bronze, 18 and 19.5mm 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Rear brake - Sram Maven Bronze, 18 and 19.5mm 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Brake lever - Sram Maven Bronze, SwingLink and lever pivot bushings, tool-free reach adjust
Rims - DT Swiss EX1700 Spline 29, 30mm internal width, welded aluminium, tubeless ready, 28 spokes
Spokes - DT Competition, straightpull
Front hub - DT 350, Boost 15x110mm, IS 6 bolts
Rear hub - DT 350, Boost 12x148mm, 36T SL Ratchet system, IS 6 bolts, XD freehub
Front tyre - Maxxis Assegai 29x2.5 WT, tubeless ready, 3C Maxx Grip compound, 60TPI, folding bead
Rear tyre - Maxxis Minion DHR II 29x2.4 WT, tubeless ready, 3C Maxx Terra compound, EXO+ protection, 60TPI, folding bead
Crankset - Sram X0 Eagle T-Type, Boost, DUB axle, direct mount chainring, S and M: 165mm, L and XL: 170mm, CL 55
Chainring - 32T, CNC-machined alloy, T-Type
Bottom bracket - Sram DUB BSA, sealed bearings, 73mm, wide
Chain - Sram X0 Eagle T-Type, 12s, Powerlock
Rear derailleur - Sram X0 Eagle AXS T-Type, 12s
Shift levers - Sram Eagle AXS Pod, 12s
Cassette - Sram XS-1295, 10-52T, T-Type, 12s
Weight - 14.3kg

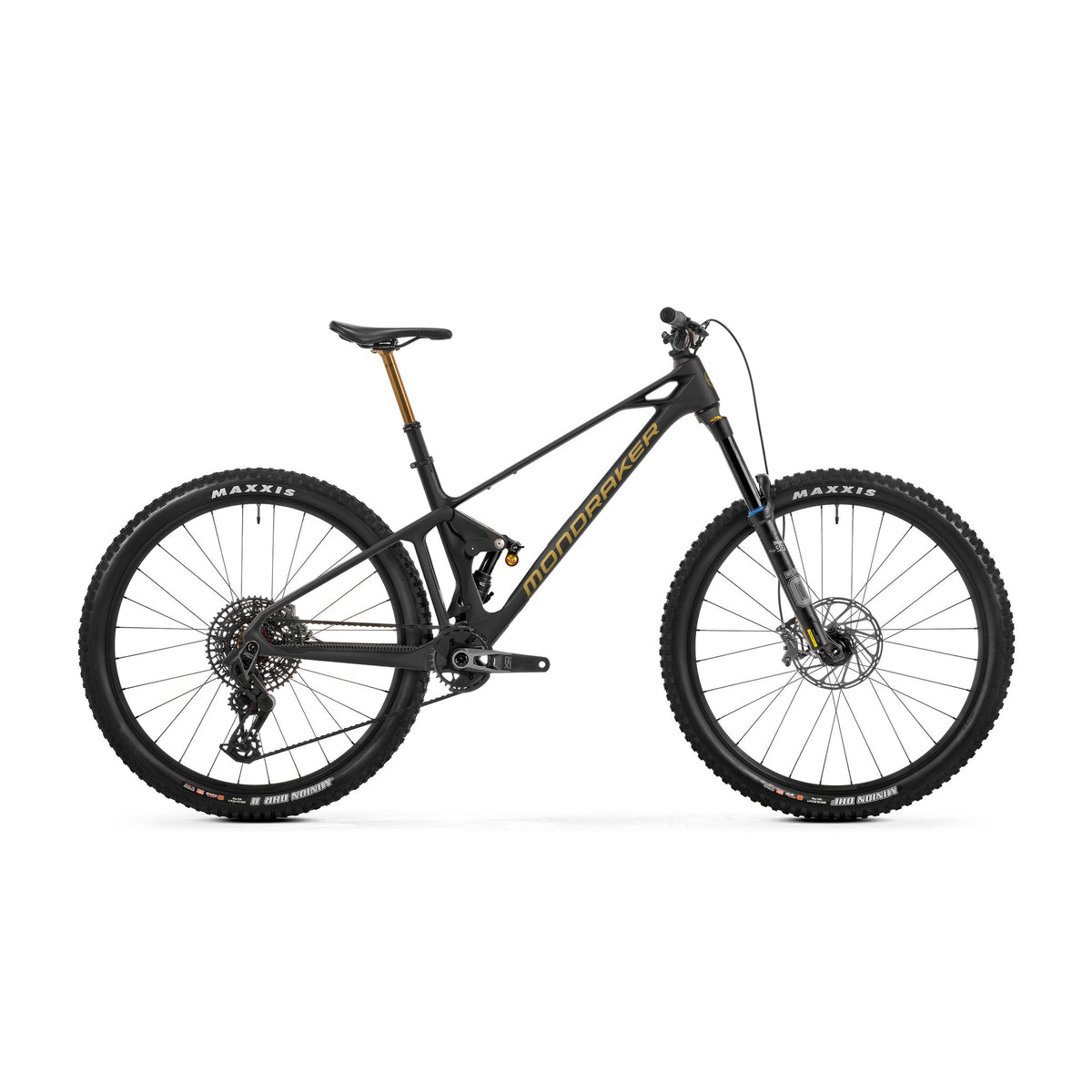

Foxy Carbon RR 2026
- Enduro
- 160 / 150mm travel
- 29″ wheels
- Carbon frame
Finance available – see options
Order within [time] for delivery by [date]
90 Day Returns
-
Pro builtBuilt and safety-checked by our mechanics before it leaves us
-
Free UK mainland courier deliveryNorthern Ireland: £60
-
Collect in CanterburyPick up and get set up at our store
-
Talk to a riderChat with our team
The Foxy has been Mondraker's enduro bike for well over a decade, and it is still the clearest expression of the Forward Geometry idea the brand pioneered: a long front centre paired with a short 30mm stem, so you sit centred between the wheels and stay in control when the trail gets steep, fast and rough. On 29" wheels with 160mm up front and 150mm out back, it is a bike that climbs efficiently and then lets you really commit on the way down.
The 2026 Carbon RR is built on the Stealth Air full carbon frame with the Zero Suspension System and a Carbon Monoblock upper link, now with a UDH rear end, ISCG 05 mounts and internal HHG cable routing. It also has STD and LOW geometry settings: LOW slackens the head angle from 65° to 64.5°, drops the bottom bracket by 5mm and lengthens the chainstays from 435mm to 445mm. The big change for this build is Öhlins suspension at both ends: an RXF 36 M.3 fork with the TTX18 twin-tube cartridge and a TTX Air shock, both with a high-speed compression lever that includes a climb mode, plus low-speed compression, rebound and air preload adjustment. The fork also has a ramp chamber to tune how progressive it feels deep in the travel.
The rest of the kit is just as considered. SRAM's wireless X0 Eagle AXS T-Type drivetrain handles the shifting, and SRAM Maven Bronze four-piston brakes with 200mm rotors front and rear give you plenty of power for long descents. DT Swiss EX1700 rims on 350 hubs with the 36T Ratchet SL system are a proven, serviceable wheelset, shod with a Maxxis Assegai MaxxGrip up front and Minion DHR II EXO+ out back. A Fox Transfer Factory dropper with adjustable travel, an Onoff S9 carbon bar and an Ergon Enduro saddle complete the package. It comes in Superblack and weighs a claimed 14.3kg.
Features
- Foxy 29 Stealth Air full carbon frame with Forward Geometry and UDH
- STD and LOW geometry settings: 65°/64.5° head angle, 350/345mm BB height, 435/445mm chainstays
- 150mm rear travel via the Zero Suspension System with Carbon Monoblock upper link
- Öhlins RXF 36 M.3 160mm fork with TTX18 Twin Tube cartridge and ramp chamber
- Öhlins TTX Air shock with high-speed compression lever and climb mode
- SRAM X0 Eagle AXS T-Type wireless 12-speed drivetrain
- SRAM Maven Bronze four-piston brakes with 200mm rotors front and rear
- DT Swiss EX1700 rims on DT 350 hubs with 36T Ratchet SL
- Fox Transfer Factory dropper with adjustable travel, up to 210mm on XL
- Maxxis Assegai MaxxGrip and Minion DHR II EXO+ tyres, ISCG 05 mounts and frame protection
- Mondraker lifetime frame warranty
Sizing
- S: up to 170cm
- M: 170cm - 180cm
- L: 175cm - 185cm
- XL: 185cm - 195cm+
Specifications
DisciplineEnduro
MaterialCarbon
Front Travel160mm
Rear Travel150mm
Wheel Size29"
WarrantyLifetime (frame)
Frame - Foxy 29 Stealth Air full Carbon, Zero Suspension System, 150mm travel, Forward Geometry, Carbon Monoblock upper link, Boost 12x148mm rear axle, UDH, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, HHG internal cable routing, Enduro MAX sealed bearings, shock mudguard, ISCG 05, custom frame protectors
Sizes - S: 375mm, M: 415mm, L: 445mm, XL: 500mm
Geometry (STD/LOW) - Head angle 65°/64.5°, effective seat angle 76°/75.5°, BB height 350/345mm, chainstay 435/445mm, reach S 445/440mm, M 465/460mm, L 485/480mm, XL 505/500mm, stack S 615/617mm, M 623/627mm, L 637/641mm, XL 651/656mm
Rear shock - Öhlins TTX Air 205x65mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload. Trunnion top mount, 30x8mm bottom bushings
Shock settings - C10 compression, R35 rebound. Volume reducers 12.000 (2xF+1D)
Fork - Öhlins RXF 36 M.3 29, 160mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber
Headset - Acros custom IS52/ZS56, 1-1/8", 1.5" head tube, internal cable routing, sealing plugs without blocklock
Stem - Onoff S9 30mm 0°, Full CNC, 31.8mm barbore
Handlebar - Onoff S9 1.0 Carbon, rise: 25mm, width: 800mm, 8° backsweep, 5° upsweep, 31.8mm barbore. L and XL size: 38mm rise
Grips - Onoff Desert Pro, CNC lock-on, 135mm. L and XL: thicker size
Seatpost - Fox Transfer Factory Kashima internal, adjustable travel, diameter 31.6mm, S 95-120mm, M 125-150mm, L 155-180mm, XL 185-210mm
Saddle - Ergon Enduro SPS20
Front brake - Sram Maven Bronze, 18 and 19.5mm 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Rear brake - Sram Maven Bronze, 18 and 19.5mm 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Brake lever - Sram Maven Bronze, SwingLink and lever pivot bushings, tool-free reach adjust
Rims - DT Swiss EX1700 Spline 29, 30mm internal width, welded aluminium, tubeless ready, 28 spokes
Spokes - DT Competition, straightpull
Front hub - DT 350, Boost 15x110mm, IS 6 bolts
Rear hub - DT 350, Boost 12x148mm, 36T SL Ratchet system, IS 6 bolts, XD freehub
Front tyre - Maxxis Assegai 29x2.5 WT, tubeless ready, 3C Maxx Grip compound, 60TPI, folding bead
Rear tyre - Maxxis Minion DHR II 29x2.4 WT, tubeless ready, 3C Maxx Terra compound, EXO+ protection, 60TPI, folding bead
Crankset - Sram X0 Eagle T-Type, Boost, DUB axle, direct mount chainring, S and M: 165mm, L and XL: 170mm, CL 55
Chainring - 32T, CNC-machined alloy, T-Type
Bottom bracket - Sram DUB BSA, sealed bearings, 73mm, wide
Chain - Sram X0 Eagle T-Type, 12s, Powerlock
Rear derailleur - Sram X0 Eagle AXS T-Type, 12s
Shift levers - Sram Eagle AXS Pod, 12s
Cassette - Sram XS-1295, 10-52T, T-Type, 12s
Weight - 14.3kg
