The Foxy is Mondraker's long-running enduro bike and the purest expression of the Forward Geometry idea the brand pioneered: a long front centre paired with a short 30mm stem, so you sit centred between the wheels and stay in control when the trail gets steep, fast and rough. On 29" wheels with 160mm up front and 150mm out back, it climbs efficiently and then lets you properly commit on the way down.
The Carbon R uses the same Stealth Air full carbon frame as the top-spec builds, with the Zero Suspension System, a Carbon Monoblock upper link, UDH rear end, ISCG 05 mounts and internal HHG cable routing. It also has STD and LOW geometry settings: LOW slackens the head angle from 65° to 64.5°, drops the bottom bracket by 5mm and lengthens the chainstays from 435mm to 445mm. Suspension comes from Fox, with a 36 Float Performance GRIP fork offering three-position compression and sweep adjust, and a Float X LV Performance shock with a two-position compression lever, so you can firm things up for long climbs and open them back up for the descent.
It is a sensible, hard-wearing build for riders who want the carbon frame without paying for the very top kit. SRAM's wireless S1000 Eagle AXS T-Type drivetrain handles the shifting, SRAM Maven Base four-piston brakes with a 200mm front and 180mm rear rotor give strong, consistent stopping, and DT Swiss E1900 wheels on 370 hubs are a robust, easily serviced choice. A Maxxis Assegai MaxxGrip up front and Minion DHR II EXO+ out back, an Onoff Pija dropper and an Ergon Enduro saddle complete the package. It comes in Desert Grey and weighs a claimed 14.8kg.
Features
- Foxy 29 Stealth Air full carbon frame with Forward Geometry and UDH
- STD and LOW geometry settings: 65°/64.5° head angle, 350/345mm BB height, 435/445mm chainstays
- 150mm rear travel via the Zero Suspension System with Carbon Monoblock upper link
- Fox 36 Float Performance GRIP 160mm fork with three-position compression
- Fox Float X LV Performance shock with two-position compression lever
- SRAM S1000 Eagle AXS T-Type wireless 12-speed drivetrain
- SRAM Maven Base four-piston brakes with 200mm/180mm rotors
- DT Swiss E1900 wheels with 30mm internal width rims
- Onoff Pija internal dropper with travel up to 210mm on XL
- Maxxis Assegai MaxxGrip and Minion DHR II EXO+ tyres, ISCG 05 mounts and frame protection
- Mondraker lifetime frame warranty
Sizing
- S: up to 170cm
- M: 170cm - 180cm
- L: 175cm - 185cm
- XL: 185cm - 195cm+
Specifications
DisciplineEnduro
MaterialCarbon
Front Travel160mm
Rear Travel150mm
Wheel Size29"
WarrantyLifetime (frame)
Frame - Foxy 29 Stealth Air full Carbon, Zero Suspension System, 150mm travel, Forward Geometry, Carbon Monoblock upper link, Boost 12x148mm rear axle, UDH, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, HHG internal cable routing, Enduro MAX sealed bearings, shock mudguard, ISCG 05, custom frame protectors
Sizes - S: 375mm, M: 415mm, L: 445mm, XL: 500mm
Geometry (STD/LOW) - Head angle 65°/64.5°, effective seat angle 76°/75.5°, BB height 350/345mm, chainstay 435/445mm, reach S 445/440mm, M 465/460mm, L 485/480mm, XL 505/500mm, stack S 615/617mm, M 623/627mm, L 637/641mm, XL 651/656mm
Rear shock - Fox Float X LV Performance, 205x65mm. Settings: 2-position compression lever, low-speed rebound, air preload. Trunnion top mount, 30x8mm bottom bushings
Shock settings - Light compression, light rebound, air volume spacer 0.6
Fork - Fox 36 29 Float Performance GRIP, 160mm, 3 position, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: sweep adjust compression, low-speed rebound, air preload
Headset - Acros custom IS52/ZS56, 1-1/8", 1.5" head tube, internal cable routing, sealing plugs without blocklock
Stem - Onoff S6 30mm 0°, 6061 forged alloy + CNC, 31.8mm barbore
Handlebar - Onoff S6 1.0 7050 alloy, rise: 25mm, width: 800mm, 8° backsweep, 5° upsweep, 31.8mm barbore. L and XL size: 38mm rise
Grips - Onoff Desert Pro, CNC lock-on, 135mm. L and XL: thicker size
Seatpost - Onoff Pija dropper internal, diameter 31.6mm, 1X remote lever with bearing, S 140-115mm (388-235mm), M 160-135mm (428-255mm), L 180-155mm (468-275mm), XL 210-185mm (528-305mm)
Saddle - Ergon Enduro SPS20
Front brake - Sram Maven Base, 18 and 19.5mm 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Rear brake - Sram Maven Base, 18 and 19.5mm 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads
Brake lever - Sram Maven Base, SwingLink and lever pivot bushings, tool-free reach adjust
Rims - DT Swiss E1900 Spline 29, 30mm internal width, sleeved aluminium, tubeless ready, 28 spokes
Spokes - DT Champion, straightpull
Front hub - DT 370, Boost 15x110mm, IS 6 bolts
Rear hub - DT 370, Boost 12x148mm, 18T Ratchet LN system, IS 6 bolts, HG freehub
Front tyre - Maxxis Assegai 29x2.5 WT, tubeless ready, 3C Maxx Grip compound, 60TPI, folding bead
Rear tyre - Maxxis Minion DHR II 29x2.4 WT, tubeless ready, 3C Maxx Terra compound, EXO+ protection, 60TPI, folding bead
Crankset - Sram S1000 Eagle T-Type, Boost, DUB axle, direct mount chainring, S and M: 165mm, L and XL: 170mm, CL 55
Chainring - 32T, CNC-machined alloy, T-Type
Bottom bracket - Sram DUB BSA, sealed bearings, 73mm, wide
Chain - Sram GX Eagle T-Type, 12s, Powerlock
Rear derailleur - Sram S1000 Eagle AXS T-Type, 12s
Shift levers - Sram Eagle AXS Pod, 12s
Cassette - Sram XS-1270, 10-52T, T-Type, 12s
Weight - 14.8kg

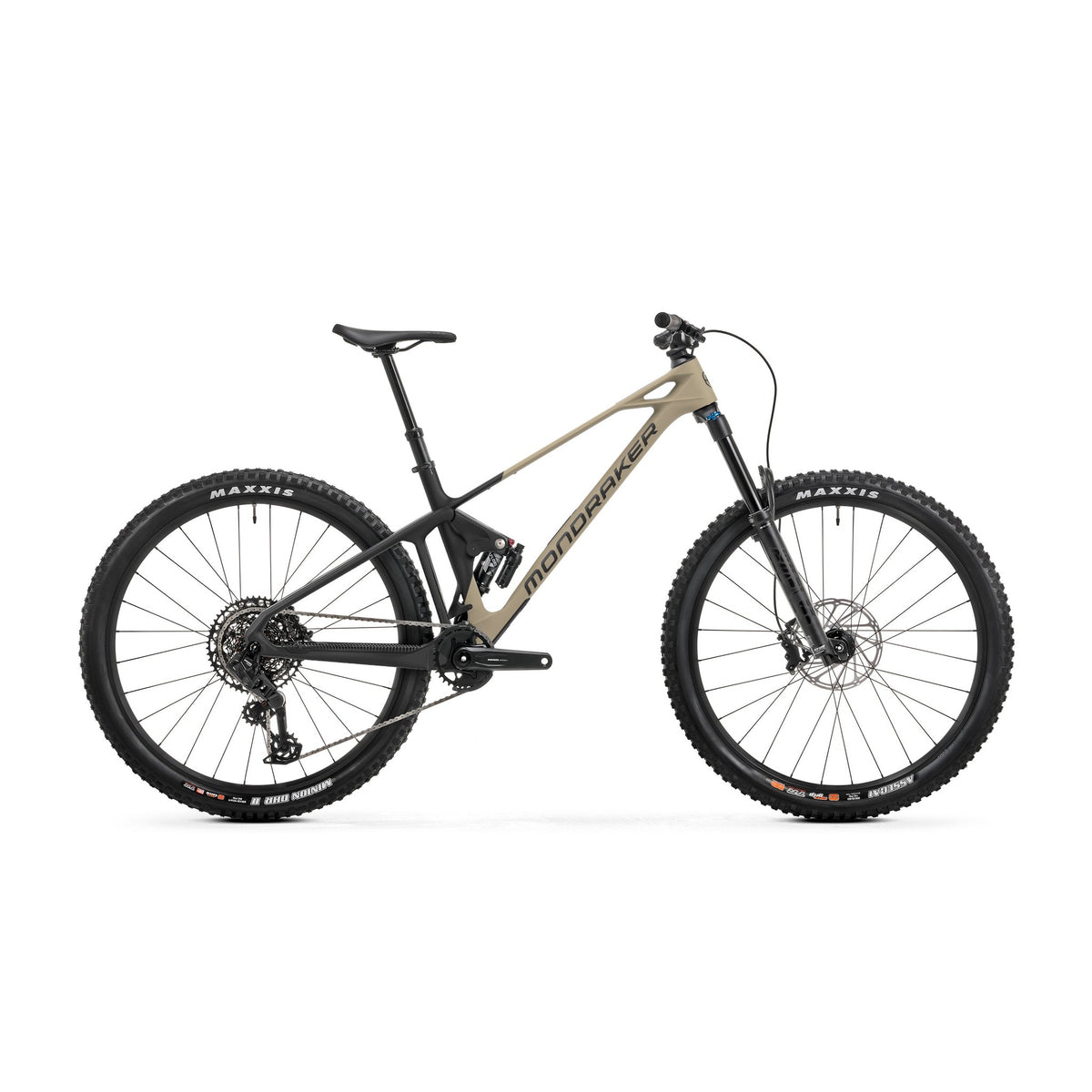

Foxy Carbon R 2026
- Enduro
- 160 / 150mm travel
- 29″ wheels
- Carbon frame
Finance available – see options
Order within [time] for delivery by [date]
90 Day Returns
-
Pro builtBuilt and safety-checked by our mechanics before it leaves us
-
Free UK mainland courier deliveryNorthern Ireland: £60
-
Collect in CanterburyPick up and get set up at our store
-
Talk to a riderChat with our team
The Foxy is Mondraker's long-running enduro bike and the purest expression of the Forward Geometry idea the brand pioneered: a long front centre paired with a short 30mm stem, so you sit centred between the wheels and stay in control when the trail gets steep, fast and rough. On 29" wheels with 160mm up front and 150mm out back, it climbs efficiently and then lets you properly commit on the way down.
The Carbon R uses the same Stealth Air full carbon frame as the top-spec builds, with the Zero Suspension System, a Carbon Monoblock upper link, UDH rear end, ISCG 05 mounts and internal HHG cable routing. It also has STD and LOW geometry settings: LOW slackens the head angle from 65° to 64.5°, drops the bottom bracket by 5mm and lengthens the chainstays from 435mm to 445mm. Suspension comes from Fox, with a 36 Float Performance GRIP fork offering three-position compression and sweep adjust, and a Float X LV Performance shock with a two-position compression lever, so you can firm things up for long climbs and open them back up for the descent.
It is a sensible, hard-wearing build for riders who want the carbon frame without paying for the very top kit. SRAM's wireless S1000 Eagle AXS T-Type drivetrain handles the shifting, SRAM Maven Base four-piston brakes with a 200mm front and 180mm rear rotor give strong, consistent stopping, and DT Swiss E1900 wheels on 370 hubs are a robust, easily serviced choice. A Maxxis Assegai MaxxGrip up front and Minion DHR II EXO+ out back, an Onoff Pija dropper and an Ergon Enduro saddle complete the package. It comes in Desert Grey and weighs a claimed 14.8kg.
Features
- Foxy 29 Stealth Air full carbon frame with Forward Geometry and UDH
- STD and LOW geometry settings: 65°/64.5° head angle, 350/345mm BB height, 435/445mm chainstays
- 150mm rear travel via the Zero Suspension System with Carbon Monoblock upper link
- Fox 36 Float Performance GRIP 160mm fork with three-position compression
- Fox Float X LV Performance shock with two-position compression lever
- SRAM S1000 Eagle AXS T-Type wireless 12-speed drivetrain
- SRAM Maven Base four-piston brakes with 200mm/180mm rotors
- DT Swiss E1900 wheels with 30mm internal width rims
- Onoff Pija internal dropper with travel up to 210mm on XL
- Maxxis Assegai MaxxGrip and Minion DHR II EXO+ tyres, ISCG 05 mounts and frame protection
- Mondraker lifetime frame warranty
Sizing
- S: up to 170cm
- M: 170cm - 180cm
- L: 175cm - 185cm
- XL: 185cm - 195cm+
Specifications
DisciplineEnduro
MaterialCarbon
Front Travel160mm
Rear Travel150mm
Wheel Size29"
WarrantyLifetime (frame)
Frame - Foxy 29 Stealth Air full Carbon, Zero Suspension System, 150mm travel, Forward Geometry, Carbon Monoblock upper link, Boost 12x148mm rear axle, UDH, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, HHG internal cable routing, Enduro MAX sealed bearings, shock mudguard, ISCG 05, custom frame protectors
Sizes - S: 375mm, M: 415mm, L: 445mm, XL: 500mm
Geometry (STD/LOW) - Head angle 65°/64.5°, effective seat angle 76°/75.5°, BB height 350/345mm, chainstay 435/445mm, reach S 445/440mm, M 465/460mm, L 485/480mm, XL 505/500mm, stack S 615/617mm, M 623/627mm, L 637/641mm, XL 651/656mm
Rear shock - Fox Float X LV Performance, 205x65mm. Settings: 2-position compression lever, low-speed rebound, air preload. Trunnion top mount, 30x8mm bottom bushings
Shock settings - Light compression, light rebound, air volume spacer 0.6
Fork - Fox 36 29 Float Performance GRIP, 160mm, 3 position, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: sweep adjust compression, low-speed rebound, air preload
Headset - Acros custom IS52/ZS56, 1-1/8", 1.5" head tube, internal cable routing, sealing plugs without blocklock
Stem - Onoff S6 30mm 0°, 6061 forged alloy + CNC, 31.8mm barbore
Handlebar - Onoff S6 1.0 7050 alloy, rise: 25mm, width: 800mm, 8° backsweep, 5° upsweep, 31.8mm barbore. L and XL size: 38mm rise
Grips - Onoff Desert Pro, CNC lock-on, 135mm. L and XL: thicker size
Seatpost - Onoff Pija dropper internal, diameter 31.6mm, 1X remote lever with bearing, S 140-115mm (388-235mm), M 160-135mm (428-255mm), L 180-155mm (468-275mm), XL 210-185mm (528-305mm)
Saddle - Ergon Enduro SPS20
Front brake - Sram Maven Base, 18 and 19.5mm 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Rear brake - Sram Maven Base, 18 and 19.5mm 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads
Brake lever - Sram Maven Base, SwingLink and lever pivot bushings, tool-free reach adjust
Rims - DT Swiss E1900 Spline 29, 30mm internal width, sleeved aluminium, tubeless ready, 28 spokes
Spokes - DT Champion, straightpull
Front hub - DT 370, Boost 15x110mm, IS 6 bolts
Rear hub - DT 370, Boost 12x148mm, 18T Ratchet LN system, IS 6 bolts, HG freehub
Front tyre - Maxxis Assegai 29x2.5 WT, tubeless ready, 3C Maxx Grip compound, 60TPI, folding bead
Rear tyre - Maxxis Minion DHR II 29x2.4 WT, tubeless ready, 3C Maxx Terra compound, EXO+ protection, 60TPI, folding bead
Crankset - Sram S1000 Eagle T-Type, Boost, DUB axle, direct mount chainring, S and M: 165mm, L and XL: 170mm, CL 55
Chainring - 32T, CNC-machined alloy, T-Type
Bottom bracket - Sram DUB BSA, sealed bearings, 73mm, wide
Chain - Sram GX Eagle T-Type, 12s, Powerlock
Rear derailleur - Sram S1000 Eagle AXS T-Type, 12s
Shift levers - Sram Eagle AXS Pod, 12s
Cassette - Sram XS-1270, 10-52T, T-Type, 12s
Weight - 14.8kg
