Mondraker's youth eBike collection brings authentic riding experiences within reach for younger riders. Each model mirrors the design and aesthetic appeal of its adult counterpart, ensuring children enjoy the same performance characteristics and visual appeal as their parents' machines.
The PLAY series offers hardtails, while F-PLAY brings full-suspension fun—both powered by the Mahle X-35 hub-drive system and a 250Wh integrated battery. With three assistance modes and speeds up to 25 km/h, every ride together will be fast, fun, and unforgettable.
The F-Play 24 2026 features Mondraker's advanced Zero Suspension System, shared across the NEAT and F-PODIUM lineups. This refined platform enhances pedalling efficiency with quicker acceleration and improved responsiveness, translating rider input into more direct power delivery. The updated geometry and suspension tuning provide superior feedback and control, maximising the effectiveness of every pedal stroke for young riders developing their technical skills.
Features:
- Improved initial sensitivity and trail compliance.
- A more progressive kinematic.
- A lighter system with improved weight to stiffness ratio.
- More compact with less unsprung weight.
- Greater seatpost insertion depth.
Size Guide:
- One Size: 135 - 155cm
Specifications
-
Discipline Trail
-
Material Alloy
-
Front Travel 120mm
-
Rear Travel 120mm
-
Wheel Size 24"
-
Warranty Lifetime (Frame)
Specifications:
Frame - F-Play 24 6061 Alloy Stealth evo, hydroformed tubing, Zero Suspension System, 120mm travel, one piece bolt-on upper link, integrated internal non-removable battery, Tapered head tube, HHG internal cable routing, BSA bottom bracket, 1x drivetrain compatible
Rear Shock - X-Fusion 02PRO R, 165x42.5mm. Settings: low-speed rebound, air preload. Trunnion top, 50x8mm bottom bushings
Fork - X-Fusion Slant RC 26, 120mm, air spring, tapered steerer tube, 15x100mm axle, 34mm aluminum stanchions, 41mm offset. Settings: lockout, rebound, air preload
Headset - Onoff ZS44/ZS56, 1-1/8", 1.5" head tube, ACB sealed bearings, top 42x30x7x45ºx45º, bottom 52x40x8x45ºx45º
Stem - Onoff S3 30mm 0º, 6061 forged alloy, 31.8mm barbore
Handlebar - MDK XC 1.0, 6061 alloy, rise: 25mm, width: 680mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Grips - Onoff Beehive, 1lock-on, 135mm
Seatpost - X-Fusion Manic LC internal, diameter 31.6mm, 1X Remote lever, 100mm
Saddle - SDG Fly JR
Front Brake - Shimano MT501, RT56 180mm IS 6 bolts rotor, resin pads
Rear Brake - Shimano MT501, RT56 180mm IS 6 bolts rotor, resin pads
Brake Lever - Shimano MT501, servo wave, alloy lever
Rims - MDK-HP1 24 TLR, 25mm internal width, tubeless ready, 32 spokes
Spokes - CN round stainless steel
Front Hub - DA210FS02, 15x100mm, cup & cone ball bearings, IS 6 bolts
Rear Hub - Mahle-Ebikemotion X-30, HG freehub
Front Tire - Maxxis Minion DHF 24x2.4, Tubeless ready, 3C MAXX TERRA, EXO Protection, 60TPI, folding bead
Rear Tire - Maxxis Minion DHR II 24x2.3, Tubeless ready, EXO Protection, 60TPI, folding bead
Crankset - Prowheel DMJ-CR094S-TT, Direct mount chainring, 150mm
Rings - 30T, steel
Bottom Bracket - Prowheel PW-MBB73 73mm
Pedals - SDG Slater JR
Chain - Shimano Deore M6100, 12s, Quick-link
Rear Derrailleur - Shimano Deore M6100, SGS, Shadow+, 12s
Shift Levers - Shimano Deore M6100, Rapid Fire Plus, 12s
Cassette - Sunrace CSMZ600, 11-51T
Motor - Mahle X-30, Drive Unit
Battery - Mahle IX250Wh
Display - iWoc ONE Head Unit
Derailleur Hanger - Mondraker M077

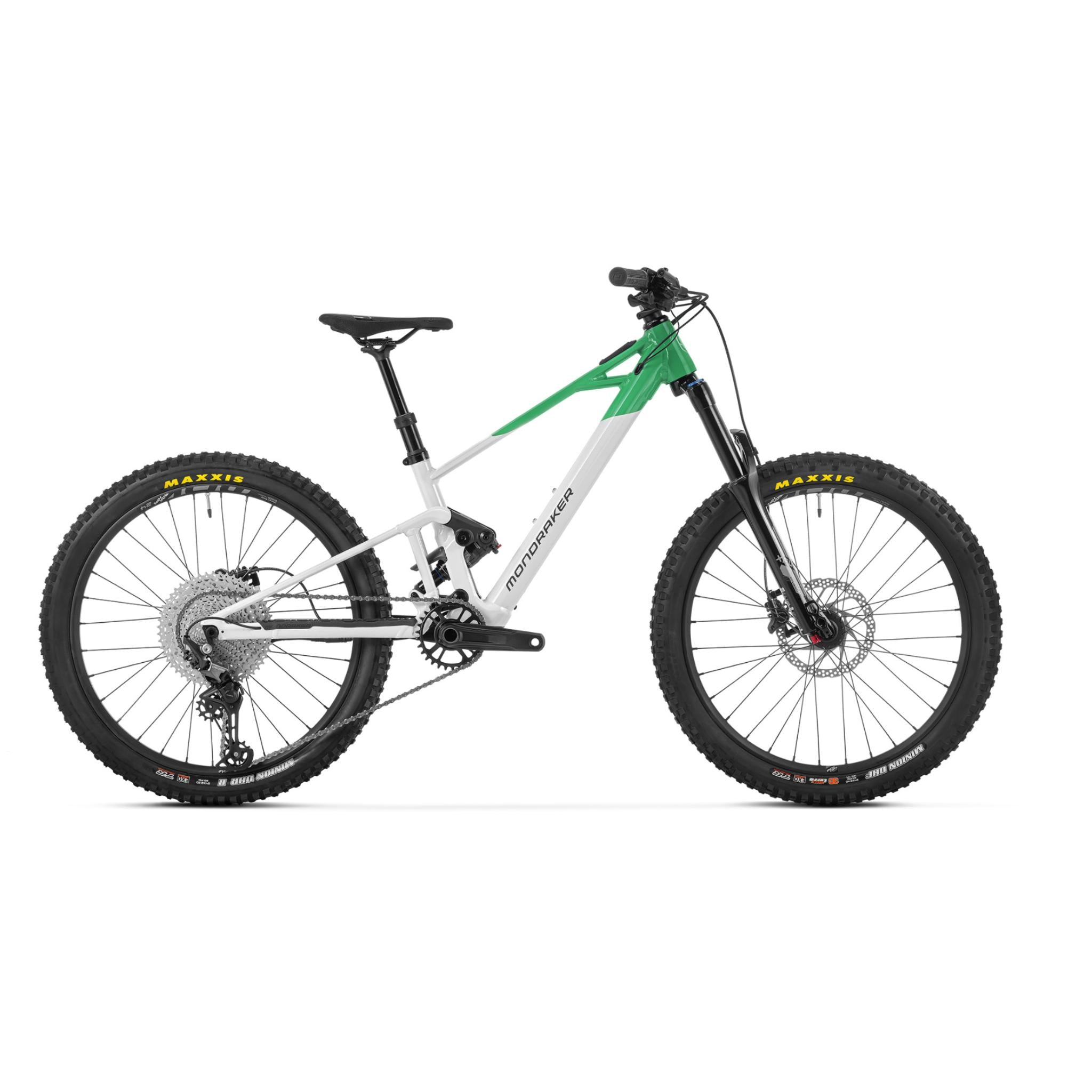

F-Play 24 2026
