DUNE – The Pinnacle of Mondraker’s Light E-Bike Range
The DUNE is the ultimate word in Mondraker’s light e-bike lineup. Inspired by the NEAT in key areas like agility and lightweight design, it forges its own path by delivering power and performance on par with longer-travel, burly bikes such as the SUPERFOXY and LEVEL. The DUNE is the black sheep of the family—naughty and nice all at once—the super enduro of light e-bikes.
Weighing less than 20 kg with an integrated 400Wh battery, it’s the dream come true for anyone torn between a modern enduro and a full-power e-bike. Finally, you don’t have to choose.
Long-Travel, Hard-Hitting, Lightweight E-Bike
At the heart of the DUNE is the Stealth Air Carbon frame, weighing just 2,650 grams. Paired with Bosch’s latest Performance Line SX motor, it combines lightweight efficiency with serious power. The frame features our Updated Zero Suspension and offers 165mm of rear-wheel travel, complemented by Forward Geometry specifically tuned for a long-travel, hard-hitting light e-bike experience.
Features:
- Stealth Air full Carbon Frame
- Fox Podium Forks
- E-Thirteen Wheels
- Sram Maven Brakes
- Bosch SX Line
Sizing:
- S: 160cm - 170cm
- M: 165cm - 180cm
- L: 175cm - 185cm
- XL: 185cm - 190cm+
Specifications
-
Discipline Enduro
-
Material Carbon
-
Front Travel 170mm
-
Rear Travel 165mm
-
Wheel Size 29/27.5" MX
-
Warranty Lifetime (Frame)
Frame - Stealth Air full Carbon, Updated Zero Suspension System, Mullet, 165mm travel, Forward Geometry, internal & non removable battery, Boost 12x148mm rear axle, UDH, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers.
Rear Shock - Fox DHX2 Factory Kashima, 205x65mm. Settings: high and low-speed compression, high and low-speed rebound, spring preload. Super light steel (SLS) spring. Trunnion top mount, 30x8mm bottom bushings
Fork - Fox Podium 29 GRIPX2 Factory Kashima, 170mm, tapered steerer tube, Boost 20x110mm Kabolt axle, 44mm offset. Settings: high and low-speed compression, high and low-speed rebound, air preload
Headset - Acros custom IS52/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs without blocklock
Stem - Onoff S6 30mm 0º, 6061 forged alloy + CNC, 31.8mm barbore
Handlebar - Onoff S6 1.0 Carbon, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 38mm rise.
Grips - Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size
Seatpost - Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 140-115mm (388-235mm), M size: 160-135mm (428-255mm), L size: 180-155mm (468-275mm), XL size: 210-185mm (528-305mm)
Saddle - Ergon Enduro SPS20
Front Brake - Sram Maven Bronze, 18 and 19.5-millimeter 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Rear Brake - Sram Maven Bronze, 18 and 19.5-millimeter 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Brake Lever - Sram Maven Bronze , SwingLink and lever pivot bushings, tools-free reach adjust
Rims - e*thirteen Grappler Flux, IW30 Hookless, 6069 Welded Aluminum, 30mm internal width, tubeless ready, 28 spokes
Spokes - e*thirteen Sapim D-light / Brass
Front Hub - e*thirteen Boost 20x110mm, triple-sealed, fully machined aluminum, IS 6 bolts
Rear Hub - e*thirteen Superboost 12x148mm, Sidekick,12°/15°/18° Adjustable Deadband, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, HG freehub
Front Tyre - Maxxis Assegai 29x2.5WT, tubeless ready, 3C Maxx Grip compound, DH casing, 60x2TPI, folding bead
Rear Tyre - Maxxis Minion DHR II 27’5x2.5 WT, tubeless ready, 3C MaxxTerra compound, DD protection, 2x120TPI, folding bead
Crankset - E.13 Helix Race Alloy E*Spec Plus, All sizes: 160mm
Rings - Sram X-Sync 2 Eagle 34T T-Type, steel, narrow-wide, 104 BCD CL55
Chain - Sram GX Eagle T-Type, 12s, Powerlock
Rear Derrailleur - Sram X0 Eagle AXS T-Type,12s
Shift Levers - Sram Eagle AXS Pod MMX, 12s
Cassette - Sram XS-1275, 10-52T, T-Type, 12s
Motor - Bosch Performance Line SX (25Km/h) GEN4 SMART SYSTEM Diagonal, Wide
Battery - Bosch Compact Powertube 400Wh
Display - Kiox 400 / Bosch Mini Remote

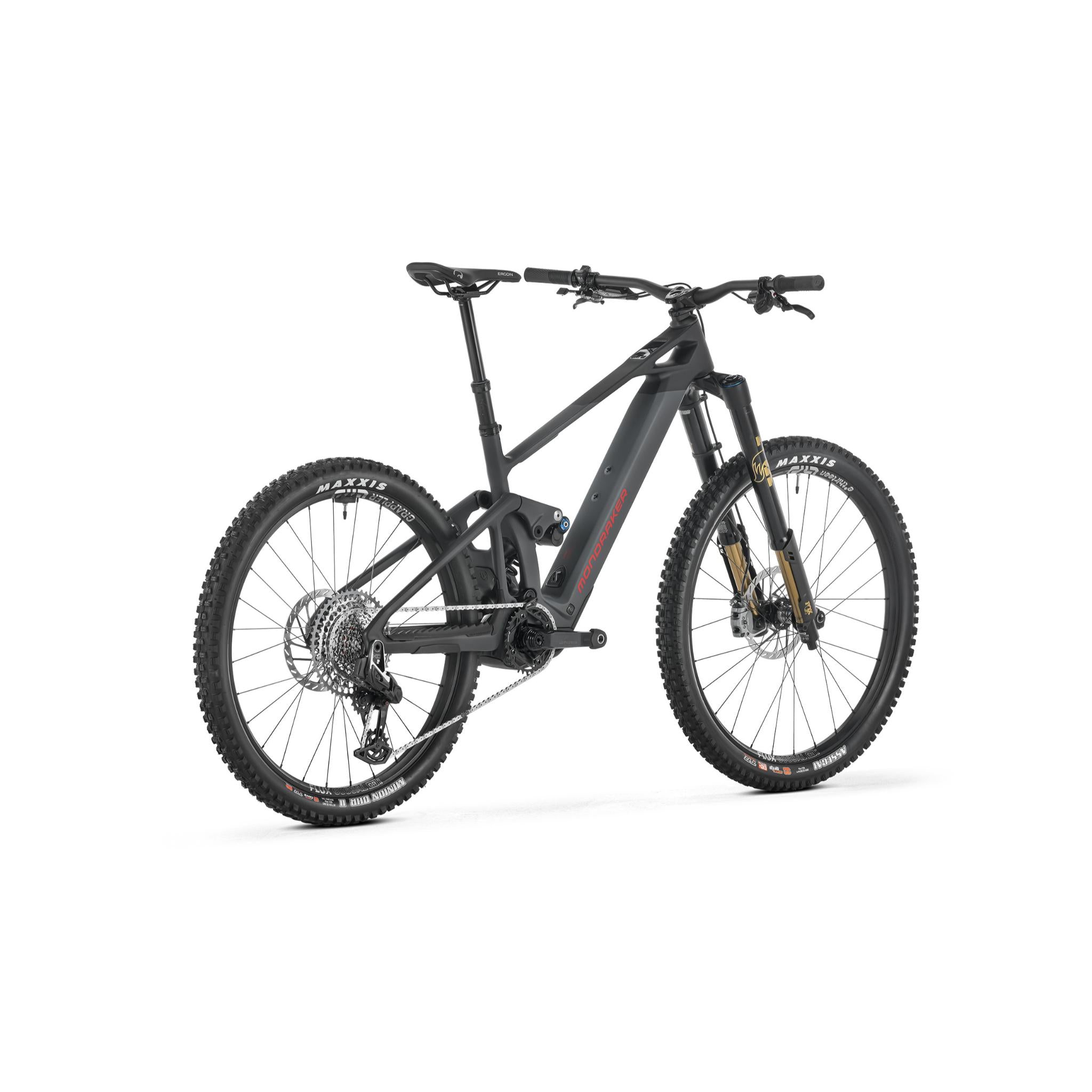

Dune RR 2026
