DUNE – The Pinnacle of Mondraker’s Light E-Bike Range
The DUNE is the ultimate word in Mondraker’s light e-bike lineup. Inspired by the NEAT in key areas like agility and lightweight design, it forges its own path by delivering power and performance on par with longer-travel, burly bikes such as the SUPERFOXY and LEVEL. The DUNE is the black sheep of the family—naughty and nice all at once—the super enduro of light e-bikes.
Weighing less than 20 kg with an integrated 400Wh battery, it’s the dream come true for anyone torn between a modern enduro and a full-power e-bike. Finally, you don’t have to choose.
Long-Travel, Hard-Hitting, Lightweight E-Bike
At the heart of the DUNE is the Stealth Air Carbon frame, weighing just 2,650 grams. Paired with Bosch’s latest Performance Line CX motor, it combines lightweight efficiency with serious power. The frame features our Updated Zero Suspension and offers 165mm of rear-wheel travel, complemented by Forward Geometry specifically tuned for a long-travel, hard-hitting light e-bike experience.
Features:
- Air Carbon Frame
- 170mm Travel Fork
- Dropper Seatpost
- Bosch Motor
- UDH Hanger
Size Guide:
- S: 160cm - 170cm
- M: 165cm - 180cm
- L: 175cm - 185cm
- XL: 185cm - 190cm+
Specifications
-
Discipline Enduro
-
Material Carbon
-
Front Travel 170mm
-
Rear Travel 165mm
-
Wheel Size 29/27.5" MX
-
Warranty Lifetime (Frame)
Frame - Stealth Air full Carbon, Updated Zero Suspension System, Mullet, 165mm travel, Forward Geometry, internal & non removable battery, Boost 12x148mm rear axle, UDH, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers.
Rear Shock - RockShox Vivid Base, 205x65mm. Settings: external bottom out, low-speed rebound, spring preload. Trunnion top mount, 30x8mm bottom bushings
Fork - RockShox ZEB Select Charger RC 29, 170mm, Debon Air+, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: low-speed compression, Extl rebound, air preload
Headset - Acros custom IS52/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs without blocklock
Stem - Onoff S6 30mm 0º, 6061 forged alloy + CNC, 31.8mm barbore
Handlebar - Onoff S6 1.0 7050 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 38mm rise.
Grips - Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size
Seatpost - X-Fusion Manic diameter 31.6mm,1X Remote lever, S size: 361x125mm, M size: 425x150mm, L size: 469x170mm,XL size: 521x190mm
Saddle - Ergon Enduro SPS20
Front Brake - Sram Maven Base, 18 and 19.5-millimeter 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Rear Brake - Sram Maven Base, 18 and 19.5-millimeter 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Brake Lever - Sram Maven Base , SwingLink and lever pivot bushings, tools-free reach adjust
Rims - e*thirteen Grappler Core, Hookless 6066 Welded Aluminum 30mm internal width, tubeless ready, 28F spokes 29 front, 27''5 rear
Spokes - e*thirteen custom J-bend, triple-butted steel, alloy nipples, nipple washers
Front Hub - e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts
Rear Hub - e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, HG Freehub
Front Tyre - Maxxis Assegai 29x2.5WT, tubeless ready, 3C Maxx Grip compound, DH casing, 60x2TPI, folding bead
Rear Tyre - Maxxis Minion DHR II 27’5x2.5 WT, tubeless ready, 3C MaxxTerra compound, DD protection, 2x120TPI, folding bead
Crankset - E.13 Helix Core E*Spec Plus, All sizes: 160mm
Rings - Sram X-Sync 2 Eagle 34T T-Type, steel, narrow-wide, 104 BCD CL55
Chain - Sram 70 T-Type, 12s Flattop, PowerLock
Rear Derrailleur - Sram 90 Eagle, T-Type, 12s
Shift Levers - Sram Trigger 70, 12s, T-Type Actuation
Cassette - Sram XS-1270, 10-52T, 12s
Motor - Bosch Performance Line SX (25Km/h) GEN4 SMART SYSTEM Diagonal, Wide
Battery - Bosch Compact Powertube 400Wh
Display - Kiox 400 / Bosch Mini Remote

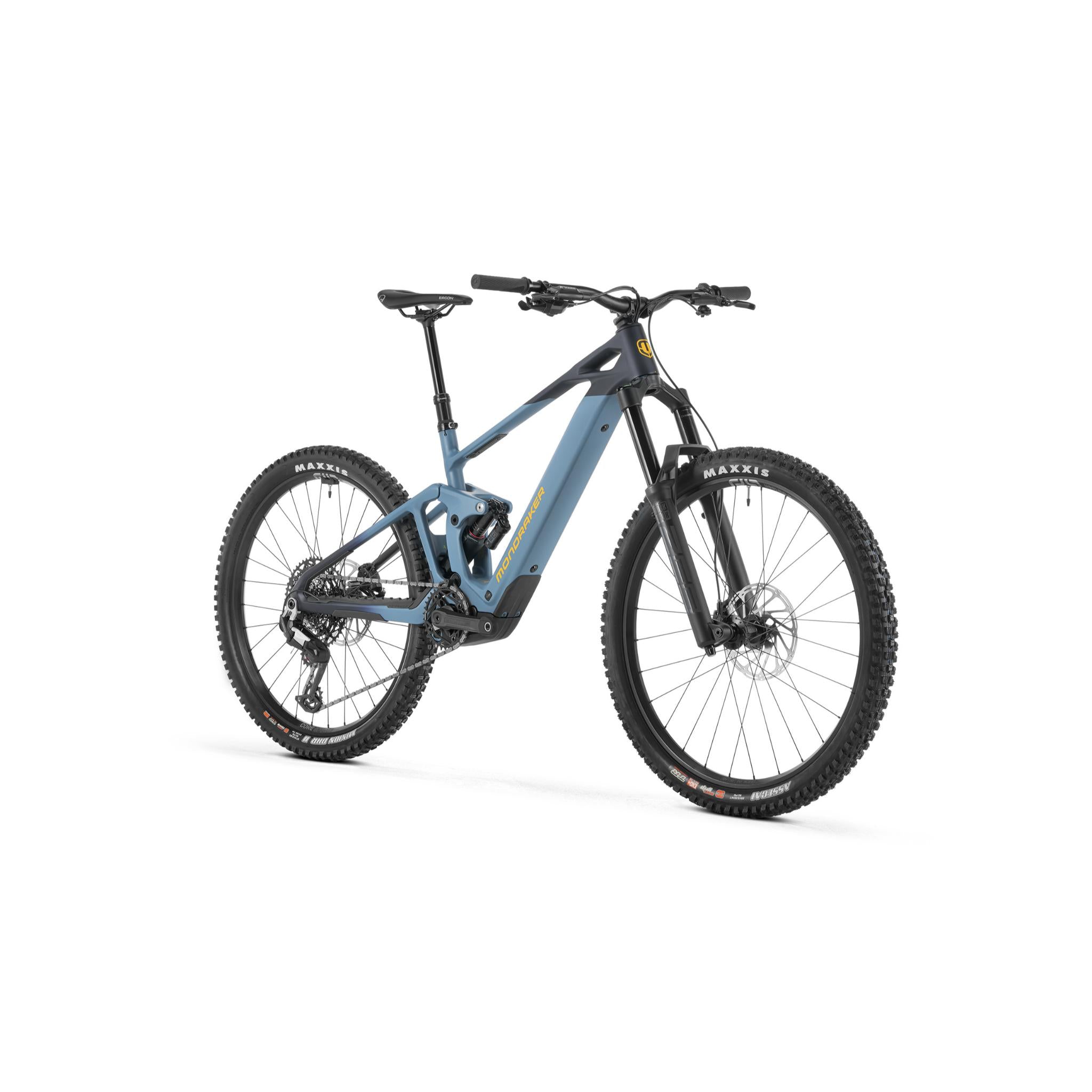

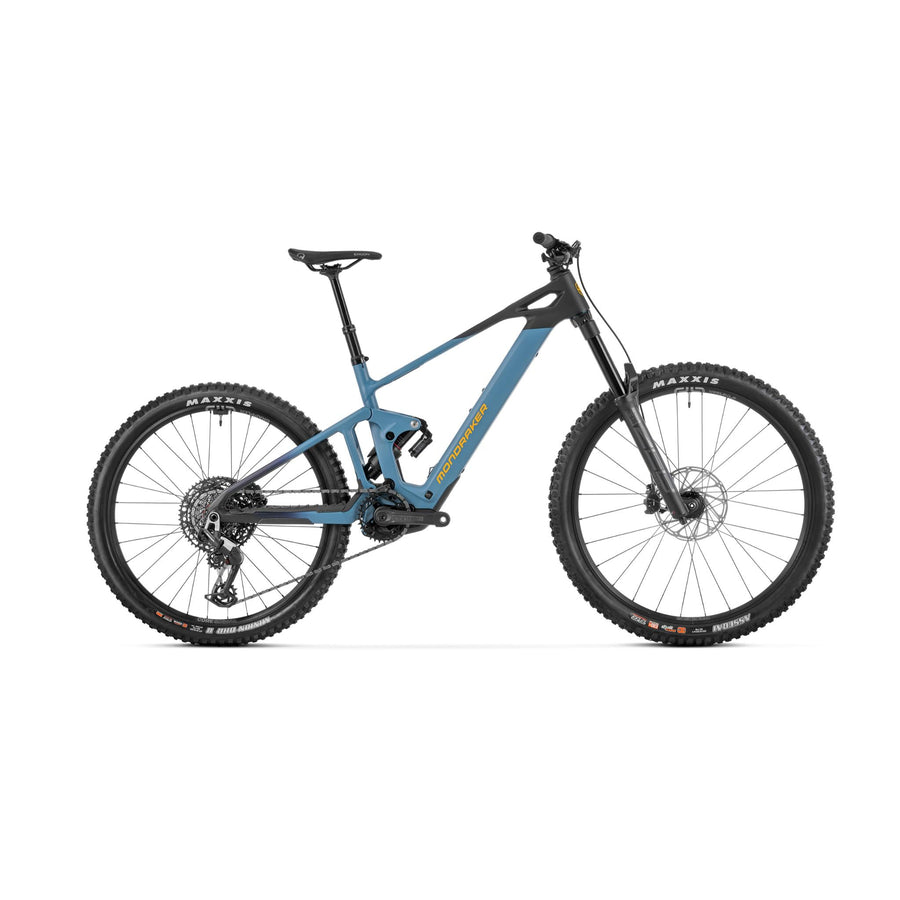

Dune R 2026
Order within [time] for delivery by [date]
90 Day Returns
DUNE – The Pinnacle of Mondraker’s Light E-Bike Range
The DUNE is the ultimate word in Mondraker’s light e-bike lineup. Inspired by the NEAT in key areas like agility and lightweight design, it forges its own path by delivering power and performance on par with longer-travel, burly bikes such as the SUPERFOXY and LEVEL. The DUNE is the black sheep of the family—naughty and nice all at once—the super enduro of light e-bikes.
Weighing less than 20 kg with an integrated 400Wh battery, it’s the dream come true for anyone torn between a modern enduro and a full-power e-bike. Finally, you don’t have to choose.
Long-Travel, Hard-Hitting, Lightweight E-Bike
At the heart of the DUNE is the Stealth Air Carbon frame, weighing just 2,650 grams. Paired with Bosch’s latest Performance Line CX motor, it combines lightweight efficiency with serious power. The frame features our Updated Zero Suspension and offers 165mm of rear-wheel travel, complemented by Forward Geometry specifically tuned for a long-travel, hard-hitting light e-bike experience.
Features:
- Air Carbon Frame
- 170mm Travel Fork
- Dropper Seatpost
- Bosch Motor
- UDH Hanger
Size Guide:
- S: 160cm - 170cm
- M: 165cm - 180cm
- L: 175cm - 185cm
- XL: 185cm - 190cm+
Specifications
-
Discipline Enduro
-
Material Carbon
-
Front Travel 170mm
-
Rear Travel 165mm
-
Wheel Size 29/27.5" MX
-
Warranty Lifetime (Frame)
Frame - Stealth Air full Carbon, Updated Zero Suspension System, Mullet, 165mm travel, Forward Geometry, internal & non removable battery, Boost 12x148mm rear axle, UDH, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers.
Rear Shock - RockShox Vivid Base, 205x65mm. Settings: external bottom out, low-speed rebound, spring preload. Trunnion top mount, 30x8mm bottom bushings
Fork - RockShox ZEB Select Charger RC 29, 170mm, Debon Air+, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: low-speed compression, Extl rebound, air preload
Headset - Acros custom IS52/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs without blocklock
Stem - Onoff S6 30mm 0º, 6061 forged alloy + CNC, 31.8mm barbore
Handlebar - Onoff S6 1.0 7050 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 38mm rise.
Grips - Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size
Seatpost - X-Fusion Manic diameter 31.6mm,1X Remote lever, S size: 361x125mm, M size: 425x150mm, L size: 469x170mm,XL size: 521x190mm
Saddle - Ergon Enduro SPS20
Front Brake - Sram Maven Base, 18 and 19.5-millimeter 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Rear Brake - Sram Maven Base, 18 and 19.5-millimeter 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Brake Lever - Sram Maven Base , SwingLink and lever pivot bushings, tools-free reach adjust
Rims - e*thirteen Grappler Core, Hookless 6066 Welded Aluminum 30mm internal width, tubeless ready, 28F spokes 29 front, 27''5 rear
Spokes - e*thirteen custom J-bend, triple-butted steel, alloy nipples, nipple washers
Front Hub - e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts
Rear Hub - e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, HG Freehub
Front Tyre - Maxxis Assegai 29x2.5WT, tubeless ready, 3C Maxx Grip compound, DH casing, 60x2TPI, folding bead
Rear Tyre - Maxxis Minion DHR II 27’5x2.5 WT, tubeless ready, 3C MaxxTerra compound, DD protection, 2x120TPI, folding bead
Crankset - E.13 Helix Core E*Spec Plus, All sizes: 160mm
Rings - Sram X-Sync 2 Eagle 34T T-Type, steel, narrow-wide, 104 BCD CL55
Chain - Sram 70 T-Type, 12s Flattop, PowerLock
Rear Derrailleur - Sram 90 Eagle, T-Type, 12s
Shift Levers - Sram Trigger 70, 12s, T-Type Actuation
Cassette - Sram XS-1270, 10-52T, 12s
Motor - Bosch Performance Line SX (25Km/h) GEN4 SMART SYSTEM Diagonal, Wide
Battery - Bosch Compact Powertube 400Wh
Display - Kiox 400 / Bosch Mini Remote
