Description
Mondraker's Dune is the light weight, MX wheel electric enduro mountain bike that you have been looking for. Stealth carbon frame with 170mm front/165mm rear travel powered by the rider favourite Bosch SX motor and a build kit to die for.
The Dune frame has been designed by Mondraker first and foremost to be an exceptional performer over challenging terrain, pretty much the complete bike. Making easy work of technical descents and fast swooping trails while remaining engaging and playful. The riding position has been optimised to make sure the Dune is also pleasant on climbs and longer pedalling sections.
At the heart of the Dune is the Bosch Performance SX drive unit. 55nm of powerful pedal assist, a hugely popular motor choice due to the natural pedal feel and customisable assistance modes. This set up is powered by a 400wh battery, plenty of juice for a days ride, though you have the option to add a range extender (sold separately)
The R spec level boasts an outstanding build kit a t a great price, such as Fox suspension, SRAM Eagle GX/NX 12-speed drivetrain, SRAM DB8 brakes, Mondraker dropper post, e13 wheelset and Maxxis Tyres.
Key Features -
Stealth Air Carbon structure frameset.
Updated Zero Suspension System kinematics.
180 front 165mm rear wheel travel
2.650 grams frameset weight w/o shock (size M).
Mullet 29” front 27,5” rear dedicated wheels.
BOSCH PERFORMANCE SX drive unit with 55Nm.
400 Wh internal integrated and removable battery.
1.500m+ elevation gain with 400Wh battery.
4 completely customisable assistance modes.
250Wh (+60%) PowerMore Range extender compatible.
Integrated System Controller frameset switch with Kiox 500 handlebar display.
SIZING -
- S: 160cm - 170cm
- M: 165cm - 180cm
- L: 175cm - 185cm
- XL: 185cm - 190cm+
Specifications
-
Discipline Enduro/AM
-
Material Stealth Carbon
-
Front Travel 170mm
-
Rear Travel 165mm
-
Wheel Size MX"
-
Warranty Lifetime (frame)
Shock - Fox Float X Performance EVOL, 205x65mm. Settings: 2-position compression (Open/Firm), rebound, air preload. Trunnion top mount, 30x8mm bottom bushings Medium compression, medium rebound, air volume spacer 0.4
Fork - FOX 38 Float 3P Performance Grip, 170mm, e-bike tuned, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: 3 positions with micro adjust compression, low-speed rebound, air preload
Headset - Acros custom for 1-1/2” head tube, angular contact bearings 40x52x7, Internal cable routing
Stem - Onoff Krypton FG 30mm, CNC, 31.8mm barbore
Handlebar - Onoff Krypton 1.0, rise: 25mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Grips - Onoff Desert, 1lock-on, 135mm
Dropper Seatpost - Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 405x95- 125mm, M size: 458x120-150mm, L size: 498x140-170mm, XL size: 558x170-200mm
Saddle - Fizik Terra Aidon Slim X5, 145mm
Brakes - Sram DB8, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steelbacked metal sintered pads
Wheelset - e*thirteen Grappler Core, Hookless 6069 Welded Aluminium 30mm internal width, tubeless ready, 28F / 28R spokes 29 front, 27’5 rear e*thirteen custom J-bend, triple-butted steel, alloy nipples, nipple washers
Front Hub - e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminium, IS 6 bolts
Rear Hub - e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminium w/6-degree engagement, IS 6 bolts
Front Tyre - Maxxis Assegai 29x2.5WT, tubeless ready, 3C MaxxGrip compound, EXO+ casing, 60TPI, folding bead
Rear Tyre - Maxxis Minion DHR II 27’5x2.4 WT, tubeless ready, 3C MaxxTerra compound, DD casing, 2x120TPI, folding bead E.13 E*Spec Plus, S size: 165mm M size: 165mm L size: 170mm XL size: 170mm
Chainring - Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD
Chain - Sram NX Eagle, 12s, Powerlock
Derailleur - Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1
Shifter - Sram Trigger NX Eagle, 12s, X-Actuation 1:1, single click
Cassette - Sram PG-1230, 11-50T, 12s
Motor - Bosch Performance Line SX (25Km/h) GEN4 SMART SYSTEM Diagonal, Wide
Battery - Bosch Compact Powertube 400Wh
Screen - Bosch Kiox 500 / Bosch Mini Remote / Bosch System Controller
Hanger - Sram UDH

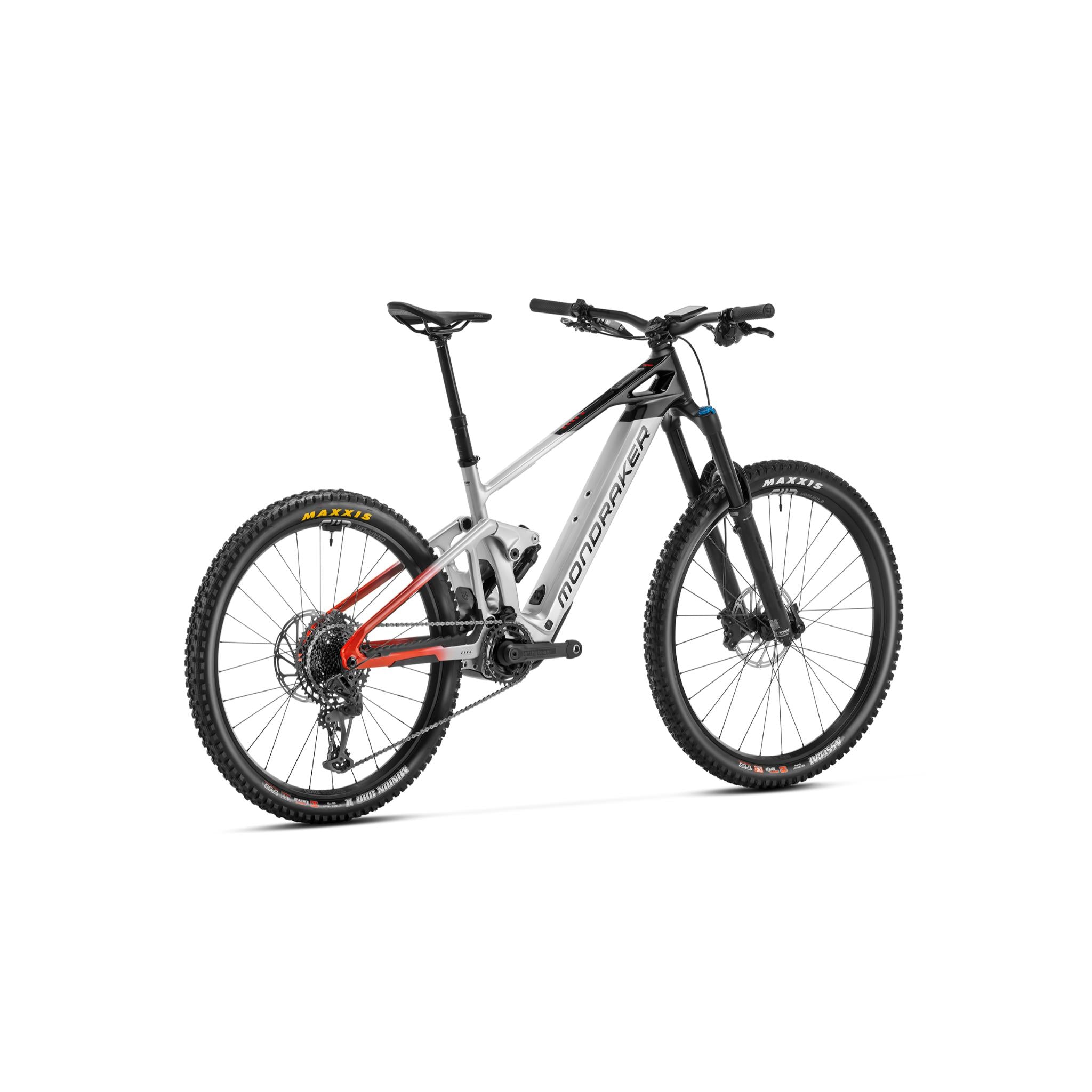

Mondraker Dune R 2024
