Description

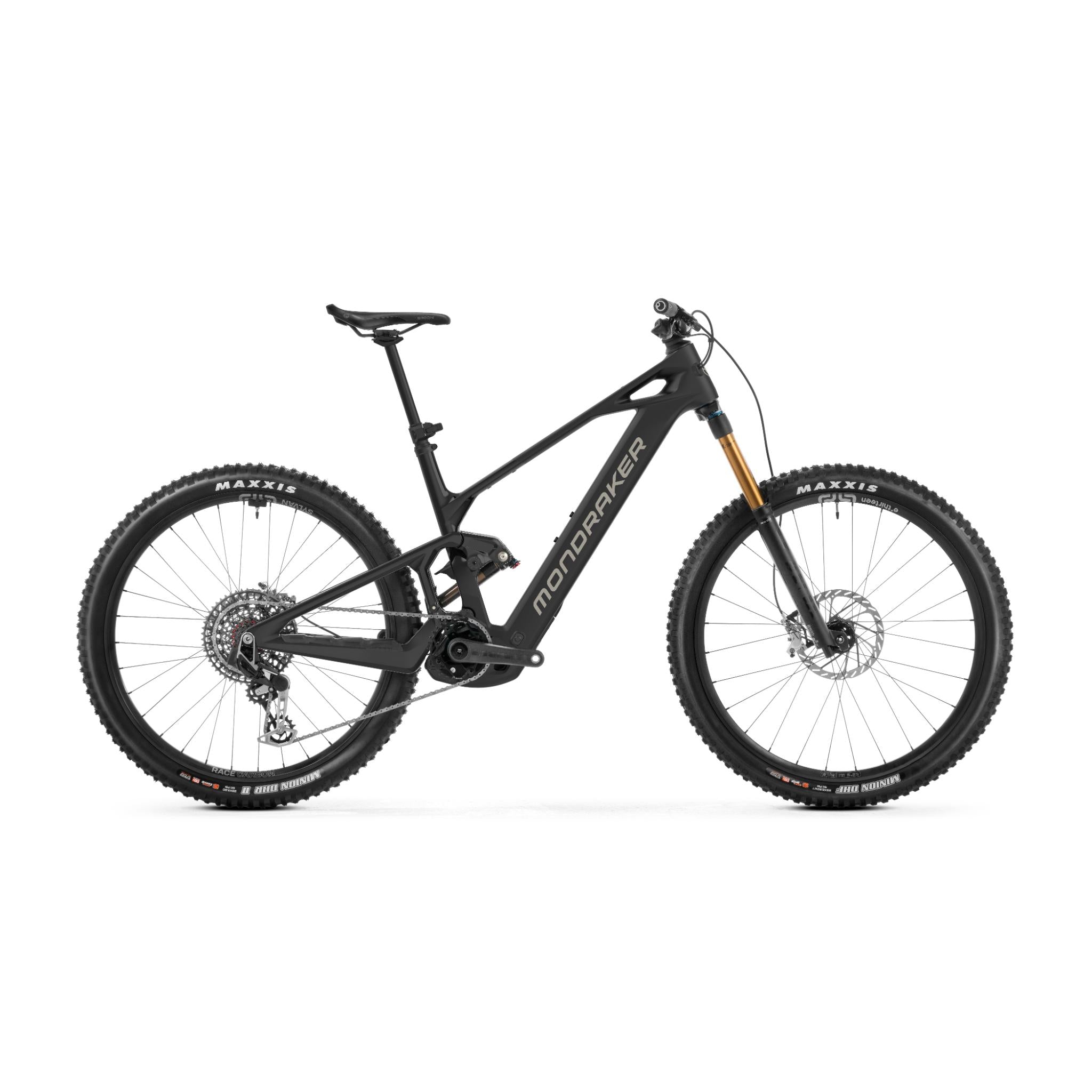

Mondraker's Crafty electric mountain bike is the perfect choice for tackling challenging terrains and larger obstacles on extended rides. Enhanced by Mondraker's expert frame design and the highly-rated Bosch Smart power unit, this E-MTB is well-equipped for any adventure you can find on this planet.
The Crafty Carbon RR SL spec is, alongside the Crafty XR, one of the the flagship models in the Crafty line-up and is a customer favourite for high-end E-MTB's. With a perfectly balanced design, it offers a nimble, responsive, and efficient ride whether you're climbing or descending. The Zero Suspension System on the frame is optimized to handle any surprises on the trail. Equipped with Bosch's Smart System motor and wireless Mini Remote control, as well as an integrated System Controller, your cockpit remains clean and clutter-free. Additionally, the 600Wh battery ensures uninterrupted trail enjoyment without having to worry about range anxiety. This bike has everything you need to hit the trails with confidence.
Bosch CX-R Smart System -
The latest Bosch motor is a Performance Line CX-R SMART SYSTEM (BDU386Y) unit that pushes out 85nm, featuring the new Bosch Smart System, upgraded software and enhanced firmware modifications. In addition, a new display unit and handlebar mounted control module have been added for easier mode selection and adjustment. The bikes also feature the lighter weight Bosch 600Wh battery, plenty of juice while helping keep the bike as agile as possible.
SIZING -
- S: <165
- M: 165cm - 175cm
- M/L: 170-185cm
- L: 180cm - 190cm
- XL: 190cm - 195cm+
Specifications
-
Discipline Enduro/AM
-
Material Carbon
-
Front Travel 160mm
-
Rear Travel 150mm
-
Wheel Size 29"
-
Warranty Lifetime (frame)
Frame - Crafty Stealth Air full Carbon, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal non-removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers.
Rear shock - Fox Float Factory Kashima EVOL 185x55mm. Settings: Settings: 2-position compression (Open/Firm), rebound, air preload. Trunnion top mount, 30x8mm bottom bushings
Fork - Fox 36 29 Float GRIPX2 Factory Kashima, 160mm, tapered steerer tube, Boost 15x110mm Kabolt axle, 44mm offset. Settings: high and low-speed compression, high and low-speed rebound, air preload
Headset - Acros custom for 1-1/2" head tube, angular contact bearings 40x52x7, Internal cable routing
Stem - Onoff Krypton FG 30mm, CNC, 31.8mm barbore
Handlebar - Onoff Krypton Carbon 1.0, rise: 25mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Grips - Onoff Desert, 1lock-on, 135mm
Seatpost - RockShox Reverb Stealth AXS, diameter 31.6mm S size: 398.2x125mm, M size: 448.2x150mm,ML size: 498.2x175mm, L size: 548.2x200mm, XL size:548.2x200mm
Saddle - Ergon SM-10
Front brake - Sram Maven Ultimate, 18 and 19.5-millimeter 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Rear brake - Sram Maven Ultimate, 18 and 19.5-millimeter 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Brake lever - Sram Maven Ultimate , SwingLink and lever pivot bearings, tools-free reach adjust
Rims - e*thirteen Sylvan Race Carbon IW30, Hookless carbon rim, 30mm internal width, tubeless ready, 28 spokes
Spokes - e*thirteen Sapim D-light / Brass
Front hub - e*thirteen Boost 20x110mm, triple-sealed, fully machined aluminum, IS 6 bolts
Rear hub - e*thirteen Boost 12x148mm, Sidekick,12°/15°/18° Adjustable Deadband, triple-sealed, fully machined aluminium w/6-degree engagement, IS 6 bolts, XD freehub
Front tire - Maxxis Minion DHF 29x2.5, tubeless ready, 3C Maxx Grip, EXO+ Protection, 600TPI, folding bead
Rear tire - Maxxis Minion DHR II 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead
Crankset - E.13 Helix Race Carbon E*Spec Plus, All sizes: 160mm
Rings - Sram XX Eagle 34T T-Type, steel, narrow-wide, 104 BCD CL55
Chain - Sram GX Eagle T-Type, 12s, Powerlock
Rear derailleur - Sram XX Eagle AXS, T-Type, 12s
Shift levers - Sram Eagle AXS Pod MMX, 12s
Cassette - Sram XS-1295, 10-52T, T-Type, 12s
Display - Kiox 400c / Bosch Mini Remote / Bosch System Controller
Motor - Bosch Performance Line CX-R (25Km/h) SMART SYSTEM (BDU384Y)
Battery - Bosch Powertube 600Wh
