Description
Mondraker's Chrono takes the design philosophy of their race winning XC bike, the Podium, and makes some tweaks to relax the geometry, add some convenience features and up the comfort level. Still very much a rapid XC bike the Chrono's less aggressive frame platform means the Chrono will be more fun on trail rides or long distances when compared to the full-speed Podium. The DC model bumps front travel up to 120mm from the standard Chrono's 100mm as well as fitting chunkier 2.4" tyres, these changes tailor the DC for rougher terrains.
The stealth alloy frame absorbs trail vibration and significantly reduces rider fatigue, while its feather weight keeps it super agile. Complementing that optimized frame are components such as a Rockshox Recon fork, Mondraker wheels, SRAM SX/NX Eagle drivetrain and ONOFF components.
SIZING -
- S: 160cm - 170cm
- M: 165cm - 180cm
- L: 175cm - 185cm
- XL: 185cm - 190cm+
Specifications
-
Discipline Trail/XC
-
Material Stealth Alloy
-
Front Travel 120mm
-
Rear Travel Hardtail
-
Wheel Size 29"
-
Warranty Lifetime (frame)
Frame - Chrono 29 6061 Xtralite Alloy butted, XC Forward Geometry, 73mm BSA bottom bracket, tapered head tube, HHG Internal Cable Routing, Boost 12x148mm rear axle,dedicated 1X drivetrain design
Fork - Fox 32 29 Float GRIP Rhythm, 120mm, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: remote 2pos Push-unlock, low-speed rebound, air preload
Fork remote - Fox single pull
Headset - Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º
Stem - Onoff Sulfur, 6061 T6 Alloy, 31.8mm barbore, rise: +/-7º, length: S size: 50mm, M size: 50mm, L size: 60mm, XL size: 70mm
Handlebar - Onoff Sulfur 0.2, double butted 6061 alloy, rise: 4.8mm, width: 740mm, 9º backsweep, 0º upsweep, 31.8mm barbore
Grips - Onoff Twin, 1lock-on, 135mm
Seatpost - Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever S size: 405x95-125mm, M size: 405x95-125mm, L size: 458x120-150mm, XL size: 458x120-150mm
Saddle - Mondraker MDK Series, SRX, steel rail
Front brake - Sram Level, 2 piece caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pad
Rear brake - Sram Level, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad
Brake lever - Sram Level, tooled reach adjust, lever pivot bushings
Rims - Mavic CrossRide 29, 30mm internal width, sleeved rim, hookless, tubeless ready, 28 spokes
Spokes - Mavic J-bemd steel round spokes
Front hub - Mavic, Boost 15x110mm, IS 6 bolts
Rear hub - Mavic, Boost 12x148mm, ID360 Ratchet system, IS 6 bolts, HG freehub
Front tire - Maxxis Ardent 29x2.40, Dual compound, EXO, tubeless ready, 60TPI, folding bead
Rear tire - Maxxis Ardent 29x2.40, Dual compound, EXO, tubeless ready, 60TPI, folding bead
Crankset - Sram Truvativ Stylo 6K Eagle, 12s, Boost, DUB axle, Direct Mount chain ring, S size: 170mm M size: 175mm L size: 175mm XL size: 175mm, CL 52
Rings - 34T, steel, X-Sync 2
Bottom bracket - Sram DUB BSA, sealed bearings, 73mm
Chain - Sram SX Eagle, 12s, Powerlock
Rear derailleur - Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1
Shift levers - Sram Trigger SX Eagle, 12s, X-Actuation 1:1
Cassette - Sram PG-1210, 11-50T, 12s
Derailleur hanger - Mondraker M068
Weight - 13,2 kg

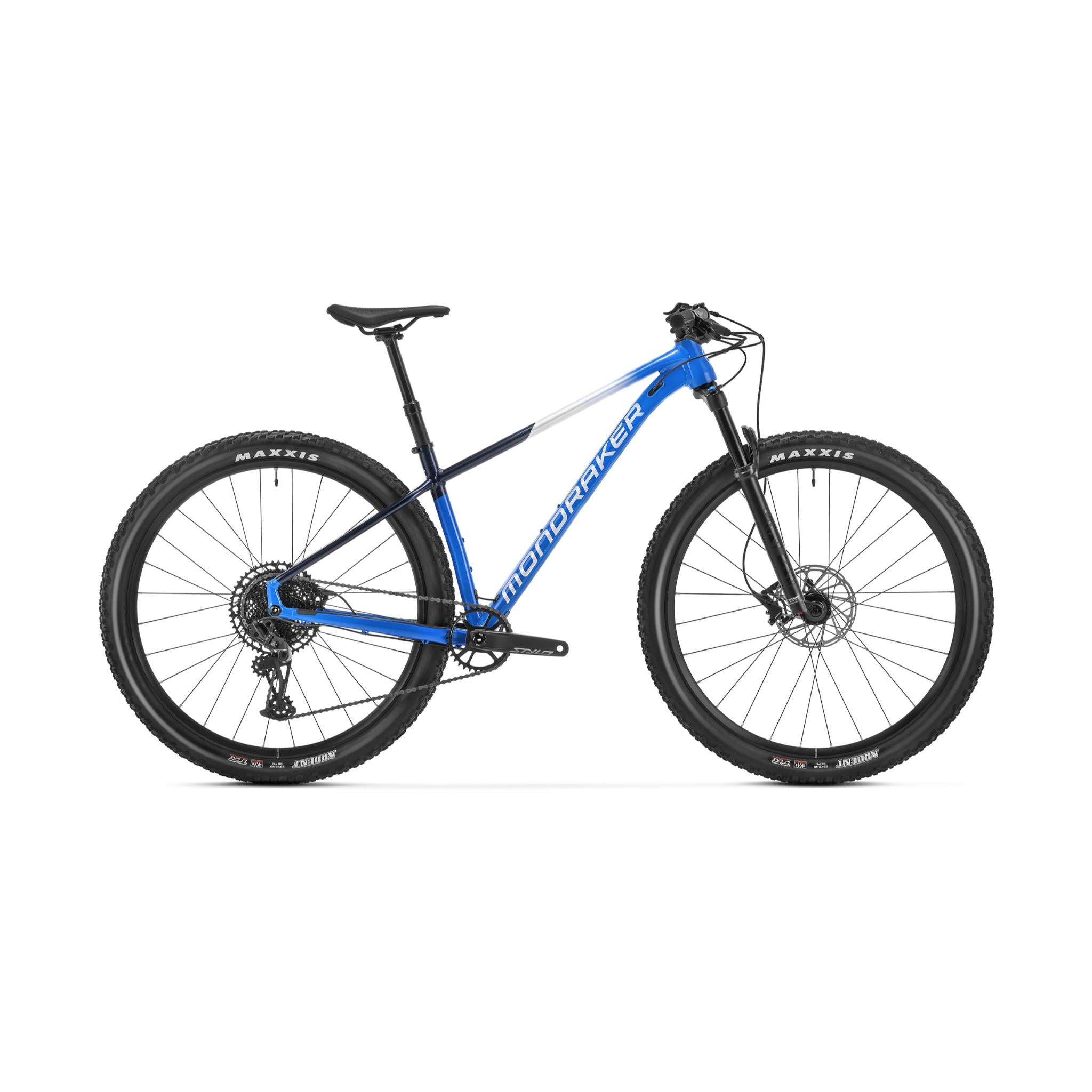

Mondraker Chrono DC RR 2024
Mondraker's Chrono takes the design philosophy of their race winning XC bike, the Podium, and makes some tweaks to relax the geometry, add some convenience features and up the...
Order within [time] for delivery by [date]
90 Day Returns -
Description
Mondraker's Chrono takes the design philosophy of their race winning XC bike, the Podium, and makes some tweaks to relax the geometry, add some convenience features and up the comfort level. Still very much a rapid XC bike the Chrono's less aggressive frame platform means the Chrono will be more fun on trail rides or long distances when compared to the full-speed Podium. The DC model bumps front travel up to 120mm from the standard Chrono's 100mm as well as fitting chunkier 2.4" tyres, these changes tailor the DC for rougher terrains.
The stealth alloy frame absorbs trail vibration and significantly reduces rider fatigue, while its feather weight keeps it super agile. Complementing that optimized frame are components such as a Rockshox Recon fork, Mondraker wheels, SRAM SX/NX Eagle drivetrain and ONOFF components.
SIZING -
- S: 160cm - 170cm
- M: 165cm - 180cm
- L: 175cm - 185cm
- XL: 185cm - 190cm+
Specifications
-
Discipline Trail/XC
-
Material Stealth Alloy
-
Front Travel 120mm
-
Rear Travel Hardtail
-
Wheel Size 29"
-
Warranty Lifetime (frame)
Frame - Chrono 29 6061 Xtralite Alloy butted, XC Forward Geometry, 73mm BSA bottom bracket, tapered head tube, HHG Internal Cable Routing, Boost 12x148mm rear axle,dedicated 1X drivetrain design
Fork - Fox 32 29 Float GRIP Rhythm, 120mm, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: remote 2pos Push-unlock, low-speed rebound, air preload
Fork remote - Fox single pull
Headset - Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º
Stem - Onoff Sulfur, 6061 T6 Alloy, 31.8mm barbore, rise: +/-7º, length: S size: 50mm, M size: 50mm, L size: 60mm, XL size: 70mm
Handlebar - Onoff Sulfur 0.2, double butted 6061 alloy, rise: 4.8mm, width: 740mm, 9º backsweep, 0º upsweep, 31.8mm barbore
Grips - Onoff Twin, 1lock-on, 135mm
Seatpost - Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever S size: 405x95-125mm, M size: 405x95-125mm, L size: 458x120-150mm, XL size: 458x120-150mm
Saddle - Mondraker MDK Series, SRX, steel rail
Front brake - Sram Level, 2 piece caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pad
Rear brake - Sram Level, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad
Brake lever - Sram Level, tooled reach adjust, lever pivot bushings
Rims - Mavic CrossRide 29, 30mm internal width, sleeved rim, hookless, tubeless ready, 28 spokes
Spokes - Mavic J-bemd steel round spokes
Front hub - Mavic, Boost 15x110mm, IS 6 bolts
Rear hub - Mavic, Boost 12x148mm, ID360 Ratchet system, IS 6 bolts, HG freehub
Front tire - Maxxis Ardent 29x2.40, Dual compound, EXO, tubeless ready, 60TPI, folding bead
Rear tire - Maxxis Ardent 29x2.40, Dual compound, EXO, tubeless ready, 60TPI, folding bead
Crankset - Sram Truvativ Stylo 6K Eagle, 12s, Boost, DUB axle, Direct Mount chain ring, S size: 170mm M size: 175mm L size: 175mm XL size: 175mm, CL 52
Rings - 34T, steel, X-Sync 2
Bottom bracket - Sram DUB BSA, sealed bearings, 73mm
Chain - Sram SX Eagle, 12s, Powerlock
Rear derailleur - Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1
Shift levers - Sram Trigger SX Eagle, 12s, X-Actuation 1:1
Cassette - Sram PG-1210, 11-50T, 12s
Derailleur hanger - Mondraker M068
Weight - 13,2 kg
