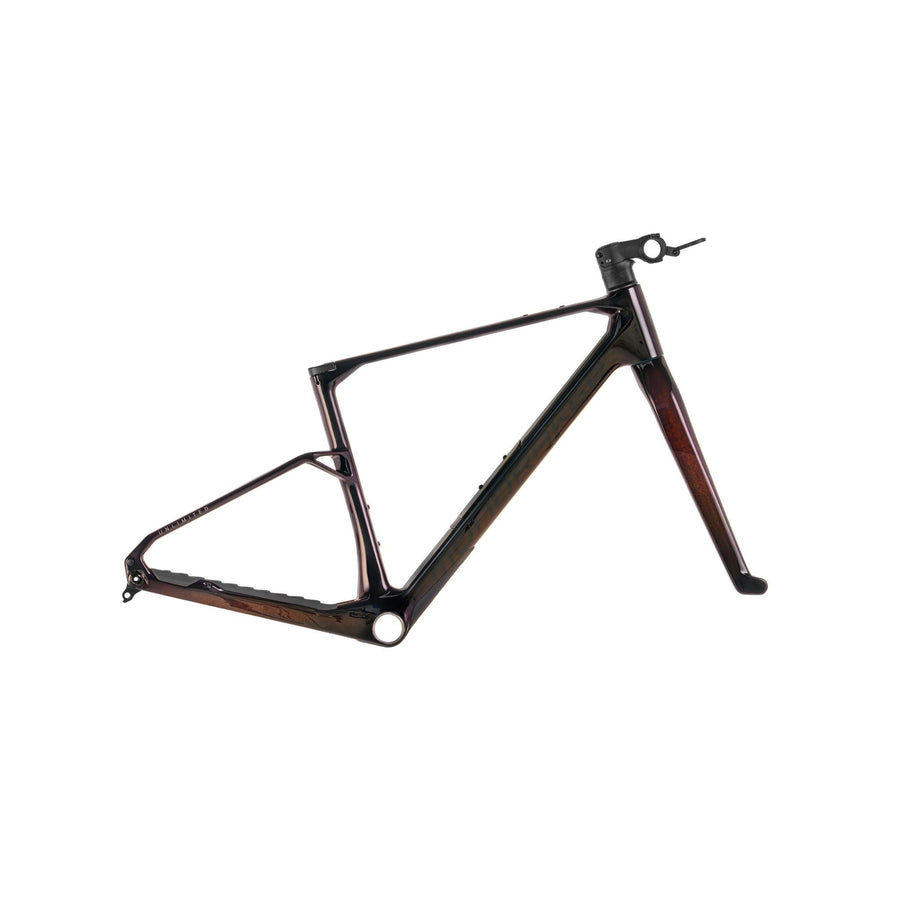

The Arid Carbon is Mondraker's gravel bike, and it draws heavily on the brand's mountain bike heritage to create a versatile, tough and genuinely trail-capable machine. Its Stealth Air carbon frame is light yet durable, and a distinctive twin-spar rear end adds compliance and comfort over rough ground.
The geometry borrows from the brand's mountain bikes, with a longer reach and slacker head angle for stability and confidence when the going gets technical. There's clearance for tyres up to 50mm wide, and integrated down tube storage with custom-fitted pouches keeps a spare tube and tools out of the way.
This Unlimited frameset includes the frame, integrated carbon fork, headset, semi-integrated stem and an OnOff S9 carbon seatpost, ready for you to build up exactly how you want. Contact us at support@biketart.com to discuss components or to arrange a full custom-built Arid Carbon.
Features
- Arid Stealth Air carbon frame with twin-spar rear end for compliance
- MTB-inspired geometry with longer reach and slacker head angle
- Clearance for tyres up to 50mm
- Integrated down tube storage with custom-fitted pouches
- Stealth Air carbon flat mount fork with HHG internal routing
- Onoff headset, semi-integrated stem and S9 carbon seatpost included
- T47 bottom bracket, 12x142mm rear axle and SRAM UDH
Sizing
- S: 155cm - 167cm
- M: 165cm - 177cm
- M/L: 173cm - 185cm
- L: 183cm - 193cm
- XL: 190cm+
Specifications
DisciplineGravel
MaterialCarbon
Wheel Size700c
WarrantyLifetime (frame)
Frame - Arid Stealth Air Carbon, in-tube storage, T47 bottom bracket, tapered head tube, HHG internal cable routing, 12x142mm rear axle, UDH, 1X drivetrain design, Flatmount brake compatible
Fork - Stealth Air Carbon, tapered steerer tube, HHG, flat mount integrated fork
Headset - Onoff IS52/IS52, 1-1/8", 1.5" head tube, sealed bearings, internal cable routing
Stem - Onoff Semi-Integrated, 31.8mm barbore, rise: -7°, length: S 60mm, M 70mm, ML 70mm, L 80mm, XL 90mm
Seatpost - Onoff S9 Carbon 15-R, diameter 27.2mm, length: S 400mm, M 400mm, ML 400mm, L 450mm, XL 450mm
Derailleur hanger - Sram UDH
