Description
Mondraker's razor focussed gravel bike, in glorious new colour ways and bangin' build kits. The Arid is the leader of the new wave of drop-bar off-road bikes, finely tuned suspension and pro level components mean the Arid is rapid, engaging and most importantly, unbeatable on the trails.
The modern frame employs Mondraker's Stealth Air Carbon technology, delivering a lightweight yet durable structure. Notably, the Arid features a distinctive twin-spar rear design, enhancing compliance and comfort on rough terrains. The Arid weighs in at a svelte 8.8kg.
Geometry-wise, the Arid incorporates a longer reach and slacker head angle, reminiscent of mountain bike configurations, promoting stability and confidence on challenging trails. The bike accommodates up to 50mm tires, offering adaptability across various surfaces. Practicality is further enhanced by integrated downtube storage, complete with custom-fitted pouches for essentials like spare tubes and tools.
'So capable on the trails I'd happily leave my mountain bike at home' - Bike Radar, awarded 4.5 stars out of 5
SIZING -
- S: <165cm
- M: 165-175cm
- M/L: 170-185cm
- L: 180-190cm
- XL: 190cm+
Specifications
-
Discipline Gravel
-
Material Carbon
-
Front Travel Rigid
-
Rear Travel N/A
-
Wheel Size 700c
-
Warranty Lifetime
Frame - Arid Stealth Air Carbon, in-tube storage, T47 bottom bracket, tapered head tube, HHG internal cable routing, 12x142mm rear axle, UDH, 1X drivetrain design, Flatmount brake compatible.
Fork - Steatlh Air Carbon tapered steerer tube, HHG, fllat mount integrated fork
Headset - Onoff IS52/IS52, 1-1/8", 1.5" head tube, sealed bearings, Internal cable routing.
Stem - Onoff Semi-Integrated, 31.8mm barbore, rise: -7°, length: S size: 60mm, M size: 70mm, ML size 70mm, L size: 80mm, XL size: 90mm
Handlebar - Onoff S9 GR CARBON 16º bar flare. Width sizes S size: 420mm M size: 420mm ML size: 440mm L size: 460mm XL size: 460mm
Grips - Onoff HEX Bartape
Seatpost - Onoff S9 Carbon 15-R, diameter 27.2mm, length: S size: 400mm, M size: 400mm, ML size 400mm, L size: 450m, XL size: 450mm
Saddle - Fizik Vento Argo X5 140mm
Front Brake - Sram Force AXS HRD 2 piece caliper, Paceline 160mm Centerlock rotor, steel-backed organic pad
Rear Brake - Sram Force AXS HRD, 2 piece caliper, Paceline 160mm Centerlock rotor, steel-backed organic pad
Brake Lever - Sram Force, eTap shift logic, Bonus button ANT+, tooled reach adjust, carbon brake lever
Rims - Zipp 303 XPLR S, carbon, 32mm internal width, 54mm rim depth, hookless, 24 spokes
Spokes - CX-Sprint - Black
Front Hub - 76 Disc Brake, 12x100mm,Centerlock
Rear Hub - 176 Disc Brake, 12x142mm, XDR 3 Pawls leaf springs, Centerlock. XDR Freehub
Front Tire - Goodyear XPLR Inter 700x45
Rear Tire - Goodyear XPLR Inter 700x45
Crankset - Sram Force XPLR AXS Carbon, Power meter, DUB WIDE axle, S size: 165mm M size: 165mm ML size: 170mm L size: 172,5mm XL size: 172,5mm, CL 47,5
Rings - Sram 40T Direct mount, alloy, narrow-wide,
Bottom Bracket - Sram DUB T47 BSA, sealed bearings, 85,5mm
Chain - Sram Force, Flattop, 13s, Powerlock
Rear Derrailleur - Sram Force XPLR AXS, 13s
Shift Levers - Sram Force AXS HRD, 13s,
Cassette - Sram XG-1371, 10-46T, 13s

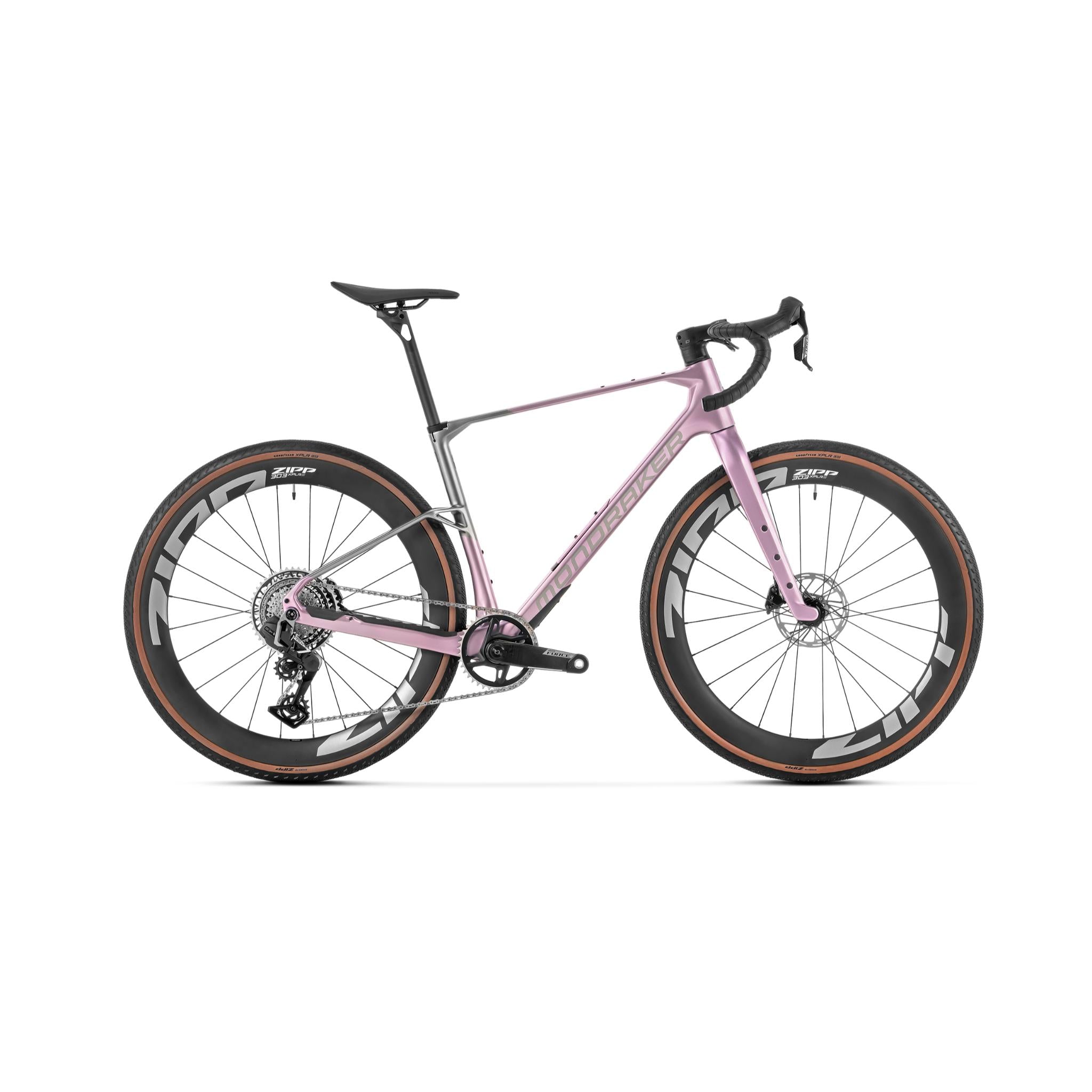

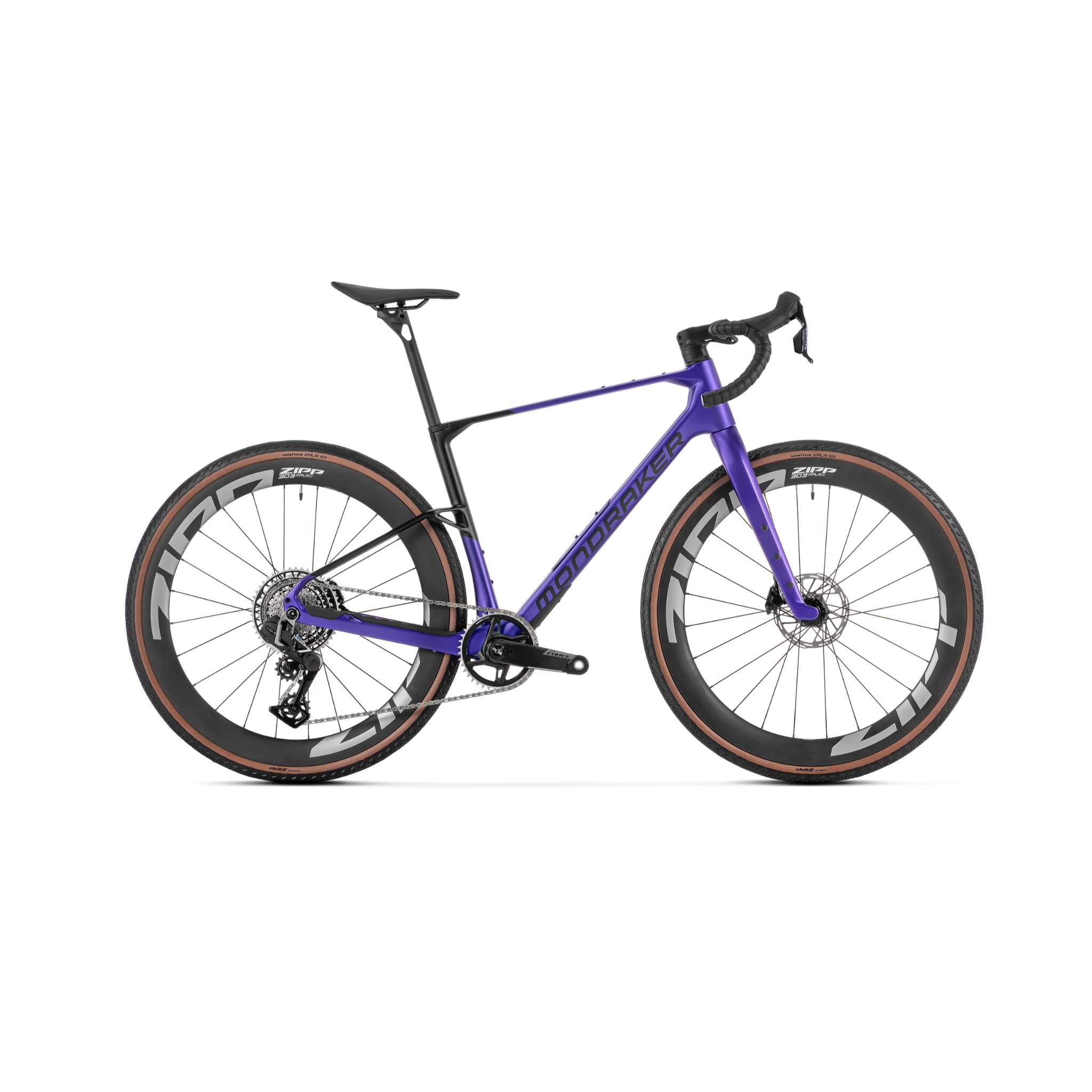

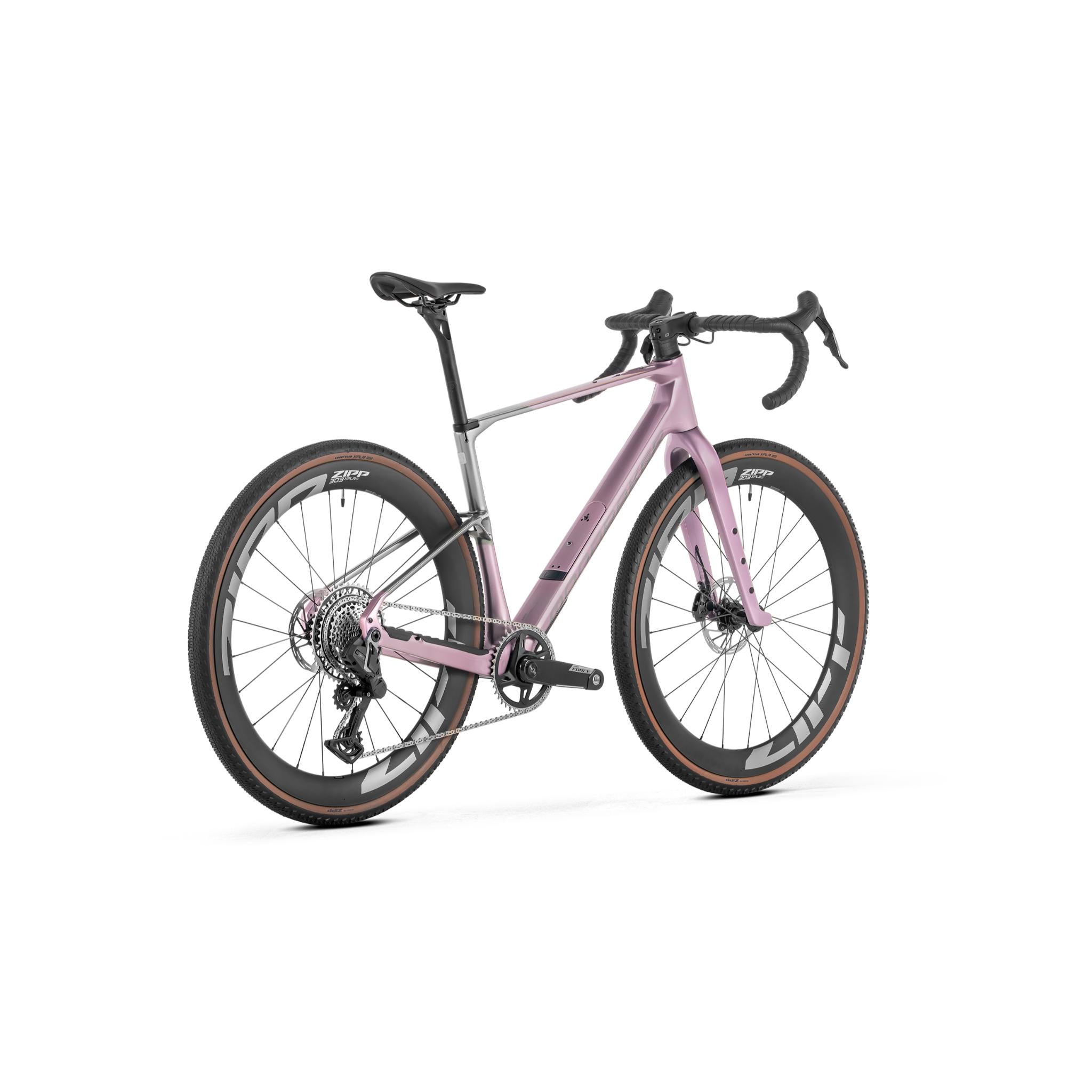

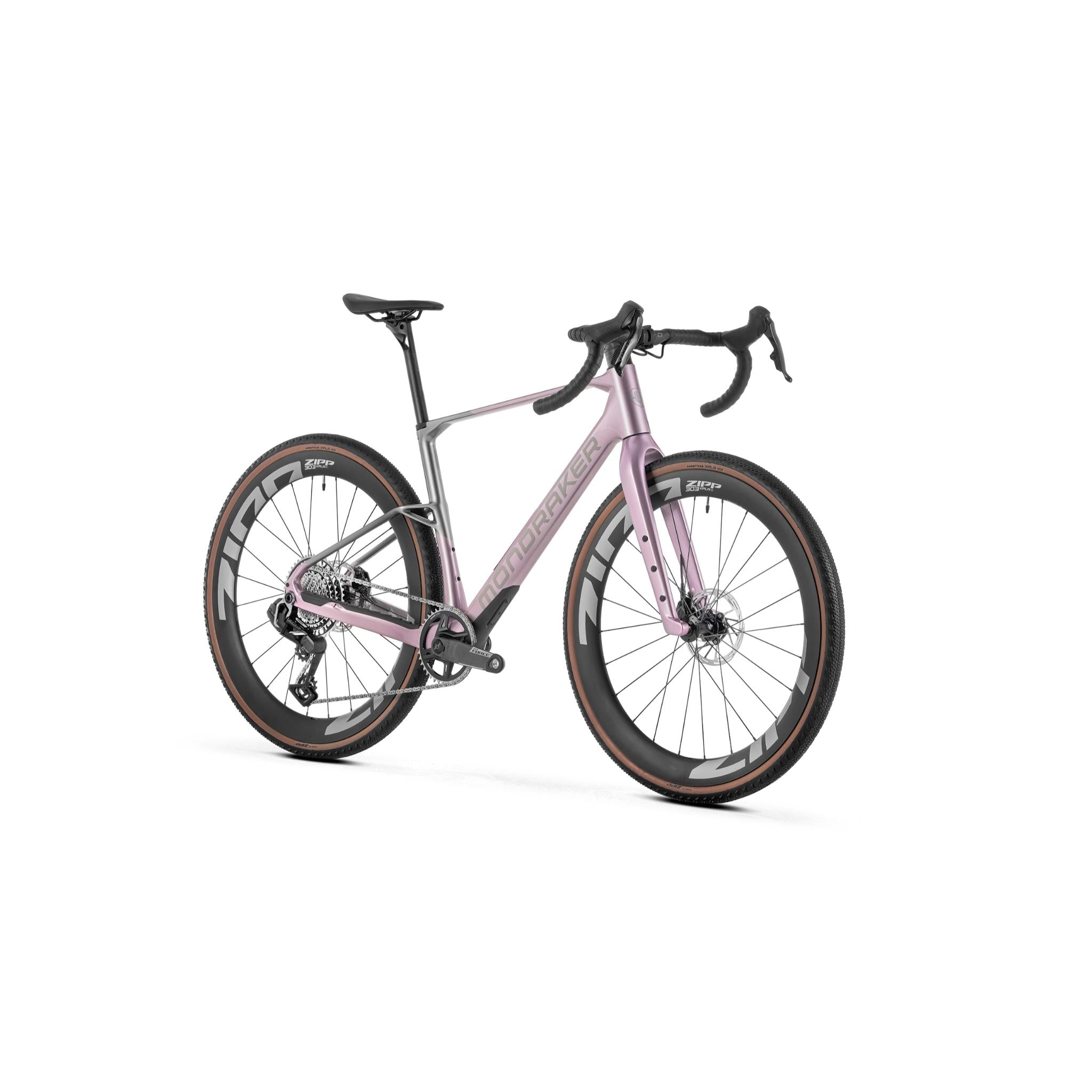

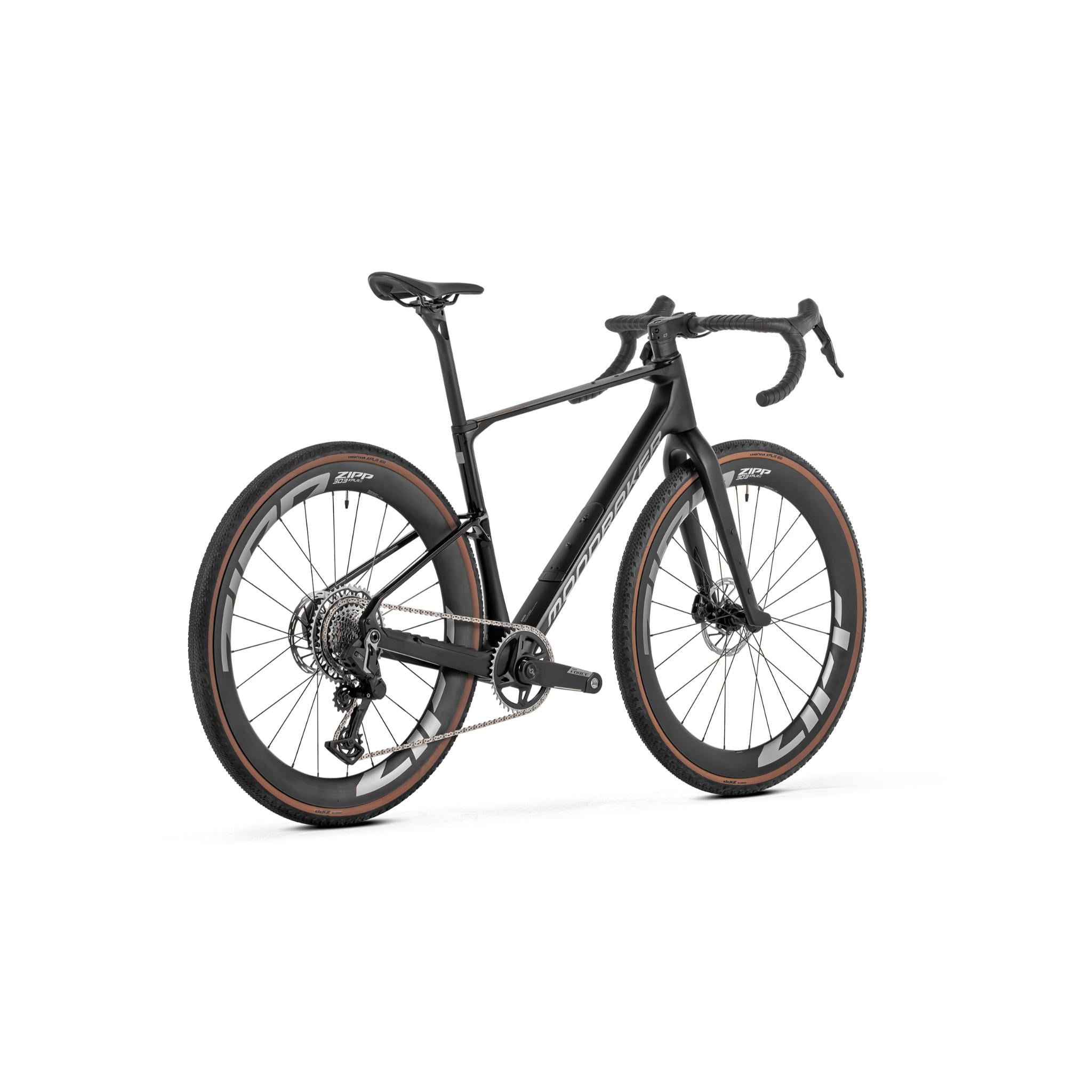

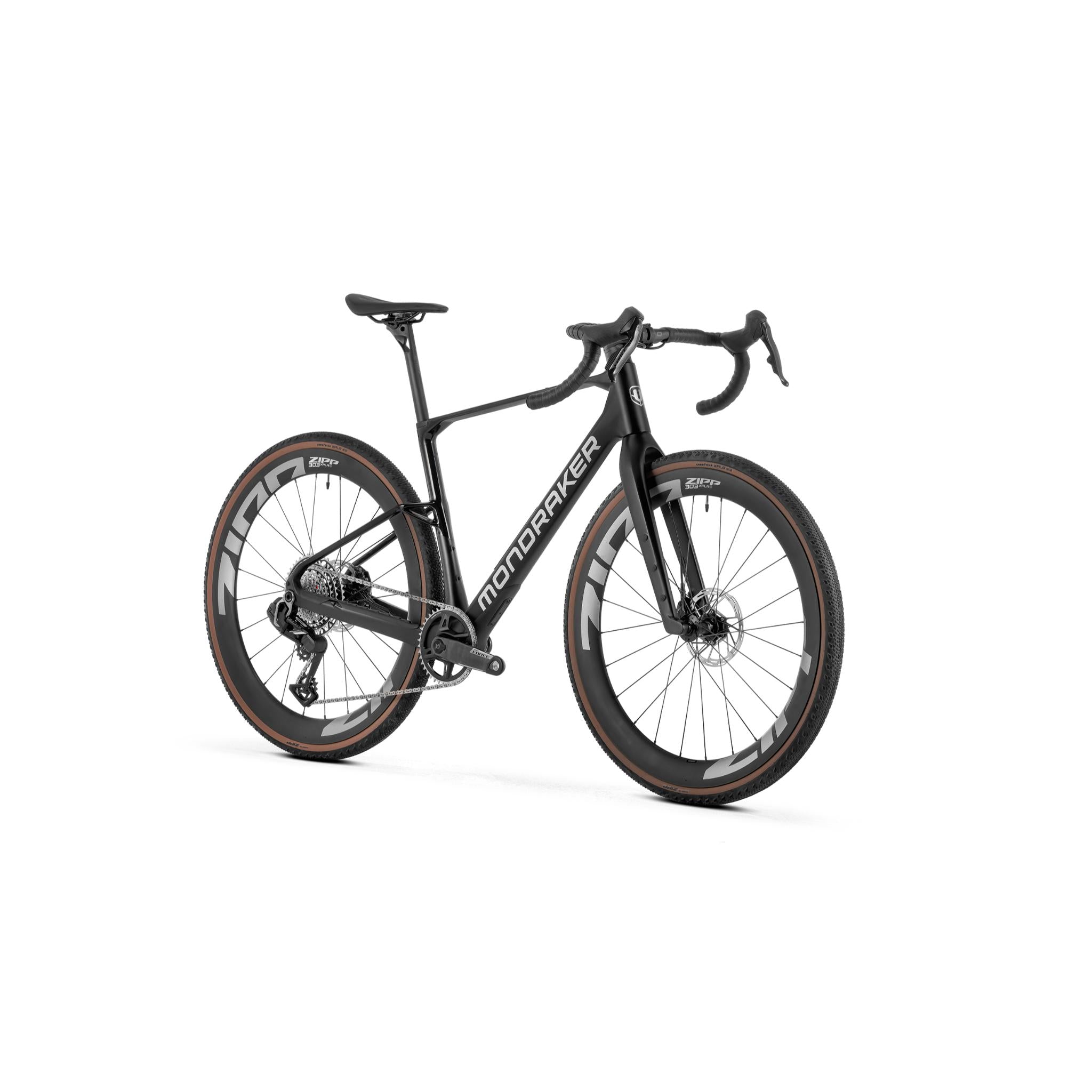

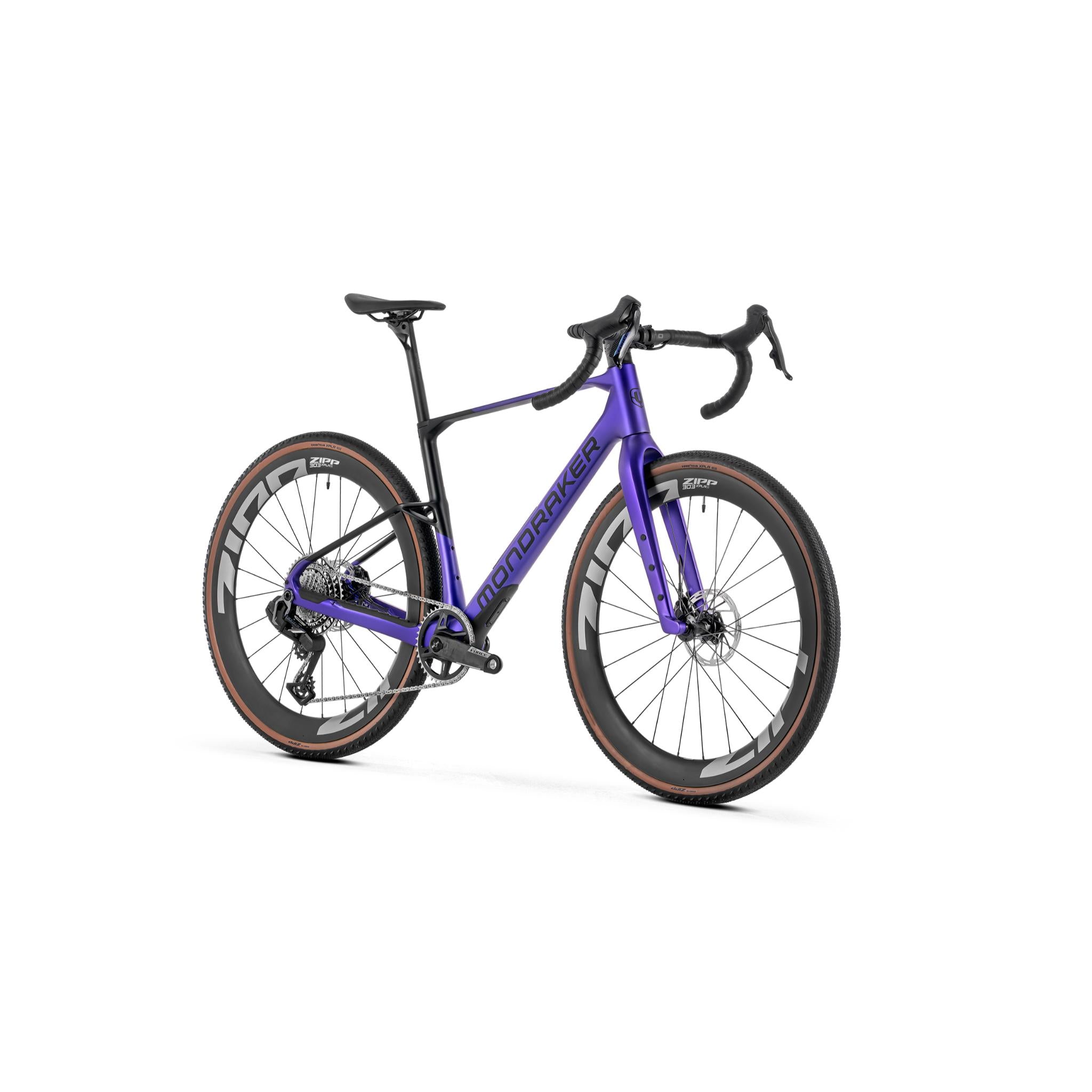

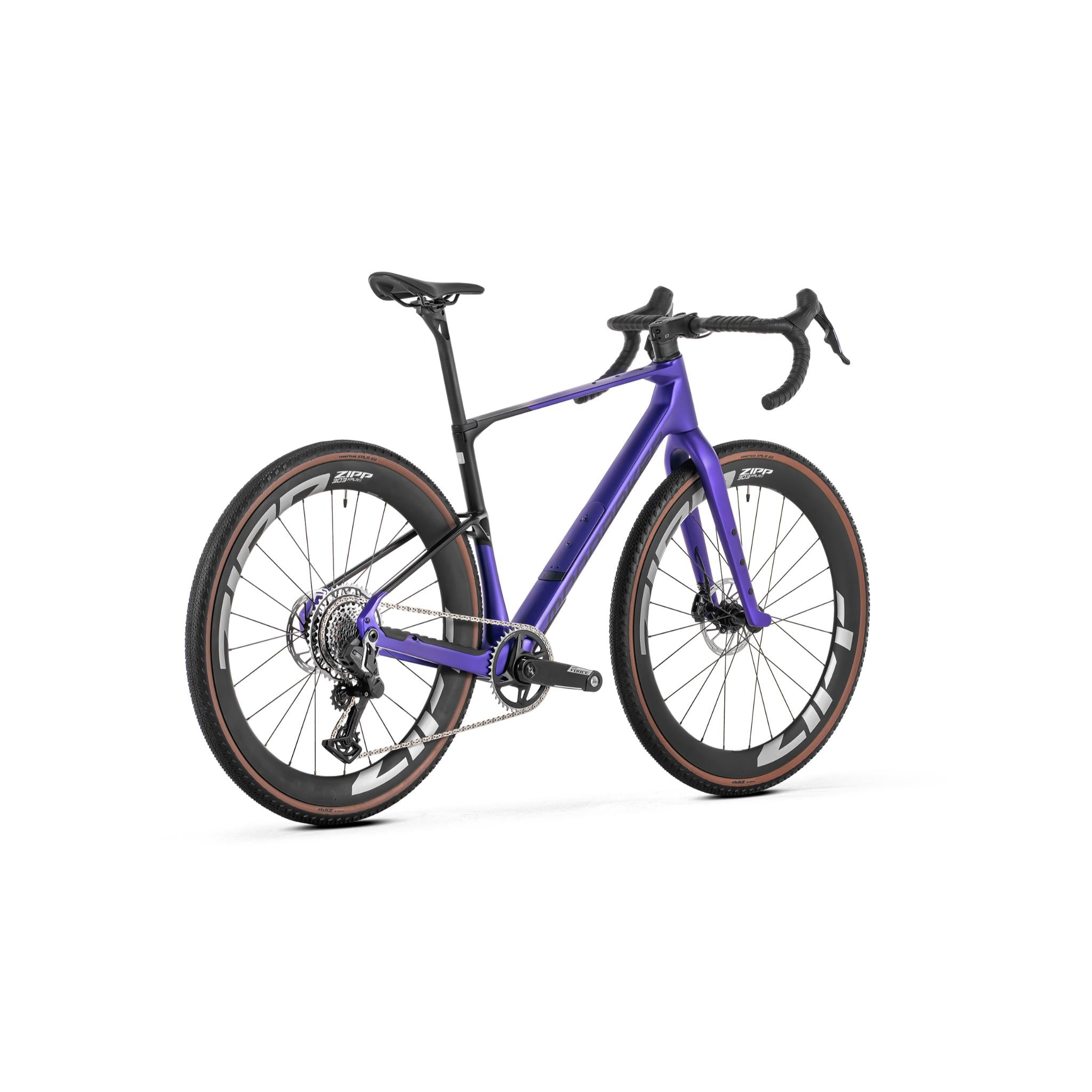

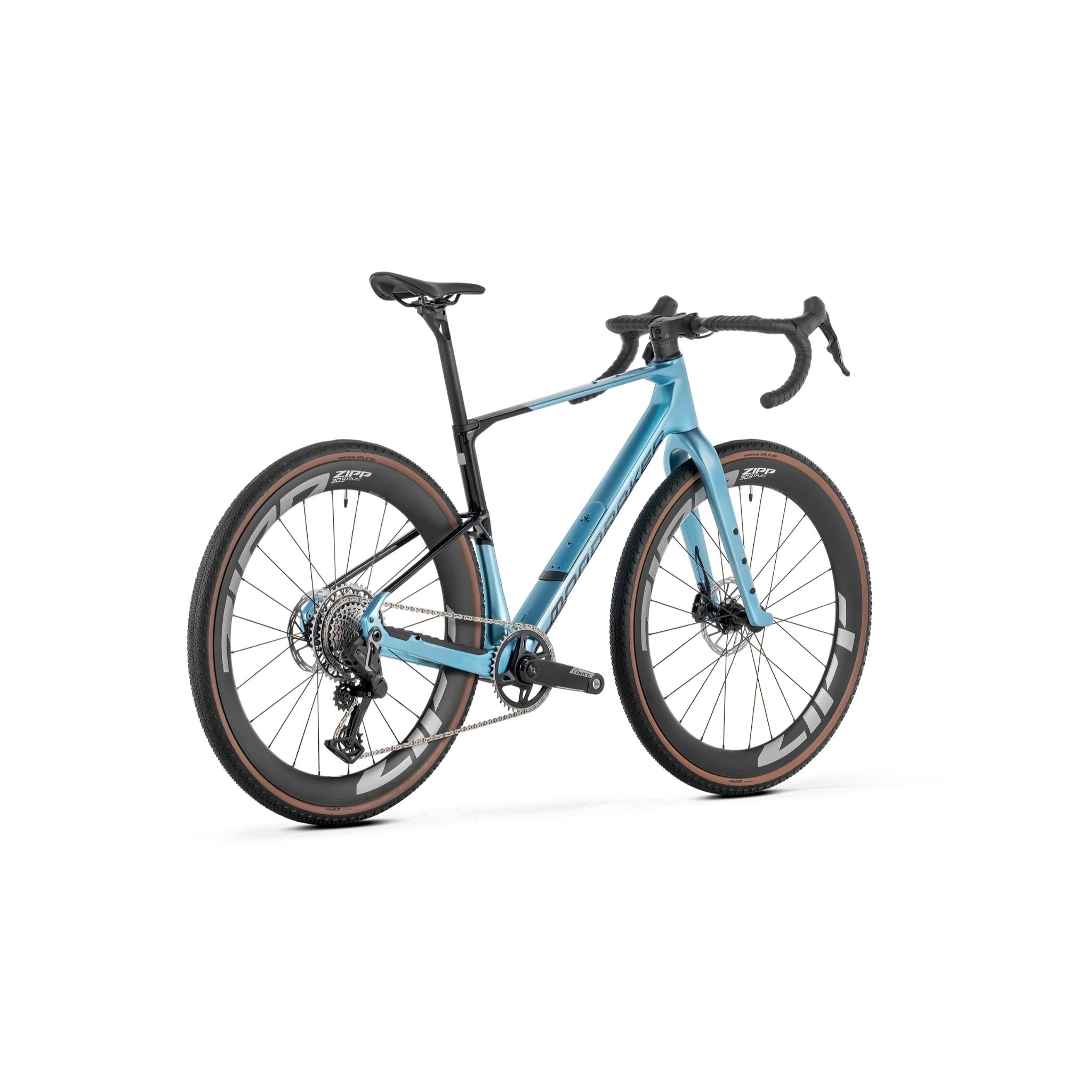

Mondraker Arid Carbon RR 2026
