The Arid Carbon is Mondraker's gravel bike, and it draws heavily on the brand's mountain bike heritage to create a versatile, tough and genuinely trail-capable machine. Its Stealth Air carbon frame is light yet durable, and a distinctive twin-spar rear end adds compliance and comfort over rough ground.
The geometry borrows from the brand's mountain bikes, with a longer reach and slacker head angle for stability and confidence when the going gets technical. There's clearance for tyres up to 50mm wide, and integrated down tube storage with custom-fitted pouches keeps a spare tube and tools out of the way. BikeRadar summed it up with 4.5 stars, saying it was so capable on the trails they'd happily leave their mountain bike at home.
The RR build is the premium option, with SRAM's wireless Force XPLR AXS 1x12 groupset, a Force carbon crankset with built-in power meter, Mavic Allroad Pro Carbon SL wheels with fast-rolling 45mm Maxxis Reaver tyres and an OnOff S9 carbon flared bar.
Features
- Arid Stealth Air carbon frame with twin-spar rear end for compliance
- MTB-inspired geometry with longer reach and slacker head angle
- Clearance for tyres up to 50mm
- Integrated down tube storage with custom-fitted pouches
- SRAM Force XPLR eTap AXS wireless 1x12 groupset with 10-44T cassette
- SRAM Force carbon crankset with built-in power meter
- Mavic Allroad Pro Carbon SL wheels with Maxxis Reaver 700x45 tyres
- OnOff S9 GR carbon handlebar with 16° flare and S9 carbon seatpost
Sizing
- S: 155cm - 167cm
- M: 165cm - 177cm
- M/L: 173cm - 185cm
- L: 183cm - 193cm
- XL: 190cm+
Specifications
DisciplineGravel
MaterialCarbon
Wheel Size700c
WarrantyLifetime (frame)
Frame - Arid Stealth Air Carbon, in-tube storage, T47 bottom bracket, tapered head tube, HHG internal cable routing, 12x142mm rear axle, 1X drivetrain design, Flatmount brake compatible
Fork - Stealth Air Carbon, tapered steerer tube, HHG, flat mount integrated fork
Rims - Mavic Allroad Pro Carbon SL, UST, 25mm internal width, 42mm rim depth, hookless, Infinity hubs, 24 spokes
Rear hub - Mavic Infinity hub, 12x142mm, XD ID360 Ratchet system, IS 6 bolts, MS freehub
Front hub - Mavic, 12x100mm, IS 6 bolts
Spokes - Mavic steel double butted flat spokes
Tyres - Maxxis Reaver 700x45, tubeless ready, dual compound, EXO protection, 120TPI, folding bead
Rear derailleur - Sram Force XPLR eTap AXS, 12s
Shift levers - Sram Force eTap AXS, 12s
Crankset - SRAM Force 1 Carbon, power meter, DUB axle, S 170mm, M 170mm, ML 172.5mm, L 172.5mm, XL 175mm, CL 47.5
Chain - Sram Force, 12s, Powerlock
Cassette - Sram XG-1271, 10-44T, 12s
Brakes - SRAM Force eTap AXS 2 piece caliper, Paceline 160mm Centerlock rotor, steel-backed organic pad
Brake levers - Sram Force, contact point adjustment, tooled reach adjust
Handlebar - OnOff S9 GR Carbon, 16° bar flare, width S 440mm, M 440mm, ML 460mm, L 460mm, XL 460mm
Stem - Onoff Semi-Integrated, 31.8mm barbore, rise: -7°, length: S 60mm, M 70mm, ML 70mm, L 80mm, XL 90mm
Bar tape - OnOff HEX bar tape
Headset - Onoff IS52/IS52, 1-1/8", 1.5" head tube, sealed bearings, internal cable routing
Seatpost - Onoff S9 Carbon 0-R, diameter 27.2mm, length 400mm
Saddle - Fizik Terra Argo X5 140mm

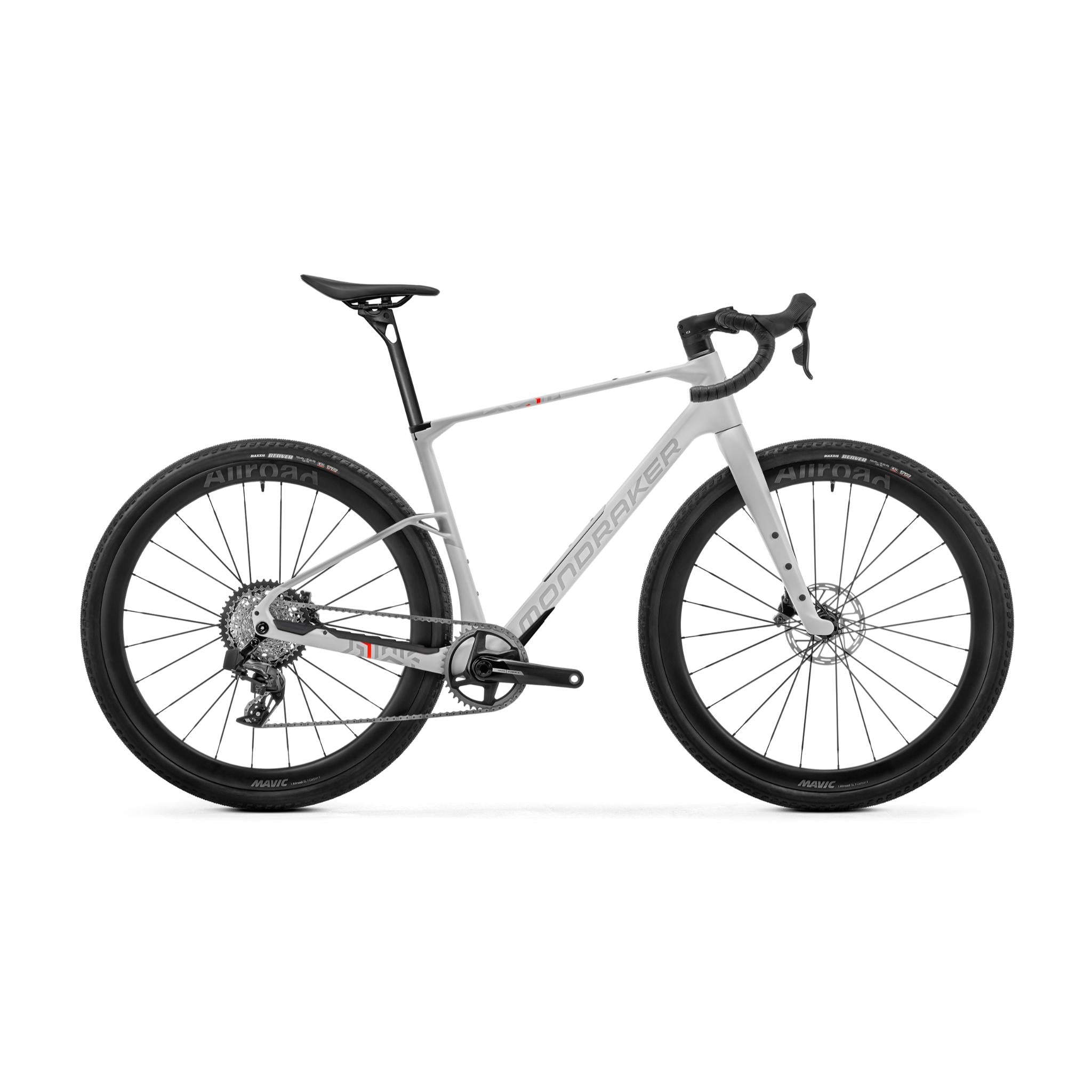

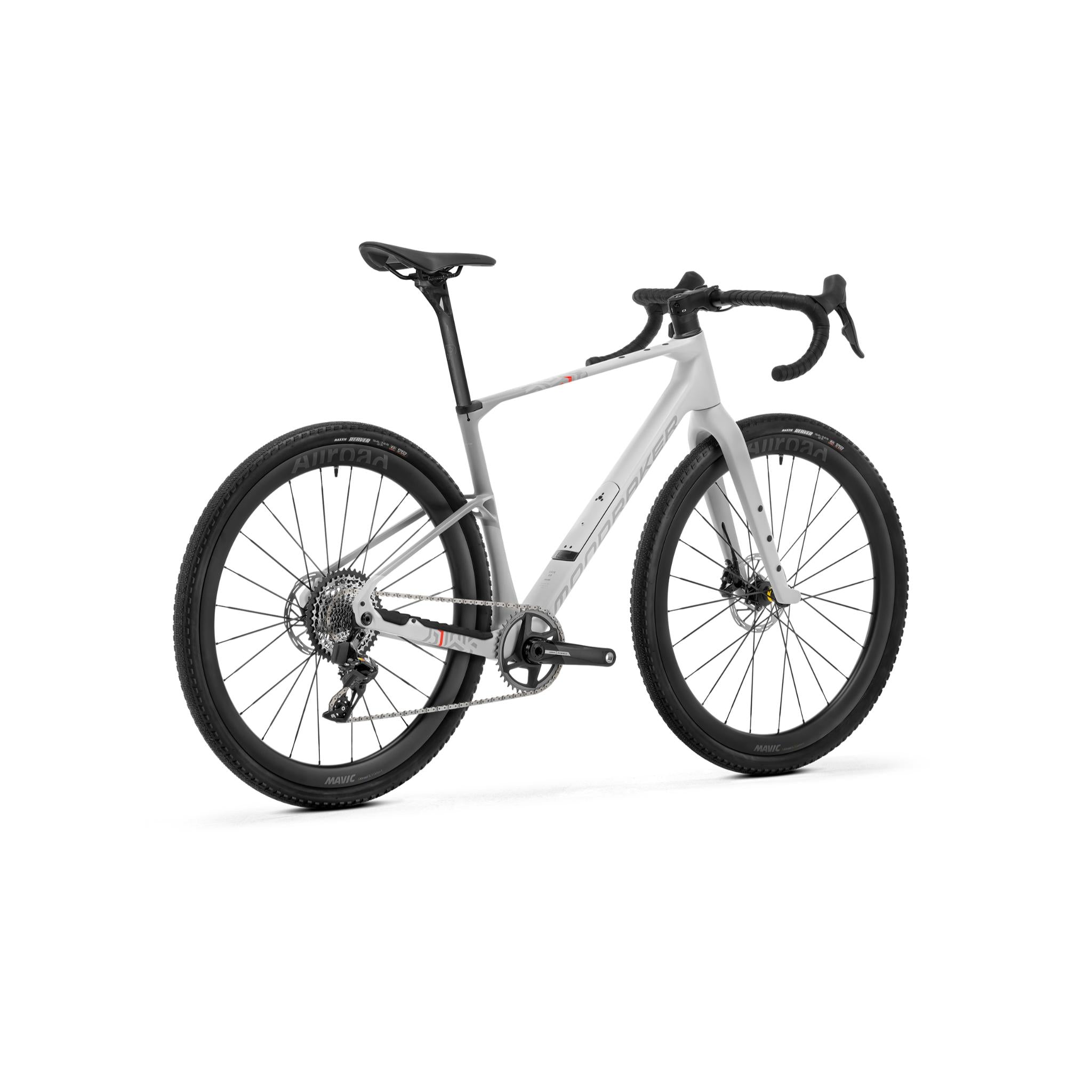

Arid Carbon RR 2025
- Gravel
- 700c wheels
- Carbon frame
Finance available – see options
Order within [time] for delivery by [date]
90 Day Returns
Free product with this bike
Make your choice below
-
Pro builtBuilt and safety-checked by our mechanics before it leaves us
-
Free UK mainland courier deliveryNorthern Ireland: £60
-
Collect in CanterburyPick up and get set up at our store
-
Talk to a riderChat with our team
The Arid Carbon is Mondraker's gravel bike, and it draws heavily on the brand's mountain bike heritage to create a versatile, tough and genuinely trail-capable machine. Its Stealth Air carbon frame is light yet durable, and a distinctive twin-spar rear end adds compliance and comfort over rough ground.
The geometry borrows from the brand's mountain bikes, with a longer reach and slacker head angle for stability and confidence when the going gets technical. There's clearance for tyres up to 50mm wide, and integrated down tube storage with custom-fitted pouches keeps a spare tube and tools out of the way. BikeRadar summed it up with 4.5 stars, saying it was so capable on the trails they'd happily leave their mountain bike at home.
The RR build is the premium option, with SRAM's wireless Force XPLR AXS 1x12 groupset, a Force carbon crankset with built-in power meter, Mavic Allroad Pro Carbon SL wheels with fast-rolling 45mm Maxxis Reaver tyres and an OnOff S9 carbon flared bar.
Features
- Arid Stealth Air carbon frame with twin-spar rear end for compliance
- MTB-inspired geometry with longer reach and slacker head angle
- Clearance for tyres up to 50mm
- Integrated down tube storage with custom-fitted pouches
- SRAM Force XPLR eTap AXS wireless 1x12 groupset with 10-44T cassette
- SRAM Force carbon crankset with built-in power meter
- Mavic Allroad Pro Carbon SL wheels with Maxxis Reaver 700x45 tyres
- OnOff S9 GR carbon handlebar with 16° flare and S9 carbon seatpost
Sizing
- S: 155cm - 167cm
- M: 165cm - 177cm
- M/L: 173cm - 185cm
- L: 183cm - 193cm
- XL: 190cm+
Specifications
DisciplineGravel
MaterialCarbon
Wheel Size700c
WarrantyLifetime (frame)
Frame - Arid Stealth Air Carbon, in-tube storage, T47 bottom bracket, tapered head tube, HHG internal cable routing, 12x142mm rear axle, 1X drivetrain design, Flatmount brake compatible
Fork - Stealth Air Carbon, tapered steerer tube, HHG, flat mount integrated fork
Rims - Mavic Allroad Pro Carbon SL, UST, 25mm internal width, 42mm rim depth, hookless, Infinity hubs, 24 spokes
Rear hub - Mavic Infinity hub, 12x142mm, XD ID360 Ratchet system, IS 6 bolts, MS freehub
Front hub - Mavic, 12x100mm, IS 6 bolts
Spokes - Mavic steel double butted flat spokes
Tyres - Maxxis Reaver 700x45, tubeless ready, dual compound, EXO protection, 120TPI, folding bead
Rear derailleur - Sram Force XPLR eTap AXS, 12s
Shift levers - Sram Force eTap AXS, 12s
Crankset - SRAM Force 1 Carbon, power meter, DUB axle, S 170mm, M 170mm, ML 172.5mm, L 172.5mm, XL 175mm, CL 47.5
Chain - Sram Force, 12s, Powerlock
Cassette - Sram XG-1271, 10-44T, 12s
Brakes - SRAM Force eTap AXS 2 piece caliper, Paceline 160mm Centerlock rotor, steel-backed organic pad
Brake levers - Sram Force, contact point adjustment, tooled reach adjust
Handlebar - OnOff S9 GR Carbon, 16° bar flare, width S 440mm, M 440mm, ML 460mm, L 460mm, XL 460mm
Stem - Onoff Semi-Integrated, 31.8mm barbore, rise: -7°, length: S 60mm, M 70mm, ML 70mm, L 80mm, XL 90mm
Bar tape - OnOff HEX bar tape
Headset - Onoff IS52/IS52, 1-1/8", 1.5" head tube, sealed bearings, internal cable routing
Seatpost - Onoff S9 Carbon 0-R, diameter 27.2mm, length 400mm
Saddle - Fizik Terra Argo X5 140mm
