The Arid Carbon is Mondraker's gravel bike, and it draws heavily on the brand's mountain bike heritage to create a versatile, tough and genuinely trail-capable machine. Its Stealth Air carbon frame is light yet durable, and a distinctive twin-spar rear end adds compliance and comfort over rough ground.
The geometry borrows from the brand's mountain bikes, with a longer reach and slacker head angle for stability and confidence when the going gets technical. There's clearance for tyres up to 50mm wide, and integrated down tube storage with custom-fitted pouches keeps a spare tube and tools out of the way.
The Carbon R build brings wireless shifting into the mix with SRAM's Rival XPLR eTap AXS 1x12 groupset and hydraulic disc brakes, paired with tubeless-ready Mavic Allroad wheels, 45mm Maxxis Reaver tyres, an OnOff flared bar and a carbon seatpost.
Features
- Arid Stealth Air carbon frame with twin-spar rear end for compliance
- MTB-inspired geometry with longer reach and slacker head angle
- Clearance for tyres up to 50mm
- Integrated down tube storage with custom-fitted pouches
- SRAM Rival XPLR eTap AXS wireless 1x12 groupset with 10-44T cassette
- SRAM Rival hydraulic disc brakes with 160mm rotors
- Mavic Allroad Disc UST wheels with Maxxis Reaver 700x45 tyres
- OnOff S3 GR handlebar with 16° flare and S9 carbon seatpost
Sizing
- S: 155cm - 167cm
- M: 165cm - 177cm
- M/L: 173cm - 185cm
- L: 183cm - 193cm
- XL: 190cm+
Specifications
DisciplineGravel
MaterialCarbon
Wheel Size700c
WarrantyLifetime (frame)
Frame - Arid Stealth Air Carbon, in-tube storage, T47 bottom bracket, tapered head tube, HHG internal cable routing, 12x142mm rear axle, 1X drivetrain design, Flatmount brake compatible
Fork - Stealth Air Carbon, tapered steerer tube, HHG, flat mount integrated fork
Rims - Mavic Allroad Disc, UST, 25mm internal width, hookless, Infinity hubs, 24 spokes front, 28 spokes rear
Rear hub - Mavic Infinity hub, 12x142mm, XD ID360 Ratchet system, IS 6 bolts, MS freehub
Front hub - Mavic, 12x100mm, IS 6 bolts
Spokes - Mavic steel double butted flat spokes
Tyres - Maxxis Reaver 700x45, tubeless ready, dual compound, EXO protection, 120TPI, folding bead
Rear derailleur - Sram Rival XPLR eTap AXS, 12s
Shift levers - Sram Rival eTap AXS, 12s
Crankset - Sram Rival 1 DUB GLS Wide, S 170mm, M 170mm, ML 172.5mm, L 172.5mm, XL 175mm, CL 47.5
Chain - Sram Rival, 12s, Powerlock
Cassette - Sram XG-1251, 10-44T, 12s
Brakes - Sram Rival eTap AXS, 2 piece caliper, Paceline 160mm Centerlock rotor, steel-backed organic pad
Brake levers - Sram Rival, contact point adjustment, tooled reach adjust
Handlebar - OnOff S3 GR, 16° bar flare, width S 440mm, M 440mm, ML 460mm, L 460mm, XL 460mm
Stem - Onoff Semi-Integrated, 31.8mm barbore, rise: -7°, length: S 60mm, M 70mm, ML 70mm, L 80mm, XL 90mm
Bar tape - OnOff HEX bar tape
Headset - Onoff IS52/IS52, 1-1/8", 1.5" head tube, sealed bearings, internal cable routing
Seatpost - Onoff S9 Carbon 0-R, diameter 27.2mm, length 400mm
Saddle - Fizik Terra Argo X5 140mm

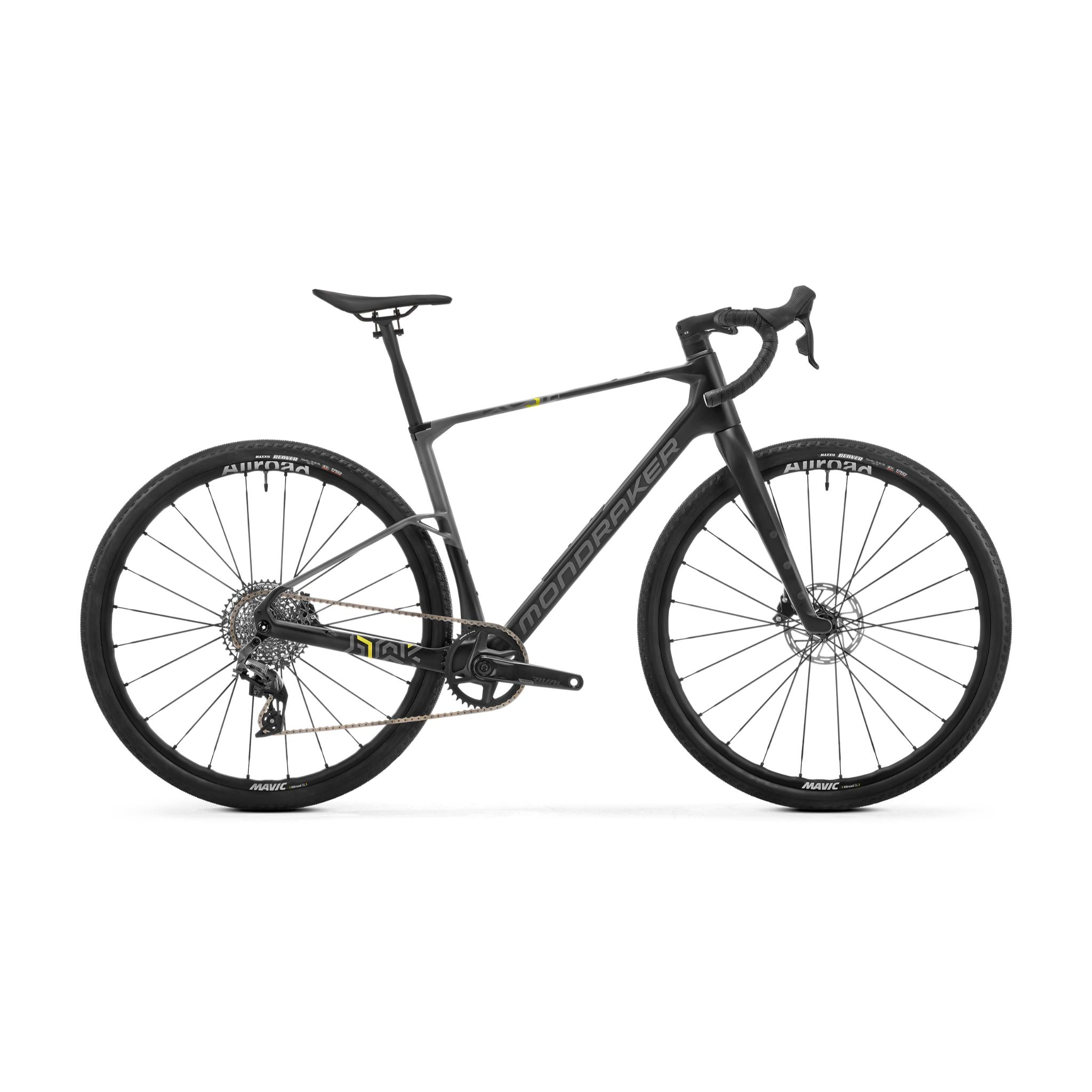

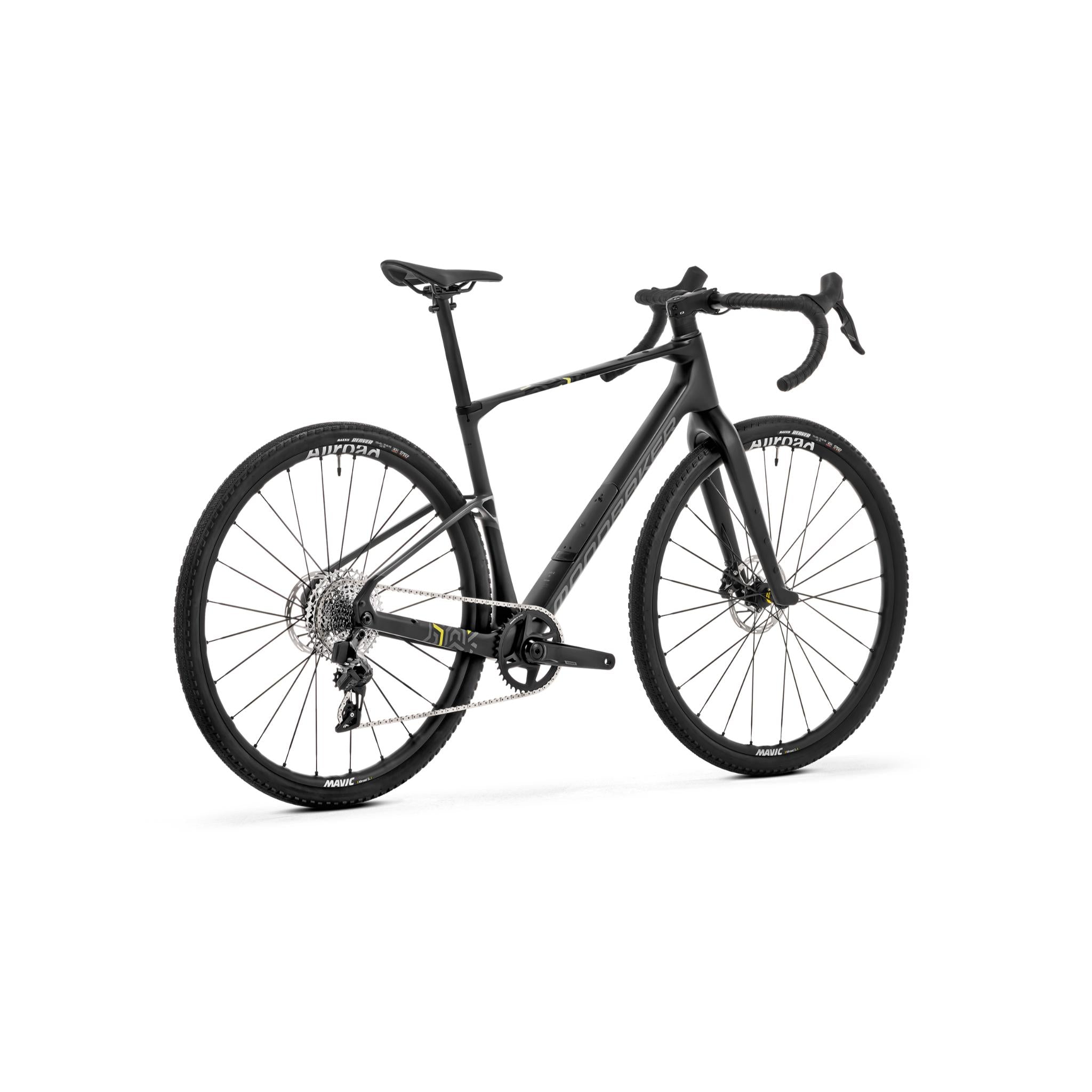

Arid Carbon R 2025
- Gravel
- 700c wheels
- Carbon frame
Finance available – see options
Order within [time] for delivery by [date]
90 Day Returns
Free product with this bike
Make your choice below
-
Pro builtBuilt and safety-checked by our mechanics before it leaves us
-
Free UK mainland courier deliveryNorthern Ireland: £60
-
Collect in CanterburyPick up and get set up at our store
-
Talk to a riderChat with our team
The Arid Carbon is Mondraker's gravel bike, and it draws heavily on the brand's mountain bike heritage to create a versatile, tough and genuinely trail-capable machine. Its Stealth Air carbon frame is light yet durable, and a distinctive twin-spar rear end adds compliance and comfort over rough ground.
The geometry borrows from the brand's mountain bikes, with a longer reach and slacker head angle for stability and confidence when the going gets technical. There's clearance for tyres up to 50mm wide, and integrated down tube storage with custom-fitted pouches keeps a spare tube and tools out of the way.
The Carbon R build brings wireless shifting into the mix with SRAM's Rival XPLR eTap AXS 1x12 groupset and hydraulic disc brakes, paired with tubeless-ready Mavic Allroad wheels, 45mm Maxxis Reaver tyres, an OnOff flared bar and a carbon seatpost.
Features
- Arid Stealth Air carbon frame with twin-spar rear end for compliance
- MTB-inspired geometry with longer reach and slacker head angle
- Clearance for tyres up to 50mm
- Integrated down tube storage with custom-fitted pouches
- SRAM Rival XPLR eTap AXS wireless 1x12 groupset with 10-44T cassette
- SRAM Rival hydraulic disc brakes with 160mm rotors
- Mavic Allroad Disc UST wheels with Maxxis Reaver 700x45 tyres
- OnOff S3 GR handlebar with 16° flare and S9 carbon seatpost
Sizing
- S: 155cm - 167cm
- M: 165cm - 177cm
- M/L: 173cm - 185cm
- L: 183cm - 193cm
- XL: 190cm+
Specifications
DisciplineGravel
MaterialCarbon
Wheel Size700c
WarrantyLifetime (frame)
Frame - Arid Stealth Air Carbon, in-tube storage, T47 bottom bracket, tapered head tube, HHG internal cable routing, 12x142mm rear axle, 1X drivetrain design, Flatmount brake compatible
Fork - Stealth Air Carbon, tapered steerer tube, HHG, flat mount integrated fork
Rims - Mavic Allroad Disc, UST, 25mm internal width, hookless, Infinity hubs, 24 spokes front, 28 spokes rear
Rear hub - Mavic Infinity hub, 12x142mm, XD ID360 Ratchet system, IS 6 bolts, MS freehub
Front hub - Mavic, 12x100mm, IS 6 bolts
Spokes - Mavic steel double butted flat spokes
Tyres - Maxxis Reaver 700x45, tubeless ready, dual compound, EXO protection, 120TPI, folding bead
Rear derailleur - Sram Rival XPLR eTap AXS, 12s
Shift levers - Sram Rival eTap AXS, 12s
Crankset - Sram Rival 1 DUB GLS Wide, S 170mm, M 170mm, ML 172.5mm, L 172.5mm, XL 175mm, CL 47.5
Chain - Sram Rival, 12s, Powerlock
Cassette - Sram XG-1251, 10-44T, 12s
Brakes - Sram Rival eTap AXS, 2 piece caliper, Paceline 160mm Centerlock rotor, steel-backed organic pad
Brake levers - Sram Rival, contact point adjustment, tooled reach adjust
Handlebar - OnOff S3 GR, 16° bar flare, width S 440mm, M 440mm, ML 460mm, L 460mm, XL 460mm
Stem - Onoff Semi-Integrated, 31.8mm barbore, rise: -7°, length: S 60mm, M 70mm, ML 70mm, L 80mm, XL 90mm
Bar tape - OnOff HEX bar tape
Headset - Onoff IS52/IS52, 1-1/8", 1.5" head tube, sealed bearings, internal cable routing
Seatpost - Onoff S9 Carbon 0-R, diameter 27.2mm, length 400mm
Saddle - Fizik Terra Argo X5 140mm
