Description
Mondraker's razor focussed gravel bike, in glorious new colour ways and bangin' build kits. The Arid is the leader of the new wave of drop-bar off-road bikes, finely tuned suspension and pro level components mean the Arid is rapid, engaging and most importantly, unbeatable on the trails.
The modern frame employs Mondraker's Stealth Air Carbon technology, delivering a lightweight yet durable structure. Notably, the Arid features a distinctive twin-spar rear design, enhancing compliance and comfort on rough terrains. The Arid weighs in at a svelte 8.8kg
Geometry-wise, the Arid incorporates a longer reach and slacker head angle, reminiscent of mountain bike configurations, promoting stability and confidence on challenging trails. The bike accommodates up to 50mm tires, offering adaptability across various surfaces. Practicality is further enhanced by integrated downtube storage, complete with custom-fitted pouches for essentials like spare tubes and tools.
Contact us at support@biketart.com to discuss components or to arrange a full custom built Arid Carbon
SIZING -
- S: <165cm
- M: 165-175cm
- M/L: 170-185cm
- L: 180-190cm
- XL: 190cm+
Specifications
-
Discipline Gravel
-
Material Carbon
-
Front Travel Rigid
-
Rear Travel N/A
-
Wheel Size 700c
-
Warranty Lifetime
Frame - Arid Stealth Air Carbon, in-tube storage, T47 bottom bracket, tapered head tube, HHG internal cable routing, 12x142mm rear axle, UDH, 1X drivetrain design, Flatmount brake compatible.
Fork - Steatlh Air Carbon tapered steerer tube, HHG, fllat mount integrated fork
Headset - Onoff IS52/IS52, 1-1/8", 1.5" head tube, sealed bearings, Internal cable routing.
Stem - Onoff Semi-Integrated, 31.8mm barbore, rise: -7°, length: S size: 60mm, M size: 70mm, ML size 70mm, L size: 80mm, XL size: 90mm
Seatpost - Onoff S9 Carbon 15-R, diameter 27.2mm, length: S size: 400mm, M size: 400mm, ML size 400mm, L size: 450m, XL size: 450mm
Display - Sram UDH

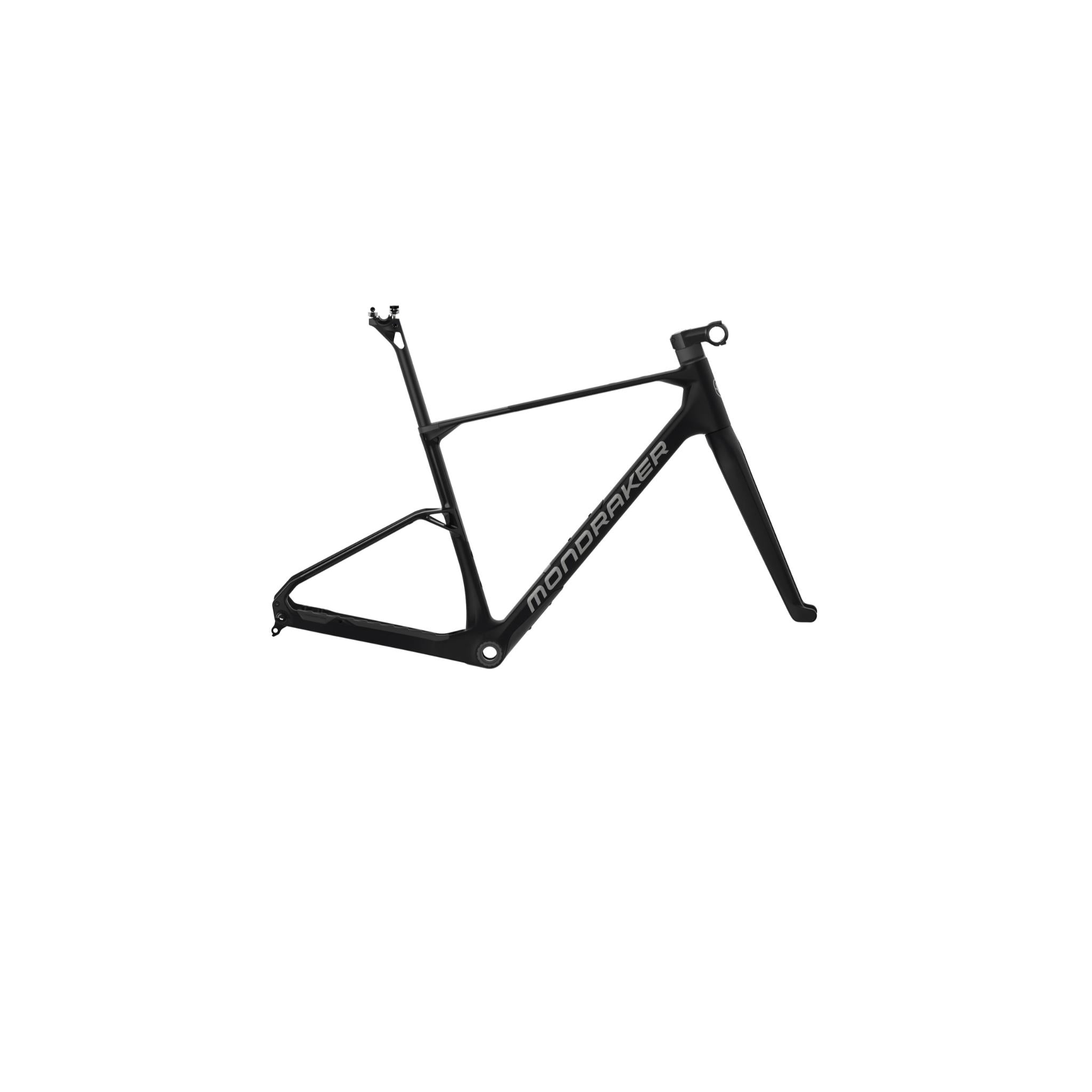

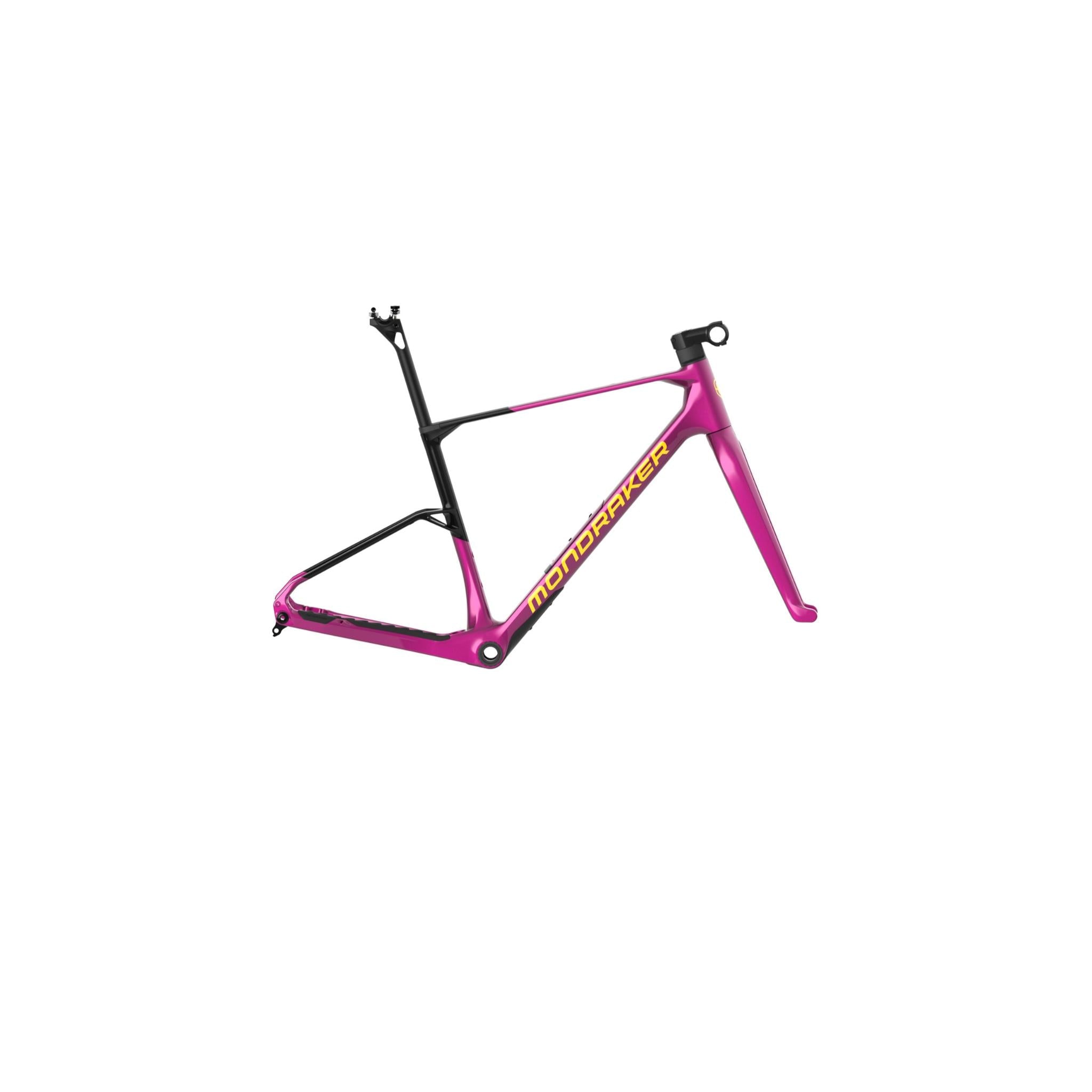

Mondraker Arid Carbon Frameset 2026
