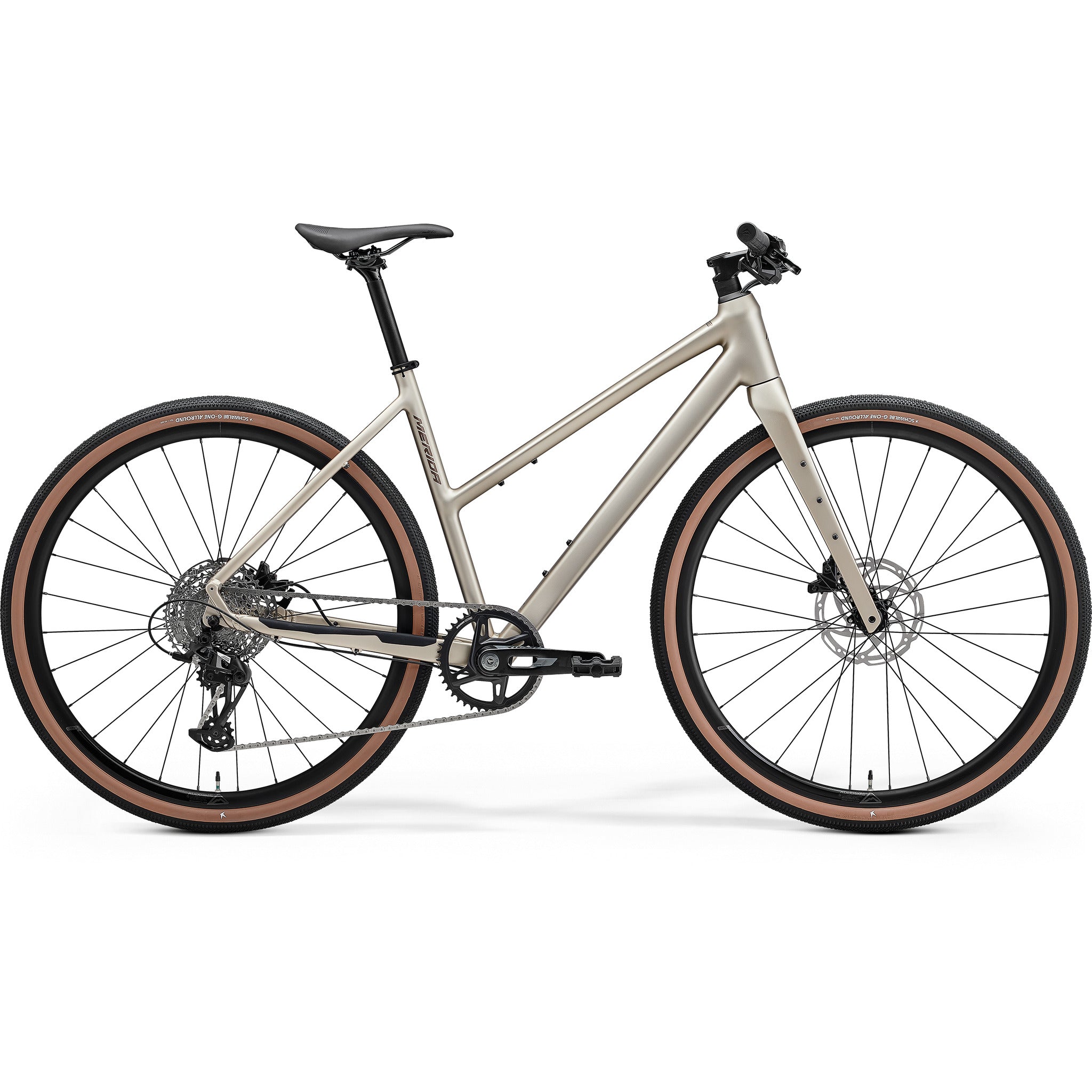

Same frame, same fork and the same groupset as the standard 500, built in XS, S and M and finished in Silk High Cream. The AL-A IV aluminium frame uses smoothed welds and internal cable routing, and the Silex II CF2 carbon fork is borrowed from the gravel range, which is what takes the buzz out of a rough road surface. Rack, mudguard and kickstand mounts mean it works as a year round bike as well as a fast one.
Gearing is SRAM's 1x12 XPLR: a Rival XPLR 42 tooth chainset, Apex XPLR rear derailleur and an 11-44 cassette, operated by an Eagle S200 trigger shifter. Braking is Tektro Orion M6020 hydraulic, the wheels are tubeless ready Merida Expert SL III rims on Shimano hubs, and Schwalbe G-One R 45mm tyres roll fast on tarmac while still coping with a gravel path.
Features
- AL-A IV aluminium frame with smoothed welds and internal cable routing
- Available in XS, S and M
- Silex II CF2 carbon fork, tapered
- SRAM 1x12 XPLR drivetrain, Rival XPLR 42 tooth chainset with 11-44 cassette
- SRAM Eagle S200 MMX trigger shifter and Apex XPLR rear derailleur
- Tektro Orion M6020 hydraulic disc brakes, 2 piston
- Schwalbe G-One R 45mm tyres, 700c
- Merida Expert SL III tubeless ready rims, 23mm internal width, 12mm front thru axle
- Mounts for rack, mudguards and kickstand
- Frame clearance for 700 x 50c tyres, carbon fork rated to 700 x 47c
Specifications
Discipline Hybrid/Commute
Material Aluminium
Front Travel Rigid
Wheel Size 700c
Frame - AL-A IV - aluminium. Internal cable routing. Tapered head tube, inboard disc mount, BSA BB standard, 100x12mm/135x9mm QR axles. Mounts for rack, mudguards and kickstand. Max tyre size 700 x 50c
Fork - Silex II CF2; Tapered; carbon; 700x47C max. wheel size
Headset - Acros ICR Merida external neck w/diecast splitring
Stem - Merida Team CC III; aluminium; 31.8mm diameter; -6° degree rise
Handlebar - Merida Expert CC; aluminium; 680mm wide; 10mm rise
Grips - Merida Comp TR
Brake Type - Hydraulic Disc
Brakes - Front: Tektro Orion M6020; 2 piston Rear: Tektro Orion M6020; 2 piston; incl. HD5.1 MMX adapter
Wheels - Rims: Merida Expert SL III; 23mm inner rim width; 26mm deep; aluminium; Tubeless ready (tubeless tape and valves not included) Spokes: Black stainless Front Hub: Shimano TC500; 100x12mm; 28 spoke; Centerlock Rear Hub: Shimano QC400-HM; 135x9mm; 32 spoke; centerlock
Tyres - Front: Schwalbe G-ONE R; 45x622 Rear: Schwalbe G-ONE R; 45x622
Wheel Size - 700c
Speeds - 12
Shifters - Rear: Sram Eagle S200 MMX
Rear Derailleur - Sram Apex XPLR
Chainset - Sram Rival XPLR; 42 teeth; Crank Length: 170mm for all sizes
Bottom Bracket - Sram DUB BSA Road Wide; 68mm
Chain - Sram Apex Flattop
Cassette - Sram PG-1231 XPLR; 11-44 teeth; 12 speed
Pedals - VP VPE-891
Saddle - Merida Comp SL; 25% recycled material; V-mount
Seat Post - Merida Comp CC; aluminium; 27.2mm diameter; in-line
