Description
Over time gravel has evolved, splitting in to racing and adventure. Silex remains all about the road less travelled, the spirit of adventure and camaraderie. The new Mission platform takes on the role of racing.
That's not to say the Silex was a slouch off-road, a week before its launch, Matej Mohoric won the 2023 Gravel World Championships!
The Silex concept was a ground up design that rather than taking a road or cyclocross bike and re-jigging the recipe, started with modern MTB inspired geometry; long top and head tubes and a short stem, offering nimble, confidence-inspiring off road handling. This 2nd gen frame runs a revised fork design meaning you can swap to a suspension fork without affecting the geometry.
All frames have five sets of bottle bosses, the aluminium frame has rack mounting points offering multiple luggage carrying options for any adventure and has the ability to run internal routed dropper posts and even dynamo systems.
All Silex (except the 200) feature powerful hydraulic disc brakes and 180mm rotors. Calipers are mounted on the chainstay for better dissipation of braking forces using the flat-mount standard for a neat, flush fit. On carbon models calipers sit on CNCd aluminium Disc Cooler fins reducing operating temperatures by up to 35%; particularly important when running fully loaded.
Specifications
Discipline
Material
Front Travel
Rear Travel
Wheel Size 700c
Warranty
Frame - CF2 carbon II, gravel geometry for stable but nimble handling. Tapered head tube Inboard disc mounts. Threaded BB, 142 x12mm axle standard, Disc Cooler technology, Max tyre size 700 x 45c (42c with mudguards)
Fork - Merida Silex II CF2; Tapered; material: carbon; 700x47C max. tyre size
Headset - Acros ICR Merida External neck w/diecast splitring
Stem - Merida Team CC III; material: aluminium; 31.8 mm diameter; -6 degree rise; Length: 80mm all sizes
Handlebar - Easton EC90 AX; material: carbon; (XXS-S) - 400mm wide, M - 420mm wide, (L-XL) - 440mm wide
Grip - Merida Road Expert
Brake Type - Hydraulic Disc
Brake Lever - Shimano GRX825 Di2
Front Brake - Shimano GRX825; Hydraulic disc with Shimano CL800; 180mm
Rear Brake - Shimano GRX825; Hydraulic disc with Shimano CL800; 180mm
Front Tyre - Maxxis Rambler; 700x45C; kevlar bead; TR; EXO
Rear Tyre - Maxxis Rambler; 700x45C; kevlar bead; TR; EXO
Wheel Size - 700c
Rim - Reynolds BL ATR Expert CL; 100x12mm; 142x12mm; 25mm inner rim width; 42mm rim depth; Centerlock; material: carbon
Spokes - Part of wheelset - Reynolds BL ATR Expert CL
Front Hub - Part of wheelset - Reynolds BL ATR Expert CL
Rear Hub - Part of wheelest - Reynolds BL ATR Expert CL
Speeds - 12
Rear Derailleur - Shimano GRX827 Di2
Shift Levers - Front: Shimano GRX825, Rear: Shimano GRX825 Di2
Chain - Shimano M6100-12
Cassette - Shimano CS-M8200; 10-51 teeth; 12 speed
Chainset - Shimano GRX820-1; 42 tooth chainset; Crank length: (XXS-M) - 170mm, (L-XL) - 172.5mm
Bottom Bracket - Shimano SM-BBR60
Pedals - Not included
Saddle - Prologo Scratch M5 AGX; V-mount adapter; incl. Merida minitool
Seat Post - Metron RS Seatpost; 27.2mm diameter; in-line; material: carbon

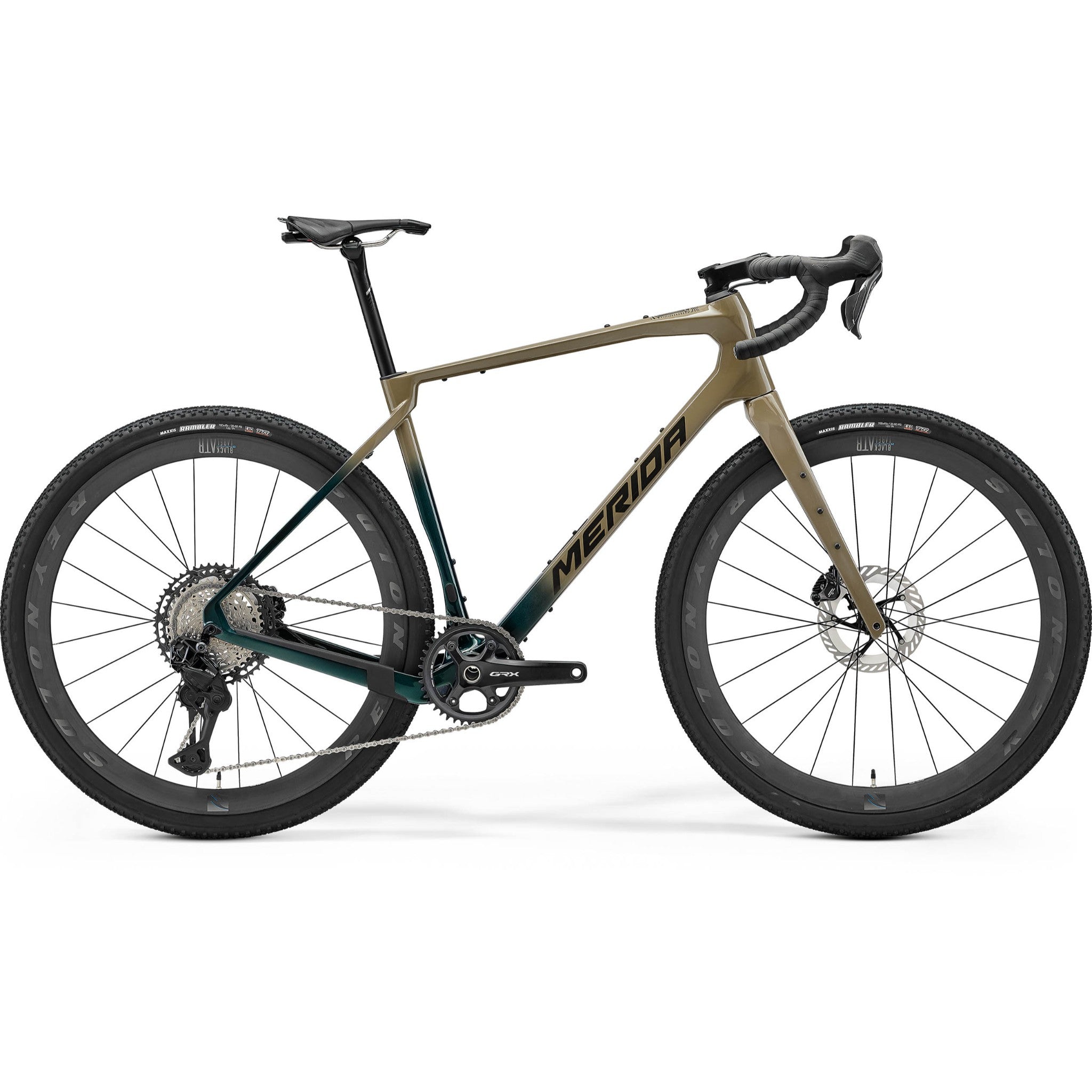

Merida Silex 9000 2026
