Top of the aluminium Silex bikes, the 700 is worth a look if you want the frame's load-carrying practicality with a drivetrain you would happily race. Shimano's GRX820 1x12 groupset is the centrepiece: a 42 tooth chainring, a GRX822 clutch rear derailleur and a 10-51 cassette, which covers everything from a fast fire road to a hike-a-bike gradient with no front shifter involved.
Braking is GRX820 hydraulic with 180mm RT64 rotors front and rear. The calipers are flat mount and sit inboard on the chainstay, which keeps the lines tidy and gives braking heat somewhere to go - worth knowing if you tend to ride loaded or in the hills. The Lite II aluminium frame brings internal cable routing, a threaded bottom bracket, five sets of bottle bosses and rack mounting points, plus routing for an internal dropper post. Because this is the second-generation frame and fork, you can swap in a suspension fork later without changing the geometry.
Wheels are Shimano's WH-RX180 gravel wheelset with a 25mm internal rim width, which supports the 45c Schwalbe G-One RX Performance tyres properly rather than pinching them into a light bulb shape. The finishing kit steps up too, with a carbon Expert SL seatpost, an Expert SL saddle with a Merida minitool tucked underneath and an 80mm Team CC III stem across all sizes. Pedals are not included.
Features
- Lite II 6066 triple butted aluminium frame with internal cable routing
- Silex II CF2 full carbon fork with tapered steerer
- Shimano GRX820 1x12 drivetrain with GRX822 clutch rear derailleur
- GRX820 42 tooth chainset with Shimano M7100 10-51 cassette
- Shimano GRX820 hydraulic disc brakes, 180mm RT64 rotors front and rear
- Shimano WH-RX180 wheelset, 25mm internal rim width, centrelock
- Schwalbe G-One RX Performance RaceGuard tubeless ready tyres, 700x45C
- Carbon Expert SL seatpost and Expert SL saddle with integrated minitool
- Team CC III 80mm aluminium stem on all sizes
- Five sets of bottle bosses plus rack mounting points
- Clearance for 700 x 45c tyres, 42c with mudguards
Specifications
Discipline Gravel
Material Aluminium
Front Travel Rigid
Wheel Size 700c
Gearing 1x12
Max Tyre 700 x 45c
Frame - Lite II - 6066 triple butted hydroformed and smooth welded aluminium with internal cable routing. Tapered head tube, Inboard disc mounts. Threaded BB, 142 x 12mm axle standard, Max tyre size 700 x 45c (42c with mudguards)
Fork - Merida Silex II CF2; Tapered; material: carbon; 700x47C max. tyre size
Headset - Acros ICR Merida External neck w/diecast splitring
Stem - Merida Team CC III; aluminium; 31.8 mm diameter; -6 degree rise; Length: 80mm all sizes
Handlebar - Merida Expert GRII; aluminium; (XXS, XS, S) - 400mm wide, (M) - 420mm wide, (L-XL) - 440mm wide
Grips - Merida Road Expert
Brake Type - Hydraulic Disc
Brake Levers - Shimano GRX820
Brakes - Front: Shimano GRX820; Hydraulic disc with Shimano RT64; 180mm rotor Rear: Shimano GRX820; Hydraulic disc with Shimano RT64; 180mm rotor
Wheels - Rims: Part of wheelset - Shimano WH-RX180; 25mm inner rim width; 25mm rim depth; aluminium Spokes: Part of wheelset - Shimano WH-RX180-700C Front Hub: Part of wheelset - Shimano WH-RX180, 100 x 12mm, centrelock Rear Hub: Part of wheelset - Shimano WH-RX180, 142 x 12mm, centrelock
Tyres - Front: Schwalbe G-ONE RX Performance Line; RaceGuard TLR; 700 x 45c Rear: Schwalbe G-ONE RX Performance Line; RaceGuard TLR; 700 x 45c
Wheel Size - 700c
Speeds - 12
Shifters - Shimano GRX827
Rear Derailleur - Shimano GRX822
Chainset - Shimano GRX820; 42 tooth chainset; Crank length: (XXS-M) - 170mm, (L-XL) - 172.5mm
Bottom Bracket - Shimano SM-BBR60
Chain - Shimano M6100-12
Cassette - Shimano M7100; 10-51 teeth; 12 speed
Pedals - Not included
Saddle - Merida Expert SL; 6% recycled and 23% natural material; V-mount; incl. Merida minitool
Seat Post - Merida Expert SL; 27.2mm diameter; in-line; carbon

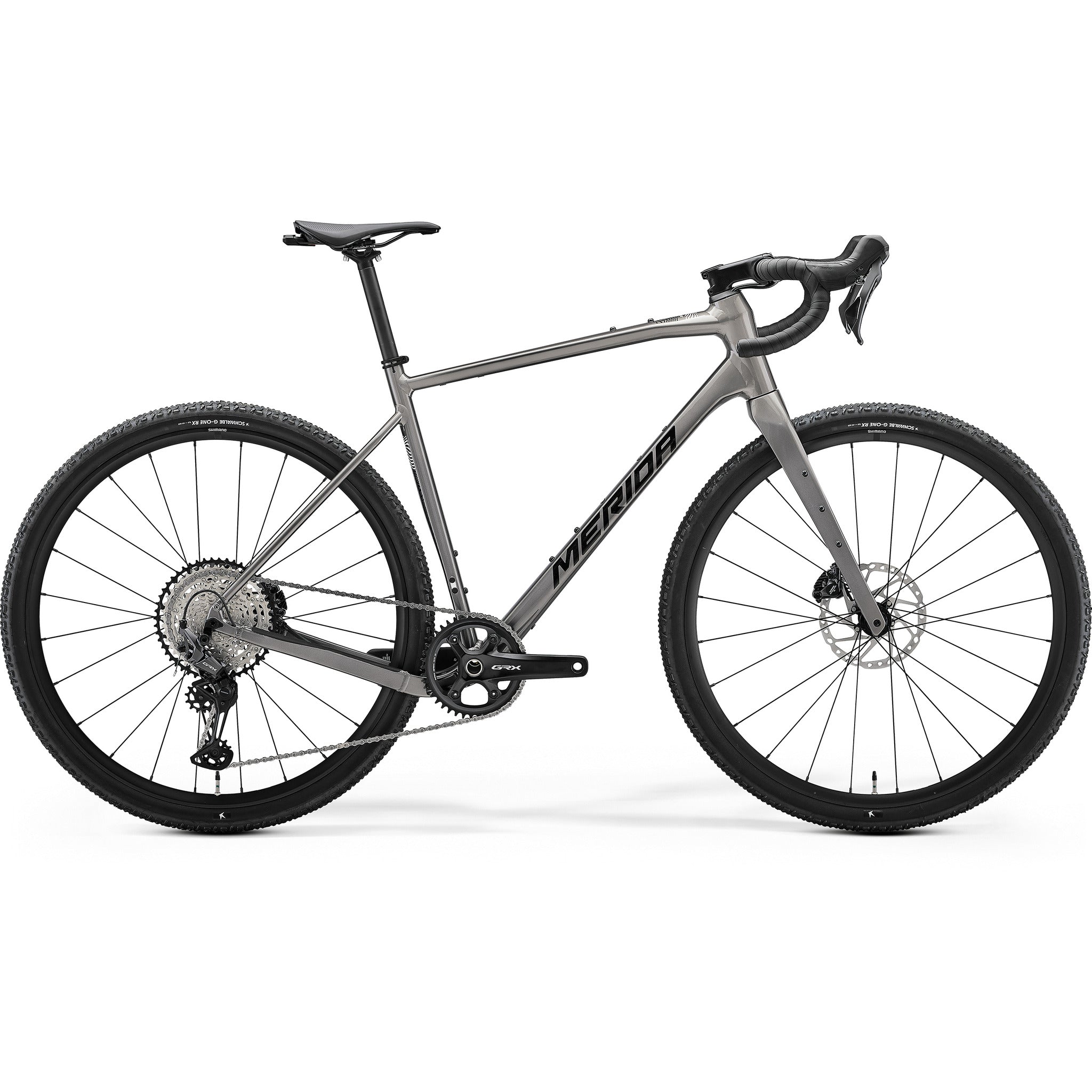

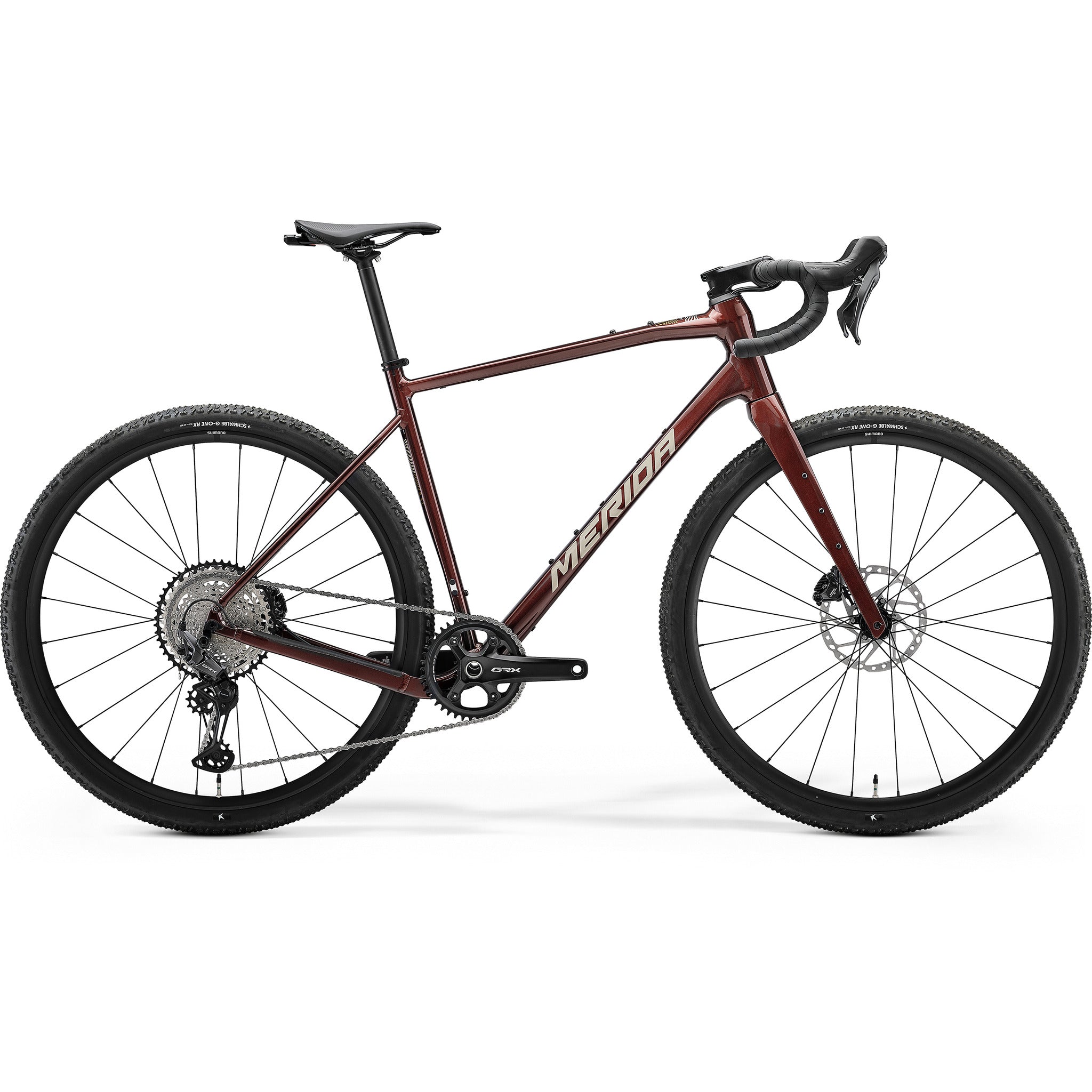

Silex 700 2027
Order within [time] for delivery by [date]
90 Day Returns
Top of the aluminium Silex bikes, the 700 is worth a look if you want the frame's load-carrying practicality with a drivetrain you would happily race. Shimano's GRX820 1x12 groupset is the centrepiece: a 42 tooth chainring, a GRX822 clutch rear derailleur and a 10-51 cassette, which covers everything from a fast fire road to a hike-a-bike gradient with no front shifter involved.
Braking is GRX820 hydraulic with 180mm RT64 rotors front and rear. The calipers are flat mount and sit inboard on the chainstay, which keeps the lines tidy and gives braking heat somewhere to go - worth knowing if you tend to ride loaded or in the hills. The Lite II aluminium frame brings internal cable routing, a threaded bottom bracket, five sets of bottle bosses and rack mounting points, plus routing for an internal dropper post. Because this is the second-generation frame and fork, you can swap in a suspension fork later without changing the geometry.
Wheels are Shimano's WH-RX180 gravel wheelset with a 25mm internal rim width, which supports the 45c Schwalbe G-One RX Performance tyres properly rather than pinching them into a light bulb shape. The finishing kit steps up too, with a carbon Expert SL seatpost, an Expert SL saddle with a Merida minitool tucked underneath and an 80mm Team CC III stem across all sizes. Pedals are not included.
Features
- Lite II 6066 triple butted aluminium frame with internal cable routing
- Silex II CF2 full carbon fork with tapered steerer
- Shimano GRX820 1x12 drivetrain with GRX822 clutch rear derailleur
- GRX820 42 tooth chainset with Shimano M7100 10-51 cassette
- Shimano GRX820 hydraulic disc brakes, 180mm RT64 rotors front and rear
- Shimano WH-RX180 wheelset, 25mm internal rim width, centrelock
- Schwalbe G-One RX Performance RaceGuard tubeless ready tyres, 700x45C
- Carbon Expert SL seatpost and Expert SL saddle with integrated minitool
- Team CC III 80mm aluminium stem on all sizes
- Five sets of bottle bosses plus rack mounting points
- Clearance for 700 x 45c tyres, 42c with mudguards
Specifications
Discipline Gravel
Material Aluminium
Front Travel Rigid
Wheel Size 700c
Gearing 1x12
Max Tyre 700 x 45c
Frame - Lite II - 6066 triple butted hydroformed and smooth welded aluminium with internal cable routing. Tapered head tube, Inboard disc mounts. Threaded BB, 142 x 12mm axle standard, Max tyre size 700 x 45c (42c with mudguards)
Fork - Merida Silex II CF2; Tapered; material: carbon; 700x47C max. tyre size
Headset - Acros ICR Merida External neck w/diecast splitring
Stem - Merida Team CC III; aluminium; 31.8 mm diameter; -6 degree rise; Length: 80mm all sizes
Handlebar - Merida Expert GRII; aluminium; (XXS, XS, S) - 400mm wide, (M) - 420mm wide, (L-XL) - 440mm wide
Grips - Merida Road Expert
Brake Type - Hydraulic Disc
Brake Levers - Shimano GRX820
Brakes - Front: Shimano GRX820; Hydraulic disc with Shimano RT64; 180mm rotor Rear: Shimano GRX820; Hydraulic disc with Shimano RT64; 180mm rotor
Wheels - Rims: Part of wheelset - Shimano WH-RX180; 25mm inner rim width; 25mm rim depth; aluminium Spokes: Part of wheelset - Shimano WH-RX180-700C Front Hub: Part of wheelset - Shimano WH-RX180, 100 x 12mm, centrelock Rear Hub: Part of wheelset - Shimano WH-RX180, 142 x 12mm, centrelock
Tyres - Front: Schwalbe G-ONE RX Performance Line; RaceGuard TLR; 700 x 45c Rear: Schwalbe G-ONE RX Performance Line; RaceGuard TLR; 700 x 45c
Wheel Size - 700c
Speeds - 12
Shifters - Shimano GRX827
Rear Derailleur - Shimano GRX822
Chainset - Shimano GRX820; 42 tooth chainset; Crank length: (XXS-M) - 170mm, (L-XL) - 172.5mm
Bottom Bracket - Shimano SM-BBR60
Chain - Shimano M6100-12
Cassette - Shimano M7100; 10-51 teeth; 12 speed
Pedals - Not included
Saddle - Merida Expert SL; 6% recycled and 23% natural material; V-mount; incl. Merida minitool
Seat Post - Merida Expert SL; 27.2mm diameter; in-line; carbon
