This is the point in the range where you get a proper gravel-specific groupset, and it makes a difference. Shimano GRX handles shifting and braking on the Silex 400: the levers are shaped for riding on the hoods over broken ground, and the clutch rear derailleur keeps the chain quiet when things get rough. Underneath, the Lite II aluminium frame is the same adventure-focused shape as the rest of the platform, with a long top tube and head tube, a short stem and clearance for 700 x 45c tyres.
The 400 runs a 2x10 setup - a 46-30 GRX600 chainset with an 11-36 cassette - which suits riders who mix plenty of road miles in with the gravel and want closer steps between gears. GRX400 hydraulic discs do the stopping, the Expert SL III rims are tubeless ready, and Schwalbe G-One Comp tyres come fitted at 45c. Rack mounts, five sets of bottle bosses and internal dropper routing mean it will take luggage or a bit of extra comfort later on, and the second-generation fork design lets you fit a suspension fork without upsetting the handling.
Features
- Lite II 6066 triple butted aluminium frame with internal cable routing
- Silex II CF2 full carbon fork with tapered steerer
- Shimano GRX 2x10 drivetrain, GRX600 46-30 chainset with 11-36 cassette
- Shimano GRX400 hydraulic disc brakes with GRX410 levers
- Schwalbe G-One Comp K-Guard tubeless ready tyres, 700x45C
- Merida Expert SL III tubeless ready rims, 23mm internal width, on Shimano TC500 hubs
- Expert GRII flared aluminium bar, width by frame size
- Five sets of bottle bosses plus rack mounting points
- Internal routing for a dropper post and dynamo
- Threaded bottom bracket and 142 x 12mm rear axle
- Clearance for 700 x 45c tyres, 42c with mudguards
Specifications
Discipline Gravel
Material Aluminium
Front Travel Rigid
Wheel Size 700c
Gearing 2x10
Max Tyre 700 x 45c
Frame - Lite II - 6066 triple butted hydroformed and smooth welded aluminium with internal cable routing. Tapered head tube, Inboard disc mounts. Threaded BB, 142 x 12mm axle standard, Max tyre size 700 x 45c (42c with mudguards)
Fork - Silex II CF2; Tapered; carbon; 700x47C max. wheel size
Headset - Acros ICR Merida external neck w/diecast splitring
Stem - Merida Team CC III; aluminium; 31.8mm diameter; -6° degree rise
Handlebar - Merida Expert GRII; aluminium; (XXS-S) - 400mm, M - 420mm, (L-XL) - 440mm
Grips - Merida ROAD Expert
Brake Type - Hydraulic Disc
Brake Levers - Shimano GRX 410
Brakes - Front: Shimano GRX400; Hydraulic Disc Rear: Shimano GRX400; Hydraulic Disc
Wheels - Rims: Merida Expert SL III; 23mm inner rim width; 26mm deep; aluminium; Tubeless ready (tubeless tape and valves not included) Spokes: Black stainless Front Hub: Shimano TC500; 100x12mm; 28 spoke; Centerlock Rear Hub: Shimano TC500-HM; 12-142mm; 28 spoke; Centerlock
Tyres - Front: Schwalbe G-One Comp K-Guard TLR; 700x45C Rear: Schwalbe G-One Comp K-Guard tubeless ready; 700x45C
Wheel Size - 700c
Speeds - 20
Shifters - Front: Shimano GRX 400; disc Rear: Shimano GRX 400; disc
Front Derailleur - Shimano GRX400
Rear Derailleur - Shimano GRX400
Chainset - Shimano GRX600; 46-30 teeth; Crank Length: (XXS-XS) - 165mm, (S-M) - 170mm, (L-XL) - 172.5mm
Bottom Bracket - Attached
Chain - KMC X10
Cassette - Shimano CS-HG50; 11-36 teeth; 10 speed
Saddle - Merida Comp SL; 25% recycled material; V-mount
Seat Post - Merida Comp CC; 27.2mm diameter; in-line; aluminium

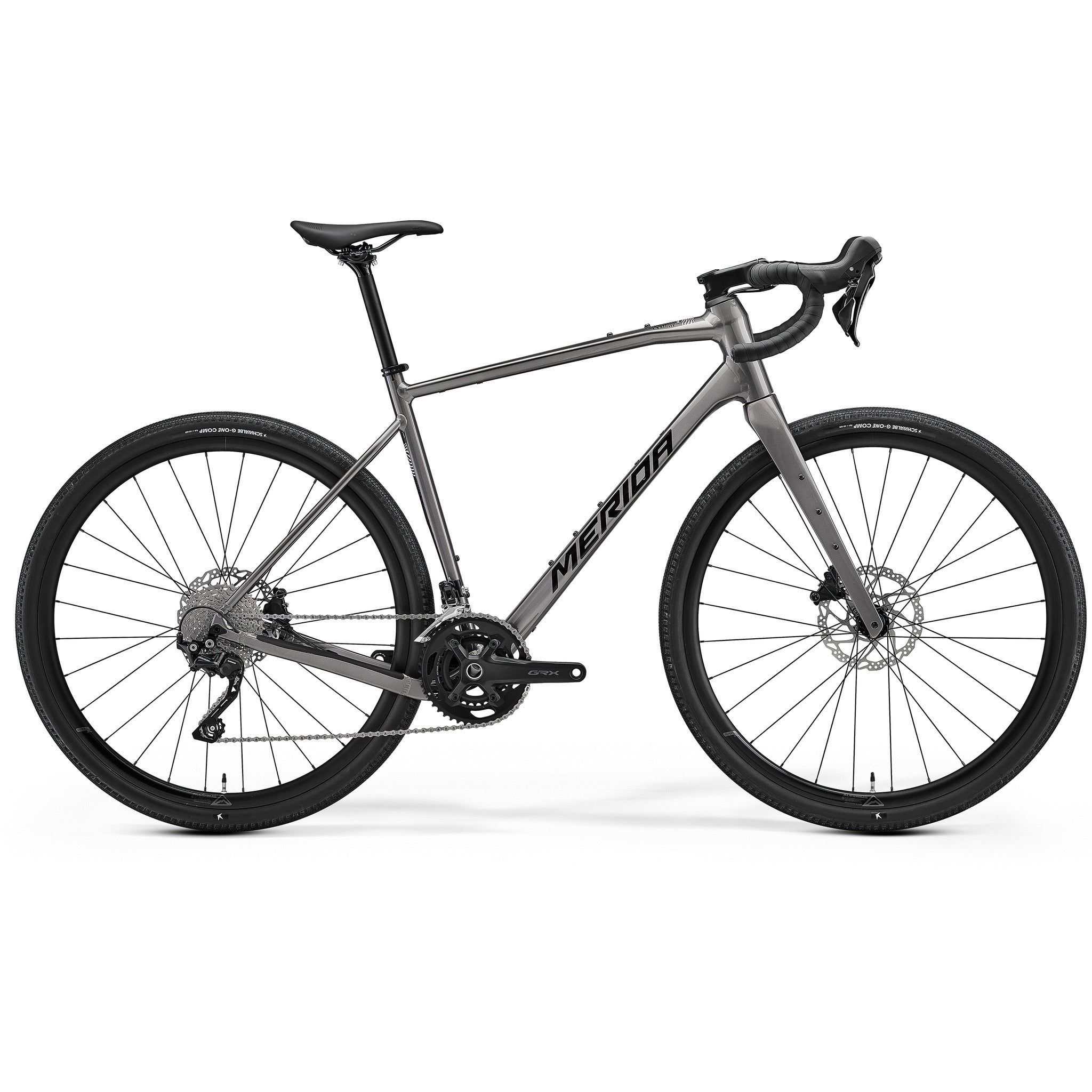

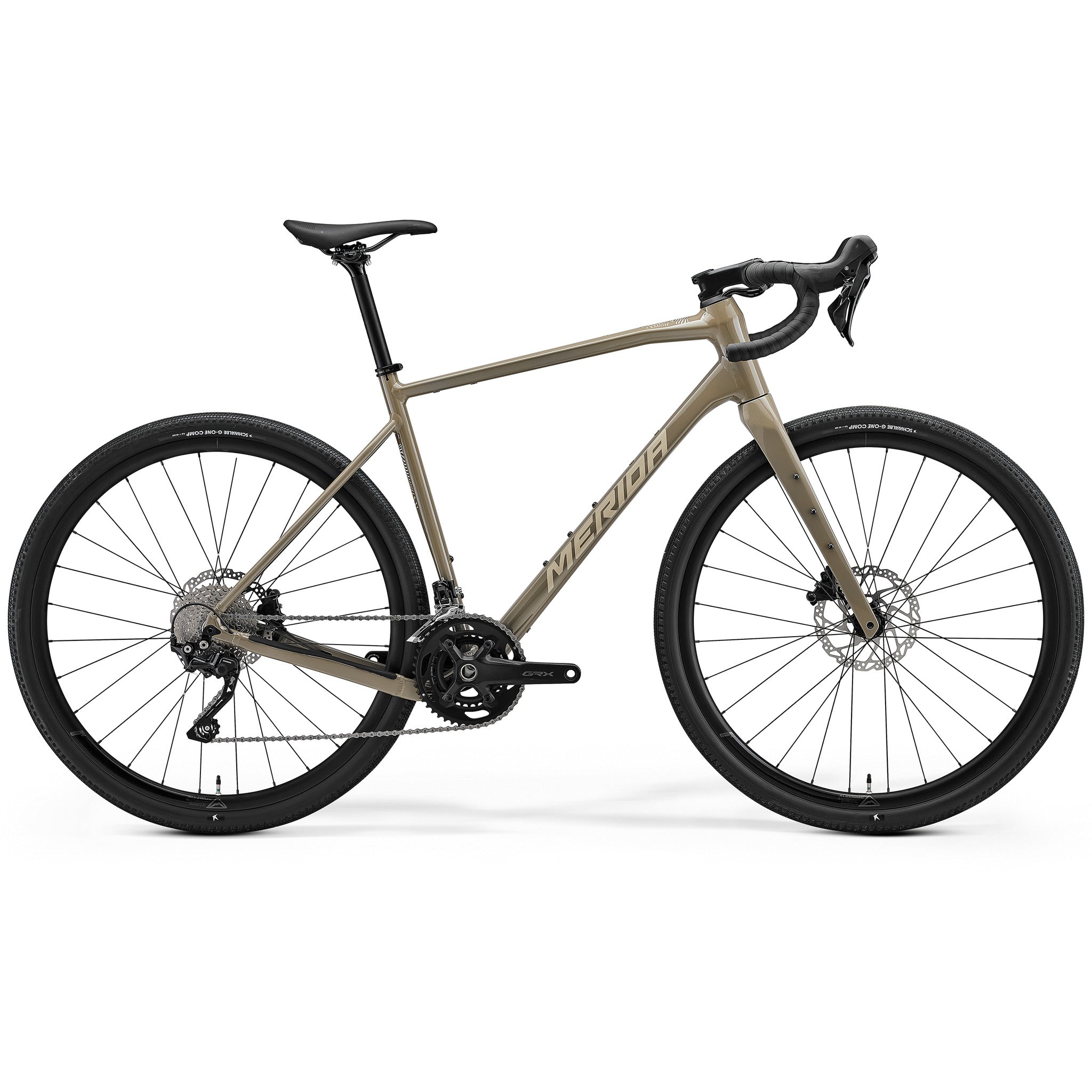

Silex 400 2027
