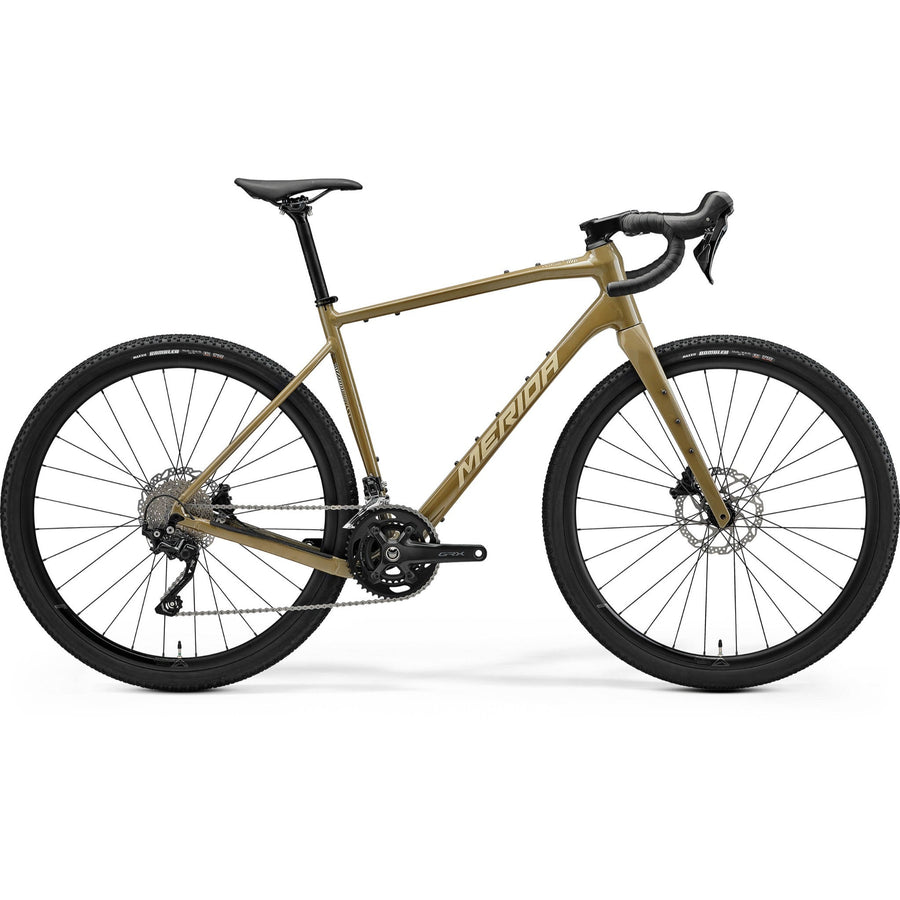

The Silex is Merida's modern gravel and adventure bike, available in a wide range of builds to suit every need and budget, so there's a Silex for anyone ready to explore the world of drop-bar off-roading.
The Silex 400 offers outstanding value, with a high-quality aluminium frame and full carbon fork that combine off-road-ready handling with all-road versatility. Its MTB-inspired geometry pairs a long top tube and head tube with a short stem for nimble, confident handling on loose surfaces, and the fork has mounts and routing for a dynamo hub.
Shimano's GRX groupset takes care of shifting and braking, with a 2x10 drivetrain offering a wide 46-30T and 11-36T gear range and powerful GRX hydraulic disc brakes with 180mm rotors. Maxxis Rambler 45mm tyres on tubeless-ready rims add grip and comfort, and multiple mounts let you carry bags, bottles and mudguards.
Features
- Robust Lite II aluminium frame with MTB-inspired gravel geometry
- Full carbon tapered fork with mounts and routing for a dynamo hub
- Shimano GRX 2x10 drivetrain with 46-30T chainset and 11-36T cassette
- Shimano GRX hydraulic disc brakes with 180mm rotors
- 12mm thru-axles front and rear
- Maxxis Rambler 45mm tyres on tubeless-ready rims
- Multiple mounting points for bags, cages and mudguards
Sizing
- XXS: under 155cm
- XS: 153cm - 164cm
- S: 165cm - 177cm
- M: 173cm - 185cm
- L: 181cm - 192cm
- XL: 188cm and over
Specifications
DisciplineGravel/
Adventure MaterialAluminium
Wheel Size700c
WarrantyLifetime
Frame - Lite II; 6066 triple butted hydroformed and smooth welded aluminium with internal cable routing. Tapered head tube, inboard disc mounts. Threaded BB, 142x12mm axle standard. Max tyre size 700x45c (42c with mudguards)
Fork - Merida Silex II CF2; tapered; material: carbon; 700x47c max tyre size
Headset - Acros ICR Merida external neck with diecast split ring
Stem - Merida Team CC III; material: aluminium; 31.8mm diameter; -6 degree rise; length: 80mm all sizes
Handlebar - Merida Expert GRII; material: aluminium; XXS-S 400mm wide, M 420mm wide, L-XL 440mm wide
Bar tape - Merida Road Expert
Brake type - Hydraulic disc
Brake levers - Shimano GRX 410
Front brake - Shimano GRX400; hydraulic disc with Shimano RT54; 180mm
Rear brake - Shimano GRX400; hydraulic disc with Shimano RT54; 180mm
Front tyre - Maxxis Rambler; 700x45c; Kevlar bead; TR; EXO
Rear tyre - Maxxis Rambler; 700x45c; Kevlar bead; TR; EXO
Wheel size - 700c
Rims - Merida Expert SL III; 23mm inner rim width; material: aluminium; tubeless ready (tubeless tape and valves not included)
Spokes - Black stainless
Front hub - Shimano HB-TC500; 100x12mm; 28 spoke; Centerlock
Rear hub - Shimano FH-TC500-HM; 12x142mm; 28 spoke; Centerlock
Speeds - 20
Front derailleur - Shimano GRX400
Rear derailleur - Shimano GRX400
Shift levers - Front: Shimano GRX 400 disc, Rear: Shimano GRX 400 disc
Chain - KMC X10
Cassette - Shimano CS-HG50; 11-36 teeth; 10 speed
Chainset - Shimano GRX600; 46-30 tooth; crank length: XXS-XS 165mm, S-M 170mm, L-XL 172.5mm
Bottom bracket - Attached
Pedals - Not included
Saddle - Merida Comp SL; 25% recycled material; V-mount
Seatpost - Merida Comp CC; 27.2mm diameter; in-line; material: aluminium
Silex 400 2026
- Gravel / Bikepacking/Adventure
- Alloy frame
Finance available – see options
Order within [time] for delivery by [date]
90 Day Returns
Free product with this bike
Make your choice below
-
Pro builtBuilt and safety-checked by our mechanics before it leaves us
-
Free UK mainland courier deliveryNorthern Ireland: £60
-
Collect in CanterburyPick up and get set up at our store
-
Talk to a riderChat with our team
The Silex is Merida's modern gravel and adventure bike, available in a wide range of builds to suit every need and budget, so there's a Silex for anyone ready to explore the world of drop-bar off-roading.
The Silex 400 offers outstanding value, with a high-quality aluminium frame and full carbon fork that combine off-road-ready handling with all-road versatility. Its MTB-inspired geometry pairs a long top tube and head tube with a short stem for nimble, confident handling on loose surfaces, and the fork has mounts and routing for a dynamo hub.
Shimano's GRX groupset takes care of shifting and braking, with a 2x10 drivetrain offering a wide 46-30T and 11-36T gear range and powerful GRX hydraulic disc brakes with 180mm rotors. Maxxis Rambler 45mm tyres on tubeless-ready rims add grip and comfort, and multiple mounts let you carry bags, bottles and mudguards.
Features
- Robust Lite II aluminium frame with MTB-inspired gravel geometry
- Full carbon tapered fork with mounts and routing for a dynamo hub
- Shimano GRX 2x10 drivetrain with 46-30T chainset and 11-36T cassette
- Shimano GRX hydraulic disc brakes with 180mm rotors
- 12mm thru-axles front and rear
- Maxxis Rambler 45mm tyres on tubeless-ready rims
- Multiple mounting points for bags, cages and mudguards
Sizing
- XXS: under 155cm
- XS: 153cm - 164cm
- S: 165cm - 177cm
- M: 173cm - 185cm
- L: 181cm - 192cm
- XL: 188cm and over
Specifications
DisciplineGravel/
Adventure MaterialAluminium
Wheel Size700c
WarrantyLifetime
Frame - Lite II; 6066 triple butted hydroformed and smooth welded aluminium with internal cable routing. Tapered head tube, inboard disc mounts. Threaded BB, 142x12mm axle standard. Max tyre size 700x45c (42c with mudguards)
Fork - Merida Silex II CF2; tapered; material: carbon; 700x47c max tyre size
Headset - Acros ICR Merida external neck with diecast split ring
Stem - Merida Team CC III; material: aluminium; 31.8mm diameter; -6 degree rise; length: 80mm all sizes
Handlebar - Merida Expert GRII; material: aluminium; XXS-S 400mm wide, M 420mm wide, L-XL 440mm wide
Bar tape - Merida Road Expert
Brake type - Hydraulic disc
Brake levers - Shimano GRX 410
Front brake - Shimano GRX400; hydraulic disc with Shimano RT54; 180mm
Rear brake - Shimano GRX400; hydraulic disc with Shimano RT54; 180mm
Front tyre - Maxxis Rambler; 700x45c; Kevlar bead; TR; EXO
Rear tyre - Maxxis Rambler; 700x45c; Kevlar bead; TR; EXO
Wheel size - 700c
Rims - Merida Expert SL III; 23mm inner rim width; material: aluminium; tubeless ready (tubeless tape and valves not included)
Spokes - Black stainless
Front hub - Shimano HB-TC500; 100x12mm; 28 spoke; Centerlock
Rear hub - Shimano FH-TC500-HM; 12x142mm; 28 spoke; Centerlock
Speeds - 20
Front derailleur - Shimano GRX400
Rear derailleur - Shimano GRX400
Shift levers - Front: Shimano GRX 400 disc, Rear: Shimano GRX 400 disc
Chain - KMC X10
Cassette - Shimano CS-HG50; 11-36 teeth; 10 speed
Chainset - Shimano GRX600; 46-30 tooth; crank length: XXS-XS 165mm, S-M 170mm, L-XL 172.5mm
Bottom bracket - Attached
Pedals - Not included
Saddle - Merida Comp SL; 25% recycled material; V-mount
Seatpost - Merida Comp CC; 27.2mm diameter; in-line; material: aluminium
