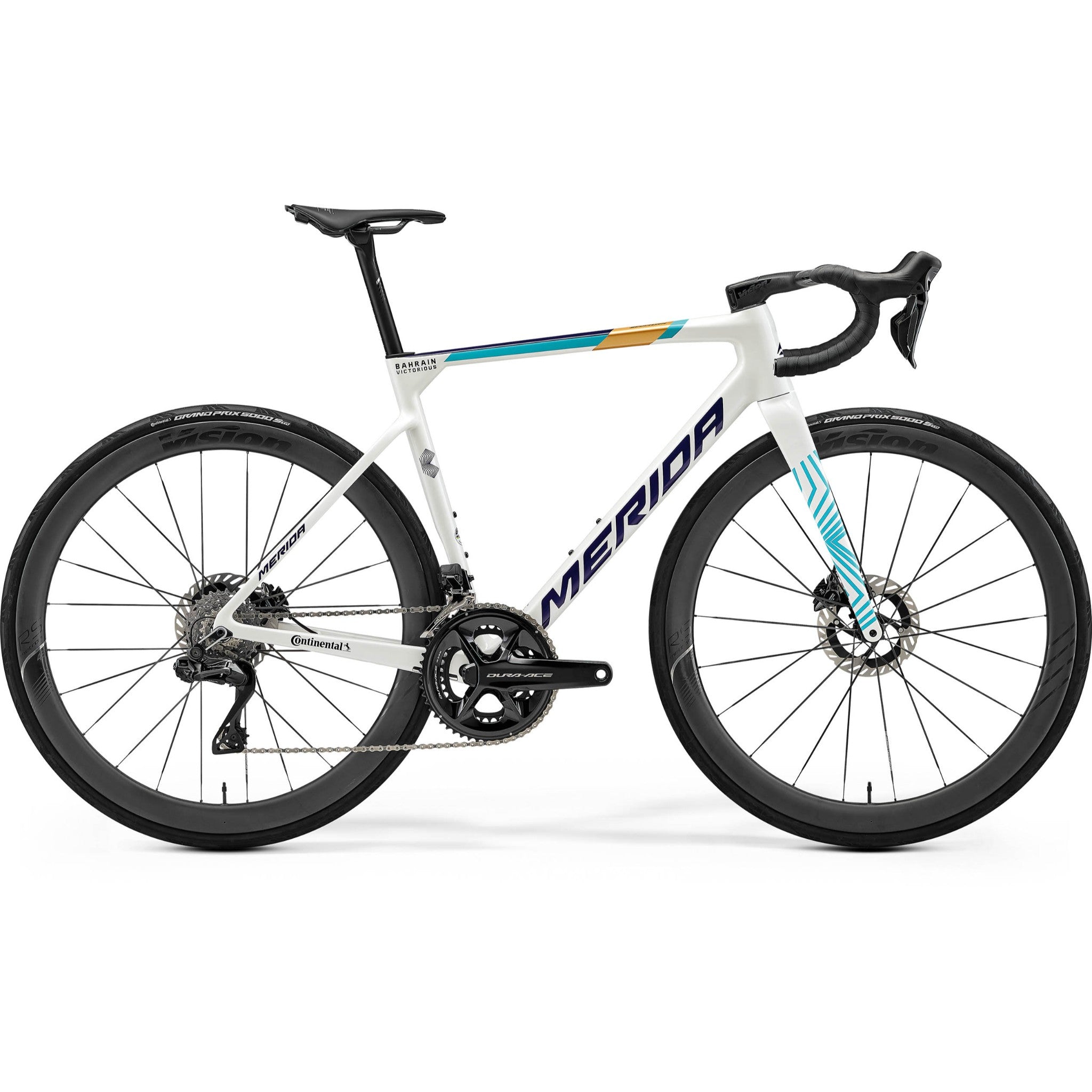

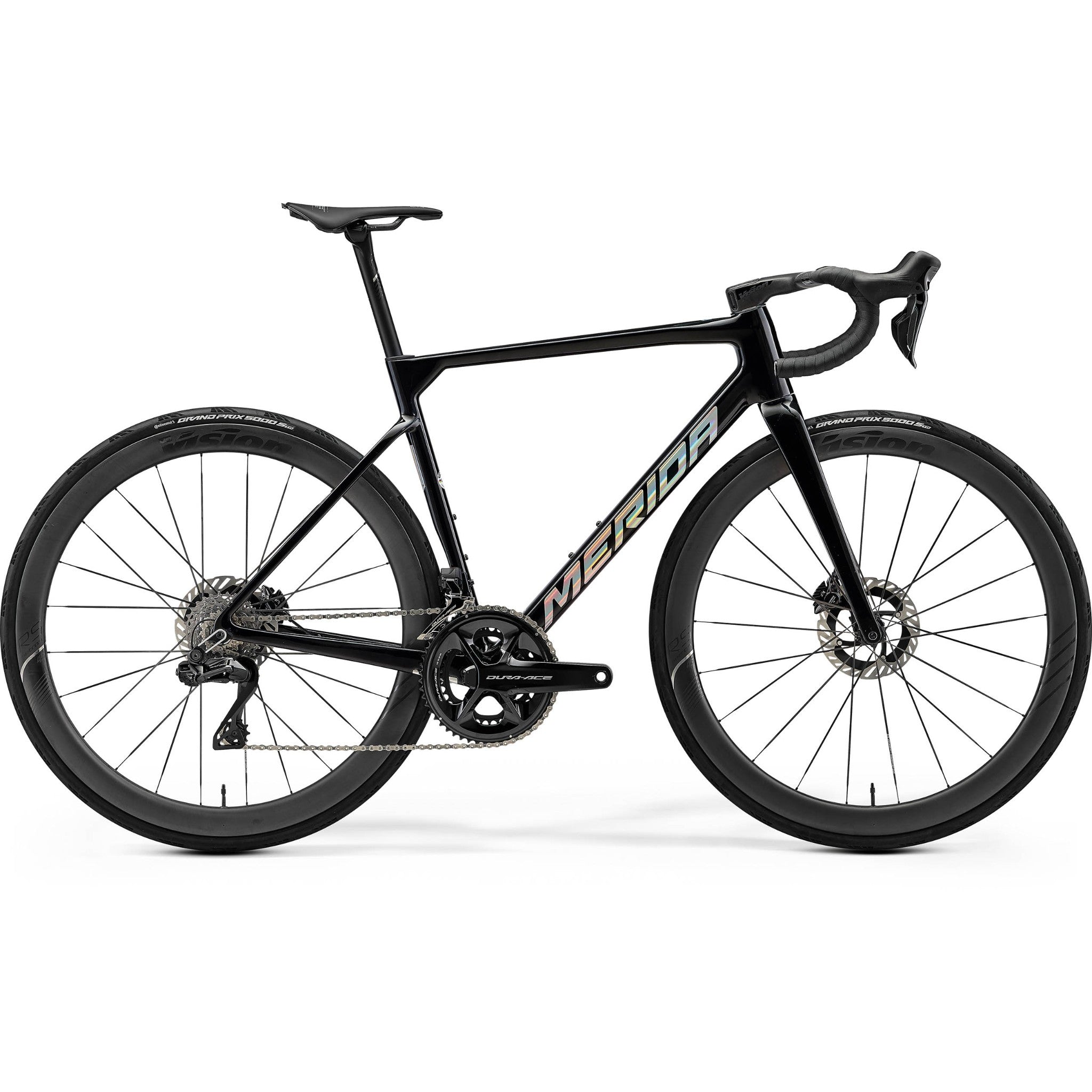

Raced and put through its paces by Team Bahrain Victorious, the Scultura Team is the comfort-focused alternative to the Reacto aero bike. While the latest Scultura has learned a lot from the Reacto in terms of aerodynamics, Merida have put extra effort into reducing the weight even further and making it the most comfortable pure road race bike in the range with lightning-fast acceleration.
Key Features -
- Superlight CF5 Carbon frame (approx 822g in size M)
- Full carbon tapered fork
- Shimano Dura Ace Di2 groupset
- Shimano Dura Ace Power meter
- Vision Metron 45 SL carbon wheelset with Continental Grand Prix 5000S TR 28c tyres
- Fully integrated carbon cockpit
- FSA K-Force Light SL carbon seat post
- Disc Cooler technology
SIZING -
- XS: 158-167cm
- S: 163-172cm
- M: 168-177cm
- L: 177-187cm
- XL: 183cm+
Specifications
-
Discipline Road
-
Material Carbon
-
Front Travel Rigid
-
Rear Travel N/A
-
Wheel Size 700c
-
Warranty Lifetime
Frame - CF5 V carbon - Premium fibres for lightweight and performance, race geometry. Internal cable routing, 142 x12mm axle standard, flat mount rear brakes with Disc Cooler, 1 1/2" to 1 1/4" headtube. Pressfit 86.5 BB Standard, Max tyre size - 30c
Fork - Scultura CF5 Disc; material: carbon; 700x30C max. tyre size
Headset - FSA ACR, SL bearing
Stem - Vision Metron 5D ACR EVO; material: carbon; Length: (XXXS-XS) - 90mm, S - 100mm, (M-L) - 110mm, XL - 120mm
Handlebar - Vision Metron 5D ACR EVO; material: carbon; (XXXS-S) - 380mm wide, (M-L) - 400mm wide, XL - 420mm wide
Grip - Prologo One-Touch
Brake Type - Hydraulic Disc
Brake Lever - Shimano Dura Ace disc
Front Brake - Shimano Dura Ace; Hydraulic disc with Shimano CL900; 160mm
Rear Brake - Shimano Dura Ace; Hydraulic disc with Shimano CL900; 160mm
Front Tyre - Continental Grand Prix 5000S TR; 700x28C; kevlar bead; tubeless ready
Rear Tyre - Continental Grand Prix 5000S TR; 700x28C; kevlar bead; tubeless ready
Wheel Size - 700c
Rim - Vision Metron RS 45 SL Clincher TL Disc; 100x12mm; 142x12mm; 23mm inner rim width; 45mm rim depth; Centerlock; material: carbon; Tubeless tape ready
Spokes - Part of wheelset - Vision Metron RS 45 SL Clincher TL Disc
Front Hub - Part of wheelset - Vision Metron RS 45 SL Clincher TL Disc
Rear Hub - Part of wheelest - Vision Metron RS 45 SL Clincher TL Disc
Speeds - 24
Front Derailleur - Shimano Dura Ace Di2
Rear Derailleur - Shimano Dura Ace Di2
Shift Levers - Front: Shimano Dura Ace Disc Di2, Rear: Shimano Dura Ace Disc Di2
Chain - Shimano M9100-12
Cassette - Shimano Dura-Ace R9200; 11-30 teeth; 12 speed
Chainset - Shimano Dura Ace; 52-36 tooth chainset; Power Meter; Crank length: XXXS - 160mm, (XXS-XS) - 165mm, (S-M) - 170mm, (L-XL) - 172.5mm
Bottom Bracket - Shimano SM-BB92-41B; Pressfit 86.5
Pedals - Not included
Saddle - Prologo Nago R4 PAS; Nack
Seat Post - Metron RS Seatpost; 27.2mm diameter; in-line; material: carbon
