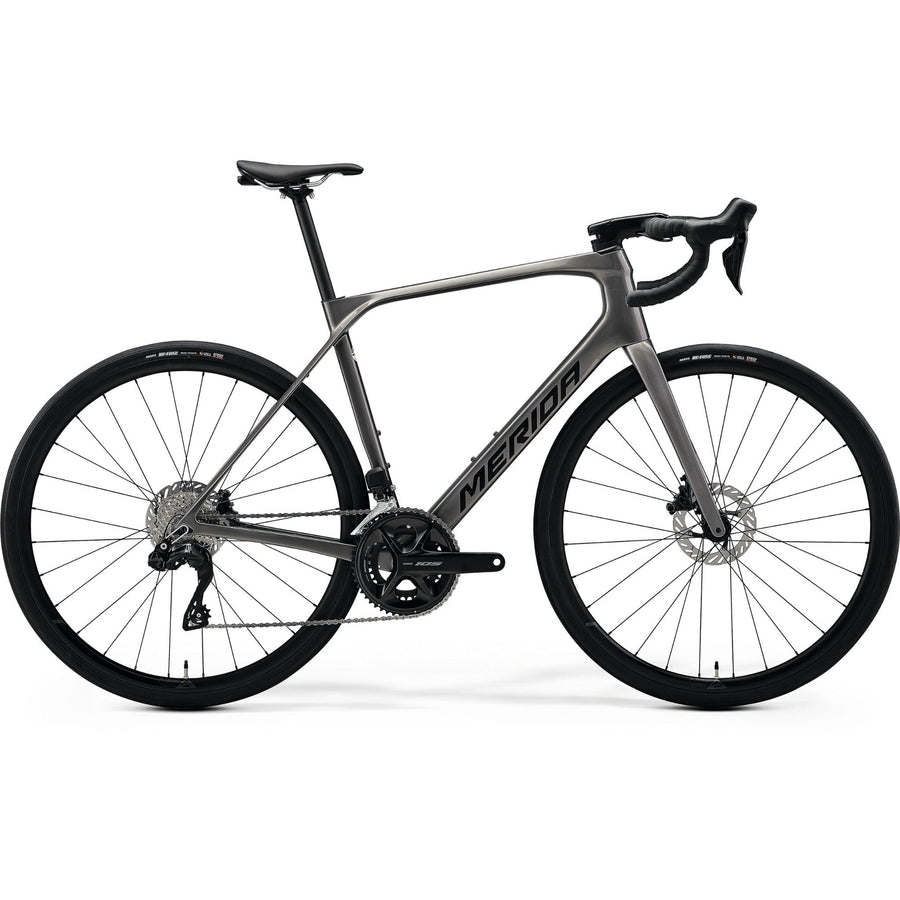

Positioned between the Silex and the Scultura in Merida's road range, the Scultura Endurance is made for tarmac adventures, with geometry designed for riders who want to spend long hours in the saddle feeling comfortable and relaxed. The Scultura Endurance 6000 pairs the CF3 carbon frame with Shimano's 105 Di2 electronic groupset.
Its comfort-focused geometry uses a longer head tube for a more upright riding position, while a slacker head angle and slightly longer wheelbase add stability at speed. To keep the frame stiff and the steering precise, it uses 12mm thru-axles and a full carbon tapered fork. There's room for tyres up to 35mm (32mm with mudguards), and bigger-volume tyres can run at lower pressures for extra comfort on rough, potholed lanes.
Gear and brake cables are routed through the headset to declutter the cockpit, the seat clamp is hidden and the rear seatstay bridge can be removed if you're not fitting mudguards. Shimano 105 hydraulic disc brakes sit on CNC-machined Disc Cooler fins that cut operating temperatures by up to 35%, with Maxxis Re-Fuse 32mm tyres and a carbon seatpost completing the build.
Features
- Comfortable, confidence-inspiring endurance geometry
- CF3 carbon frame with Nano Matrix and full carbon tapered fork
- Clearance for 35mm tyres, or 32mm with mudguards
- Shimano 105 Di2 2x12 electronic groupset with 50-34T compact chainset
- Shimano 105 hydraulic disc brakes with Disc Cooler technology
- Maxxis Re-Fuse 32mm tyres on tubeless-ready rims
- Carbon seatpost and integrated seat clamp
Specifications
DisciplineEndurance Road
MaterialCarbon
Wheel Size700c
WarrantyLifetime
Frame - CF3 carbon; Nano Matrix for impact resistance. Internal cable routing, 142x12mm axle standard, BB86 BB standard, flat mount rear brake with Disc Cooler, 1 1/2" head tube. Fully integrated seat clamp. Max tyre size 700x35c (700x32c with mudguard)
Fork - Scultura Endurance CF3 Disc; material: carbon; 700x35c max tyre size
Headset - Merida Team SL (SE-301 neck)
Stem - Merida Expert SL 2PII; material: aluminium; -9 degree rise; length: XXS-S 90mm, M 100mm, L-XL 110mm
Handlebar - Merida Expert SLII; material: aluminium; XXS-S 380mm wide, M-L 400mm wide, XL 420mm wide
Bar tape - Merida Road Expert
Brake type - Hydraulic disc
Brake levers - Shimano 105
Front brake - Shimano 105; hydraulic disc with Shimano CL700; 160mm
Rear brake - Shimano 105; hydraulic disc with Shimano CL700; 160mm
Front tyre - Maxxis Re-Fuse; 700x32c; Kevlar bead
Rear tyre - Maxxis Re-Fuse; 700x32c; Kevlar bead
Wheel size - 700c
Rims - Merida Expert SL III; 23mm inner rim width; material: aluminium; tubeless ready (tubeless tape and valves not included)
Spokes - Double butted black stainless
Front hub - Shimano HB-TC500; 100x12mm; 28 spoke; Centerlock
Rear hub - Shimano FH-TC500-HL; 12x142mm; 28 spoke; Centerlock
Speeds - 24
Front derailleur - Shimano 105 Di2
Rear derailleur - Shimano 105 Di2
Shift levers - Front: Shimano 105 Disc Di2, Rear: Shimano 105 Disc Di2
Chain - Shimano M6100-12
Cassette - Shimano 105 R7101; 11-34 teeth; 12 speed
Chainset - Shimano 105 R7100; 50-34 tooth; crank length: XXS-XS 165mm, S-M 170mm, L-XL 172.5mm
Bottom bracket - Shimano SM-BB71-41B; Pressfit 86.5
Pedals - Not included
Saddle - Merida Expert SL; 6% recycled and 23% natural material; V-mount; incl. Merida mini tool
Seatpost - Merida Expert SL; 27.2mm diameter; in-line; material: carbon
Scultura Endurance 6000 2026
- Road
- Carbon frame
Finance available – see options
Order within [time] for delivery by [date]
90 Day Returns
Free product with this bike
Make your choice below
-
Pro builtBuilt and safety-checked by our mechanics before it leaves us
-
Free UK mainland courier deliveryNorthern Ireland: £60
-
Collect in CanterburyPick up and get set up at our store
-
Talk to a riderChat with our team
Positioned between the Silex and the Scultura in Merida's road range, the Scultura Endurance is made for tarmac adventures, with geometry designed for riders who want to spend long hours in the saddle feeling comfortable and relaxed. The Scultura Endurance 6000 pairs the CF3 carbon frame with Shimano's 105 Di2 electronic groupset.
Its comfort-focused geometry uses a longer head tube for a more upright riding position, while a slacker head angle and slightly longer wheelbase add stability at speed. To keep the frame stiff and the steering precise, it uses 12mm thru-axles and a full carbon tapered fork. There's room for tyres up to 35mm (32mm with mudguards), and bigger-volume tyres can run at lower pressures for extra comfort on rough, potholed lanes.
Gear and brake cables are routed through the headset to declutter the cockpit, the seat clamp is hidden and the rear seatstay bridge can be removed if you're not fitting mudguards. Shimano 105 hydraulic disc brakes sit on CNC-machined Disc Cooler fins that cut operating temperatures by up to 35%, with Maxxis Re-Fuse 32mm tyres and a carbon seatpost completing the build.
Features
- Comfortable, confidence-inspiring endurance geometry
- CF3 carbon frame with Nano Matrix and full carbon tapered fork
- Clearance for 35mm tyres, or 32mm with mudguards
- Shimano 105 Di2 2x12 electronic groupset with 50-34T compact chainset
- Shimano 105 hydraulic disc brakes with Disc Cooler technology
- Maxxis Re-Fuse 32mm tyres on tubeless-ready rims
- Carbon seatpost and integrated seat clamp
Specifications
DisciplineEndurance Road
MaterialCarbon
Wheel Size700c
WarrantyLifetime
Frame - CF3 carbon; Nano Matrix for impact resistance. Internal cable routing, 142x12mm axle standard, BB86 BB standard, flat mount rear brake with Disc Cooler, 1 1/2" head tube. Fully integrated seat clamp. Max tyre size 700x35c (700x32c with mudguard)
Fork - Scultura Endurance CF3 Disc; material: carbon; 700x35c max tyre size
Headset - Merida Team SL (SE-301 neck)
Stem - Merida Expert SL 2PII; material: aluminium; -9 degree rise; length: XXS-S 90mm, M 100mm, L-XL 110mm
Handlebar - Merida Expert SLII; material: aluminium; XXS-S 380mm wide, M-L 400mm wide, XL 420mm wide
Bar tape - Merida Road Expert
Brake type - Hydraulic disc
Brake levers - Shimano 105
Front brake - Shimano 105; hydraulic disc with Shimano CL700; 160mm
Rear brake - Shimano 105; hydraulic disc with Shimano CL700; 160mm
Front tyre - Maxxis Re-Fuse; 700x32c; Kevlar bead
Rear tyre - Maxxis Re-Fuse; 700x32c; Kevlar bead
Wheel size - 700c
Rims - Merida Expert SL III; 23mm inner rim width; material: aluminium; tubeless ready (tubeless tape and valves not included)
Spokes - Double butted black stainless
Front hub - Shimano HB-TC500; 100x12mm; 28 spoke; Centerlock
Rear hub - Shimano FH-TC500-HL; 12x142mm; 28 spoke; Centerlock
Speeds - 24
Front derailleur - Shimano 105 Di2
Rear derailleur - Shimano 105 Di2
Shift levers - Front: Shimano 105 Disc Di2, Rear: Shimano 105 Disc Di2
Chain - Shimano M6100-12
Cassette - Shimano 105 R7101; 11-34 teeth; 12 speed
Chainset - Shimano 105 R7100; 50-34 tooth; crank length: XXS-XS 165mm, S-M 170mm, L-XL 172.5mm
Bottom bracket - Shimano SM-BB71-41B; Pressfit 86.5
Pedals - Not included
Saddle - Merida Expert SL; 6% recycled and 23% natural material; V-mount; incl. Merida mini tool
Seatpost - Merida Expert SL; 27.2mm diameter; in-line; material: carbon
