Carbon starts here in the endurance range. The Scultura Endurance 4000 uses the CF3 carbon frame and matching CF3 carbon fork, with Nano Matrix resin worked into the layup to improve impact resistance, and builds it up with a mechanical Shimano 105 groupset.
The geometry is what makes this bike worth a look if you are not chasing a race position. A longer head tube gives you a more upright, sustainable posture, while a slacker head angle and slightly longer wheelbase keep the bike calm at speed and forgiving late in a ride. Tyre clearance runs to 35c, or 32c with mudguards fitted, so you can fit larger volume rubber and run lower pressures on broken tarmac.
The frame details are tidy rather than showy. Cables route internally through the headset, the seat clamp is fully integrated, the rear seat stay bridge can be removed if you are not running mudguards, and the flat mount rear caliper sits on CNC machined aluminium Disc Cooler fins that the brand says cut brake operating temperatures by up to 35%. The rear end uses a 142 x 12mm axle and the bottom bracket is BB86 pressfit.
The build is 2 x 12 Shimano 105 throughout, with an 11-34 cassette, 50-34 chainset and 105 hydraulic disc brakes. Merida Expert SL III alloy rims are laced to Shimano TC500 Centerlock hubs and are tubeless ready, Maxxis RE-FUSE 32c tyres add some puncture protection for winter miles, and the seatpost is carbon. The stem includes a SMART MOUNT fitting for a computer or light.
Features
- CF3 carbon frame with Nano Matrix resin for improved impact resistance
- Matching Scultura Endurance CF3 carbon fork, 12mm bolt-through axles front and rear
- Endurance geometry: longer head tube, slacker head angle, longer wheelbase
- Shimano 105 R7100 2 x 12 mechanical drivetrain, 11-34 cassette and 50-34 chainset
- Shimano 105 hydraulic disc brakes, rear caliper flat mounted onto Disc Cooler fins
- Tubeless-ready Merida Expert SL III alloy wheels on Shimano TC500 Centerlock hubs
- Maxxis RE-FUSE 32c tyres, carbon Expert SL seatpost and a SMART MOUNT stem
- Clearance for 35c tyres, or 32c with mudguards fitted
Specifications
Discipline Road
Material Carbon
Groupset Shimano 105 2x12
Brakes Hydraulic disc
Wheel Size 700c
Max Tyre 35c
Frame - CF3 carbon, Nano Matrix for impact resistance. Internal cable routing, 142 x12mm axle standard, BB86 BB standard, flat mount rear brake with Disc Cooler, 1 1/2 headtube. Fully integrated seat clamp. Max tyre size 700 x 35c (700 x 32c with mudguard)
Fork - Scultura Endurance CF3 Disc; carbon; 700x35C max. wheel size
Headset - Merida Team SL (SE-301 neck)
Stem - Merida Expert SL 2PII; aluminium; -9° degree rise; incl. Merida SMART MOUNT
Handlebar - Merida Expert SL II; aluminium; (3XS-S) - 380mm, (M-L) - 400mm, XL - 420mm
Grips - Merida ROAD Expert
Brake Type - Hydraulic Disc
Brake Levers - Shimano 105
Brakes - Front: Shimano 105; Disc Rear: Shimano 105; Disc
Wheels - Rims: Merida Expert SL III; 23mm inner rim width; aluminium; Tubeless ready (tubeless tape and valves not included) Spokes: Double Butted Black stainless Front Hub: Shimano TC500; 100x12mm; 28 spoke; Centerlock Rear Hub: Shimano TC500-HL; 12x142mm; 28 spoke; Centerlock
Tyres - Front: Maxxis RE-FUSE; 700x32C; fold Rear: Maxxis RE-FUSE; 700x32C; fold
Wheel Size - 700c
Speeds - 24
Shifters - Front: Shimano 105 disc Rear: Shimano 105 disc
Front Derailleur - Shimano 105
Rear Derailleur - Shimano 105; GS
Chainset - Shimano 105 R7100; 50-34 teeth; Crank Length: (XXS-XS) - 165mm, (S-M) - 170mm, (L-XL) - 172.5mm
Bottom Bracket - Shimano SM-BB71-41B; Pressfit 86.5mm
Chain - Shimano M6100-12
Cassette - Shimano 105 R7101; 11-34 teeth; 12 speed
Saddle - Merida Comp SL; 25% recycled material; V-mount
Seat Post - Merida Expert SL; 27.2mm diameter; in-line; Carbon

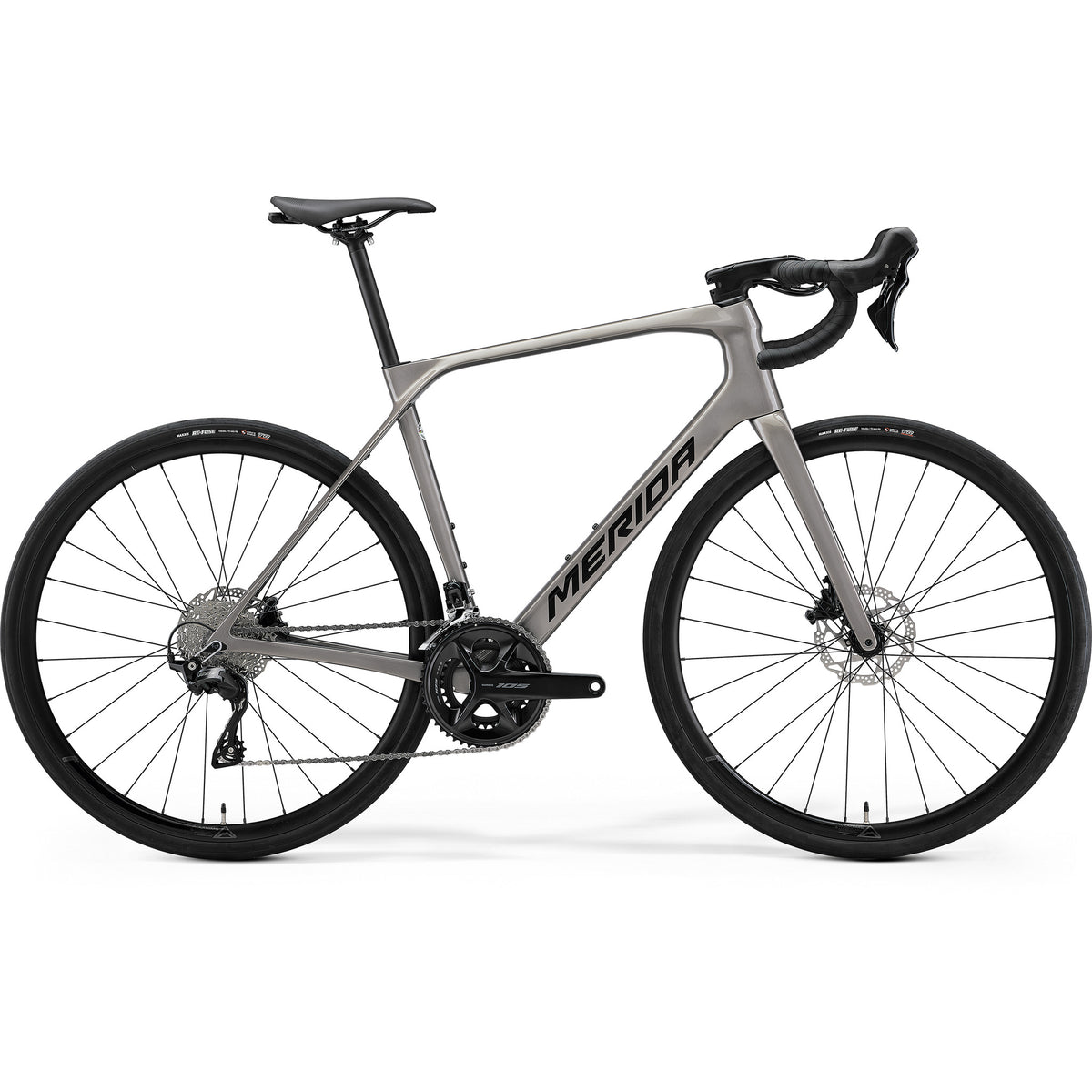

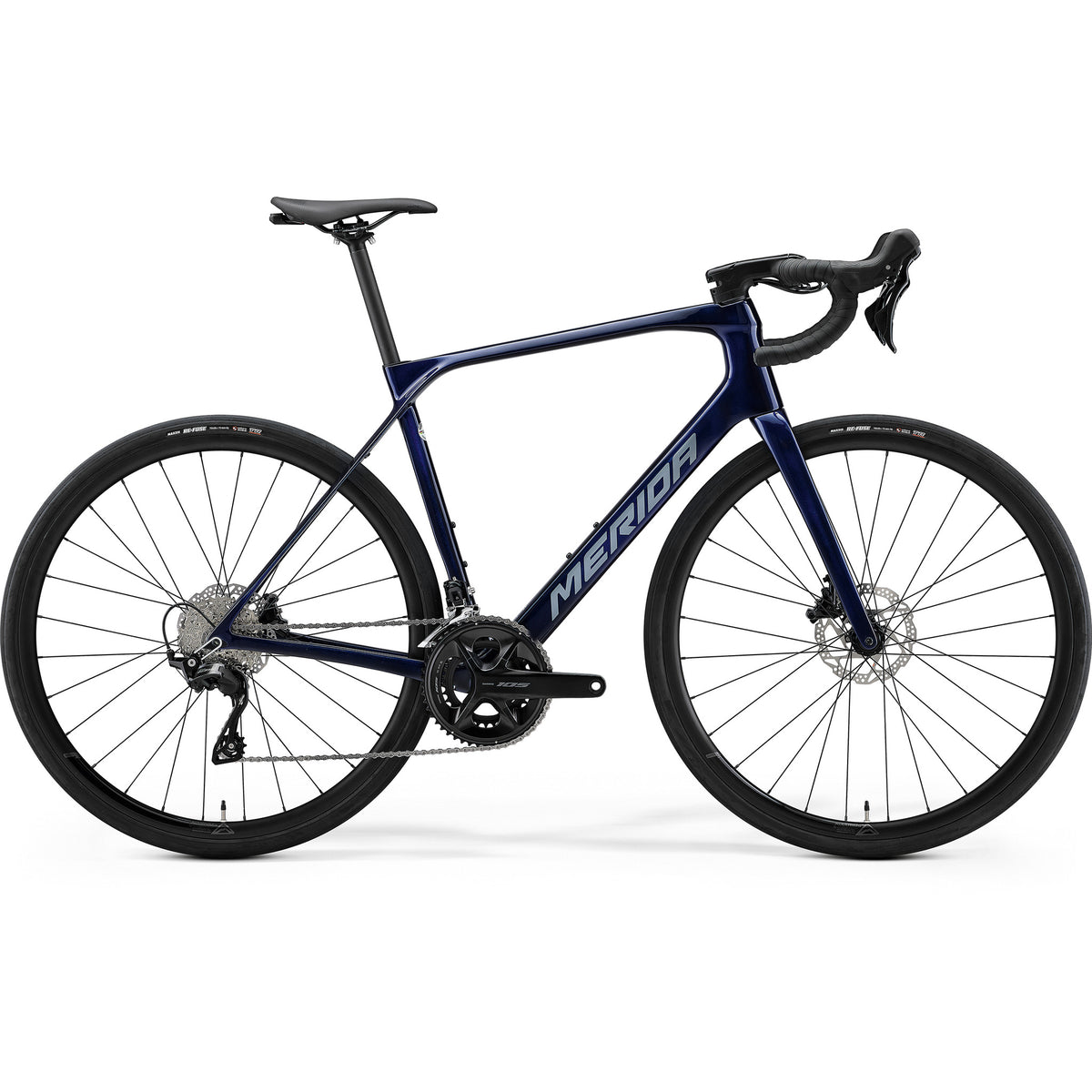

Scultura Endurance 4000 2027
