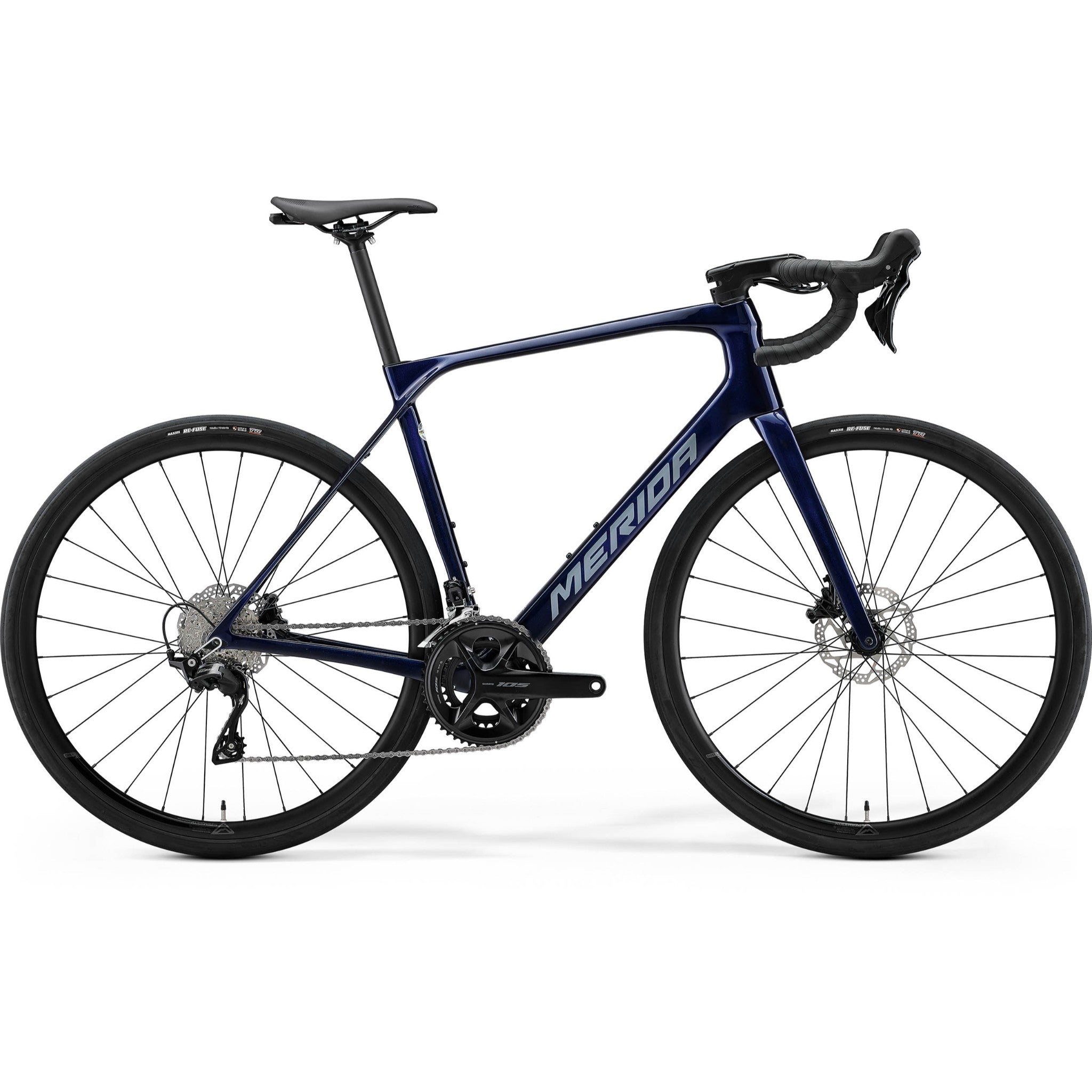

The Scultura Endurance 4000 is Merida's test- and award-winning endurance road bike, made for long days of efficient riding. It's the most affordable carbon version of the Scultura Endurance, pairing its CF3 carbon frame with a Shimano 105 mechanical groupset and hydraulic disc brakes for a great-value package.
Positioned between the Silex and the Scultura in Merida's road range, the Scultura Endurance is made for tarmac adventures. Its comfort-focused geometry uses a longer head tube for a more upright riding position, while a slacker head angle and slightly longer wheelbase add stability at speed. To keep the frame stiff and the steering precise, it uses 12mm thru-axles and a full carbon tapered fork, and the frame uses Nano Matrix carbon for impact resistance.
There's room for tyres up to 35mm (32mm with mudguards), and bigger-volume tyres can run at lower pressures for extra comfort on rough, potholed lanes. Gear and brake cables are routed through the headset to declutter the cockpit, the seat clamp is hidden, and the rear seatstay bridge can be removed if you're not fitting mudguards.
Features
- Comfortable, confidence-inspiring endurance geometry
- CF3 carbon frame with Nano Matrix and full carbon tapered fork
- Clearance for 35mm tyres, or 32mm with mudguards
- Shimano 105 2x12 drivetrain with 50-34T compact chainset
- Shimano 105 hydraulic disc brakes with Disc Cooler technology
- Maxxis Re-Fuse 32mm tyres on tubeless-ready rims
- Carbon seatpost and integrated seat clamp
Sizing
- XS: 158cm - 167cm
- S: 163cm - 172cm
- M: 168cm - 177cm
- L: 177cm - 187cm
- XL: 183cm and over
Specifications
DisciplineEndurance Road
MaterialCarbon
Wheel Size700c
WarrantyLifetime
Frame - CF3 carbon; Nano Matrix for impact resistance. Internal cable routing, 142x12mm axle standard, BB86 BB standard, flat mount rear brake with Disc Cooler, 1 1/2" head tube. Fully integrated seat clamp. Max tyre size 700x35c (700x32c with mudguard)
Fork - Scultura Endurance CF3 Disc; material: carbon; 700x35c max tyre size
Headset - Merida Team SL (SE-301 neck)
Stem - Merida Expert SL 2PII; material: aluminium; -9 degree rise; length: XXS-S 90mm, M 100mm, L-XL 110mm
Handlebar - Merida Expert SLII; material: aluminium; XXS-S 380mm wide, M-L 400mm wide, XL 420mm wide
Bar tape - Merida Road Expert
Brake type - Hydraulic disc
Brake levers - Shimano 105
Front brake - Shimano 105; hydraulic disc with Shimano RT54; 160mm
Rear brake - Shimano 105; hydraulic disc with Shimano RT54; 160mm
Front tyre - Maxxis Re-Fuse; 700x32c; Kevlar bead
Rear tyre - Maxxis Re-Fuse; 700x32c; Kevlar bead
Wheel size - 700c
Rims - Merida Expert SL III; 23mm inner rim width; material: aluminium; tubeless ready (tubeless tape and valves not included)
Spokes - Double butted black stainless
Front hub - Shimano HB-TC500; 100x12mm; 28 spoke; Centerlock
Rear hub - Shimano FH-TC500-HL; 12x142mm; 28 spoke; Centerlock
Speeds - 24
Front derailleur - Shimano 105
Rear derailleur - Shimano 105; GS
Shift levers - Front: Shimano 105 disc, Rear: Shimano 105 disc
Chain - Shimano M6100-12
Cassette - Shimano 105 R7101; 11-34 teeth; 12 speed
Chainset - Shimano 105 R7100; 50-34 tooth; crank length: XXS-XS 165mm, S-M 170mm, L-XL 172.5mm
Bottom bracket - Shimano SM-BB71-41B; Pressfit 86.5
Pedals - Not included
Saddle - Merida Comp SL; 25% recycled material; V-mount
Seatpost - Merida Expert SL; 27.2mm diameter; in-line; material: carbon
Scultura Endurance 4000 2026
- Road
- Carbon frame
Finance available – see options
Order within [time] for delivery by [date]
90 Day Returns
Free product with this bike
Make your choice below
-
Pro builtBuilt and safety-checked by our mechanics before it leaves us
-
Free UK mainland courier deliveryNorthern Ireland: £60
-
Collect in CanterburyPick up and get set up at our store
-
Talk to a riderChat with our team
The Scultura Endurance 4000 is Merida's test- and award-winning endurance road bike, made for long days of efficient riding. It's the most affordable carbon version of the Scultura Endurance, pairing its CF3 carbon frame with a Shimano 105 mechanical groupset and hydraulic disc brakes for a great-value package.
Positioned between the Silex and the Scultura in Merida's road range, the Scultura Endurance is made for tarmac adventures. Its comfort-focused geometry uses a longer head tube for a more upright riding position, while a slacker head angle and slightly longer wheelbase add stability at speed. To keep the frame stiff and the steering precise, it uses 12mm thru-axles and a full carbon tapered fork, and the frame uses Nano Matrix carbon for impact resistance.
There's room for tyres up to 35mm (32mm with mudguards), and bigger-volume tyres can run at lower pressures for extra comfort on rough, potholed lanes. Gear and brake cables are routed through the headset to declutter the cockpit, the seat clamp is hidden, and the rear seatstay bridge can be removed if you're not fitting mudguards.
Features
- Comfortable, confidence-inspiring endurance geometry
- CF3 carbon frame with Nano Matrix and full carbon tapered fork
- Clearance for 35mm tyres, or 32mm with mudguards
- Shimano 105 2x12 drivetrain with 50-34T compact chainset
- Shimano 105 hydraulic disc brakes with Disc Cooler technology
- Maxxis Re-Fuse 32mm tyres on tubeless-ready rims
- Carbon seatpost and integrated seat clamp
Sizing
- XS: 158cm - 167cm
- S: 163cm - 172cm
- M: 168cm - 177cm
- L: 177cm - 187cm
- XL: 183cm and over
Specifications
DisciplineEndurance Road
MaterialCarbon
Wheel Size700c
WarrantyLifetime
Frame - CF3 carbon; Nano Matrix for impact resistance. Internal cable routing, 142x12mm axle standard, BB86 BB standard, flat mount rear brake with Disc Cooler, 1 1/2" head tube. Fully integrated seat clamp. Max tyre size 700x35c (700x32c with mudguard)
Fork - Scultura Endurance CF3 Disc; material: carbon; 700x35c max tyre size
Headset - Merida Team SL (SE-301 neck)
Stem - Merida Expert SL 2PII; material: aluminium; -9 degree rise; length: XXS-S 90mm, M 100mm, L-XL 110mm
Handlebar - Merida Expert SLII; material: aluminium; XXS-S 380mm wide, M-L 400mm wide, XL 420mm wide
Bar tape - Merida Road Expert
Brake type - Hydraulic disc
Brake levers - Shimano 105
Front brake - Shimano 105; hydraulic disc with Shimano RT54; 160mm
Rear brake - Shimano 105; hydraulic disc with Shimano RT54; 160mm
Front tyre - Maxxis Re-Fuse; 700x32c; Kevlar bead
Rear tyre - Maxxis Re-Fuse; 700x32c; Kevlar bead
Wheel size - 700c
Rims - Merida Expert SL III; 23mm inner rim width; material: aluminium; tubeless ready (tubeless tape and valves not included)
Spokes - Double butted black stainless
Front hub - Shimano HB-TC500; 100x12mm; 28 spoke; Centerlock
Rear hub - Shimano FH-TC500-HL; 12x142mm; 28 spoke; Centerlock
Speeds - 24
Front derailleur - Shimano 105
Rear derailleur - Shimano 105; GS
Shift levers - Front: Shimano 105 disc, Rear: Shimano 105 disc
Chain - Shimano M6100-12
Cassette - Shimano 105 R7101; 11-34 teeth; 12 speed
Chainset - Shimano 105 R7100; 50-34 tooth; crank length: XXS-XS 165mm, S-M 170mm, L-XL 172.5mm
Bottom bracket - Shimano SM-BB71-41B; Pressfit 86.5
Pedals - Not included
Saddle - Merida Comp SL; 25% recycled material; V-mount
Seatpost - Merida Expert SL; 27.2mm diameter; in-line; material: carbon
