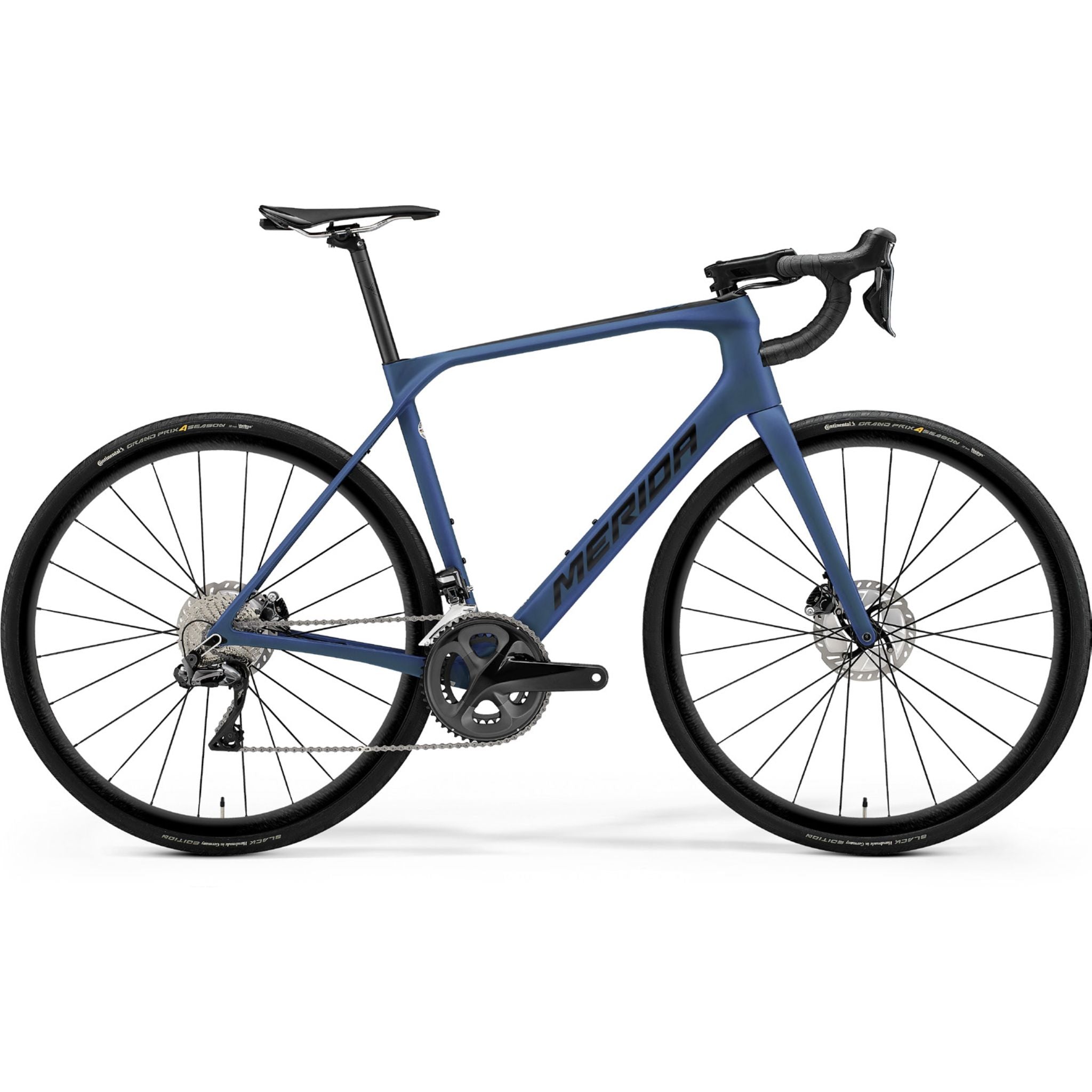

Sitting between the Silex and the Scultura in Merida's road range, the Scultura Endurance is made for tarmac adventures, with geometry designed for riders who want to enjoy long hours in the saddle while feeling comfortable and relaxed. The Scultura Endurance 4000 brings that comfort to a lightweight CF3 carbon frame.
Its comfort-focused geometry uses a longer head tube for a more upright riding position, while a slacker head angle and slightly longer wheelbase add stability at speed. To keep the frame stiff and the steering precise, it uses 12mm thru-axles and a full carbon tapered fork, and the CF3 frame uses Nano Matrix carbon for impact resistance, with a fully integrated seat clamp. There's room for tyres up to 35mm (32mm with mudguards) for extra comfort on even the most potholed country lanes.
Gear and brake cables are routed through the headset to declutter the cockpit, and the 4000 comes with a Shimano 105 2x12 groupset with a compact chainset, Shimano 105 hydraulic disc brakes on Disc Cooler fins, Maxxis Re-Fuse 32mm tyres and a carbon seatpost.
Features
- Comfortable, confidence-inspiring endurance geometry
- CF3 carbon frame with Nano Matrix and full carbon tapered fork
- Clearance for 35mm tyres, or 32mm with mudguards
- Shimano 105 2x12 drivetrain with 50-34T compact chainset
- Shimano 105 hydraulic disc brakes with Disc Cooler technology
- Maxxis Re-Fuse 32mm tyres on tubeless-ready rims
- Carbon seatpost and integrated seat clamp
Specifications
DisciplineEndurance Road
MaterialCarbon
Wheel Size700c
WarrantyLifetime (frame)
Frame - CF3 carbon; Nano Matrix for impact resistance. Internal cable routing, 142x12mm axle standard, BB86 BB standard, flat mount rear brake with Disc Cooler, 1 1/2" head tube. Fully integrated seat clamp. Max tyre size 700x35c (700x32c with mudguard)
Fork - Scultura Endurance CF3 Disc; full carbon; tapered steerer; Disc Cooler. Max tyre size 700x35c (700x32c with mudguard)
Speeds - 24
Shift levers - Shimano 105 disc
Front derailleur - Shimano 105
Rear derailleur - Shimano 105; GS
Bottom bracket - SM-BB71-41B; Pressfit 86.5
Chain - Shimano CN-M6100-12
Chainset - Shimano 105 FC-R7100; 50-34 tooth; crank length: 165mm (XXS), 170mm (XS), 172.5mm (S/M/L), 175mm (XL)
Cassette - Shimano CS-R7101; 11-34 teeth; 12 speed
Brake levers - Shimano 105
Front brake - Shimano 105; hydraulic disc brake caliper with Shimano RT54; 160mm rotor
Rear brake - Shimano 105; hydraulic disc brake caliper with Shimano RT54; 160mm rotor
Bar tape - Merida Expert
Handlebar - Merida Expert SLII; aluminium; 380mm (XXS-XS-S), 400mm (M-L), 420mm (XL)
Stem - Merida Expert SL 2PII; aluminium; -9 degree rise; length: 90mm (XXS-XS-S), 100mm (M), 110mm (L/XL)
Headset - Merida Team SL (SE-301 neck)
Saddle - Merida Comp SL; V-mount; made with 25% recycled material
Seatpost - Merida Expert CC; 27.2mm diameter; 15mm layback; carbon
Wheel size - 700c
Rims - Merida Expert SLII; 23mm inner rim width; 25mm rim depth; aluminium; tubeless ready (tubeless tape and valves not included)
Spokes - Double butted black stainless
Front hub - Shimano HB-TC500; 100x12mm; 28 spoke; Centerlock
Rear hub - Shimano FH-TC500-HL; 142x12mm; 28 spoke; Centerlock
Front tyre - Maxxis Re-Fuse; 700x32c; Kevlar bead
Rear tyre - Maxxis Re-Fuse; 700x32c; Kevlar bead
