Positioned between Silex and Scultura in the Merida road range the Scultura Endurance is aimed at tarmac adventure riding with geometry designed for riders who want to enjoy long hours in the saddle while being comfortable and relaxed on the bike.
The modern comfort-orientated geometry endows the Scultura Endurance with a longer head tube creating a more upright and comfort-orientated seating position. The slacker head angle and slightly longer wheelbase give the bike more stability at speed. To increase frame stiffness and steering precision the Scultura Endurance uses 12mm bolt through axles and a full carbon tapered fork.
There’s plenty of tyre clearance (up to 35c, or 32c if you fit mudguards), larger volume tyres can be run at lower pressures to provide more comfort even on pothole littered lanes. Merida have used plenty of neat touches such as routing shifting and brake cables through the headset to declutter the cockpit. Even the seat clamp is hidden and the rear seat stay bridge can be removed if it isn’t used to mount mudguards.
All Scultura Endurance (except are 200) have powerful hydraulic disc brakes. Calipers are flat mounted for a neat, flush fit on CNC'd aluminium Disc Cooler fins which reduce operating temperatures by up to 35%.
Key features -
- Comfortable, confidence inspiring geometry
- Lightweight triple butted 6066 aluminium frame
- Full carbon tapered fork
- 2 x 12 Shimano 105 transmission
- Shimano 105 compact chainset
- Shimano 105 hydraulic disc brakes
- Carbon seat post
- Maxxis Detonator 32c tyres
SIZING -
- XXS: 153-162cm
- XS: 158-167cm
- S: 163-172cm
- M: 168-177cm
- L: 177-187cm
- XL: 183cm+
Specifications
-
Discipline Road
-
Material Aluminium
-
Front Travel Rigid
-
Rear Travel N/A
-
Wheel Size 700c
-
Warranty Lifetime
Frame - Lite Aluminium, endurance geometry. Internal cable routing, 142 x12mm axle standard, BB86, flat mount rear brakes, 1 1/2" headtube. Max tyre - 35c (32c with mudguards)
Fork - Scultura Endurance CF3 Disc; material: carbon; 700x35C max. tyre size
Headset - Acros ICR Merida External neck w/diecast splitring
Stem - Merida Team CC III; material: aluminium; 31.8 mm diameter; -6 degree rise; Length: (XXXXS-XXXS) - 80mm, (XXS-S) - 90mm, M - 100mm, (L-XL) - 110mm
Handlebar - Merida Expert SLII; material: aluminium; (XXXXS-S) - 380mm wide, (M-L) - 400mm wide, XL - 420mm wide
Grip - Merida Road Expert
Brake Type - Hydraulic Disc
Brake Lever - Shimano 105
Front Brake - Shimano 105; Hydraulic disc with Shimano RT54; 160mm
Rear Brake - Shimano 105; Hydraulic disc with Shimano RT54; 160mm
Front Tyre - Maxxis Detonator; 700x32C; kevlar bead
Rear Tyre - Maxxis Detonator; 700x32C; kevlar bead
Wheel Size - 700c
Rim - Merida Expert SL III; 23mm inner rim width; material: aluminium; Tubeless ready (tubeless tape and valves not included)
Spokes - Double Butted Black stainless
Front Hub - Shimano HB-TC500; 100x12mm; 28 Spoke; Centerlock
Rear Hub - Shimano FH-TC500-HL; 12-142mm; 28 Spoke; Centerlock
Speeds - 24
Front Derailleur - Shimano 105
Rear Derailleur - Shimano 105; GS
Shift Levers - Front: Shimano 105 disc, Rear: Shimano 105 disc
Chain - Shimano M6100-12
Cassette - Shimano 105 R7101; 11-34 teeth; 12 speed
Chainset - Shimano 105 R7100; 50-34 tooth chainset; Crank length: (XXXXS-XXXS) - 160mm, (XXS-XS) - 165mm, (S-M) - 170mm, (L-XL) - 172.5mm
Bottom Bracket - Shimano SM-BB71-41B; Pressfit 86.5
Pedals - Not included
Saddle - Merida Comp SL; 25% recycled material; V-mount
Seat Post - Merida Comp CC; 27.2mm diameter; in-line; material: aluminium

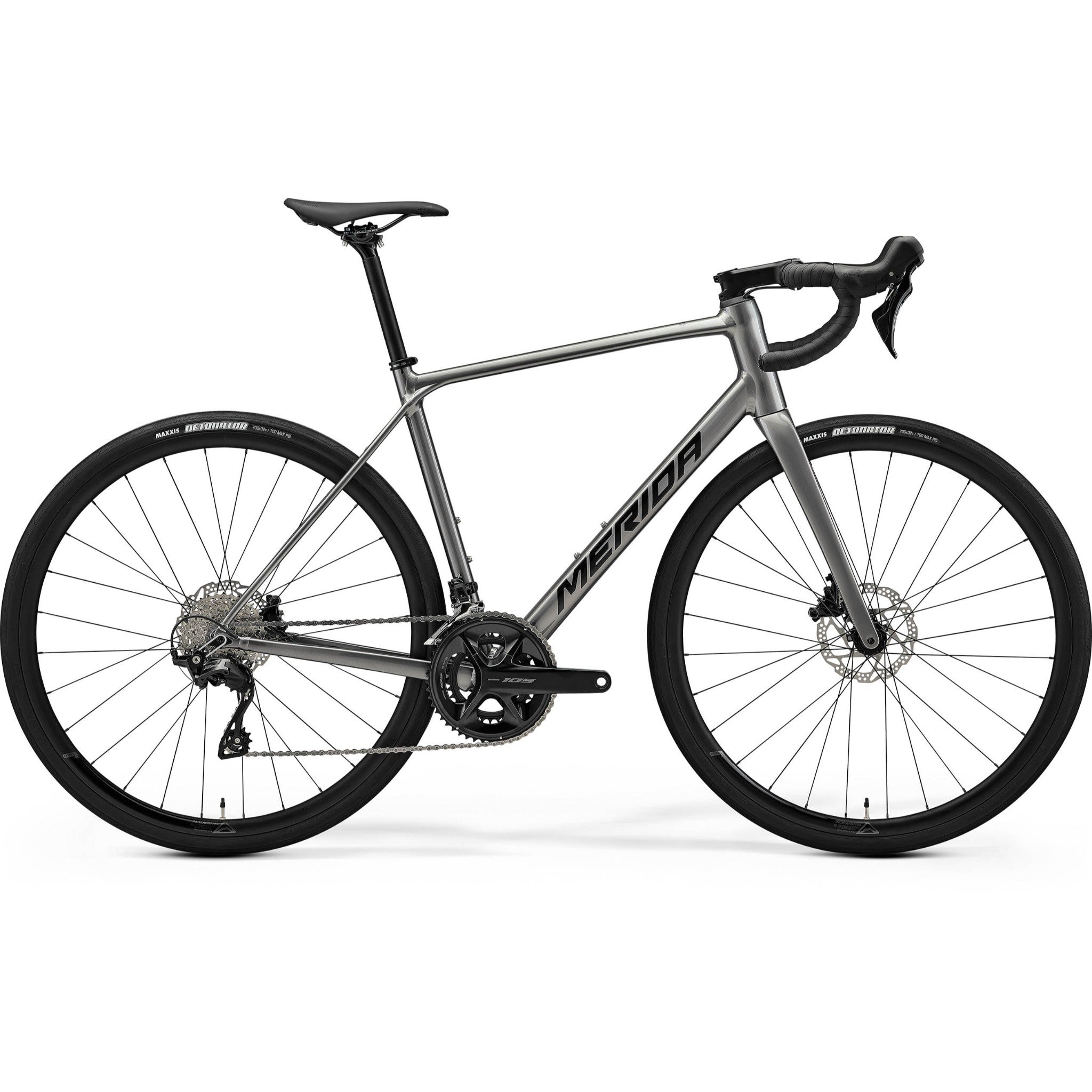

Scultura Endurance 400 2026
