A relaxed riding position and room for 35c tyres make the Scultura Endurance 200 an easy road bike to spend a long day on. It sits between the Silex and Scultura families in the brand's road range, so the head tube is taller and the wheelbase a little longer than a pure race frame, which keeps things calm and predictable when the legs are tired or the surface turns rough.
The Lite Aluminium frame is paired with a full carbon fork, 12mm bolt-through axles front and rear and internal cable routing, and the drivetrain is Shimano CUES 2 x 9 with an 11-36 cassette and a 50-34 chainset - a wide enough spread for British hills without any fuss. Braking is hydraulic disc at both ends, on flat mount calipers.
Features
- Lite Aluminium endurance frame with a taller head tube and longer wheelbase for a comfortable, stable ride
- Full carbon Scultura Endurance CF3 fork, 12mm bolt-through axles front and rear
- Shimano CUES 2 x 9 drivetrain with an 11-36 cassette and 50-34 chainset
- Shimano CUES hydraulic disc brakes on flat mount calipers
- Clearance for 35c tyres, or 32c with mudguards fitted
- Tubeless-ready Merida Comp SL II alloy wheels, 23mm internal width, Centerlock hubs (tubeless tape and valves not included)
- Internal cable routing, hidden seat clamp and a removable rear seat stay bridge for mudguard mounting
Specifications
Discipline Road
Material Alloy
Groupset Shimano CUES 2x9
Brakes Hydraulic disc
Wheel Size 700c
Max Tyre 35c
Frame - Lite Aluminium, endurance geometry. Internal cable routing, 142 x12mm axle standard, BB86, flat mount rear brakes, 1 1/2 headtube. Max tyre - 35c (32c with mudguards)
Fork - Scultura Endurance CF3 Disc; carbon; 700x35C max. wheel size
Headset - Acros ICR Merida external neck w/diecast splitring
Stem - Merida Team CC III; aluminium; 31.8mm diameter; -6° degree rise
Handlebar - Merida Expert SL II; aluminium; (4XS-S) - 380mm, (M-L) - 400mm, XL - 420mm
Grips - Merida ROAD Expert
Brake Type - Hydraulic Disc
Brake Levers - Shimano CUES
Brakes - Front: Shimano CUES; Disc Rear: Shimano CUES; Disc
Wheels - Rims: Merida Comp SL II; 23mm inner rim width; 24mm deep; aluminium; Tubeless ready (tubeless tape and valves not included) Spokes: Black stainless Front Hub: Joytech D981-12; 100x12mm; 28 spoke, Centerlock Rear Hub: Joytech D872SB; 12x142mm; 28 spoke; Centerlock
Tyres - Front: Maxxis Detonator; 700x32C; fold Rear: Maxxis Detonator; 700x32C; fold
Wheel Size - 700c
Speeds - 18
Shifters - Front: Shimano CUES BL-U4030-L Rear: Shimano CUES ST-U4030-R
Front Derailleur - Shimano CUES U6030
Rear Derailleur - Shimano CUES U3020; SGS
Chainset - Shimano CUES; 50-34 teeth; Crank Length: (4XS-XS) - 165mm, (S-M) - 170mm, (L-XL) - 172.5mm
Bottom Bracket - Shimano SM-BB71-41B; Pressfit 86.5mm
Chain - KMC xGlide
Cassette - SunRace U98 CS-U98; 11-36 teeth; 9 speed
Saddle - Merida Comp SL; 25% recycled material; V-mount
Seat Post - Merida Comp CC; 27.2mm diameter; in-line; aluminium

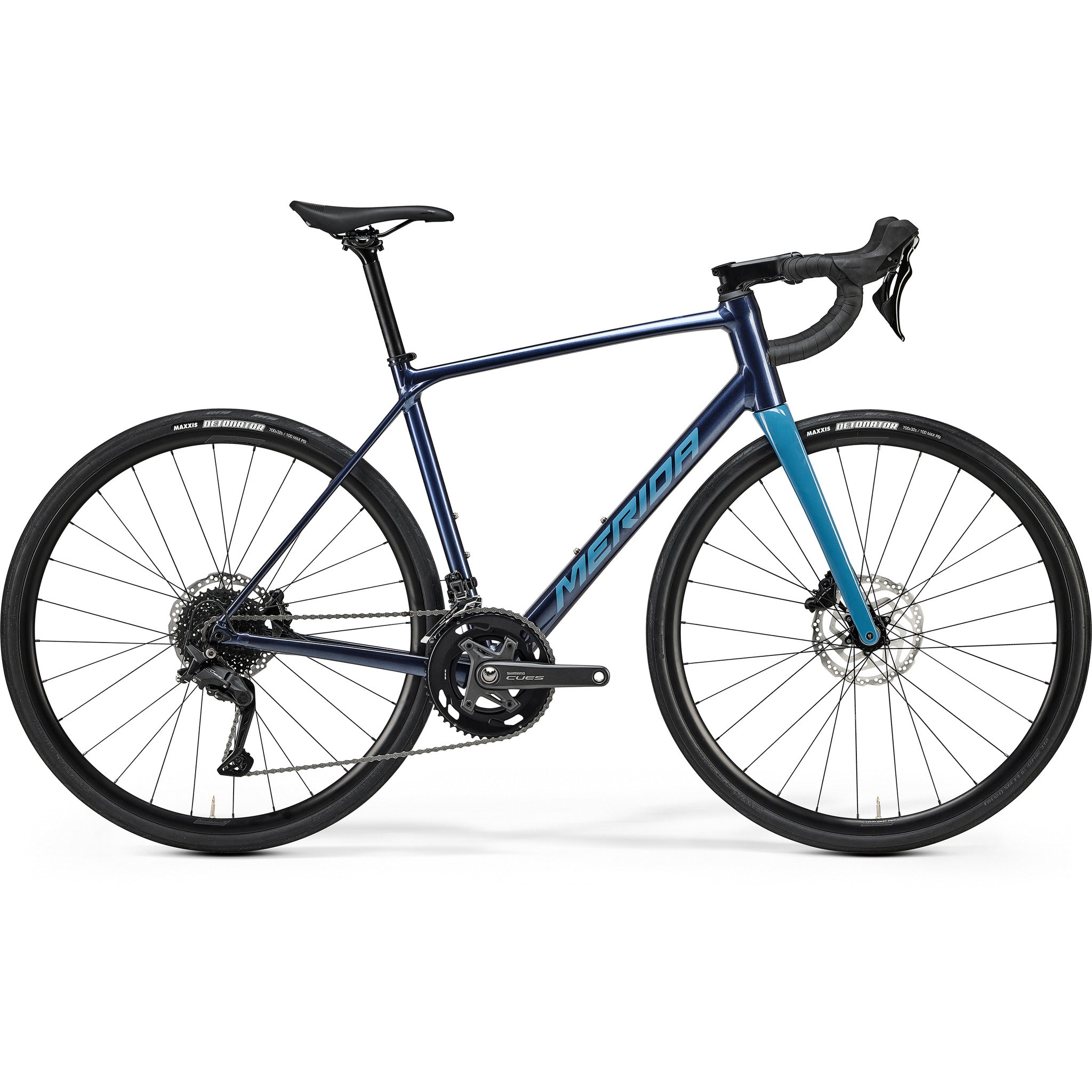

Scultura Endurance 200 2027
