Positioned between the Silex and the Scultura in Merida's road range, the Scultura Endurance is made for tarmac adventures, with geometry designed for riders who want to spend long hours in the saddle feeling comfortable and relaxed.
Its comfort-focused geometry uses a longer head tube for a more upright riding position, while a slacker head angle and slightly longer wheelbase add stability at speed. To keep the frame stiff and the steering precise, it uses 12mm thru-axles and a full carbon tapered fork. There's room for tyres up to 35mm (32mm with mudguards), and bigger-volume tyres can run at lower pressures for extra comfort on rough, potholed lanes.
Merida has added plenty of neat touches too, routing gear and brake cables through the headset to declutter the cockpit, hiding the seat clamp and making the rear seatstay bridge removable if you're not fitting mudguards. The Scultura Endurance 200 uses a lightweight aluminium frame with Shimano Cues 2x9 gearing and Shimano Cues mechanical disc brakes.
Features
- Lite aluminium frame with comfort-focused endurance geometry
- Full carbon tapered fork and 12mm thru-axles
- Clearance for 35mm tyres, or 32mm with mudguards
- Shimano Cues 2x9 drivetrain with 50-34T chainset and 11-36T cassette
- Shimano Cues mechanical disc brakes
- Maxxis Detonator 32mm tyres on tubeless-ready rims
- Cables routed through the headset and hidden seat clamp
Specifications
DisciplineEndurance Road
MaterialAluminium
Wheel Size700c
Frame - Lite aluminium; endurance geometry. Internal cable routing, 142x12mm axle standard, BB86, flat mount rear brakes, 1 1/2" head tube. Max tyre 35c (32c with mudguards)
Fork - Scultura Endurance CF3 Disc; material: carbon; 700x35c max tyre size
Headset - Acros ICR Merida external neck with diecast split ring
Stem - Merida Team CC III; material: aluminium; 31.8mm diameter; -6 degree rise; length: XXXXS-XXXS 80mm, XXS-S 90mm, M 100mm, L-XL 110mm
Handlebar - Merida Expert SLII; material: aluminium; XXXXS-S 380mm wide, M-L 400mm wide, XL 420mm wide
Bar tape - Merida Road Expert
Brake type - Mechanical disc
Brake levers - Shimano Cues
Front brake - Shimano Cues; mechanical disc with Shimano RT10; 160mm
Rear brake - Shimano Cues; mechanical disc with Shimano RT10; 160mm
Front tyre - Maxxis Detonator; 700x32c; Kevlar bead
Rear tyre - Maxxis Detonator; 700x32c; Kevlar bead
Wheel size - 700c
Rims - Merida Comp SL II; 23mm inner rim width; 24mm rim depth; material: aluminium; tubeless ready (tubeless tape and valves not included)
Spokes - Black stainless
Front hub - Joytech D981SB; 100x12mm; 28 spoke; Centerlock
Rear hub - Joytech D872SB; 12x142mm; 28 spoke; Centerlock
Speeds - 18
Front derailleur - Shimano Cues
Rear derailleur - Shimano Cues; SGS 9S
Shift levers - Front: Shimano Cues mechanical disc, Rear: Shimano Cues mechanical disc
Chain - KMC xGlide
Cassette - Shimano LG300-9; 11-36 teeth; 9 speed
Chainset - Shimano Cues; 50-34 tooth; crank length: XXXXS-XS 165mm, S-M 170mm, L-XL 172.5mm
Bottom bracket - Shimano SM-BB71-41B; Pressfit 86.5
Pedals - Not included
Saddle - Merida Comp SL; 25% recycled material; V-mount
Seatpost - Merida Comp CC; 27.2mm diameter; in-line; material: aluminium

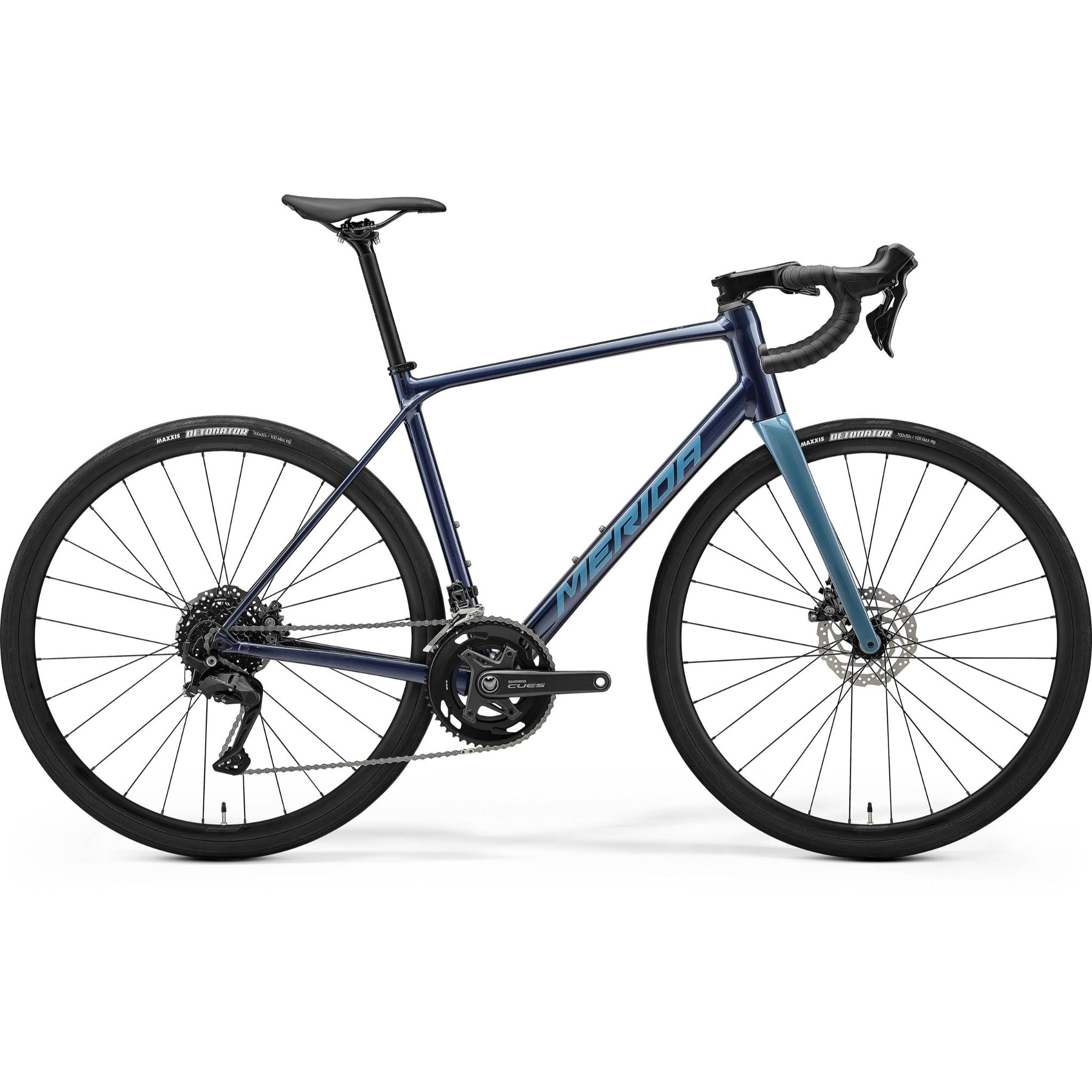

Scultura Endurance 200 2026
- Road
- Alloy frame
Finance available – see options
Order within [time] for delivery by [date]
90 Day Returns
Free product with this bike
Make your choice below
-
Pro builtBuilt and safety-checked by our mechanics before it leaves us
-
Free UK mainland courier deliveryNorthern Ireland: £60
-
Collect in CanterburyPick up and get set up at our store
-
Talk to a riderChat with our team
Positioned between the Silex and the Scultura in Merida's road range, the Scultura Endurance is made for tarmac adventures, with geometry designed for riders who want to spend long hours in the saddle feeling comfortable and relaxed.
Its comfort-focused geometry uses a longer head tube for a more upright riding position, while a slacker head angle and slightly longer wheelbase add stability at speed. To keep the frame stiff and the steering precise, it uses 12mm thru-axles and a full carbon tapered fork. There's room for tyres up to 35mm (32mm with mudguards), and bigger-volume tyres can run at lower pressures for extra comfort on rough, potholed lanes.
Merida has added plenty of neat touches too, routing gear and brake cables through the headset to declutter the cockpit, hiding the seat clamp and making the rear seatstay bridge removable if you're not fitting mudguards. The Scultura Endurance 200 uses a lightweight aluminium frame with Shimano Cues 2x9 gearing and Shimano Cues mechanical disc brakes.
Features
- Lite aluminium frame with comfort-focused endurance geometry
- Full carbon tapered fork and 12mm thru-axles
- Clearance for 35mm tyres, or 32mm with mudguards
- Shimano Cues 2x9 drivetrain with 50-34T chainset and 11-36T cassette
- Shimano Cues mechanical disc brakes
- Maxxis Detonator 32mm tyres on tubeless-ready rims
- Cables routed through the headset and hidden seat clamp
Specifications
DisciplineEndurance Road
MaterialAluminium
Wheel Size700c
Frame - Lite aluminium; endurance geometry. Internal cable routing, 142x12mm axle standard, BB86, flat mount rear brakes, 1 1/2" head tube. Max tyre 35c (32c with mudguards)
Fork - Scultura Endurance CF3 Disc; material: carbon; 700x35c max tyre size
Headset - Acros ICR Merida external neck with diecast split ring
Stem - Merida Team CC III; material: aluminium; 31.8mm diameter; -6 degree rise; length: XXXXS-XXXS 80mm, XXS-S 90mm, M 100mm, L-XL 110mm
Handlebar - Merida Expert SLII; material: aluminium; XXXXS-S 380mm wide, M-L 400mm wide, XL 420mm wide
Bar tape - Merida Road Expert
Brake type - Mechanical disc
Brake levers - Shimano Cues
Front brake - Shimano Cues; mechanical disc with Shimano RT10; 160mm
Rear brake - Shimano Cues; mechanical disc with Shimano RT10; 160mm
Front tyre - Maxxis Detonator; 700x32c; Kevlar bead
Rear tyre - Maxxis Detonator; 700x32c; Kevlar bead
Wheel size - 700c
Rims - Merida Comp SL II; 23mm inner rim width; 24mm rim depth; material: aluminium; tubeless ready (tubeless tape and valves not included)
Spokes - Black stainless
Front hub - Joytech D981SB; 100x12mm; 28 spoke; Centerlock
Rear hub - Joytech D872SB; 12x142mm; 28 spoke; Centerlock
Speeds - 18
Front derailleur - Shimano Cues
Rear derailleur - Shimano Cues; SGS 9S
Shift levers - Front: Shimano Cues mechanical disc, Rear: Shimano Cues mechanical disc
Chain - KMC xGlide
Cassette - Shimano LG300-9; 11-36 teeth; 9 speed
Chainset - Shimano Cues; 50-34 tooth; crank length: XXXXS-XS 165mm, S-M 170mm, L-XL 172.5mm
Bottom bracket - Shimano SM-BB71-41B; Pressfit 86.5
Pedals - Not included
Saddle - Merida Comp SL; 25% recycled material; V-mount
Seatpost - Merida Comp CC; 27.2mm diameter; in-line; material: aluminium
